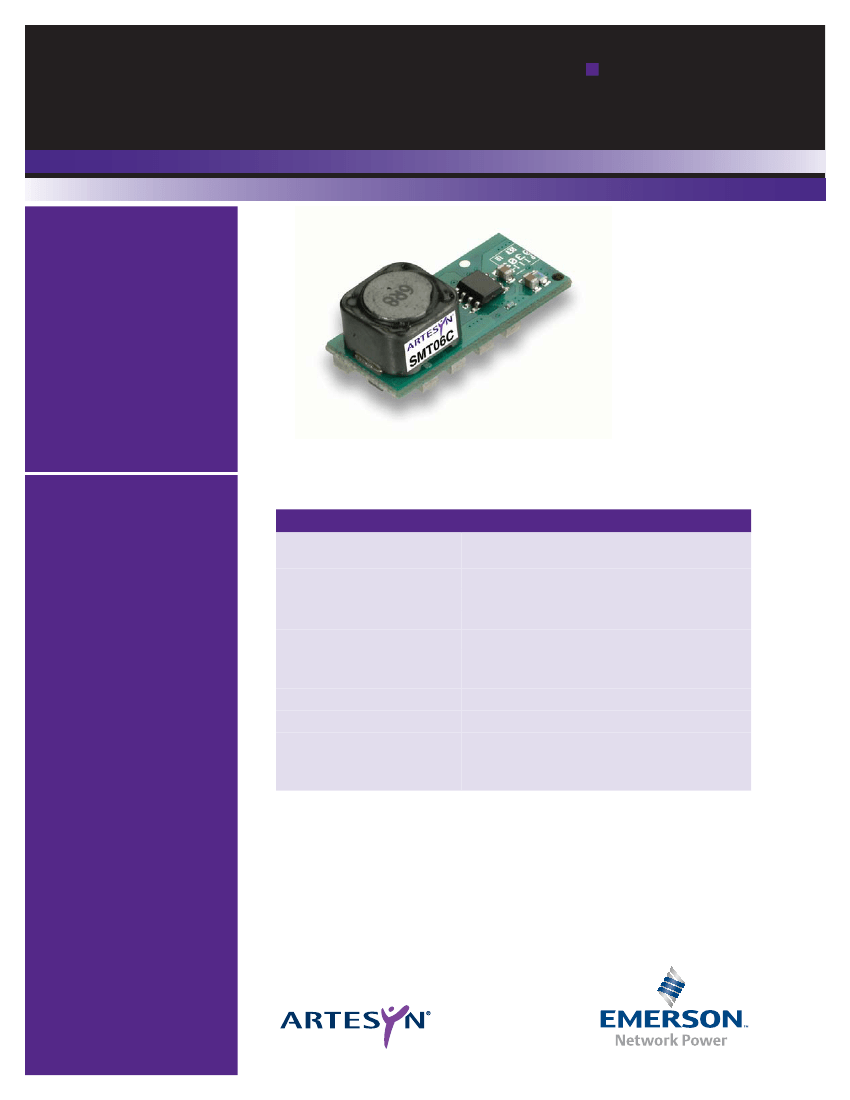

SMT06C Series
5 Vin and 12 Vin
single output
Rev. 08.20.08_j93
SMT06C
1 of 4
Total Power:
20W
Input Voltage: 4.5-5.5 Vdc or
10.2 - 13.8 Vdc
# of Outputs: Single
Electrical Specifications
Special Features
• 6 A current rating
• Input voltage range:
4.5 Vdc - 5.5 Vdc or
10.2 Vdc - 13.8 Vdc
• Output voltage range:
0.9 Vdc - 3.3/5.0 Vdc
• Industry leading value
• Cost optimized design
• Excellent transient response
• Output voltage adjustability
• Pathway for future
upgrades
• Supports silicon voltage
migration
• Resulting in reduced
design-in and qualification
time
• Designed in reliability:
MTBF of >7 million hours
per Telcordia SR-332
• Available RoHS compliant
• 2 year warranty
Output
Voltage adjustability (see note 6) 5 V input models
12 Vins
Output setpoint accuracy
1.0% trim resistors
Line regulation
Load regulation
Min/max load
Overshoot (at turn on)
Undershoot
Ripple and noise 5 Hz to 20 MHz
Transient response (see note 1)
5 V input models
12 V input models
At turn-off
(See note 2)
Low line to high line
Full load to min. load
0.9 - 3.3 Vdc
0.9 - 5.0 Vdc
±2.5%
±0.2%
±0.5%
0A/6A
3.0% max.
1.0% max.
100 mV max.
See table on page 2
75 mV max. deviation
150 μs recovery to
within regulation band
Safety
UL/cUL : CAN/CSA 22.2
No. 60950
TÜV Product Service
(EN60950:2000)
CB report and certificate
Embedded Power for
Business-Critical Continuity
All specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
Rev. 08.20.08_j93
SMT06C
2 of 4
Input
Input voltage range
Input current
Input current (max.)
(see note 8)
Input reflected ripple
(see note 2)
Remote ON/OFF
Logic compatibility
ON
OFF
Start-up time (see note 3) Power up
Remote ON/OFF
Turn ON threshold
Turn OFF threshold
5 Vin
12 Vin
5 Vin
12 Vin
See table on page 2
Fixed
(See note 4)
200 kHz.
TÜV product Services
IEC69050, UL/cUL60950
UL94V-0
9.3 g (0.3 oz.)
150
µm
Telcordia SR-332
7,562,142 hours
5 V input model
12 V input model
Minimum load
Remote OFF
5 V input model
12 V input model
5 Vin
12 Vin
4.5 - 5.5 Vdc
10.2 - 13.8 Vdc
50 mA
5 mA
5.1 A max. @ lo max.
1.6 A @ lo max.
52 mA (pk-pk)
56 mA (pk-pk)
Positive logic
>2.4 Vdc
<0.8 Vdc
<20 ms
<20 ms
4.5 Vdc typ.
9.3 Vdc typ.
4.3 Vdc typ.
7.8 Vdc typ.
General Specifications
Efficiency
Switching frequency
Approvals and standards
Material flammability
Weight
Coplanarity
MTBF
Environmental Specifications
Thermal performance
(see note 9)
Operating ambient,
temperature
Non-operating
0 °C to +80 °C
-40 °C to +125 °C
Protection
Short-circuit
Recommended system capacitance
Input capacitance
Output capacitance
(See note 10)
(See note 10)
270 μF/20 mW ESR max.
680 μF/10 m W ESR max.
Hiccup, non-latching
Embedded Power for
Business-Critical Continuity
Ordering Information
Output
Power
(max)
20 W
30 W
Input
Voltage
4.5-5.5 Vdc
10.2 - 13.8 Vdc
Rev. 08.20.08_j93
SMT06C
3 of 4
Output
Current
(min)
0A
0A
Output
Current
(max)
6A
6A
Maximum
Load (typ)
89%
91%
Regulation
Line
±0.2%
±0.2%
Output
Voltage
(11)
0.9-3.3 V
0.9-5.0 V
Model Numbers
(12, 13)
SMT06C-05SADJJ
SMT06C-12SADJJ
Load
±0.5%
±0.5%
All specifications are typical at nominal input Vin = 12 V, full load at 25
°
C unless otherwise stated.
Part Number System with Options
Product Family
Rated Output
Current
Performance
Input Voltage
Number of Outputs
Packaging Options
SMT
SMT = Surface Mount
06
06 = 6 A
C
C = C Series
12
05 = 4.5 Vdc to 5.5 Vdc
12 = 10.2 Vdc to 13.8 Vdc
SADJ
SADJ = Single Adjustable
Output
J
J = PB-free (RoHS 6/6 compliant)
Output Voltage Adjustment of the SMT20C Series
The ultra-wide output voltage trim range offers major advantages to users who
select the SMT06C series. It is no longer necessary to purchase a variety of
modules in order to cover different output voltages. The output voltage can be
trimmed in a range of 0.9 Vdc to 5.0 Vdc. When the SMT06C series converter
leaves the factory the output has been adjusted to the default voltage of 0.9 V.
Notes
1
di/dt = 10 A/μs, Vin = Nom, Tc = 25 °C, load change = 0.50 lo max. to 0.75 lo
max. and 0.75 lo max. to 0.5 lo max.
2
Measured with external filter. See Application Note 169 for details.
3
Power up is the time from application of dc input to Power Good high.
Remote ON/OFF asserted high to Power Good high.
4
This product is only for inclusion by professional installers within other
equipment and must not be operated as a stand alone product.
5
Measured as per recommended set-up. Cin = 270 μF (20 m
W
ESR max.).
Cout = 680 μF (10 m
W
ESR max.).
6
Uses external resistor from trim to ground. Minimum value 485
W
for 5 V
model, 280
W
for 12 V model. See Application Note 169 for details.
7
Signal line assumed <3 m.
8
External input fusing recommended.
9
See Application Note 169 for operation above 50 ºC.
10
See Application Note 169 for more details.
11
TSE RoHS 5/6 (non Pb-free) compliant versions may be available on special
request, please contact your local sales representative for details.
12
NOTICE: Some models do not support all options. Please contact your local
representative or use the on-line model number search tool at
www.powerconversion.com to find a suitable alternative.
Ripple and Noise Specification
Model
5 V input models
12 V input models
Output
Voltage
0.9 Vdc to 2.5 Vdc
3.3 Vdc
0.9 Vdc to 2.5 Vdc
3.3 Vdc to 5 Vdc
Pk - Pk
30 mV
40 mV
40 mV
50 mV
RMS
15 mV
15 mV
20 mV
20 mV
Embedded Power for
Business-Critical Continuity

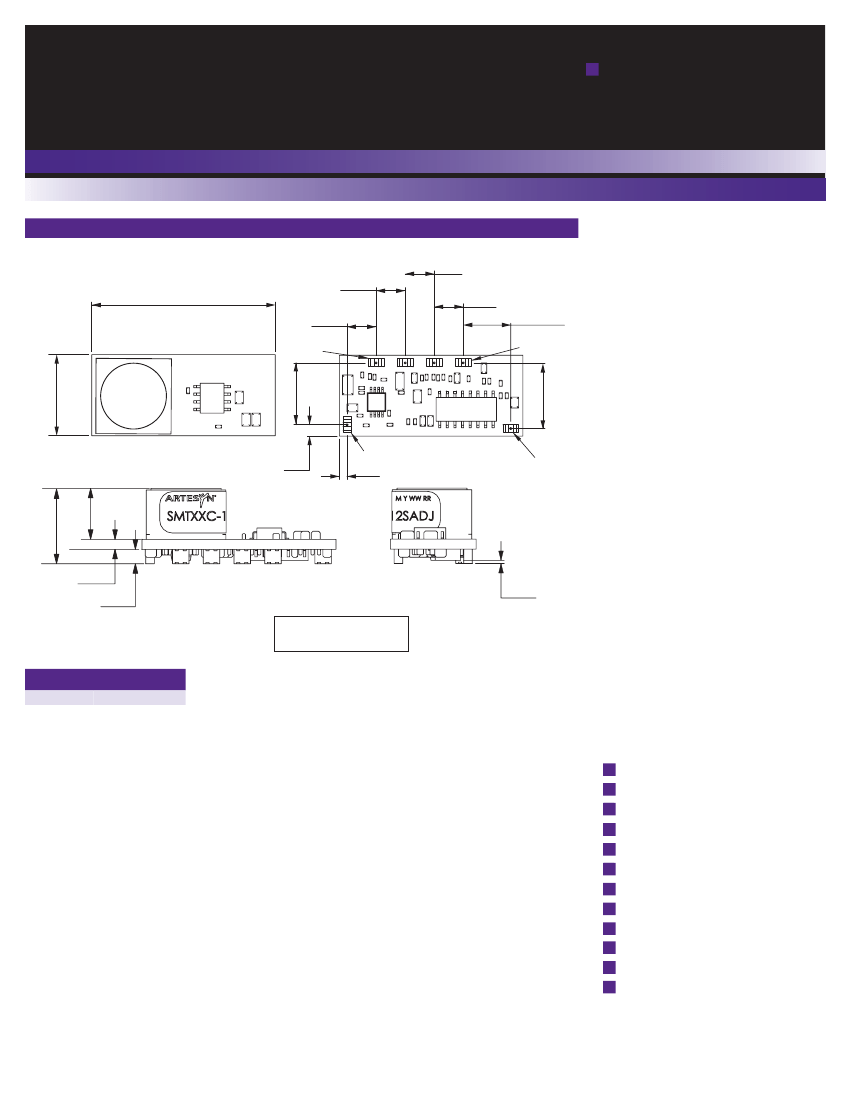

Mechanical Drawing
0.190
(4.83)
0.190
(4.83)
Americas
1.200
(30.48)
0.190
(4.83)
PIN 2
0.190
(4.83)
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 (760) 930 4600
Facsimile: +1 (760) 930 0698
0.310
(7.87)
PIN 5
Rev. 08.20.08_j93
SMT06C
4 of 4
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
0.530
(13.46)
0.430
(10.93)
0.75
(1.90)
PIN 1
0.050
(1.27)
PIN 6
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
0.466 (11.83)
Installed Ht.
0.315
(8.00)
Seating Plane
0.062
(1.57) REF
6 x 0.089
(2.26)
All dimensions in inches (mm)
All tolerance 0.010in (0.25mm)
unless otherwise stated
For global contact, visit:
0.019
(0.48) TYP
www.powerconversion.com
technicalsupport@
powerconversion.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
Pin connections
Pin Number
Function
1
2
3
4
5
6
Remote ON/OFF
Power Good
Trim
Vout
GND
Vin
