3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMAD CEE

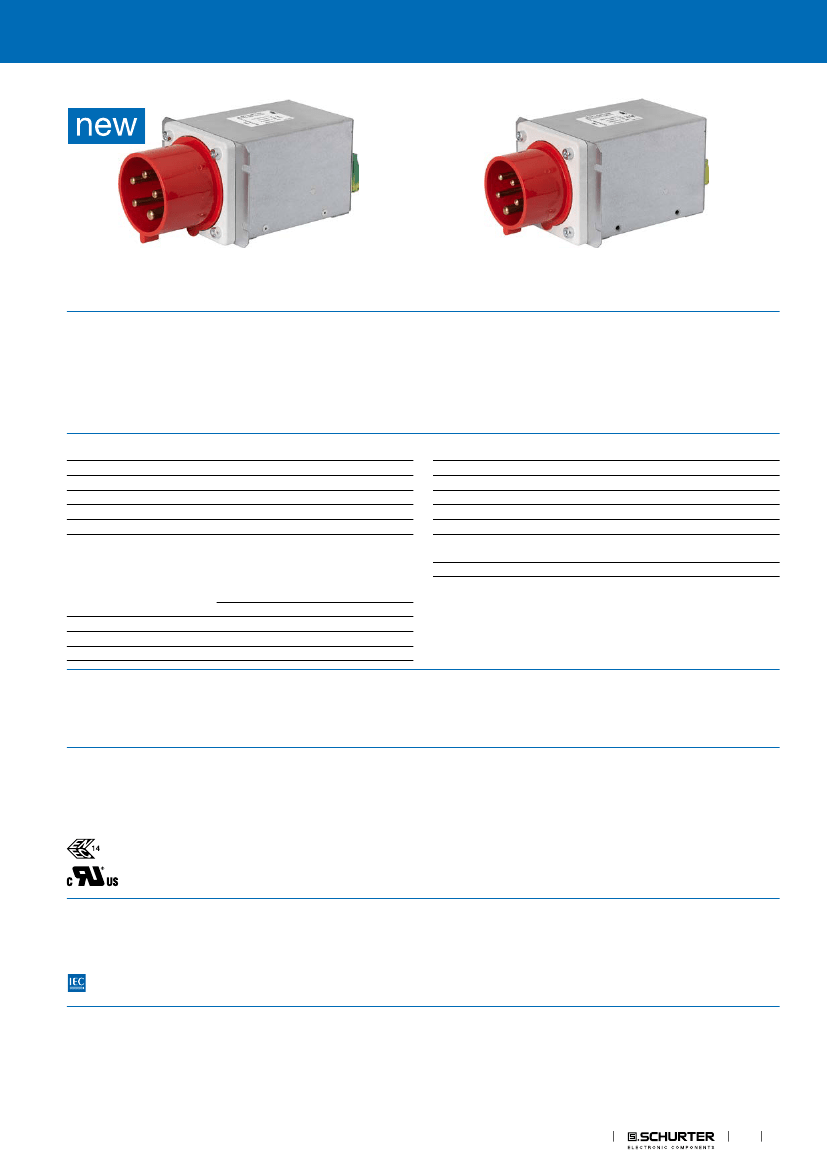

1-stage filter with 3-phase CEE connector
Approvals and Compliances
Description
- 3 Phase CEE Connector with Filter
- Easy and time saving handling
Applications
Unique Selling Proposition
-
-
-
-
First CEE power entry module with EMC filter
Easy prewired solution
Universal flange for front or rear mounting
Optimal filter position direct on the power entry
- Protection against interference voltage from the mains
- Possible interferences generated in the equipment are strongly attenu-
ated
- Suitable for equipment with detachable power cord
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Current
Rated voltage
Approval for
Overload Current
Leakage Current
Dielectric Strength
16 - 32 A @ Ta 40 °C
277/480 VAC, 50/60 Hz
16 - 32 A / 277/480 VAC
1.5 x Ir
industrial < 10 mA (440 V / 50 Hz)
277/480 VAC:
2.25 kVDC between L-L
1.7 kVDC between L-N
3 kVDC between L-PE
Test voltage (2 sec)
1-stage
1.4 kg
Metal
UL 94V-0
Mounting
Terminal
Operating Temperature
Climatic Category
Degree of Protection
Protection Class
MTBF
Screw-on mounting on chassis
Screw clamps
-40 °C to 85 °C
40/085/21 acc. to IEC 60068-1
IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
> 200'000 h acc. to MIL-HB-217 F
Number of Filter Stages
Weight
Material: Housing
Sealing Compound
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMAD CEE
Approval Logo
Certificates
SEMKO Approvals
UL Approvals
Certification Body
SEMKO
UL
Description
Certificate Number: SE/09137-4
UL File Number: E72928
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
EMC Products
1
FMAD CEE
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

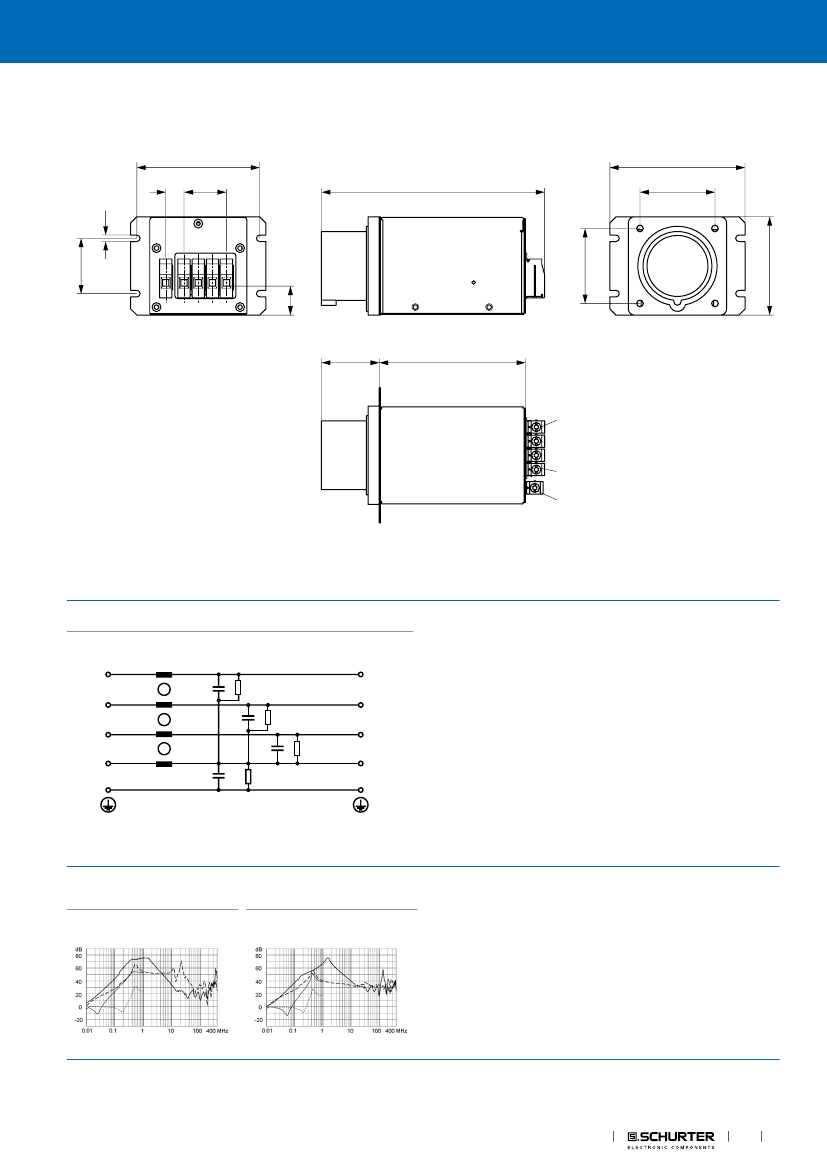

Dimension [mm]
Case QT1
100
±0.3
15
5.3
(4x)
34.5
max.180
max.111
61
±0.2
25
47
max.120
1)
L1'
L2'
2) L3'
N
PE
4 mm
2
; 0.5-0.6 Nm
(5x)
3)
4)
1) Line
2) Load
3) Blue
4) Yellow-Green
2
EMC Products
max.81
45
±0.3
61
±0.2
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMAD CEE
Case QT3
100
±0.3
15
5.3
(4x)
34.5
max.195
max.111
61
±0.2
24
56
max.120
1)
L1'
L2'
2) L3'
N
PE
10 mm
2
; 1.5-1.8 Nm
(5x)
3)
4)
1) Line
2) Load
3) Blue
4) Yellow-Green
Diagrams
L
C1
L2
C1
C1
N
PE
C2
R2
R1
R1
R1
N'
PE'
L 2'
L 3'
L1
L1'
1)
L 3
2)
1) Line
2) Load
.
Attenuation Loss
. . . . 0.1/100Ω differential mode
Industrial version
........... 100/0.1Ω differential mode
- - - - 50Ω differential mode _____ 50Ω common mode
16 A
30 / 32 A
EMC Products
3
max.81
45
±0.3
61
±0.2
FMAD CEE
All Variants
Rated Current
@ Ta 50°C (40°C) [A]
Rated Voltage [VAC]
Power
loss
@ 25°C,
50Hz [W]
Leakage
Current @
400VAC, 50Hz
10
10
10
Weight [kg]
Screw clamps
[mm
2
]
2)
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
Housings
Packaging
unit
Order Number
16
30
32
█
Most Popular.
240/415
277/480
240/415
5.6
4.3
4.9
1.3 kg
1.4 kg
1.4 kg
4
10
10
QT1
QT3
QT3
1
1
1
FMAD-T4QT-1660.EU
FMAD-T4QT-3060.US
FMAD-T4QT-3260.EU
█
█
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) Nominal leakage current acc. to IEC60950 - 5.2.5. under normal operating conditions. Note: worst case leakage current acc. to IEC60950 - Annex G4 (situation with two
interrupted lines) can be much higher.
2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information www.schurter.
com/emc_info
4
EMC Products
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
30.11.2017
