WWW.PHIHONG.COM

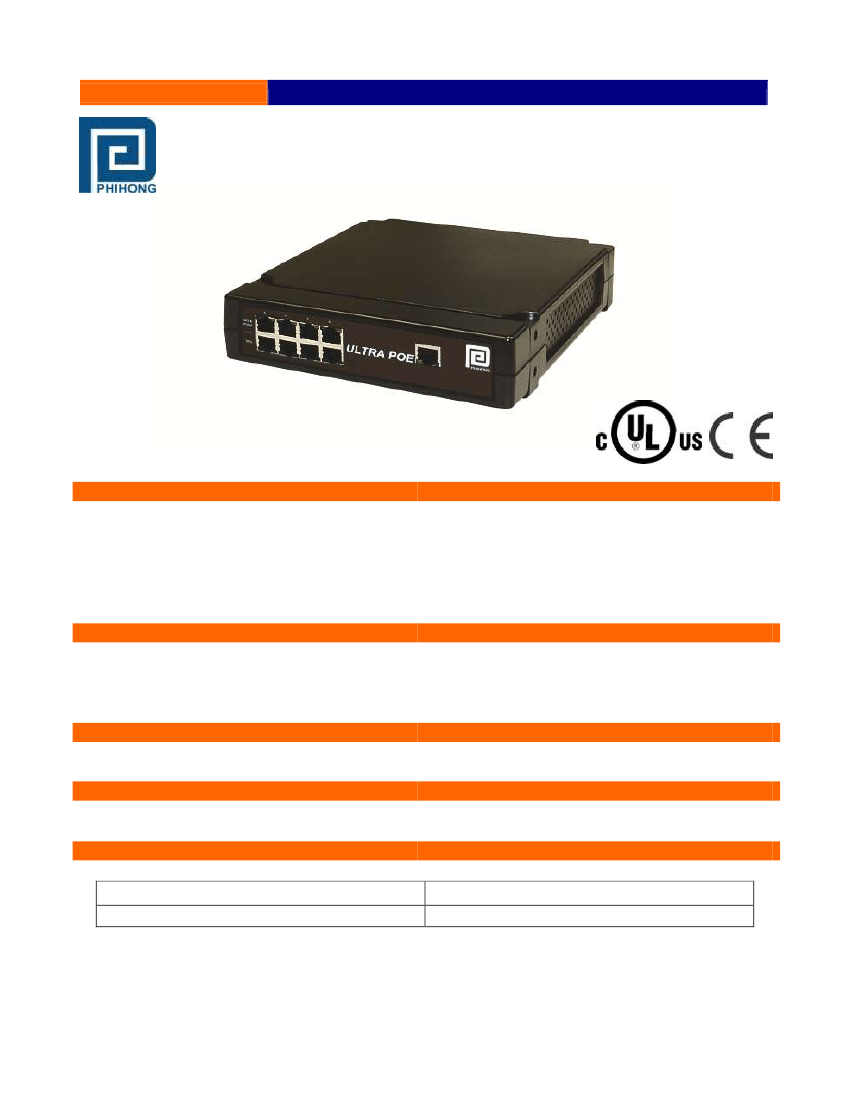

4 Ports 60W per Port Power over Ethernet Midspan
Ultra PoE Midspan
Features
Fully Compliant Detection, Disconnect
and Voltage Control IEEE802.3af
Proprietary Detection, Disconnect and
Overload Protection
Full Protection OCP, OVP
Optional Mounting Kit for 19” Rack
Applications
LCD Displays
Wireless Access Points
High Power Radios
Safety Approvals
cUL/UL

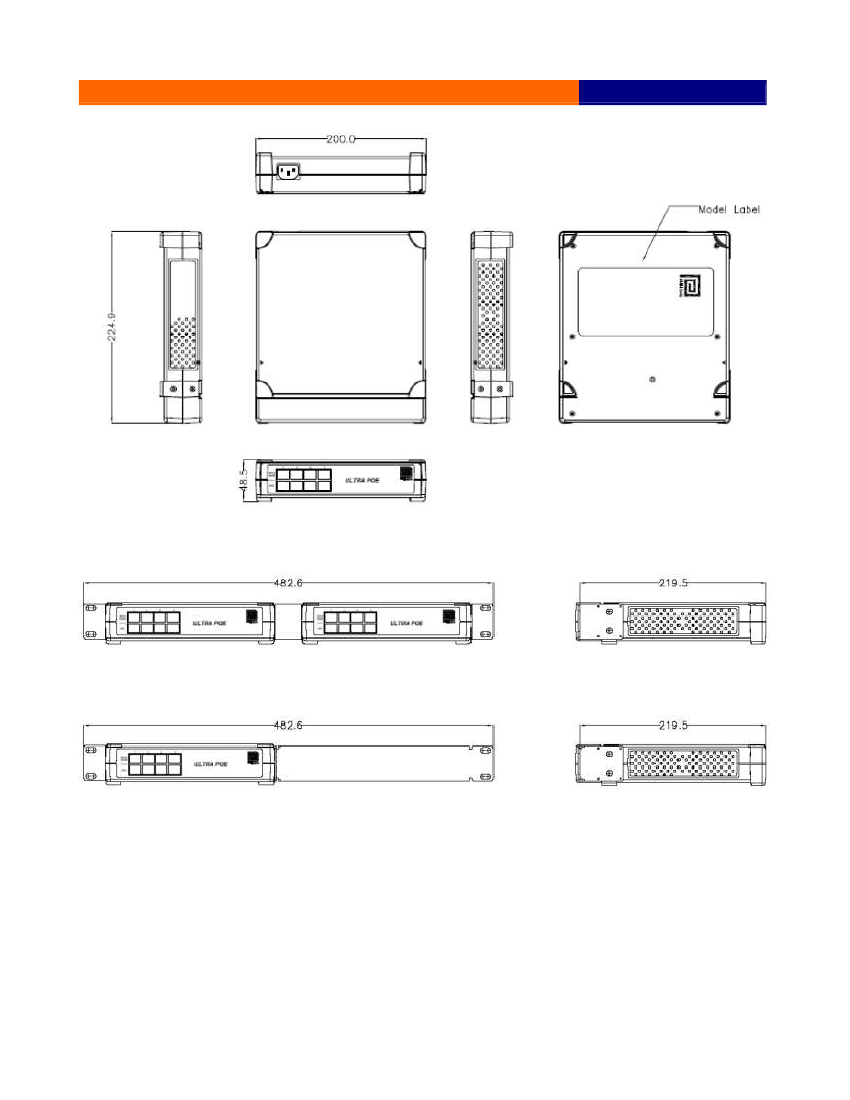

Mechanical Characteristics
Length: 224.9mm (8.85in)
Width: 200mm (7.87in)
Output Specifications
Model
POE240U-4UP-N
Limited Power Source
Gigabit Compatible
Diagnostic LEDs
SNMP Management
Full Power at 60W per port
1 Year Warranty
Computer Stations
Kiosks
CE
Height: 48.5 mm (1.91in)
Weight: 1.59Kg (3.5lbs)
Number of Ports
4
Optional 19” Rack mounting adapter to mount 1 POE125U or 2 side by side; order P/N POE125U-ACCY01
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at
www.phihong.com for the most up-to-date specifications and contact information.
Revision 3/2/2015
POE240U-4UPN Characteristics
INPUT:
AC Input Voltage Range
90 to 264VAC
WWW.PHIHONG.COM
Insulation Resistance
Primary to Secondary: >10M OHM 500VDC
Primary to Field Ground: >10M OHM 500VDC
Input Frequency
47-63Hz
Immunity EN50082-1
ESD:
RS:
EFT:
Surge:
CS:
Voltage Dips
Harmonic:
EN61000-4-2. Level 3
EN61000-4-3. Level 2
EN61000-4-4. Level 2
EN61000-4-5. Level 3
EN61000-4-6. Level 2
EN61000-4-11
EN61000-3-2 Class A
Input Current
5A (RMS) maximum for 90VAC
2.5A (RMS) maximum for 230VAC
Leakage Current
3.5mA maximum at 254VAC 60Hz
IEEE 802.3af Interoperability
AC Inrush Current
30A (RMS) maximum for 115VAC
60A (RMS) maximum for 230VAC
If 25kohm is detected the unit operates in “IEEE802.3at mode”
33.6W 2 pair powering. 12.5k detection resistance required for
full power
UNH Interoperability report available on request
OUTPUT:
Total Output Power
60W per port at 56V+1/-2
Total power on all ports 240W
FEATURE:
Cisco Legacy detection
No extern parts required for Legacy devices:
VoIP Phones:
7910, 7912, 7940, 7960
Access Points:
350, 1100, 1200, 1250
Ripple and Regulation
250mV maximum
Efficiency
75% (typical) at maximum load, and 120VAC 60Hz
Over Voltage/Current, Short Circuit Protection
Outputs equipped with short circuit protection and overload
protection as per 802.3af specifications except for maximum
average current is 1.69A
The output can be shorted permanently without damage
Hold-up Time
10mS min. 120VAC and maximum load
Transient O/P Voltage Protection
60V maximum at switch on and off at any AC line Phase
Over Temperature Protection
Automatic Shutdown without damage
Turn-On Delay Time
20 sec maximum at maximum load, and 120VAC 60Hz, 25Hz
Indicators
Green LED: Power detected “CONNECT” at 60W
Flashing GREEN: IEEE802.3at detected “CONNECT” at 30W
Yellow LED: Fault detected
ENVIRONMENTAL:
Temperature
Operation
Non-operation
0 to +40°C
-25 to +65°C
Input Connector
AC Input IEC320 3 pin
Humidity
Operation
5 to 90%
Output Connection
4-pair powering for full power
Pins 3,6, 4,5(+)
Pins 1,2, 7,8 (-)
EMC
EN55022 Radiate Class A
EN55022 Conducted Class B
2-pair powering for IEEE802.3at mode
Pins 3,6(+) Pins 1,2 (-)
Isolation Test
Primary to Secondary: 4242VDC for 1 minute
Primary to Ground: 2121VDC for 1 minute
Secondary to Ground: 2121VDC for 1 minute
Warranty
1 Year
