SUPER BRIGHT T-1 3/4 (5 mm)
LED LAMP - Water Clear

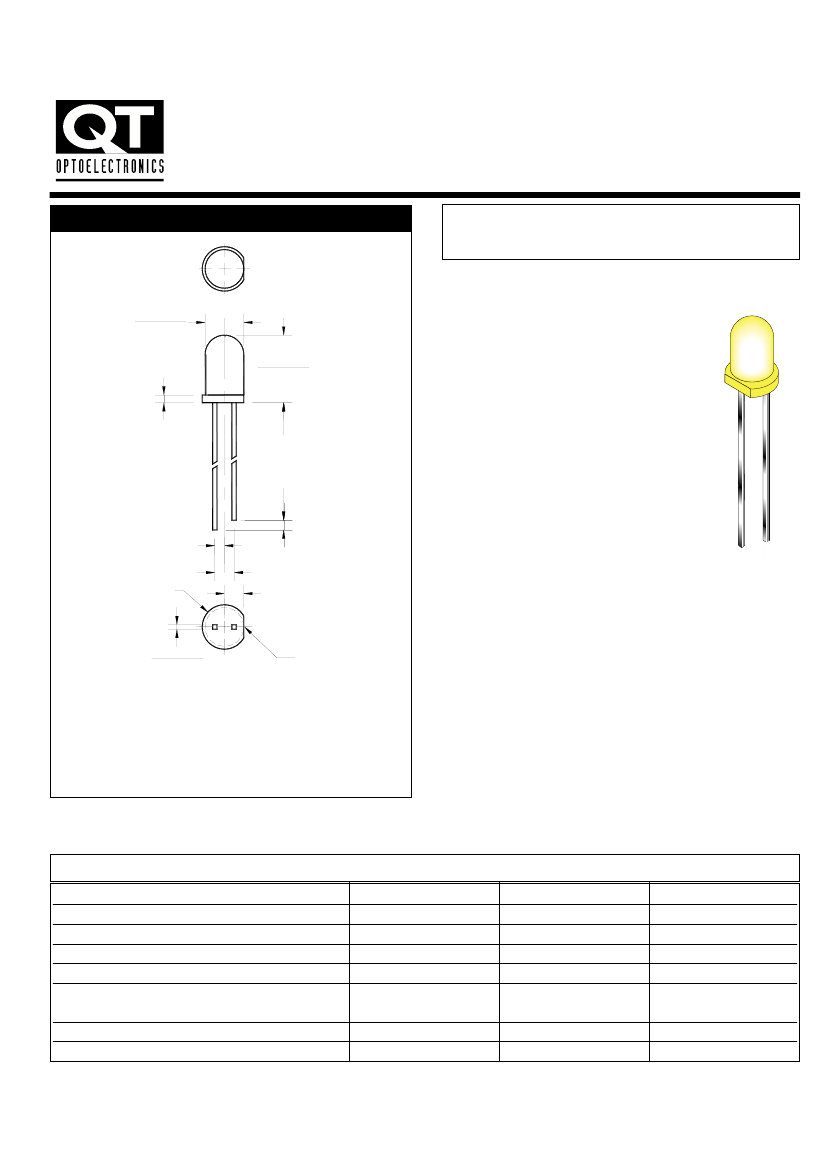

PACKAGE DIMENSIONS
SUPER YELLOW
MV8341 MV8342
MV834X
0.200 (5.08)
0.180 (4.57)
C
L
0.040 (1.02)
0.350 (8.89)
0.330 (8.38)
FEATURES
• Popular T-1 3/4 package
• Super high brightness suitable for outdoor
1.00 (25.4)
MIN
applications
• Solid state reliability
• Water clear optics
• Standard 100 mil. lead spacing
0.050 (1.27)
0.100 (2.54)
Ø 0.230 (5.84)
0.050 (1.27)
REF.
0.100 (2.54)
REF.
0.023 (0.58)
0.017 (0.43)
SQ. TYP. (2X)
FLAT DENOTES
CATHODE
NOTES:
1. Dimensions for all drawings are in inches (mm).
2. Lead spacing is measured where the leads emerge from
the package.
3. Protruded resin under the flange is 1.5 mm (0.059") max.
DESCRIPTION
This T-1 3/4 super bright LED has a viewing angle of 45° for con-
centrated light output. The MV834X series is made with an
AllnGap LED that emits yellow light at 590 nm. It is encapsulated
in a water clear epoxy lens package.
ABSOLUTE MAXIMUM RATINGS
Parameter
Operating Temperature
Storage Temperature
Lead Soldering Time
Continuous Forward Current
Peak Forward Current
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage
Power Dissipation
(T
A
= 25°C unless otherwise specified)
Symbol
T
OPR
T
STG
T
SOL
I
F
I
F
V
R
P
D
Rating
-40 to +100
-40 to +100
260 for 5 sec
30
160
5
85
Unit
°C
°C
°C
mA
mA
V
mW
1 of 3
1/27/00
300026A
SUPER BRIGHT T-1 3/4 (5 mm)
LED LAMP - Water Clear
SUPER YELLOW
MV8341 MV8342
ELECTRICAL / OPTICAL CHARACTERISTICS
Part Number
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Peak Wavelength (nm)
Spectral Line Half Width (nm)
Viewing Angle (°)
2.8
2.1
590
15
45
2.8
2.1
590
15
45
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
160
240
250
370
I
F
= 20 mA
MV8341
(T
A
=25°C)
MV8342
Condition
I
F
= 20 mA
MV834X
TYPICAL PERFORMANCE CURVES
100
90
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
1.5
2.0
2.5
3.0
IF - FORWARD CURRENT (mA)
80
70
60
50
40
30
20
10
0
1.0
0.0
0
10
20
30
40
50
2.0
2.5
1.5
1.0
0.5
V
F
- FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 1 Forward Current vs. Forward Voltage
Fig. 2 Relative Luminous Intensity vs. DC Forward Current
2 of 3
1/27/00
300026A
SUPER BRIGHT T-1 3/4 (5 mm)
LED LAMP - Water Clear
SUPER YELLOW
MV8341 MV8342
MV834X
1.0
-20˚
RELATIVE INTENSITY
-30˚
-40˚
-50˚
0.5
-60˚
-70˚
-80˚
-90˚
100
550
600
WAVELENGTH - nm
650
700
REL. LUMINOUS INTENSITY (%)
80
60
40
20
0
20
40
60
80
-10˚
0˚
10˚
20˚
30˚
40˚
50˚
60˚
70˚
80˚
90˚
100
0

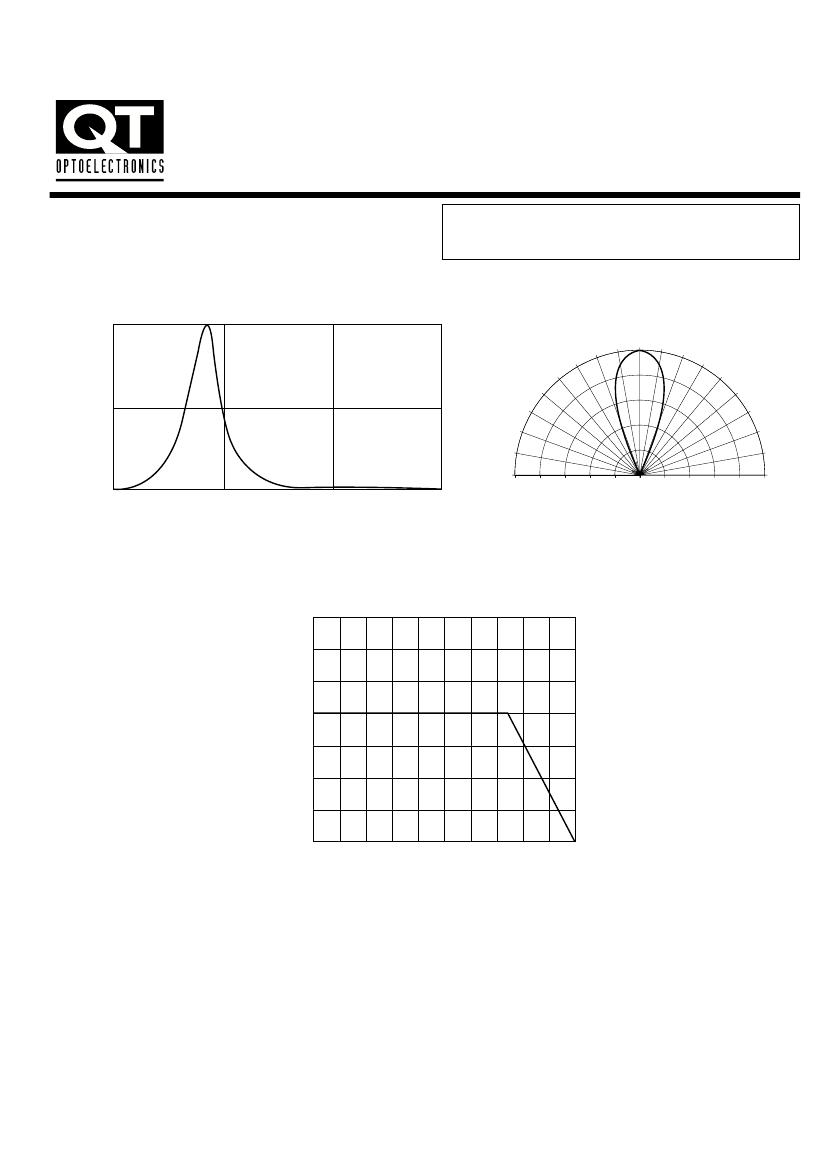

Fig. 3 Relative Intensity vs Peak Wavelength
Fig. 4 Radiation Diagram
35
30
IF - FORWARD CURRENT (mA)
25
20
15
10
5
0
0
20
40
60
80
100
T
A
- AMBIENT TEMPERATURE (˚C)
Fig. 5 Current Derating Curve
3 of 3
1/27/00
300026A
