DTE200-19SX-F-W-C2 datasheet, PDF

Datasheet> All Categories > Power/power management> DTE200-19SX-F-W-C2

DTE200-19SX-F-W-C2: DescriptionAC Power Cords 7.5u0027 3WIRE 18AWG BLK; CategoryPower/power management; File Size3MB，3 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

DTE200-19SX-F-W-C2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTE200-19SX-F-W-C2	-	-	View	Buy Now

DTE200-19SX-F-W-C2 Overview

AC Power Cords 7.5u0027 3WIRE 18AWG BLK

DTE200-19SX-F-W-C2 Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	ETA-USA
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	200 W
Output Voltage-Channel 1	19 V
Output Current-Channel 1	10.53 A
Commercial/Medical	Commercial
DC Output Connector	4 Pin DIN
Efficiency	Level V
AC Plug included/required	Required
Height	44 mm
Length	170 mm
Load Regulation	Regulated
Mounting Style	Desktop
Factory Pack Quantity	1
Width	85 mm

Preview

Download Datasheet

View All

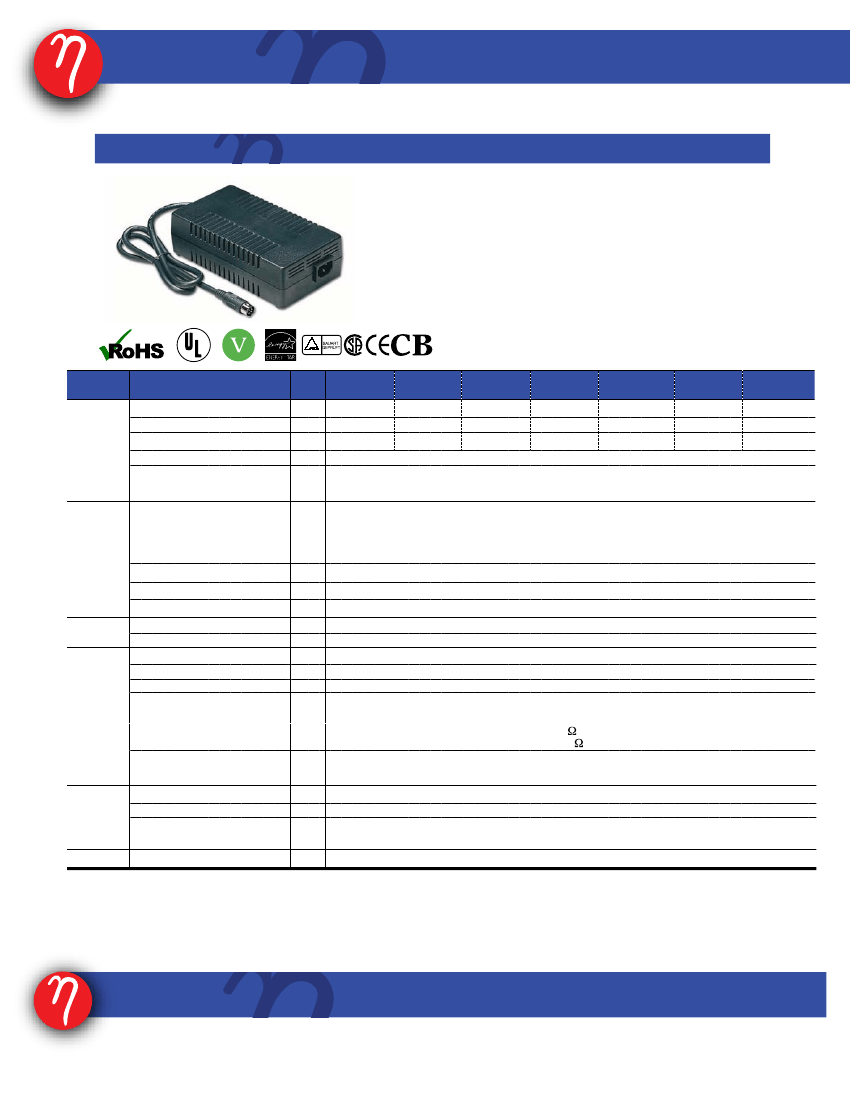

ETA-USA

DTE-SX-F-W-C2

The Power Professionals

200W

Features

•

High Reliability

•

100% BURN-IN Tested

•

100% Hi-Pot tested

•

Safety Approvals, EMC compliance

•

40mm cooling fan

•

AC input IEC 320-C14 Inlet

•

Two year warranty

Meet CEC & Energy Star level V requirements

Green functions+ No load power consumption <.3W

TUV Rheinland

OUTPUT

Norminal Voltage

Nominal Current

MODEL/CHANNEL

Unit

VAC

°C

VAC

°C

mm/g

DTE200-

12SX-F-W

16.66

240

DTE200-

16SX-F-W

12.5

300

DTE200-

19SX-F-W

10.53

300

DTE200-

20SX-F-W

300

DTE200-

24SX-F-W

8.33

300

DTE200-

36SX-F-W

5.56

300

DTE200-

48SX-F-W

4.17

300

Ripple & Noise Max

Power

Output Power Reg.

Rise–up time

200

±5%

>16ms typical at full load @ 115VA

90~264VAC

150A(max) at 230VAC cold start

>85% @ full load, 115VAC

3A @ 115Vac, 60Hz

47~63Hz

> 0.9(115VAC100% Load)

0 to +50°C

-10 to +70°C

>140,000 hours at full load and 25 °C ambient temperature

20%~90% non-condensing

±0.05% /°C

Primary-secondary: 4242VDC for 4sec

Primary-frame ground: 2121VDC for 4sec

Primary-secondary: 20M

min. 500VDC

Primary-frame ground: 20M

min. 500VDC

CSA 22.2-No.60950-1

TUV EN60950-1

CB IEC 60950-1

CISPR 22 Class B FCC Class B,EN55022 Class B CE

Auto Recover once short circuit removed

Auto Recover. Overload range from 110%~160% max load.

Overvoltage range from 13.2~16VDC, latch off before reaching

limit. Manual power reset necessary.

L188.5 x W104.5 x H60mm

INPUT

Input Voltage Range

Inrush Current(rms):

Efﬁciency

Current

Frequency:

Power Factor

Environmental

Specification

Environmental

Agencies

Operating Temperature

Storage Temperature

MTBF demonstrated

Humidity

Temperature coefficient

Withstanding voltage

Insulation resistance

Safety Standards

Protection

Short circuit protection

Over Load Protection

Over Voltage Protection

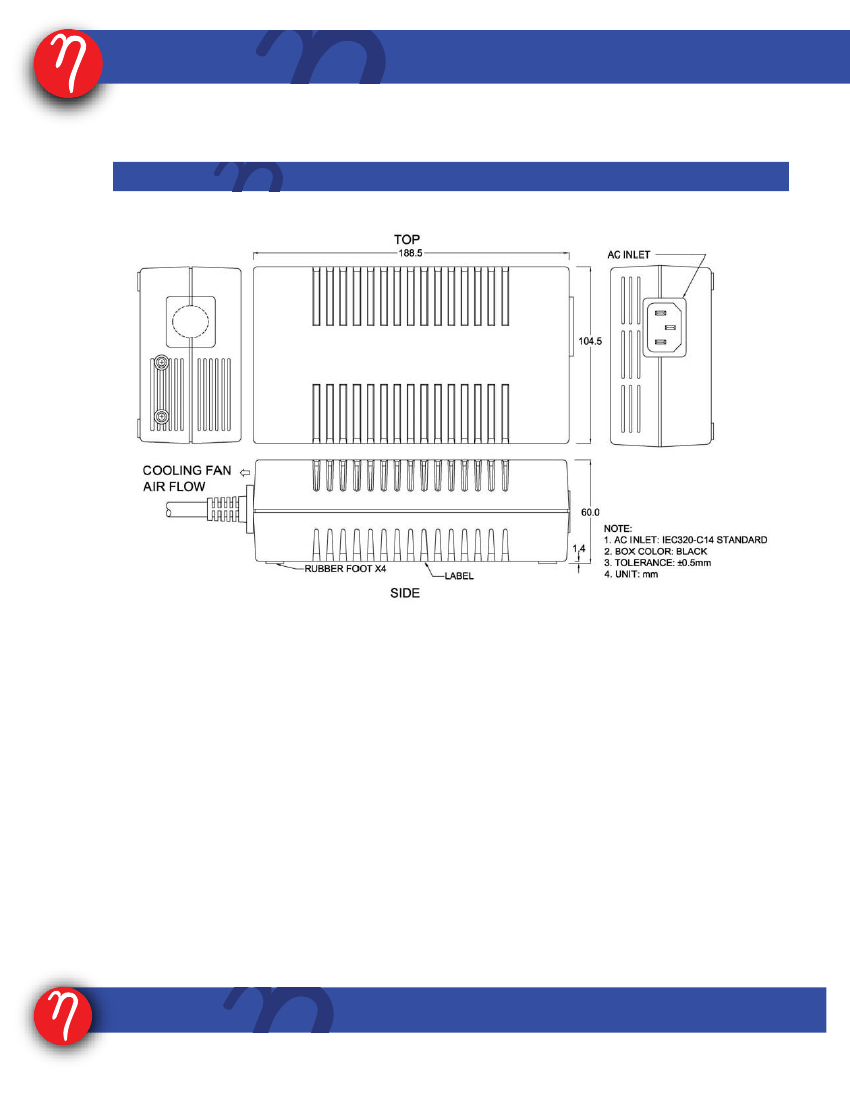

Dimension/*Weight

ETA-USA

16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com

Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753

DTE200-19SX-F-W-C2 Related Products

	DTE200-19SX-F-W-C2	DTE200-48SX-F-W-C2	DTE200-20SX-F-W-C2	DTE200-16SX-F-W-C2	DTE200-36SX-F-W-C2	DTE200-24SX-F-W-C2
Description	AC Power Cords 7.5u0027 3WIRE 18AWG BLK		AC Power Cords 7.5u0027 3WIRE 18AWG BLK	AC Power Cords 7.5u0027 3WIRE 18AWG BLK	AC Power Cords 7.5u0027 3WIRE 18AWG BLK	Desktop AC Adapters Desktop, Medical 24Vout, 6.3A, 150W
Product Category	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters
Manufacturer	ETA-USA	ETA-USA	ETA-USA	ETA-USA	ETA-USA	ETA-USA
RoHS	Details	Details	Details	Details	Details	Details
Region	Universal	Universal	Universal	Universal	Universal	Universal
Input Voltage	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC
Number of Outputs	1 Output	1 Output	1 Output	1 Output	1 Output	1 Output
Output Power	200 W	200 W	200 W	200 W	200 W	200 W
Output Voltage-Channel 1	19 V	48 V	20 V	16 V	36 V	24 V
Output Current-Channel 1	10.53 A	4.17 A	10 A	12.5 A	5.56 A	8.33 A
DC Output Connector	4 Pin DIN	4 Pin DIN	4 Pin DIN	4 Pin DIN	4 Pin DIN	4 Pin DIN
Efficiency	Level V	Level V	Level V	Level V	Level V	Level V
AC Plug included/required	Required	Required	Required	Required	Required	Required
Height	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Length	170 mm	170 mm	170 mm	170 mm	170 mm	170 mm
Load Regulation	Regulated	Regulated	Regulated	Regulated	Regulated	Regulated
Mounting Style	Desktop	Desktop	Desktop	Desktop	Desktop	Desktop
Factory Pack Quantity	1	1	1	1	1	1
Width	85 mm	85 mm	85 mm	85 mm	85 mm	85 mm
Commercial/Medical	Commercial	Commercial	Commercial	Commercial	-	-
