REVISION: May 12, 2010 V11
CFM200S SERIES
200 WATT SINGLE OUTPUT
U FRAME AC-DC
MODULES WITH PFC
Features

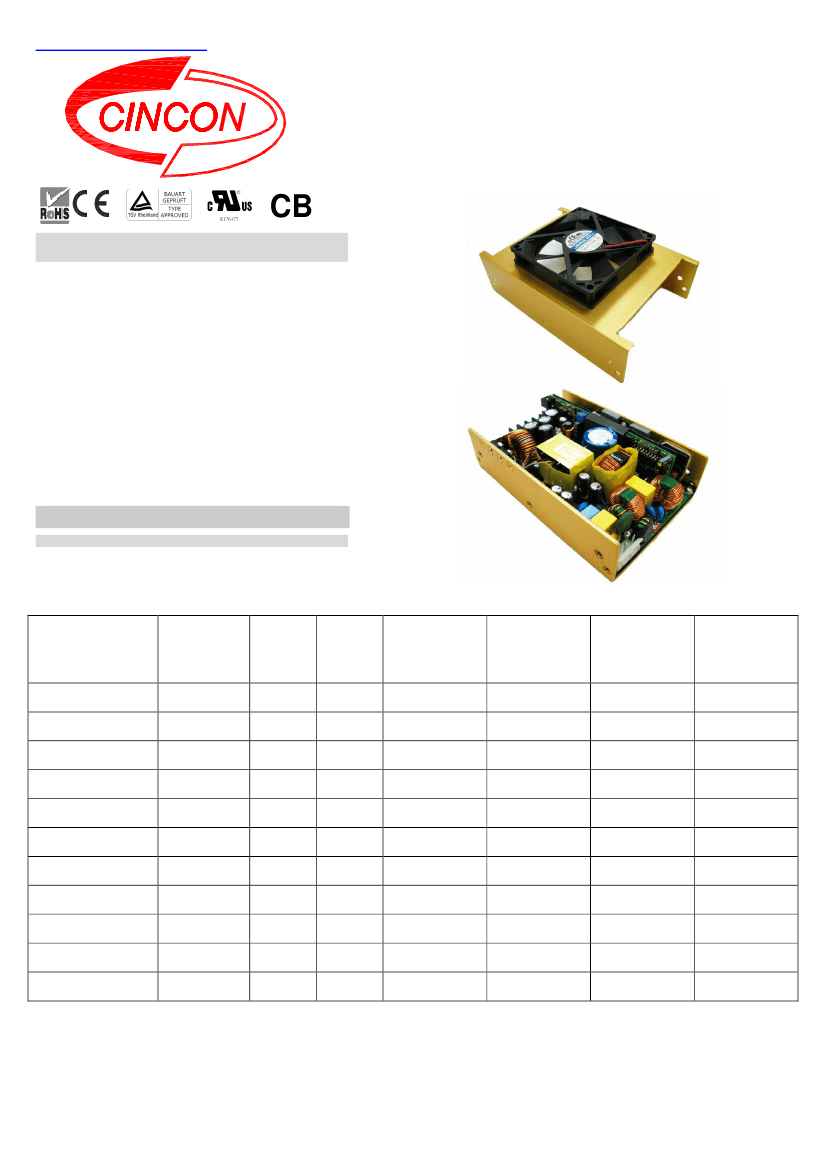

* 1.5” Low Profile, 4”X6” Footprint
* Universal Input: 90-264Vac
* Active PFC Meets EN61000-3-2
* Meets CISPR/FCC Class B
* High Efficiency at 80% Typical
* Remote Voltage Sense
* PS ON/OFF Remote Control
(Inhibit PSU by adding Logic High)
* Active Current Sharing
* AC OK Signal
* DC OK Signal
Ordering information
CFM200S-XXX
Model No.
-
XXX
Cover & Fan
001:Without Top Cover & Fan
002:With Top Cover & Fan
OUTPUT
MODEL
VOLTAGE
MAX.
LOAD
MIN.
LOAD
RIPPLE &
NOISE
VOLTAGE
ACCURACY
LINE
REGULATION
LOAD
REGULATION
CFM200S-033
CFM200S-050
CFM200S-090
CFM200S-120
CFM200S-150
CFM200S-180
CFM200S-240
CFM200S-280
CFM200S-300
CFM200S-360
CFM200S-480
+3.3V
+5.0V
+9.0V
+12V
+15V
+18V
+24V
+28V
+30V
+36V
+48V
40.0A
40.0A
22.2A
16.7A
13.4A
11.2A
8.4A
7.2A
6.7A
5.6A
4.2A
0
0
0
0
0
0
0
0
0
0
0
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
1
http://www.cincon.com/
REVISION: May 12, 2010 V11
Specifications
INPUT SPECIFICATIONS:
AC Input Voltage …....………........…........................................... 90~264Vac
Inrush Current ………………….……………....................120A max. @ 240VAC
Conducted EMI ………………………………………..…… CISPR/FCC Class B
Isolation ……………………………………………… Input to output = 4242VDC
Leakage Current ……………………………………………….…..… 3.5mA max.
CFM200S Series Derating Curve
200
175
150
125
100
75
50
25
0
0
OUTPUT SPECIFICATIONS:
Total Rated Output Power …………200W(with 30CFM air flow or optional fan)
Current Share (Parallel Operation) ……….…Single wire current sharing(CSW)
Remote Voltage Sense ………………..… Compensates for wire voltage drop
Hold-up Time ……………………………………………………..…… 16ms typ.
Short Circuit Protection ……….…………….………………….…. Continuous
Over Voltage Protection …………………………………………..……….YES
Rated Load(w)
Frequency ………………………………………….……………..... 47 to 63Hz
With 30CFM Forced Air
10
20
30
40
50
60
70
Ambient Temperature(
℃
)
NOTE:
1: Optional function can be added when ordering:
Top Cover with Fan (when forced air is needed)
2: Add a 0.1uF ceramic capacitor and a 47uF E.L.
capacitor to output for Ripple & Noise measuring @20MHz BW.
3: Voltage accuracy is set at 60% rated load and 25℃ Ta.
4: Line regulation is measured from High Line to Low
Line with rated load.
5: Load regulation is measured at 60%±40% rated load.
6: Dimensions tolerance : +/- 1.5mm.
7: Connectors:
CN1(AC Input) : Molex 5273-05A or equivalent
CN2(DC Output) : Molex 38700-7504 or equivalent
CN6(Signals)
: Molex 70247-10 or equivalent
CN3,CN4,CN5(FAN) : Molex 5045-02A or equivalent
ENVIRONMENTAL CHARACTERISTICS:
Operating Temperature ...................................................................... 0 ~ 70℃
50~70
℃
with 2.5%/
℃
Derating
PSU will be in thermal protection for exceeding the rated power output
or the operating temperature
Storage Temperature ………………………………...….......……........ -20~85℃
MECHANICAL CHARACTERISTICS:
Standard U Frame .……….... 5.91x3.94x1.50 Inches(150.0x100.0x38.1mm)
With Optional Fan …………..... 5.91x4.00x2.30 Inches(150.0x101.6x58.5mm)
Weight …………………………………….. 700g (800g with top Cover and Fan)

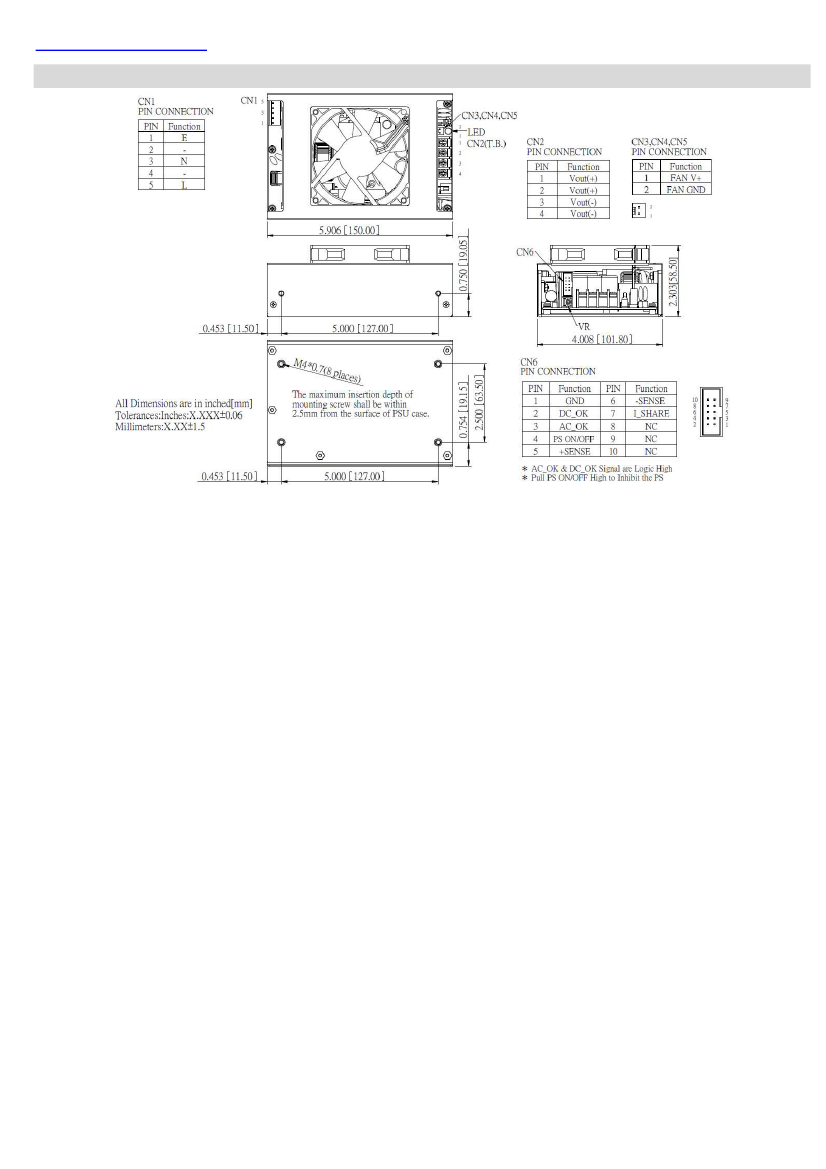

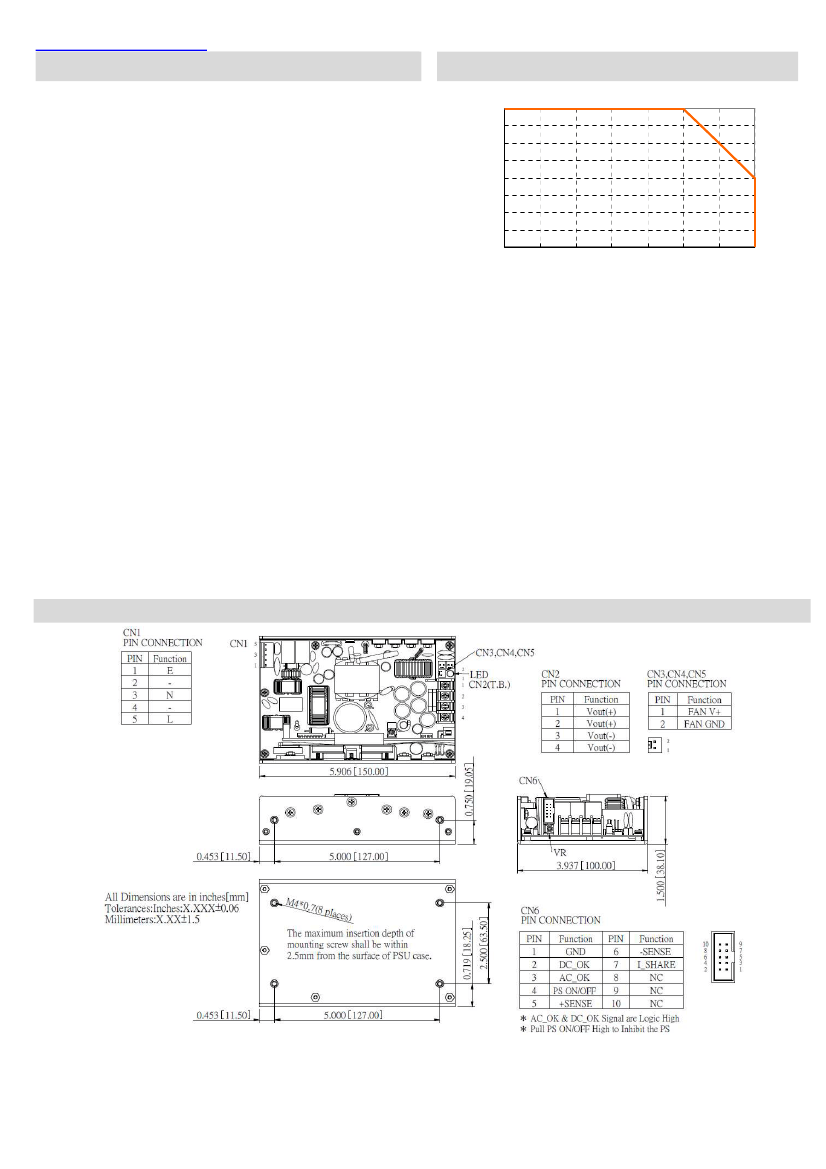

Mechanical Specification
2
