HWS30A-3-HD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> HWS30A-3-HD

HWS30A-3-HD: DescriptionSwitching Power Supplies 3.3Vout 6A 20W Pcb Coating No Cover; CategoryPower/power management; File Size117KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

HWS30A-3-HD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HWS30A-3-HD	-	-	View	Buy Now

HWS30A-3-HD Overview

Switching Power Supplies 3.3Vout 6A 20W Pcb Coating No Cover

HWS30A-3-HD Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	3.3 V
Number of Outputs	1 Output
Output Power	20 W
Open Frame/Enclosed	Enclosed
Input Voltage	85 VAC to 264 VAC/120 VDC to 370 VDC
Output Current-Channel 1	6 A
Commercial/Medical	Commercial
Isolation Voltage	3 kV
Mounting Style	Chassis
Length	95 mm
Width	31.5 mm
Height	82 mm
Input Frequency	47 Hz to 63 Hz
Load Regulation	Regulated
Factory Pack Quantity	1

Preview

Download Datasheet

View All

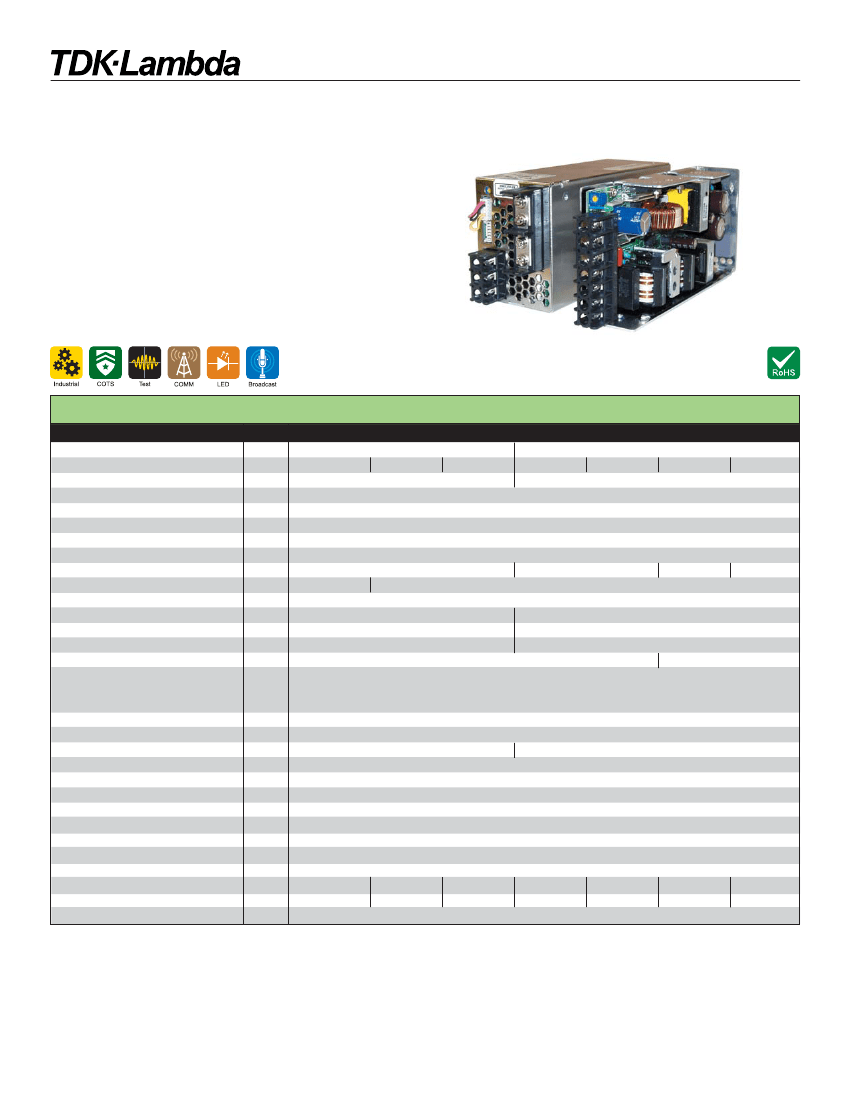

HWS50-1500/HD Series

Single Output Industrial Power Supplies

Features



Limited Lifetime Warranty



-10 to +71°C Operation (-40°C start up)



Universal Input (85 - 265VAC)



Conformally coated pcbs



Class 1 Div 2 option (/RYHD sufﬁx)



Wide range AC Input

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range (47-63Hz)

Input Current (Typ)

(1)

Inrush Current

(1)

Power Factor

Temperature Coefﬁcient

Overcurrent Protection

Overvoltage Protection

Hold Up Time (Typ)

Leakage Current (60Hz)

Remote Sense

Indicator

Remote On/Off

Parallel operation

DC Good

Remote Adjust (PV)

Operating Temperature

and Derating (operation to

+74°C - contact factory)

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

(2)

Isolation Resistance

Vibration (non operating)

Shock (in packaging)

Safety Agency Approvals

Line Dip

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

°C

yrs

HWS50

HWS100

HWS150

HWS300

HWS600

HWS1000 HWS1500

85-265VAC or 120-370VDC**

85-265VAC or 120-330VDC** (No DC input for HWS1500)

0.7 / 0.35

1.3 / 0.65

1.9 / 0.95

4.1 / 2.1

8.1 / 3.9

13.5 / 7

19 / 10

14 / 2

20 / 4

Meets EN61000-3-2

<0.02%/°C

>104%

Yes (See table on page 2)

<0.5mA

<0.75mA

<1.2mA

≤1.5mA

Yes

Green LED = ON

Yes (Isolated from output)

Single wire connection (5 units max)

Yes

Yes (3)

HWS50-150: -10°C to +71°C, (-10 ~+50°C: 100%, +60°C: 60%, +71°C: 20%)

HWS300-1500: -10°C to +71°C, (-10 ~+50°C: 100%, derate linearly to 50% load from +50 to +71°C)

Guaranteed start up at -40°C (see speciﬁcation sheets on website for details and derating)

-40 to +85°C

Operating: 30 - 90%RH (10 -90% on HWS300-1500), Non operating 10 - 95%RH

Convection

Internal fan

Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

>100MΩ at 25°C & 70%RH, Output to Ground 500VDC, >10M Output to remote on/off 100VDC

MIL-STD-810F 514.5 Category 4, 10 (HWS1500 Cat 4,

ﬁ

gure 514.5C-1)

MIL-STD-810F 516.5 Category I, VI (HWS1500 <196.1m/s

)

UL60950-1, CSA60950-1, EN60950-1, EN50178, CE Mark

Complies with SEMI F47 (200VAC line only)

EN55011 / EN55022-B, FCC-B, VCCI-B (HWS1500 Class A)

IEC61000-4-2 (Level 2,3), -3, -4, -6, (Level 3), -5, -8 (Level 4), -11

280

450

500

1000

1600

3200

3800

1.04x3.23x4.72 1.1x3.23x6.3 1.46x3.23x6.3 2.4x3.23x6.5 3.94x3.23x6.5 5x3.2x9.5

5x3.25x11

Limited lifetime warranty (See TDK-Lambda’s terms & conditions)

(3) 1-6V program voltage input to adjust output 20-120% (typical) of

nominal. See instruction manual for details & models with this feature.

(*) Class 1 Div 2 option (/RYHD sufﬁx

(**) Safety certiﬁed for AC input only

(1) 100/200VAC input

(2) HWS300-600 2.5kVAC Input to ground

HW S 50- 150/H D N o t r e c o m m e n d e d for n e w d esi gns, see HW S -A web pa ge

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm

Recommended Resources

8-way switching input interface circuit

High current switching regulated power supply application circuit

Ring oscillator pulse generator circuit diagram

Amplifier timer.gif

Indoor humidity control circuit

Two-phase servo drive circuit diagram
