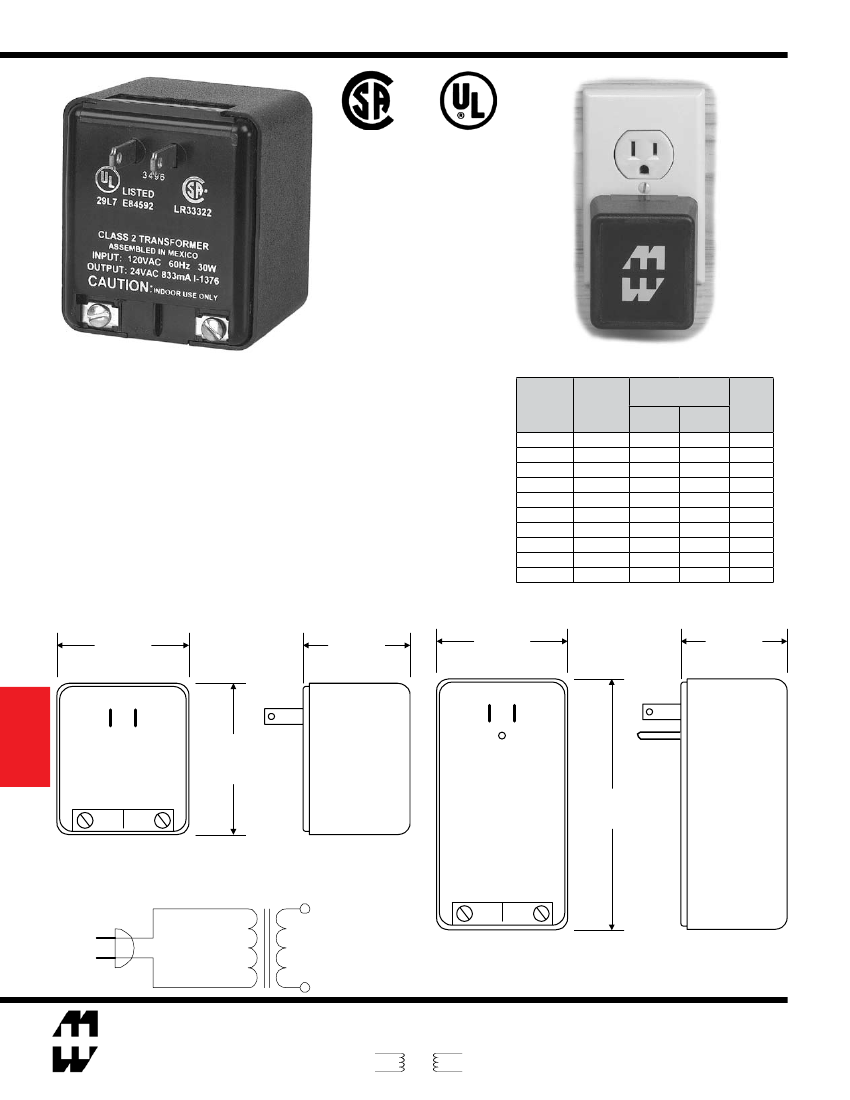

Energy Limiting (BP Series)

CLASS 2 - PLUG IN

ENERGY LIMITING TRANSFORMERS

•

Used in AC powered chimes, door bells, security systems, decorative

lighting, furnaces, humidifiers, appliances, vending machines and

intercom system type applications.

•

Enclosed in an attractive plug in black plastic case.

•

For indoor use only

•

Input 120VAC - 20VA units are inherently limited - no fuses or circuit

breakers.

•

40VA units use an internal slow blow fuse.

•

Secondary - 2 recessed slot head screw terminals (on plug side).

•

All models are 60 Hz.

• CSA certified (#LR 113601) and UL listed (#E 184936)

2.438

2.125

2.80

Part No.

BPD2E

BPD2EE

BPD2F

BPD2FF

BPD2G

BPE2E

BPE2EE

BPE2F

BPE2FF

BPE2G

A.C.

A.C. Output

Power

Input

Secondary (RMS)

Rating

(Primary)

VA

V

A

V (RMS)

120

12

1.67

20

120

14

1.43

20

120

16

1.25

20

120

18

1.11

20

120

24

0.83

20

120

12

3.33

40

120

14

2.86

40

120

16

2.50

40

120

18

2.22

40

120

24

1.67

40

2.13

Class 2

2.75

3.58

20 VA

PRI

(LINE)

CANADA

USA

SEC

(LOAD)

40 VA

Guelph, Ontario (519) 822-2960

St. Laurent, Quebec (514) 343-9010

©

Cheektowaga, NY (716) 630-7030

www.hammondmfg.com

Basingstoke, UK 01256 812812

Queenstown, Australia 61-8-8240-2244

EUROPE

102

AUSTRALIA
