Fixed Inductors (Chip Inductors)
Chip Inductors
High Power Type
Type:
ELJPF
ELJPE
■
Features
●
Low DCR and large current capability, suitable for power circuitry.
●
High frequency capability due to its non magnetic core.
●
Capable of being Re-flow or flow soldered.
●
Unique Ceramic Core / Laser-cut Technology.
●
Non polarity product.
●
Good for mounting.
●
RoHS compliant
■
Recommended Applications
●
Wireless communication equipment and various types of general electronic equipment.
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
Packaging Design No.
Product code
Chip Inductors
PF
PE
Shape
1005 (0402)
1608 (0603)
Inductance
2N2
10N
2.2 nH
10 nH
Inductance tolerance
D
J
K
±0.3 nH
±5 %
±10 %
F
Taping
Size : mm (inch)
■Storage
Conditions
●
Package
: Normal temperature (–5 to 35 °C), normal humidity (85 %RH max.), shall not be exposed to
direct sunlight and harmful gases and care should be taken so as not to cause dew.
●
Operating Temperature : –40 to +85 °C
■Storage
Period
●
Solderability may be reduced due to the conditions of high temperature and high humidity which causes the oxidation
of tin-plated terminals. Even if storage conditions are within specified limits, solderability may be reduced with the
passage of time. Therefore, please control the storage conditions and try to use the product within 6 months of receipt.
■Packaging
Methods, Soldering Conditions and Safety Precautions
Please see Data Files.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04 Nov. 2013
12
Fixed Inductors (Chip Inductors)
■
PF Type 1005 (0402)
●
Dimensions in mm (not to scale)
●
Recommended Land Pattern in mm (not to scale)
0.5 to 0.6
0.2±0.1
1.0±0.05
0.2±0.1
0.5±0.05
1.5 to 1.7
0.5±0.05
0.5 to 0.6
■
Standard Packing Quantity
●
10000 pcs./Reel
■
Standard Parts
Part No.
ELJPF2N2DFB
ELJPF2N7DFB
ELJPF3N3DFB
ELJPF3N9DFB
ELJPF4N7DFB
ELJPF5N6DFB
ELJPF6N8JFB
ELJPF8N2JFB
ELJPF10NJFB
(nH)
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
Inductance
Tolerance Test Freq.
(%)
(MHz)
Q
min.
Test Freq.
(MHz)
SRF
½1
(MHz) min.
5300
5300
5000
4800
4600
4200
4000
3700
3200
R
DC
½2
(Ω) max.
0.040
0.050
0.070
0.080
0.100
0.120
0.160
0.210
0.260
DC Current
(mA) max.
1900
1800
1500
1400
1300
1200
1100
900
750
D : ±0.3 nH
100
7
100
J:±5%
½1
: Self Resonant Frequency
½2
: DC Resistance
■
PE Type 1608 (0603)
●
Dimensions in mm (not to scale)
●
Recommended Land Pattern in mm (not to scale)
0.8 to 0.9
0.8
0.8 to 1.0
0.3
1.6
0.3
0.8
2.0 to 2.6
■
Standard Packing Quantity
●
3000 pcs./Reel
■
Standard Parts (E12 Series)
Part No.
ELJPE2N2KFA
ELJPE2N7KFA
ELJPE3N3KFA
ELJPE3N9KFA
ELJPE4N7KFA
ELJPE5N6KFA
ELJPE6N8KFA
ELJPE8N2KFA
ELJPE10NKFA
ELJPE12NKFA
ELJPE15NKFA
ELJPE18NKFA
ELJPE22NKFA
(nH)
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
Inductance
Tolerance Test Freq.
(%)
(MHz)
Q
min.
8
8
8
9
9
9
9
9
9
9
9
9
9
Test Freq.
(MHz)
SRF
½1
(MHz) min.
6000
5500
5500
5200
4800
4600
4000
3500
2800
2500
2200
2000
1800
R
DC
½2
(Ω) max.
0.030
0.030
0.040
0.040
0.050
0.055
0.055
0.060
0.065
0.080
0.100
0.120
0.150
DC Current
(mA) max.
2100
2100
2100
2100
2100
2100
1900
1700
1400
1300
900
800
700
K : ± 10 %
100
100
½1
: Self Resonant Frequency
½2
: DC Resistance
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04 Nov. 2013
13
Fixed Inductors (Chip Inductors)
■

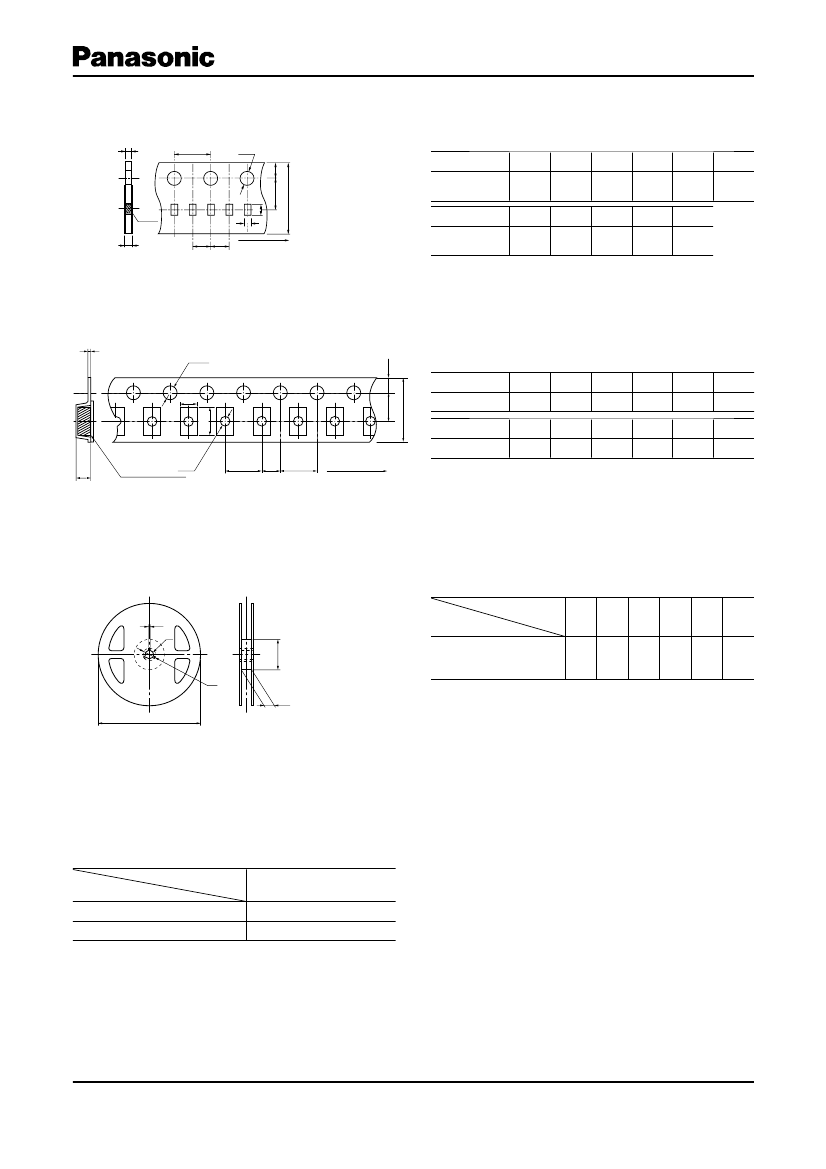

Packaging Methods (Taping)
●
Punched Carrier Tape Dimensions in mm (not to scale)
t
1
P
0
fD
0
E
●
Type
□F
A
RF, QF, PF
0.71
P
2
RF, QF, PF
2.0
B
1.21
P
0
4.0
W
8.0
0D
0
01.5
E
1.75
t
1
0.7
max.
F
3.5
t
2
1.0
max.
P
1
2.0
Part
t
2
P
1
P
2
A
Tape running
direction
●
Embossed Carrier Tape Dimensions in mm (not to scale)
t
1
f
D
0
E
B
F
W
●
Type
□E
A
B
1.8
P
0
4.0
W
8.0
0D
0
01.5
E
1.75
0D
1
F
3.5
t
1
P
1
4.0
t
2
1.2
RE, QE, PE
1.0
P
2
A
F
B
W
Chip
component
t
2
f
D
1
P
1
P
2
P
0
Tape running
direction
RE, QE, PE
2.0
00.6
(0.27)
●
Taping Reel Dimensions in mm (not to scale)
Parts
E
C
B
Types
RF, QF, PF
RE, QE, PE
A
180
B
60
C
13
D
21
E
2
W
9
D
W
A
■
Standard Packing Quantity/Reel
Quantity
Types
RF, QF, PF
RE, QE, PE
Quantity
10000 pcs.
3000 pcs.
½
Under conditions of high temperature and humidity
deterioration of the taping and packaging may be
accelerated.
Please carefully control storage conditions and use the
product within 6 months of receipt.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04 Nov. 2013
14
Fixed Inductors (Chip Inductors)
Soldering Conditions
■
Reflow soldering conditions
Temperature (°C)
T3
T2
T1
t1
t2
0
Time
●
Pb free solder recommended temperature profile
Type
□F
□E
Preheat
T1 [°C]
150 to 180
150 to 180
t1 [s]
60 to 120
60 to 120
Soldering
T2 [°C]
230 °C
230 °C
t2 [s]
40 max.
40 max.
Peak Temperature
T3
250 °C, 10 s
250 °C, 10 s
T3 Limit
260 °C, 10 s
260 °C, 10 s
Time of
Reflow
2 times max.
2 times max.
■
Flow soldering conditions
Preheat: 130 to 150 °C, 60 to 180 s, Soldering: 260 °C, 5 s max.
■
Notes
●
Solderability may be reduced due to the conditions of high temperature and high humidity which causes the oxidation
of tin-plated terminals. Even if storage conditions are within specified limits, solderability may be reduced with the
passage of time. Therefore, please control the storage conditions and try to use the product within 6 months of receipt.
●
In case the product has been stored for a period longer than 6 months, use the product only after confirmation of its
solderability.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04 Nov. 2013
15
Fixed Inductors (Chip Inductors)
Safety Precautions
(Common precautions for Chip Inductors)
• When using our products, no matter what sort of equipment they might be used for, be sure to make a written
agreement on the specifications with us in advance. The design and specifications in this catalog are subject
to change without prior notice.
• Do not use the products beyond the specifications described in this catalog.
• This catalog explains the quality and performance of the products as individual components. Before use, check
and evaluate their operations when installed in your products.
• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment
where a defect in these products may cause the loss of human life or other significant damage, such as damage to
vehicles (au to mo bile, train, vessel), traffic lights, medical equipment, aerospace equipment, elec tric heating
appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention equipment.
½
Systems equipped with a protection circuit and a protection device
½
Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault
Precautions for use
1. Operation range and environments
1
These products are designed and manufactured for general and stan dard use in general elec tron ic
equipment (e.g. AV equipment, home electric applianc es, office equipment, information and com mu nication
equipment)
2
These products are not intended for use in the following special conditions. Before using the products, carefully check
the effects on their quality and performance, and determine whether or not they can be used.
• In liquid, such as water, oil, chemicals, or organic solvent
• In direct sunlight, outdoors, or in dust
• In salty air or air with a high concentration of corrosive gas, such as Cl
2
, H
2
S, NH
3
, SO
2
, or NO
2
• In an environment where these products cause dew condensation
1
Do not bring magnets or magnetized materials close to the product. The influence of their magnetic field can
change the inductance value.
2
Do not apply strong mechanical shocks by either dropping or collision with other parts.
Excessive schock can damage the part.
2. Handling
1
Please refer to the recommended land pattern for each type shown on the datasheet.
2
Avoid placing the chip inductor on any metal pattern except the recommended land pattern because a drop of Q
and mutual conductance may occur.
3
In case of flow soldering, venting of soldering flux gases should be made for high density assemblies to get a
good solder connection.
4
In case of reflow soldering, consider the layout because taller components close to chip inductor tend to block
thermal conduction.
3. Land pattern design
1
In general, magnetic and electric characteristics of ferrite cores can be changed by applying excessively strong
force. Placement force should not exceed 20 N.
2
Do not bend or twist the PWB after mounting the part.
4. Mounting
5. Cleaning
1
Do not use acid or alkali agents. Some cleaning solvents may damage the part.
Confirm by testing the reliability in advance of mass production.
2
If Ultrasonic cleaning is used, please confirm the reliability in advance.
It is possible that combined resonance of component and PWB and cavitation can cause an abnormal vibration
mode to exist causing damage.
6. Caution about applying excessive current
The rated current is defined as the smaller value of either the current value when the inductance drops 10 %
down from the initial point or the current value when the average temperature of coil inside rises 20 °C up from
the initial point. Do not operate product over the specific max. current.
<Package markings>
Package markings include the product number, quantity, and country of origin.
In principle, the country of origin should be indicated in English.
