UBX2G150MHL1TO: DescriptionAluminum Electrolytic Capacitors - Leaded 15uF 400V 20%; CategoryPassive components capacitor; File Size361KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UBX2G150MHL1TO Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UBX2G150MHL1TO	-	-	View	Buy Now

UBX2G150MHL1TO Overview

Aluminum Electrolytic Capacitors - Leaded 15uF 400V 20%

UBX2G150MHL1TO Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	15 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM
length	25 mm
Manufacturer's serial number	BX
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-25 °C
Package form	Radial
method of packing	Tape
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	400 V
ripple current	105 mA
series	BX
Terminal pitch	5 mm

Preview

Download Datasheet

View All

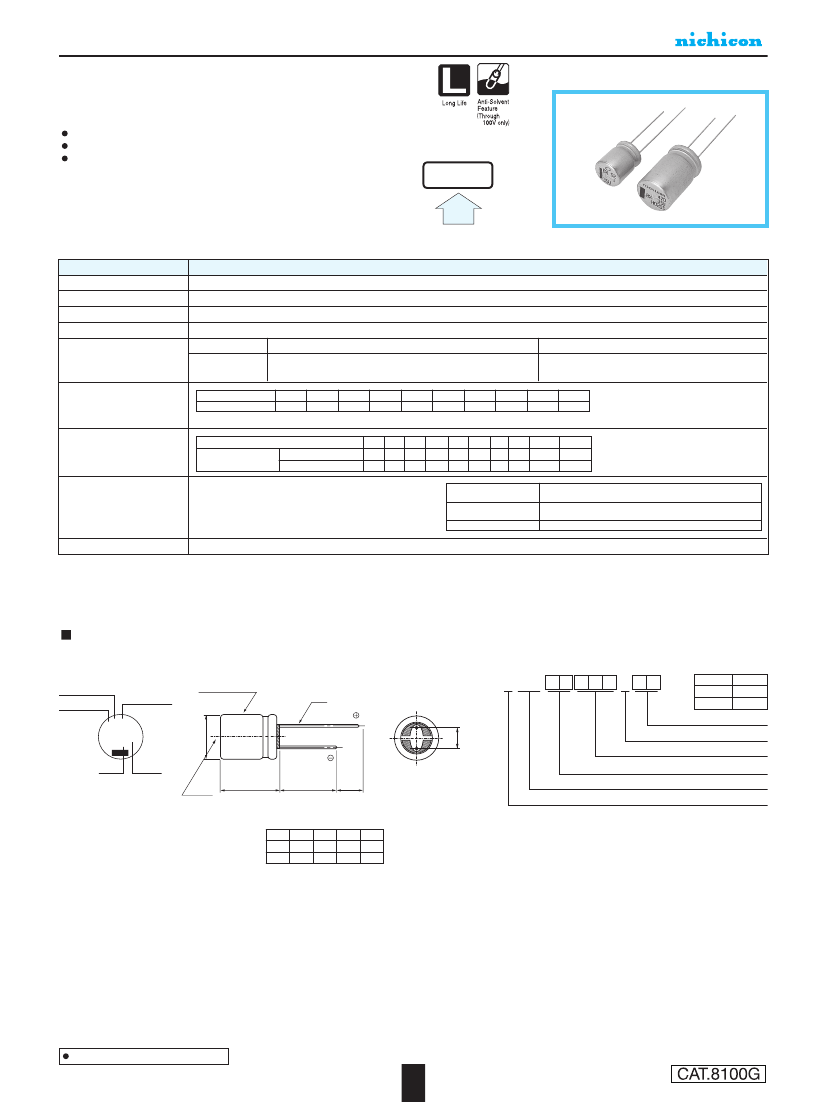

UBX

ALUMINUM ELECTROLYTIC CAPACITORS

High Temperature Range, For +150°C Use

Laminated case series.

Suited for automobile electronics where heavy duty services are indispensable.

Compliant to the RoHS directive (2011/65/EU).

UBX

High

Temperature

UBW

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–55 to +150°C (10 to 100V), – 40 to +150°C (160

·

200V), –25 to +150°C (350

·

400V)

10 to 400V

1 to 4700µF

± 20% at 120Hz, 20°C

Rated Voltage (V)

160 to 400

< 1000 :

I

= 0.1CV+40 (µA) max.

CV =

After 1 minute's application of rated voltage at 20°C, leakage

Leakage current

current is not more than 0.03CV or 4 (µA), whichever is greater. CV > 1000 :

I

= 0.04CV+100 (µA) max.

10

16

25

35

50

63

80

100

Rated voltage (V)

0.20 0.16 0.14 0.12 0.10 0.10 0.08 0.08

tan

δ

(MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

10 to 100

Tangent of loss angle (tan

δ)

160

·

200 350

·

400

0.20

0.24

120Hz 20°C

Stability at Low Temperature

ZT / Z20 (MAX.)

Z– 40°C / Z+20°C

10

3

4

16

2

4

25

2

4

35

2

4

50

2

4

63

2

4

80 100

160

·

200 350

·

400

2

3

6

-

4

120Hz

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after D.C. bias plus rated

ripple current is applied for 2000 hours (1000 hours for

φD=10

and 12.5) at 150°C, the peak voltage shall not

exceed the rated voltage.

Black print on the case top.

Capacitance change

tan

δ

Leakage current

Within ±30% of the initial capacitance value (10 to 100V)

Within ±20% of the initial capacitance value (160 to 400V)

300% or less than the initial specified value (10 to 100V)

200% or less than the initial specified value(160 to 400V)

Less than or equal to the initial specified value

Marking

Radial Lead Type

Type numbering system (Example : 10V 3300µF)

1

2

3

4

5

6

7

8

9 10 11

φD

10

12.5 to 18

Code

PL

HL

Rated Capacitance

Trade mark

nichicon

Laminated case

Rated Voltage

φD

+

0.5 MAX.

UB X 1 A 3 3 2 MH L

φ

d

3300

BX 10V

H1001

Configuration

P

±0.5

Capacitance tolerance (±20%)

Rated capacitance (3300µF)

Rated voltage (10V)

Series

Lot No.

Pressure

relief vent

L+

1.5MAX.

15

MIN

4

MIN

Series name

Type

(mm)

φD

P

φd

10

5.0

0.6

12.5

5.0

0.6

16

7.5

0.8

18

7.5

0.8

•

Please refer to page 20 about the end seal configuration.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

263
