BF-75000MBE-T

Description
Standard Clock Oscillators 75MHz 3.3V -40 to 85C
CategoryPassive components
File Size967KB,1 Pages
ManufacturerTXC Corporation
Websitehttp://www.txccrystal.com/
Download Datasheet Parametric View All

BF-75000MBE-T Online Shopping

Suppliers Part Number Price MOQ In stock
BF-75000MBE-T - - View Buy Now

BF-75000MBE-T Overview

Standard Clock Oscillators 75MHz 3.3V -40 to 85C

BF-75000MBE-T Parametric

Parameter NameAttribute value
Product CategoryStandard Clock Oscillators
ManufacturerTXC Corporation
RoHSDetails
ProductStandard Clock Oscillators
Frequency75 MHz
Frequency Stability50 PPM
Operating Supply Voltage2.5 V, 3.3 V
Output FormatLVPECL
Termination StyleSMD/SMT
Package / Case7 mm x 5 mm
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Length7 mm
Width5 mm
Height1.3 mm
PackagingReel
Factory Pack Quantity1000

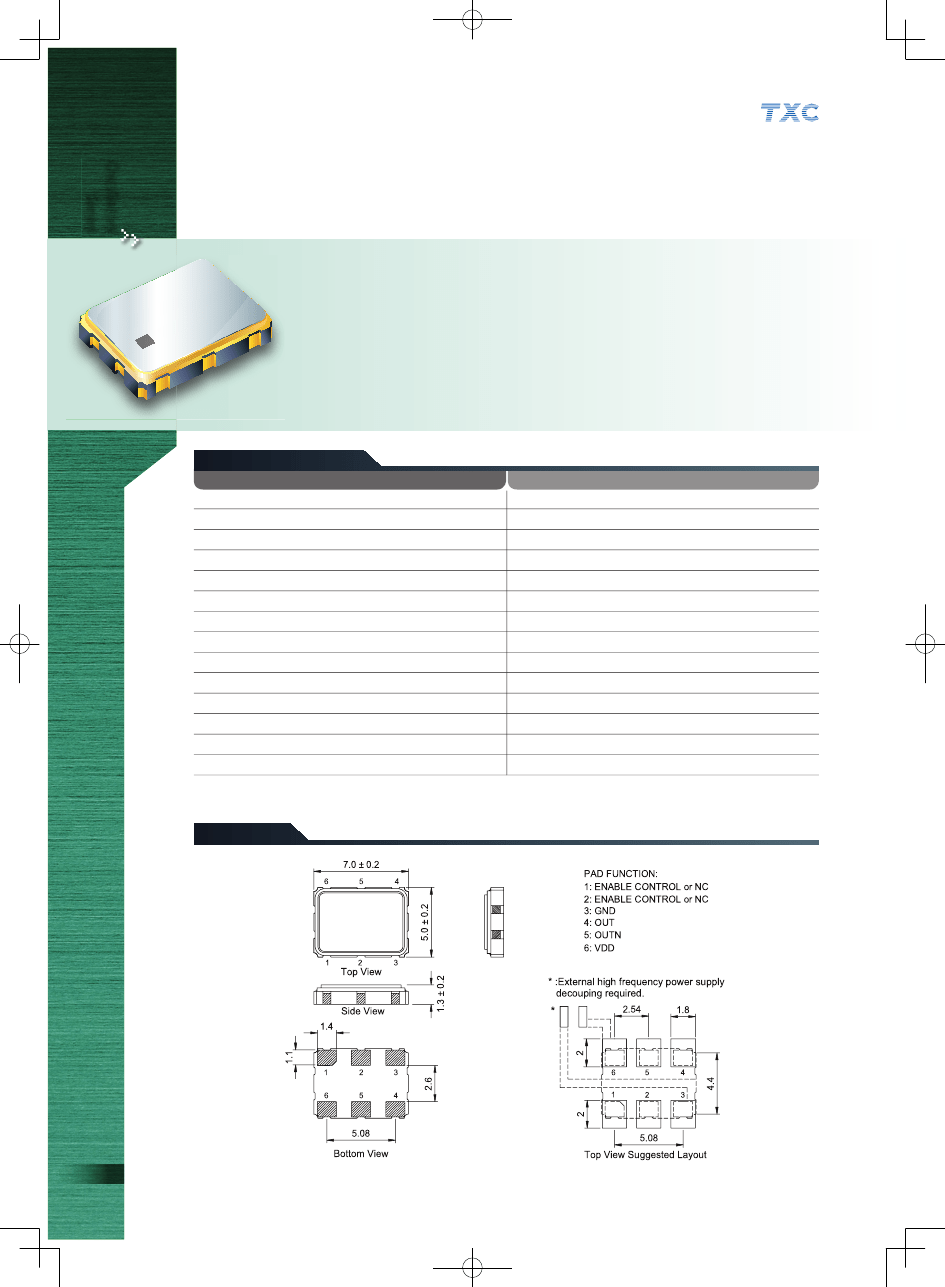

SMD LVDS Crystal
Oscillators - Differential Output
7.0 x 5.0 x 1.3 mm BF Series
Features
1H
CY 00
F
C B 6.25
TX 15
3rd overtone solution.
3.3V and 2.5V operation available.
LVDS output, output frequencies 25 MHz to 200 MHz.
Excellent low phase noise and jitter.
Tri-State function available.
Think of Frequency Think of
come visit our site http://www.txccorp.com
Oscillators
Series
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
Applications : Fibre Channel, Gigabit Ethernet, Serial ATA, Serial
Attached SCSI, PCI-Express, SDH / SONET.
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Output Type
Output Load
Oscillation Mode
Supply Voltage
Frequency Range
Overall Frequency Stability *
Operating Temperature Range
Storage Temperature Range
Voltage Vol ( Min. ) / Voh ( Max. )
Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )
Supply Current
Symmetry
Start-up Time
Phase Jitter ( 12 KHz ~ 20 MHz )
BF
LVDS
100
Ω
3rd Overtone
2.5 V , 3.3 V
25 ~ 200 MHz
±
50 ppm , or specify
-10 ~ + 70
, - 40 ~ + 85
, or specify
- 55 ~ + 125
0.9 V / 1.6 V
1 nS Max.
80 mA Max.
45 ~ 55 %
10 mS Max.
1 pS Max.
* Inclusive of frequency tolerance at 25
, variation over temperature, supply voltage variation, aging and vibration.
Dimensions
Units: mm
66
Pull-up and pull-down resistors
Why do we always need to use a pull-up or pull-down resistor? What is the benefit? More importantly, why is there such a benefit? Thank you...
