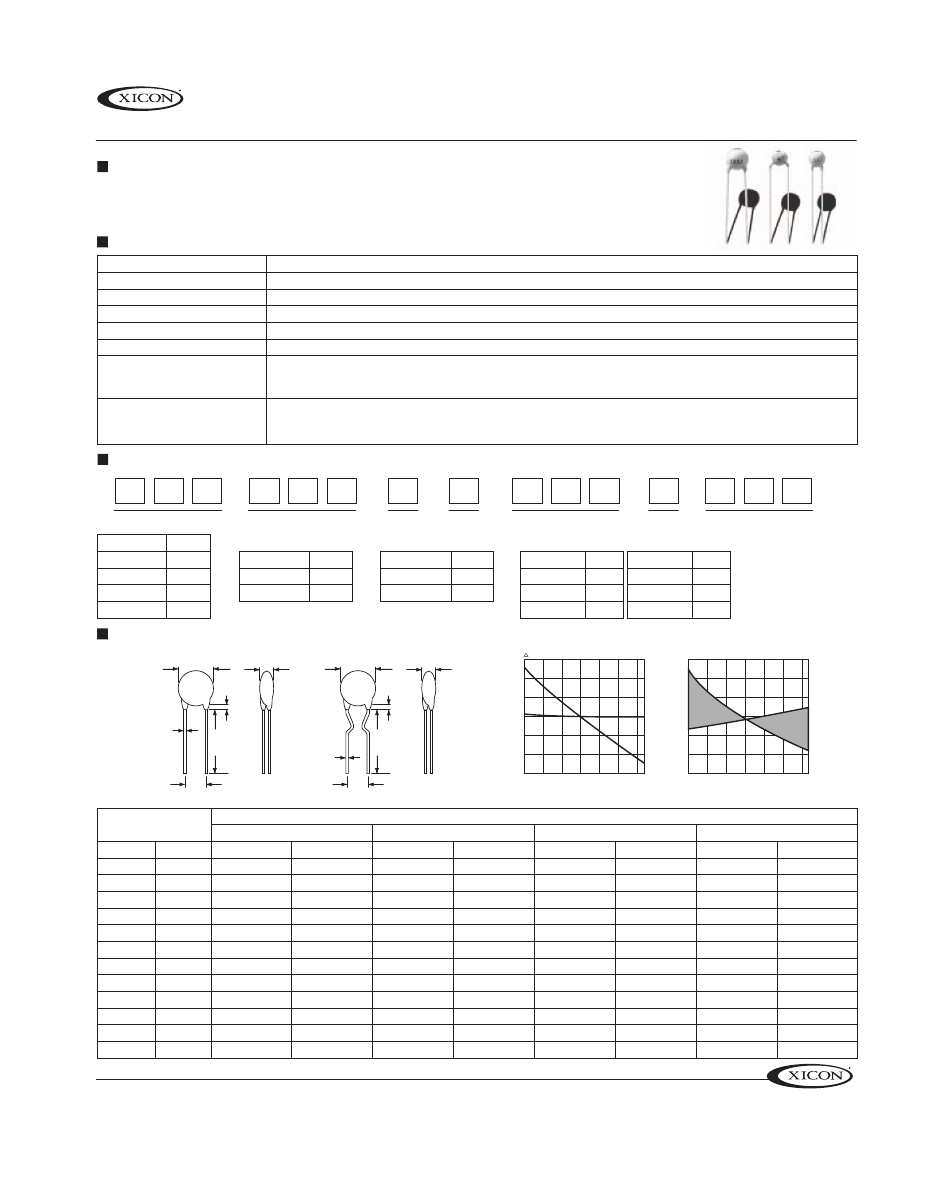

High Voltage Class I Ceramic Disc Capacitors
FEATURES
• Linear temperature coefficient of capacitance
• High stability of capacitance
CHARACTERISTICS
Item
Operating Temperature Range
Capacitance Tolerance (min.)
Working Voltage (WVDC)
Insulation Resistance
Test Voltage
Life Test
Characteristics
-25°C ~ +85°C
Within the tolerance at 1MHz, 1~3Vrms, 25°C
1KWV, 2KWV, 3KWV, or 6KWV
10,000MΩ min. or 200MΩ x
μF
whichever is the smaller
CDR Series
• Low loss across a wide frequency range
• RoHS Compliant
3 x WVDC
At 2 x WVDC @85°C for 1000 hours @ 85°C, capacitors shall meet the following: the capacitance change for
≤30pF
will be
≤±5%
or
≤0.5pF;
for >30pF the capacitance change will be
≤±5%.
For
≤30pF
Q
≥
27.5 = 5/3C;
for >30pF Q
≥
350
At exposure in the ambient temperature of 40°C, and at 95% RH for 500 hours the capacitors shall meet the follow-
ing after 24 hours exposure at room temperature: the capacitance change for
≤30pF
will be
≤±5%
or
≤0.5pF;
for
>30pF the capacitance change will be
≤±5%.
For
≤30pF
Q
≥
27.5 = 5/3C; for >30pF Q
≥
350
1st
digit
2nd
digit
#
ø's
Humidity Test
PART NUMBERING SYSTEM
1
Voltage
1KV
2KV
3KV
6KV
4
Series
Code
102
202
302
602
0
1
0
Voltage
2
N
Temp.
Coeff.
9
Lead
Space
Code
6
9
-
1
0
1
K
Tolerance
Tolerance
±20%
±0.5pF
+80/-20%
-
R
C
Capacitance (pF)
Tolerance
±0.25pF
±5%
±10%
Code
C
J
K
Suffix
(RoHS Compliant)
Code
M
D
Z
Temp. Coeff.
NPO
SL
Code
N
S
Lead Space
6.35mm
9.52mm
DIMENSIONS (mm), CAPACITANCE RANGES (pF), TYPICAL TEMPERATURE CHARACTERISTICS
Straight
Formed
øD max.
2.0
min.
6.0 max.
øD max.
2.0
min.
6.0 max.
+4
+2
0
ø0.5
25.0
min.
25.0
min.
2
-4
-20 0 20 40 60 80
Temperature (°C)
N750
NPO
C/C (%)
NPO, N750
+8
+4
0
-4
-8
-20 0 20 40 60 80
Temperature (°C)
SL (P350-N1000)
ø0.6
LS
*
1KV
NPO
1 ~ 25
---
26 ~ 40
41 ~ 70
---
---
---
71 ~ 120
-
-
-
-
-
-
-
-
-
-
-
-
SL
LS
*
lead diameter is ø0.8mm max. for 6 KV
Dimensions
øD (mm)
6.5
7
8.5
9.5
10
11
12
13
14
16
18
20
LS (mm)
6.35
6.35
6.35
6.35
6.35
6.35
9.52
9.52
9.52
9.52
9.52
9.52
Working Voltage (WV); Temperature Coefficient; Capacitance Range (pF)
2KV
3KV
NPO
---
1 ~ 10
11 ~ 18
---
---
19 ~ 39
---
40 ~ 62
---
63 ~ 82
---
---
SL
---
20 ~ 33
34 ~ 68
---
69 ~ 100
110 ~ 140
---
150 ~ 230
---
240 ~ 310
---
---
NPO
---
---
---
---
1 ~ 16
18 ~ 24
---
---
---
27 ~ 51
---
---
SL
---
---
---
---
15 ~ 56
62 ~ 82
---
---
---
91 ~ 160
---
---
NPO
---
---
---
10
12 ~ 15
---
18 ~ 22
---
33
47 ~ 56
68 ~ 82
100
30 ~ 80
---
81 ~ 40
141 ~ 240
---
---
---
241 ~ 400
-
-
-
-
-
-
-
-
-
-
-
-
6KV
SL
---
---
10 ~ 22
33
47 ~ 56
---
68 ~ 100
---
120
150 ~ 180
220
330
XICON PASSIVE COMPONENTS • (800) 628-0544
XC-600142
Date Revised: 7/17/06
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
