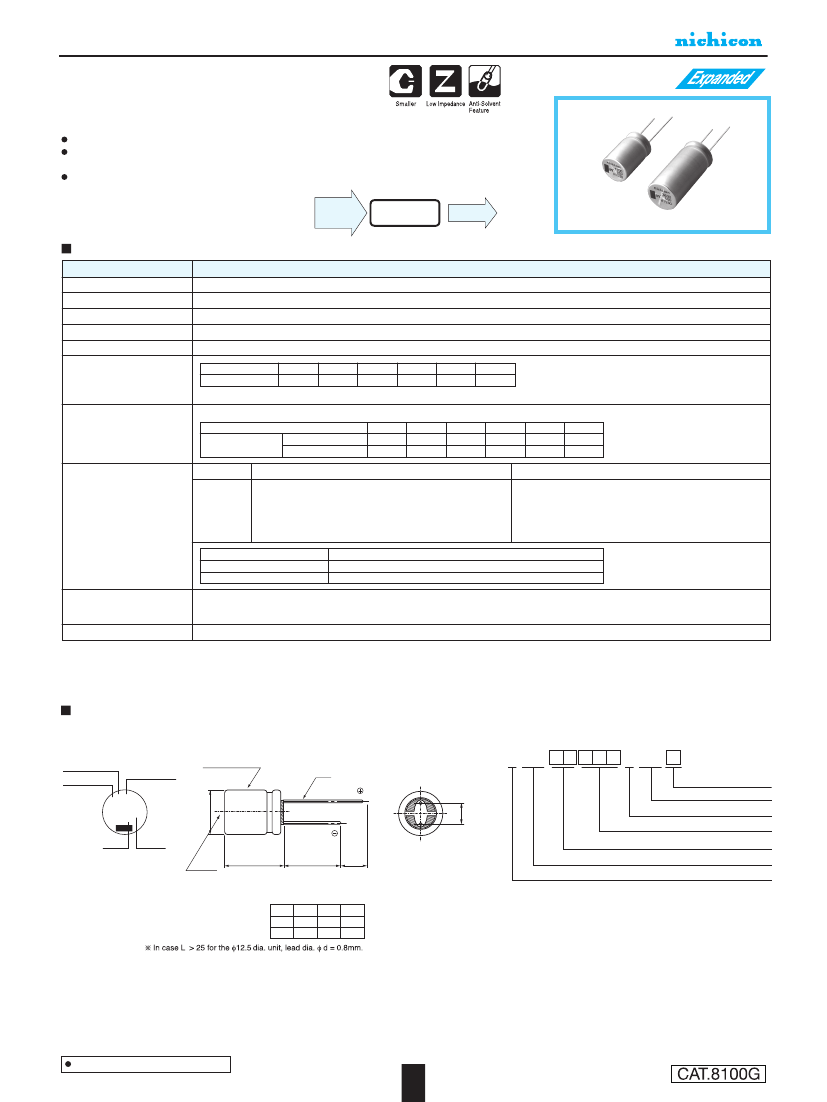

UBY
ALUMINUM ELECTROLYTIC CAPACITORS
High Temperature Range,
For +125°C or 135°C Use
Higher capacitance and higher ripple current than UBT and UBW.
Ideal for automobile control ciucuits such as electric power steering
and direct injection engine drive.
Compliant to the RoHS directive(2011/65/EU).
UBT
UBW
Higher Capacitance
Higher ripple current
UBY
Vibration Resistance
UXY
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Performance Characteristics
–40 to +135°C
25 to 100V
160 to 12000µF
± 20% at 120Hz, 20°C
After 1 minute’s application of rated voltage at 20°C, leakage current is not more than 0.03CV (µA)
Rated voltage (V)
tan
δ
(MAX.)
Tangent of loss angle (tan
δ)
25
0.14
35
0.12
50
0.10
63
0.10
80
0.08
100
0.08
120Hz, 20°C
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
120Hz
Stability at Low Temperature
Rated voltage (V)
Z– 25°C / Z+20°C
Impedance ratio
ZT / Z20 (MAX.)
Rated voltage (V)
Z– 40°C / Z+20°C
25
2
4
35
2
4
50
2
4
63
2
4
80
2
4
100
2
4
25 to 50V
The specifications listed below shall be met when the
capacitors are restored to 20°C after D.C. bias plus
rated ripple current is applied for 3000 hours at 125°C or
135°C, the peak voltage shall not exceed the rated
voltage.
tan
δ
63 to 100V
The specifications listed below shall be met when the
capacitors are restored to 20°C after D.C. bias plus
rated ripple current is applied for 3000 hours at 125°C or
2000 hours at 135°C, the peak voltage shall not exceed
the rated voltage.
-
Endurance
Capacitance change
Leakage current
Within ±30% of the initial capacitance value
300% or less than tha initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 125˚C for 1000 hours and then performing voltage treatment based on JIS C
5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Black print on the case top.
The UBY series places emphasis on high ripple current, as a result the lifetime calculation is different than other series.
Please contact Nichicon for details.
Radial Lead Type
Type numbering system (Example : 25V 12000µF)
UB Y 1 E 1 2 3 MH L
1
2
3
4
5
6
7
8
9 10 11
12
Rated Capacitance
Trade mark
nichicon
Rated Voltage
Laminated case
φ
d
size code
Configuration
P
±0.5
φD
+
0.5 MAX.
12000
BY 25V
H1501
Capacitance tolerance (±20%)
Rated capacitance (12000µF)
Rated voltage (25V)
Series
Lot No.
Pressure
relief vent
L+
1.5MAX.
15
MIN
4
MIN
Series name
Type
(mm)
φD
P
φd
12.5
5.0
0.6※
16
7.5
0.8
18
7.5
0.8
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
