LGJ2E151MELB15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> LGJ2E151MELB15

LGJ2E151MELB15: DescriptionAluminum Electrolytic Capacitors - Snap In; CategoryPassive components; File Size790KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

LGJ2E151MELB15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LGJ2E151MELB15	-	-	View	Buy Now

LGJ2E151MELB15 Overview

Aluminum Electrolytic Capacitors - Snap In

LGJ2E151MELB15 Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - Snap In
Manufacturer	Nichicon
Capacitance	150 uF
Voltage Rating DC	250 VDC
Tolerance	20 %
Ripple Current	700 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Diameter	30 mm
Length	15 mm
Lead Spacing	10 mm
Packaging	Bulk
Leakage Current	580 uA
Product	Aluminum Electrolytic Capacitors
Factory Pack Quantity	50
Termination Style	Snap In

Preview

Download Datasheet

View All

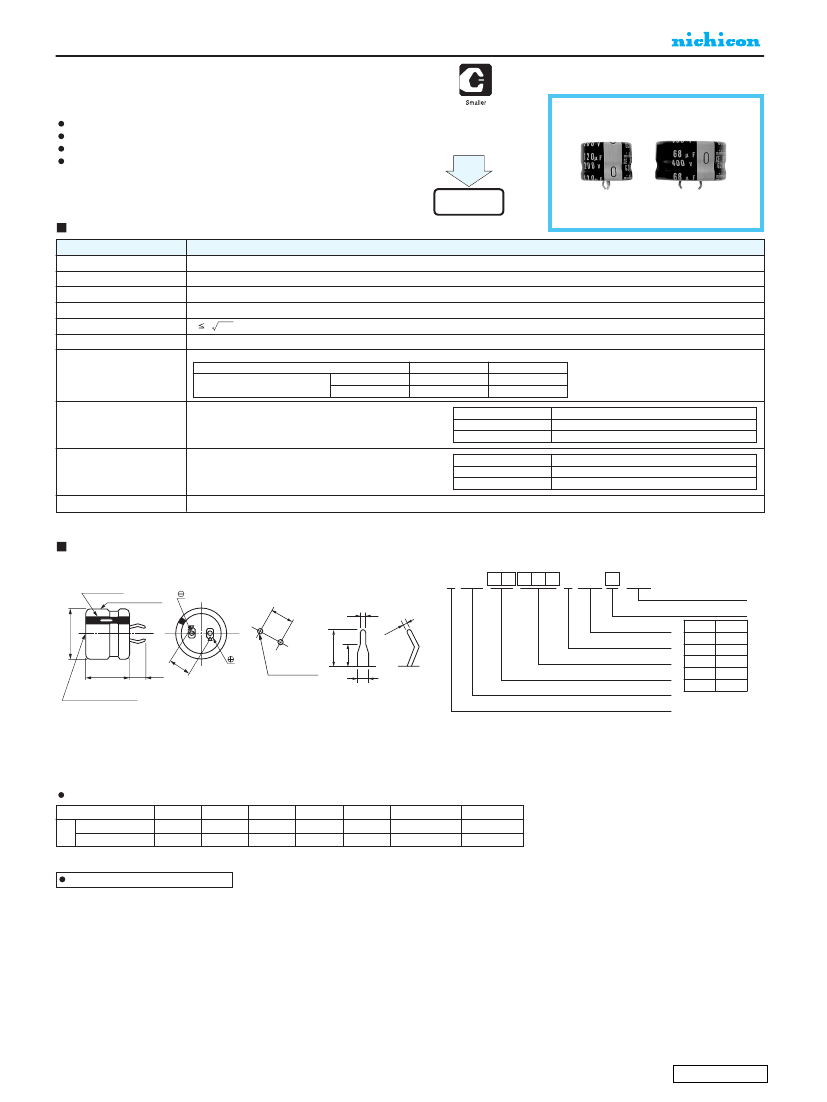

ALUMINUM ELECTROLYTIC CAPACITORS

(15)

Specifications

Item

Category Temperature Range

Rated Voltage Range

Snap-in Terminal Type, 105

°C

Low-Profile Sized

(15mmL)

series

Withstanding 2000 hours application of rated ripple current at 105°C.

Smaller than low-profile GJ series.

Ideally suited for flat design of switching power supply.

Compliant to the RoHS directive (2011/65/EU).

Low

Profile

(15)

Performance Characteristics

–

40 to +105°C (160 to 250V) ,

–

25 to +105°C (315

•

400V)

160 to 400V

39 to 390µF

± 20%

120Hz, 20°C

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan

δ)

3 CV

(µA) (After 5 minutes' application of rated voltage)

[C : Rated Capacitance (µF) V : Voltage (V)]

120Hz

20°C

Measurement frequency : 120Hz

0.20

MAX.

Stability at Low Temperature

Impedance ratio ZT/Z20(MAX.)

Rated voltage(V)

–

25°C/ Z+20°C

–

40°C/ Z+20°C

160 to 250

315

•

400

—

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Within ±15% of the initial capacitance value

150% or less than the initial specified value

Less than or equal to the initial specified value

Endurance

The specifications listed at right shall be met when the capacitors

are restored to 20°C after D.C. bias plus rated ripple current is

applied for 2000 hours at 105°C, the peak voltage shall not exceed

the rated voltage.

After storing the capacitors under no load at 105°C for 1000

hours and then performing voltage treatment based

on JIS C 5101-4 clause 4.1 at 20°C,

they shall meet the requirements listed at right.

Capacitance change

tan

Leakage current

Capacitance change

tan

Leakage current

Shelf Life

Marking

Printed with white color letter on black sleeve.

Drawing

Polarity bar

Sleeve (P.E.T.)

+1MAX.

Type numbering system (Example : 200V 330

10 11 12

13 14

Case length code

0.1

L G J 2 D 3 3 1 ME L C 1 5

0.8

+0.2

-0.1

0.8

4.0±0.5

+0 .1

-0

Case dia. code

Configuration

Capacitance tolerance (±20%)

φD

Code

2.5

±2

Rated capacitance (330µF)

Rated voltage (200V)

1.5

+0.2

-0.1

2-2

±0.1

4.0±0.5

Pressure relief vent

(PC board hole dimensions)

Series name

Type

(Terminal dimensions)

Frequency coefficient of rated ripple current

Frequency (Hz)

160 to 250V

Coeff.

315 · 400V

0.81

0.77

0.85

0.82

120

1.00

300

1.17

1.16

1.32

1.30

10k

1.45

1.41

50k or more

1.50

1.43

Minimum order quantity : 50pcs.

Dimension table in next page.

CAT.8100D
