LFSPXO027890Bulk datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO027890Bulk

LFSPXO027890Bulk: DescriptionStandard Clock Oscillators 27MHz 2.5V 100ppm -40C +85C; CategoryPassive components; File Size708KB，2 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO027890Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO027890Bulk	-	-	View	Buy Now

LFSPXO027890Bulk Overview

Standard Clock Oscillators 27MHz 2.5V 100ppm -40C +85C

LFSPXO027890Bulk Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	IQD
RoHS	Details
Product	Standard Clock Oscillators
Frequency	27 MHz
Frequency Stability	100 PPM
Load Capacitance	15 pF
Operating Supply Voltage	2.5 V
Output Format	CMOS
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	7.2 mm
Width	5.2 mm
Height	1.4 mm
Packaging	Bulk
Current Rating	8 mA
Duty Cycle - Max	60 %
Factory Pack Quantity	100

Preview

Download Datasheet

View All

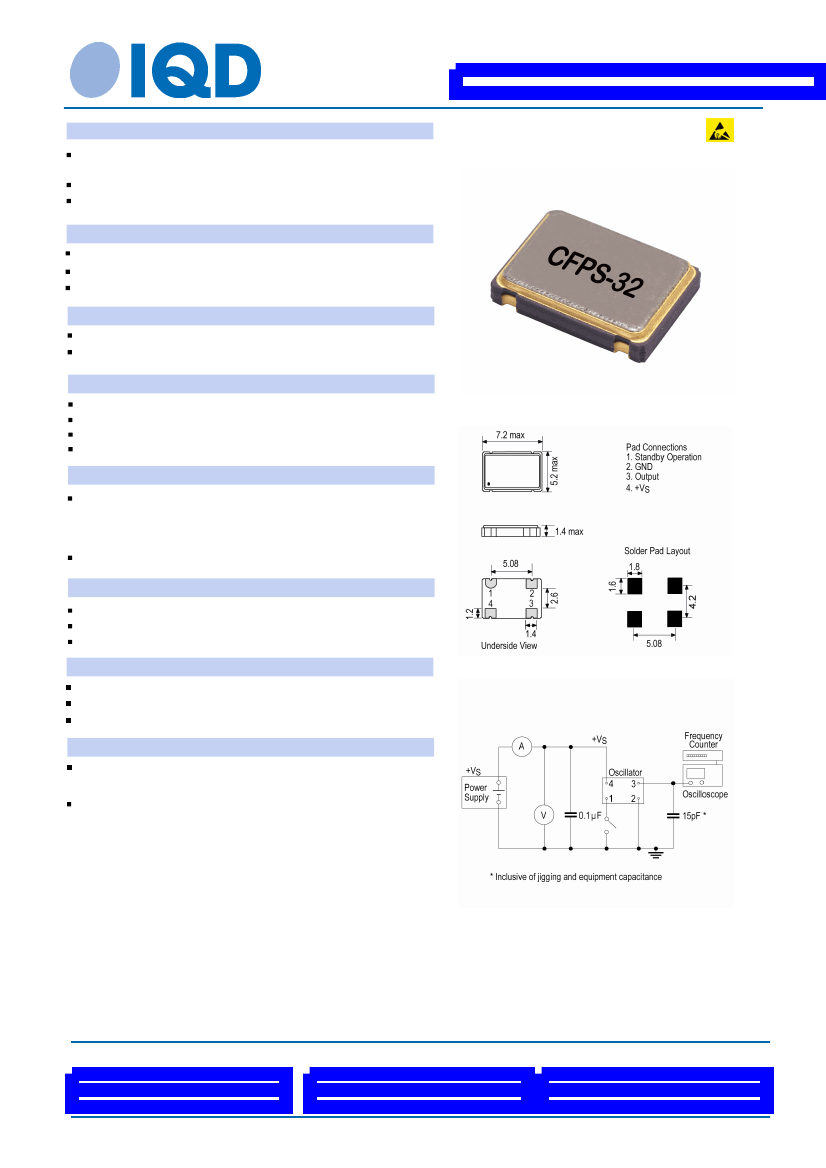

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO027890Bulk

Description

Surface mount oscillator in a ceramic package with a

hermetically sealed metal lid

Model

CFPS-32

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

27.0MHz

±100.00ppm

-40.00 to 85.00°C

Supply Voltage

Current Draw

Output Details

2.5V ±5%

8.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

40/60%

Outline (mm)

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10μA max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
