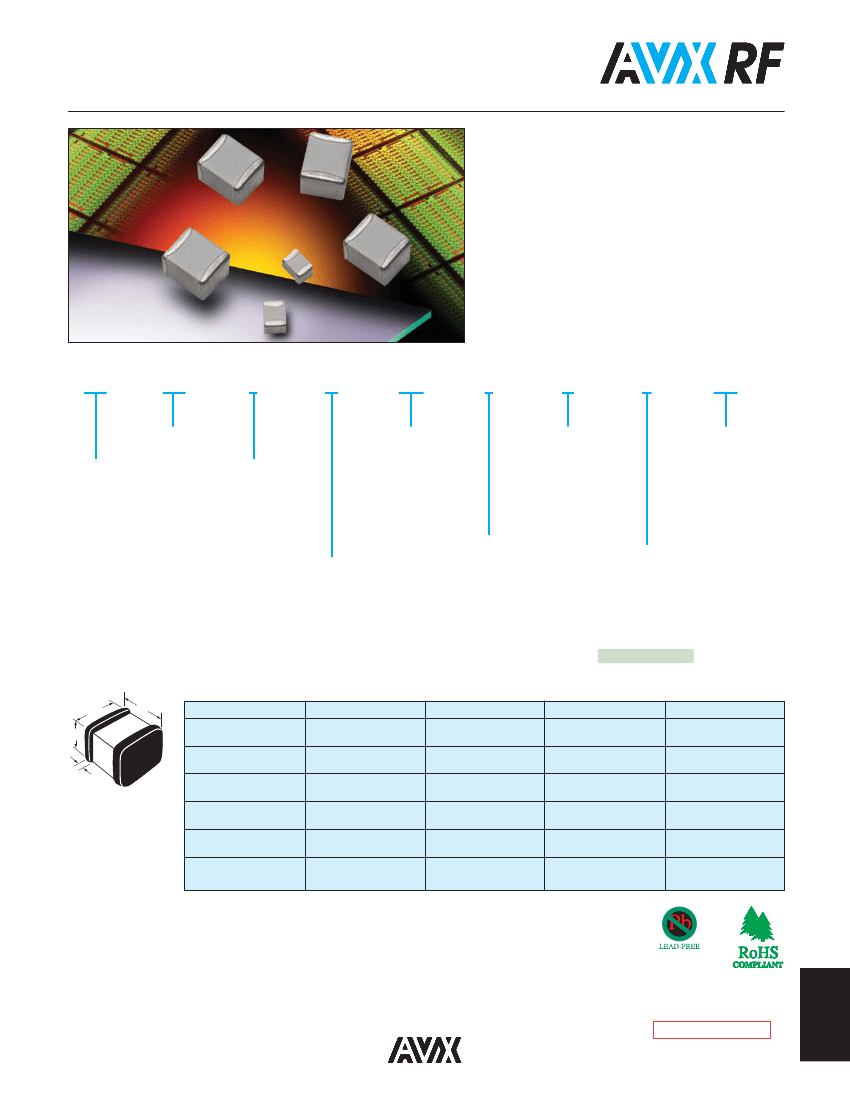

Microwave MLCs
UQ Series High Q Ultra Low ESR MLC
FEATURES:
•
•
•
•
Ultra Low ESR
High Q
High Self Resonance
Capacitance Range 0.1 pF to 1000 pF
APPLICATIONS:
•
•
•
•
RF Power Amplifiers
Low Noise Amplifiers
Filter Networks
MRI Systems
HOW TO ORDER
UQ
CB
Case Size
AVX Style
CA = 0605
CB = 1210
CR = 0709
CL = 0402
CS = 0603
CF = 0805
See mechanical
dimensions below
7
A
100
Capacitance
EIA Capacitance Code in pF.
J
A
Failure Rate
Code
A = Not
Applicable
T
ME
Packaging Code
ME = 7" Reel Marked
(0605, 1210 &
0709 only)
2A = 7" Unmarked
(0402, 0603, &
0805 only)
* Vertical T&R available
Voltage
Code
5 = 50V
1 = 100V
E = 150V
2 = 200V
V = 250V
9 = 300V
7 = 500V
First two digits = significant
figures or “R” for decimal
place.
Third digit = number of zeros
or after “R” significant fig-
ures.
Temperature
Coefficient Code
A = 0±30ppm/°C
Capacitance
Tolerance Code
A = ±.05 pF
B = ±.1 pF
C = ±.25 pF
D = ±.5 pF
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
Termination Style
Code
J = Nickel Barrier
Sn/Pb (60/40)
**T
= 100% Tin
**C
= Non-Magnetic
Barrier/Tin
**RoHS compliant
MECHANICAL DIMENSIONS:
W
T
L
inches (millimeters)
Width (W)
.055±.015
(1.40±.381)
.110±.015
(2.79±.381)
.090±.010
(2.29±.254)
.020±.004
(0.51±.100)
.032±.006
(0.81±0.15)
.049±.008
(1.24±0.20)
Case
UQCA
UQCB
Length (L)
.055 + .015 - .010
(1.40+ .381 - .254)
.110 + .020 - .010
(2.79 +.508 -.254)
.070 ± .015
(1.78 ± .381)
.040 ± .004
(1.02 ± .100)
.063 ± .006
(1.60 ± 0.15)
.079 ± .008
(2.01 ± 0.20)
Thickness (T)
.057 (1.45) max.
.102 (2.59) max.
.115 (2.92) max.
.024 (.600) max.
.035 (.890) max.
.051 (1.30) max.
Band Width (bw)
.010 + .010 -.005
(.254 +.254 -.127)
.015±.010
(.381±.254)
.010 + .010 -.005
(.254 +.254 -.127)
.010 ± .006
(0.25 ± 0.15)
.014 ± .006
(0.36 ± 0.15)
.020 ± 0.01
(0.51 ± 0.25)
A 1J
10
bw
UQCR
UQCL
UQCS
UQCF
TAPE & REEL:
All tape and reel specifications are in compliance with EIA RS481
(equivalent to IEC 286 part 3).
—8mm carrier
—7" reel: UQCA = 500 or 4000 pc T&R
UQCB = 500 or 1000 pc T&R
UQCR = 500 or 1000 pc T&R
UQCL = 500, 4000 or 10,000 pc T&R
UQCS = 500 or 4000 pc T&R
UQCF = 500 or 4000 pc T&R
LEAD-FREE COMPATIBLE
COMPONENT
For RoHS compliant products,
please select correct termination style.
Also available in:
Not RoHS Compliant
8
175
Microwave MLCs
UQ Series High Q Ultra Low ESR MLC

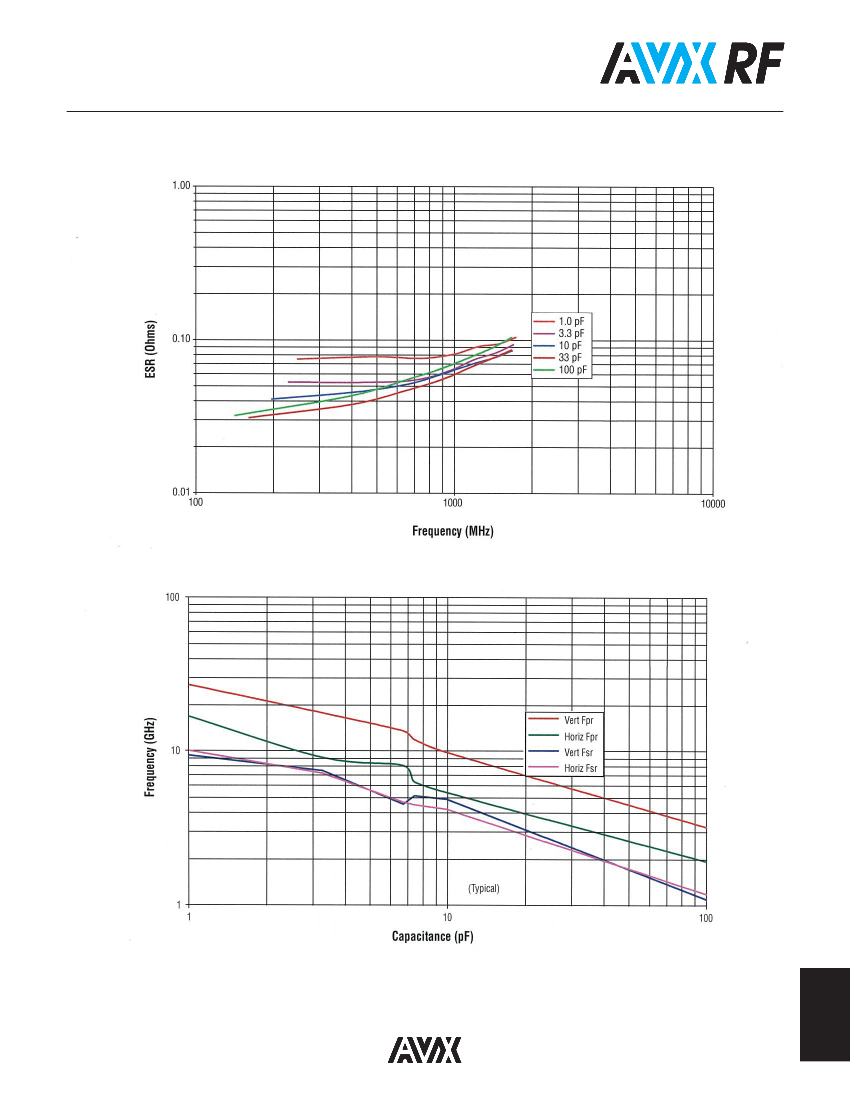

ELECTRICAL SPECIFICATIONS
Temperature Characteristic Code A
Temperature Coefficient (TCC)
Capacitance Range
Operating Temperature
Quality Factor (Q)
Insulation Resistance (IR)
(A) 0 ± 30 PPM/ºC
(A) 0.1 pF to 1000 pF
0.1 pF to 1000 pF: from -55ºC to +125ºC
Greater than 2,000 at 1 MHz
0.1 pF to 1000 pF
10
5
Megohms min. @ 25ºC at rated WVDC
10
4
Megohms min. @ 125ºC at rated WVDC
See Capacitance Values table
250% of rated WVDC for 5 secs
None
None
± (0.02% or 0.02 pF), whichever is greater
Working Voltage (WVDC)
Dielectric Withstanding Voltage (DWV)
Aging Effects
Piezoelectric Effects
Capacitance Drift
ENVIRONMENTAL CHARACTERISTICS
AVX UQ will meet and exceed the requirements of EIA-198, MIL-PRF-55681 and MIL-PRF-123
Thermal Shock
Moisture Resistance
Low Voltage Humidity
Mil-STD-202, Method 107, Condition A
Mil-STD-202, Method 106
Mil-STD-202, Method 103, condition A, with 1.5 VDC
applied while subjected to an environment of 85ºC with
85% relative humidity for 240 hours
Mil-STD-202, Method 108, for 2000 hours at 125ºC
200% WVDC
Mil-STD-202, Method 213, Condition J
Mil-STD-202, Method 204, Condition B
Mil-STD-202, Method 104, Condition B
Mil-STD-202, Method 101, Condition B
Mil-STD-202, Method 208
Mil-STD-202, Method 211
Mil-STD-202, Method 102, Condition C
Mil-STD-202, Method 105, Condition B
Mil-STD-202, Method 210, Condition C
Life Test
Shock
Vibration
Immersion
Salt Spray
Solderability
Terminal Strength
Temperature Cycling
Barometric Pressure
Resistance to Solder Heat
8
