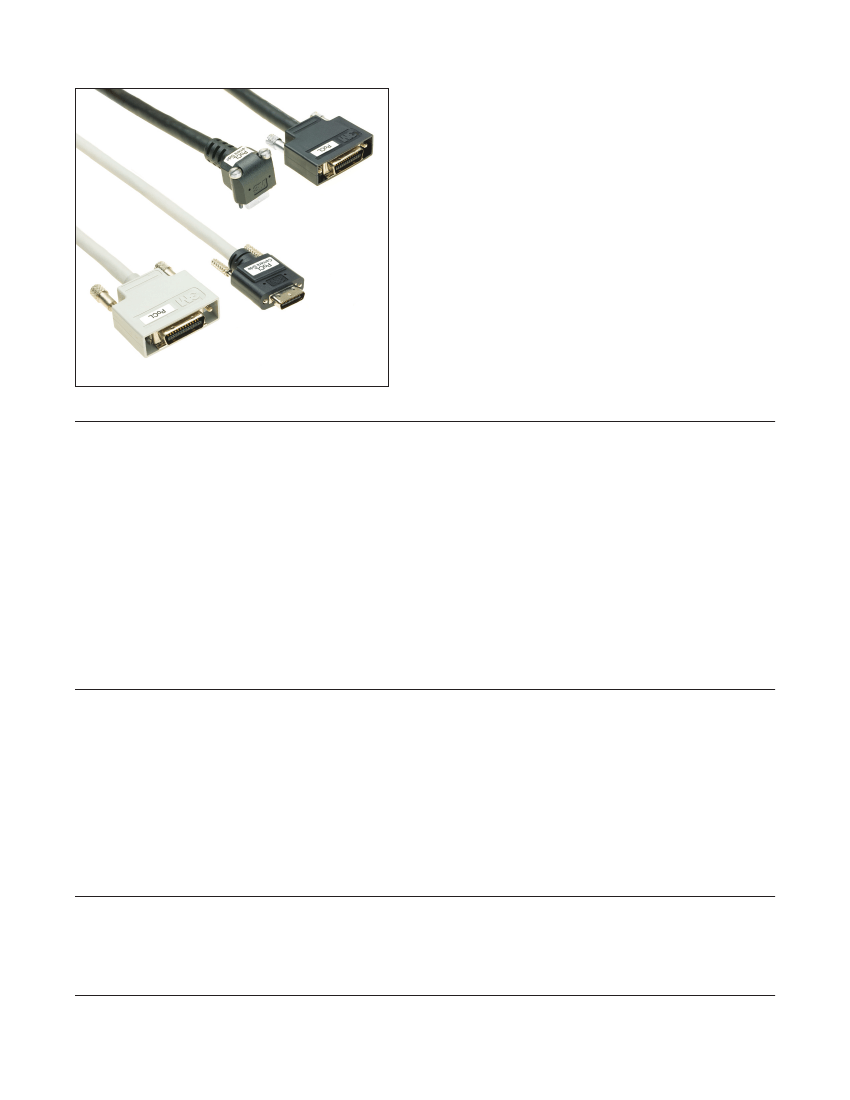

3M
™
Shrunk Delta Ribbon (SDR) Cable Assembly
.80 mm Digital Camera Cable, PoCL Compatible, 26 position
1MD26-X5XX-00C-XXX
• Carries power in addition to signal to enable use in base
configuration Power over Camera Link
®
(PoCL)
applications
• Connects between Mini-Camera Link style (SDR) I/O
ports on PoCL Cameras and Camera Link style (MDR)
ports on PoCL framegrabbers
• Both straight and right angle cable exit available
• 3 shielded quads and 6 unshielded twisted pairs
• Entire cable bundle shielded with foil and braid for
additional signal protection
• Rugged ribbon type contact for reliable, repeatable
connectivity
• Thumbscrew retention
• EMI shielded end-to-end for reduced emissions
• See Regulatory Information Appendix (RIA) for chemical
compliance information
Date Modified: November 21, 2008
TS-2286-A
Sheet 1 of 4
Physical
Connector Contact Plating:
Wiping Area: 30 μ" [0.76 μm] Min. Gold (RIA E1 & C1 apply)
Underplating: 100 μ" [ 2.54 μm ] Nickel
Overmolded Shell:
Color: Black
Material: Polyvinyl Chloride (PVC)
Shell:
Color: Gray or Black
Material: Polyester Elastomer
Cable:
Color: Gray or Black
Jacket Material: Polyvinyl Chloride (PVC)
Flammability: AWM VW-1
Electrical
Voltage Rating:
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Twisted Pairs
Cable Characteristic Impedence:
Conductor Size:
Skew (within pair):
Skew (Channel skew per chipset):
30 V
0.5 A
> 1 x 10
8
Ω
at 100 V
DC
125 V
AC (RMS)
for 1 minute
100 ± 10
Ω
differential
28 AWG Stranded
50 ps/meter maximum
100 ps/meter maximum, 50 ps/meter maximum for 1MD26-R5XX-00C-XXX
Environmental
Temperature Rating:
0°C to +70°C
UL File No.: E86982
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
Camera Link is a certification mark of Automated Imaging Association.
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Shrunk Delta Ribbon (SDR) Cable Assembly
.80 mm Digital Camera Cable, PoCL Compatible, 26 position
1MD26-X5XX-00C-XXX
24.4
[0.96]
39.7
[1.56]
9.0
[0.35]
32.0
[1.26]
Cable Length
32.5
[1.28]
12.9
[0.51]

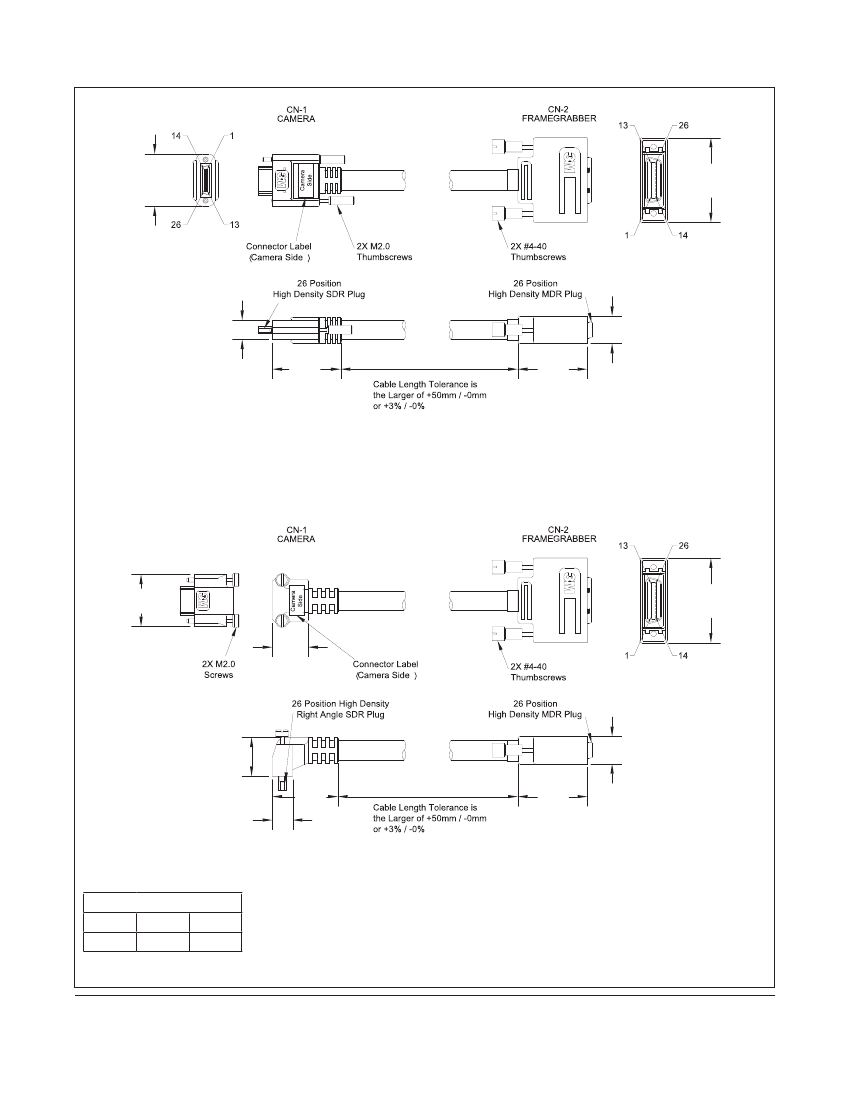

Figure 1
Straight SDR - Straight MDR
1MD26-X560-00C-XXX
24.4
[0.96]
16.7
[0.66]
39.7
[1.56]
18.2
[0.72]
30.7
[1.21]
Cable Length
32.5
[1.28]
12.9
[0.51]
9.5
[0.37]
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±.1
0.00
±.01
Figure 2
Right-Angle SDR - Straight MDR
1MD26-X57X-00C-XXX
[ ] Dimensions for Reference Only
TS-2286-A
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Shrunk Delta Ribbon (SDR) Cable Assembly
.80 mm Digital Camera Cable, PoCL Compatible, 26 position
1MD26-X5XX-00C-XXX
24.4
[0.96]
39.7
[1.56]
25.4
[1.00]
9.0
[0.35]
32.0
[1.26]
Cable Length
42.4
[1.67]
19.4
[0.76]
14.0
[0.55]
Figure 3
Straight SDR - Right-Angle MDR
1MD26-X58X-00C-XXX
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±.1
0.00
±.01
[ ] Dimensions for Reference Only

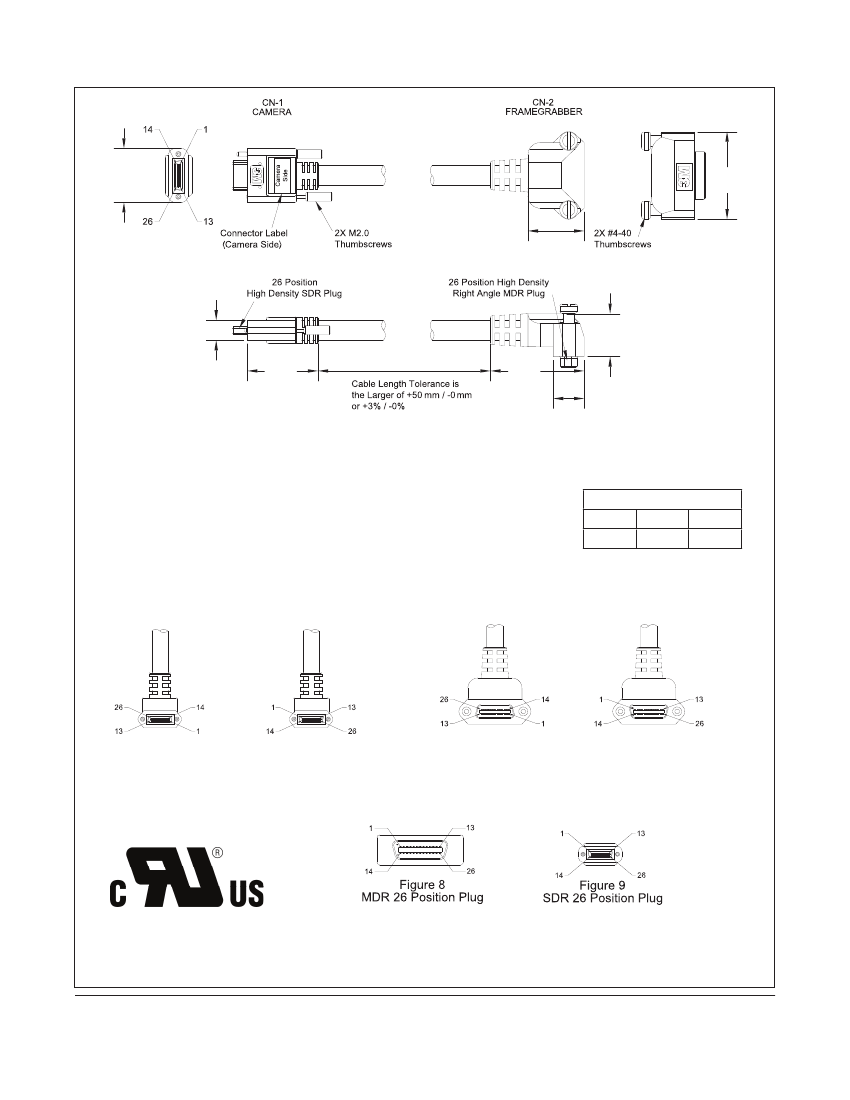

Figure 4
1MD26-X576-00C-XXX
Figure 5
1MD26-X577-00C-XXX
Figure 6
1MD26-X586-00C-XXX
Figure 7
1MD26-X587-00C-XXX
TS-2286-A
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Shrunk Delta Ribbon (SDR) Cable Assembly
.80 mm Digital Camera Cable, PoCL Compatible, 26 position
Table 1
Wiring Chart
CN-1
Connector
Position
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
1
26
13
14
Shell
Signal
X0-
X0+
X1-
X1+
X2-
X2+
Xclk-
Xclk+
X3-
X3+
SerTC+
SerTC-
SerTFG-
SerTFG+
CC1-
CC1+
CC2+
CC2-
CC3-
CC3+
CC4+
CC4-
+12V
+12V
Inner Shield
Inner Shield
Twisted Pair 1
Twisted Pair 2
Twisted Pair 3
Twisted Pair 4
Twisted Pair 5
Twisted Pair 6
Drain Wire
Drain Wire
Twisted Pair 1
Twisted Pair 2
Twisted Pair 3
Twisted Pair 4
Twisted Pair 5
Twisted Pair 6
Insulated Wire
Insulated Wire
Braid Shield
Quad 3
Quad 3
Quad 2
Quad 2
Quad 1
Quad 1
1MD26-35XX-
00C-XXX Cable
1MD26-R5XX-
00C-XXX Cable
Signal
X0-
X0+
X1-
X1+
X2-
X2+
Xclk-
Xclk+
X3-
X3+
SerTC+
SerTC-
SerTFG-
SerTFG+
CC1-
CC1+
CC2+
CC2-
CC3-
CC3+
CC4+
CC4-
+12V
+12V
Inner Shield
Inner Shield
CN-2
Connector
Position
25
12
24
11
23
10
22
9
21
8
20
7
19
6
18
5
17
4
16
3
15
2
1
26
13
14
Shell
1MD26-X5XX-00C-XXX
Ordering Information
Cable Type:
3: Standard (gray)
R: Flexible (black)
1MD26 - X5XX - 00C - XXX
Cable Exit Combination & Attachment Direction:
60: Straight discrete MDR backshell to a straight overmolded SDR (Figure 1)
76: Straight discrete MDR backshell to a R/A overmolded SDR with cable opposite position 1 (Figures 2 & 4)
77: Straight discrete MDR backshell to a R/A overmolded SDR with cable same side as position 1 (Figures 2 & 5)
86: R/A overmolded MDR with cable opposite position 1 to a straight overmolded SDR (Figures 3 & 6)
87: R/A overmolded MDR with cable same side as position 1 to a straight overmolded SDR (Figures 3 & 7)
Cable Length:
200 = 200 cm
500 = 500 cm
A00 = 1000 cm
Other lengths available by
special order.
Contact 3M for details.
TS-2286-A
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
