Tantalum Through-Hole Capacitors – Molded Radial
T340 Molded Radial
Overview

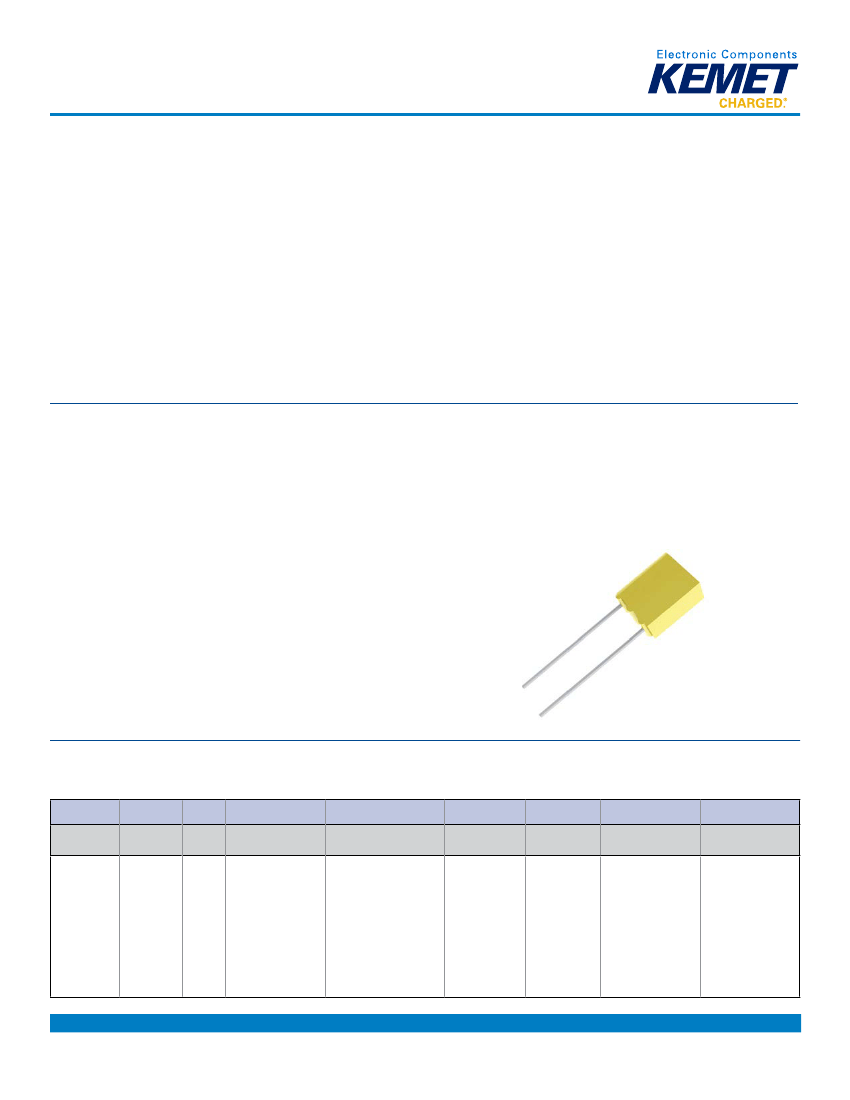

The compact, space-saving T340 is transfer molded in
precision, with a high impact-resistant plastic that has
excellent electrical, physical and moisture-resistant
properties. The gold color plastic case permits laser
marking with outstanding permanency and legibility.
Marking is provided on the top of the case to allow visual
inspection for proper polarity and placement after insertion.
In addition, positive polarity identification is achieved by
an easily recognized molded radius on the positive end of
the case. Additionally, this physical polarity identification is
readily observed after capacitor placement as a further aid
in the prevention of possible reverse insertion. Standoffs,
located in the base of all case sizes, provide vents for air
circulation and also to allow easy removal of flux residues
from leadwire and circuit board solder joints. With very low
impedance and ESR values, the T340 features exceptionally
low DC leakage and DF characteristics. The T340 is
available in standard ±20%, ±10% and ±5% (special order)
capacitance tolerance. T340 capacitors are highly reliable
and exhibit performance characteristics typical of military
test standards.
Benefits
• Taped and reeled per EIA Specification RS-468
• Laser-marked case
• Capacitance values of 0.1 μF to 330 μF
• Tolerances of ±20% standard, ± 5% and ±10% special order
• Voltage rating of 3 – 50 VDC
• Case sizes: A, B, C, D, E, F
Applications
Typical applications include bypassing, coupling, and timing
applications in computers, military ordinance, industrial,
entertainment, and consumer electronic equipment.
Ordering Information
T
Capacitor
Class
T=
Tantalum
340
Series
Radial
Lead
Precision
Molded
Polar
Solid
Tantalum
A
Case
Size
A,
B,
C,
D,
E,
F
105
Capacitance Code
(pF)
First two digits
represent
significant
figures. Third
digit specifies
number of zeros
to follow.
M
Capacitance
Tolerance
M = ±20% (standard
K = ±10%
J = ±5%
(available on request)
035
Rated Voltage
(VDC)
003 = 3
006 = 6
010 = 10
015 = 15/16
020 = 20
025 = 25
035 = 35
040 = 40
050 = 50
A
Not
Applicable
S
Packaging
Blank = Bulk
7301 = Tape &
Reel
7305 = Ammo
7317 = Ammo
S = Standard
(solder-coated
copperweld)
T = 100% tin
(Sn)-plated
Failure Rate Termination Finish
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2041_T340 • 3/27/2018
1
Tantalum Through-Hole Capacitors – Molded Radial
T340 Molded Radial
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz at 25°C)
ESR and Impedance
(100 kHz at 25°C)
Leakage Current
−55°C to 125°C
0.1 – 330 μF at 120 Hz/25°C
M tolerance (20%) standard, J tolerance (5%), K tolerance (10%) special order
3 –50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table (for reference only)
Refer to Part Number Electrical Specification Table
(at rated voltage up to +85°C and 2/3 of rated voltage applied at 125°C)
Performance Characteristics
Dimensions – Millimeters (Inches)
Metric will govern
T340
T
T
T
T
T
SIDE
W
W
W
W
W
H
H
H
H
H
L
D
S
D
S
L
D
L
D
L
D
L
S
S
S
A Case
B Case
C Case
D Case
E Case
F case size is the same as D, but with 0.200" (5.0 mm) lead spacing. Specify T340F when ordering this spacing.
Case
Size
A
B
C
D
E
F
H**
(MAXIMUM)
0.287
(7.3)
0.327
(8.3)
0.413
(10.5)
0.413
(10.5)
0.413
(10.5)
0.413
(10.5)
W
(MAXIMUM)
0.185
(4.7)
0.283
(7.2)
0.287
(7.3)
0.484
(12.3)
0.484
(12.3)
0.484
(12.3)
T
Lead Spacing
(MAXIMUM)
S
0.165
(4.2)
0.157
(4.0)
0.169
(4.3)
0.287
(7.3)
0.484
(12.3)
0.287
(7.3)
0.100 ±0.020
(2.5 ±0.5)
0.200 ±0.020
(5.0 ±0.5)
0.200 ±0.020
(5.0 ±0.5)
0.400 ±0.020
(10.0 ±0.5)
0.400 ±0.020
(10.0 ±0.5)
0.200 ±0.020
(5.0 ±0.5)
Lead Length Lead Diameter
L
D
0.600 ±0.078
(15.0 ±2.0)
0.600 ±0.078
(15.0 ±2.0)
0.600 ±0.078
(15.0 ±2.0)
0.600 ±0.078
(15.0 ±2.0)
0.600 ±0.078
(15.0 ±2.0)
0.600 ±0.078
(15.0 ±2.0)
0.020 ±0.001
(0.50 ±0.03)
0.020 ±0.001
(0.50 ±0.03)
0.020 ±0.001
(0.50 ±0.03)
0.025 ±0.001
(0.64 ±0.03)
0.025 ±0.001
(0.64 ±0.03)
0.025 ±0.001
(0.64 ±0.03)
**Includes Standoff Height of 0.015 ±0.005" (0.38 ±0.13mm) for All Case Sizes.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2041_T340 • 3/27/2018
2
Tantalum Through-Hole Capacitors – Molded Radial
T340 Molded Radial
Table 1 – Ratings & Part Number Reference
Rated
Voltage
(V) 85°C
3
3
3
3
3
3
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
15
15
15
15
15
15
15
15
(V) 85°C
Rated
Capacitance
µF
10.0
15.0
33.0
47.0
68.0
100.0
6.8
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
330.0
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
220.0
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
µF
Case
Code
A
A
B
B
C
C
A
B
B
B
B
B
C
C
C
C
C
C
D/F
D/F
D/F
D/F
D/F
D/F
E
A
B
B
B
B
B
B
C
C
C
C
C
D/F
D/F
D/F
D/F
D/F
D/F
D/F
E
A
B
B
B
B
B
B
C
KEMET Part Number
T340A106(1)003A(3)
T340A156(1)003A(3)
T340B336(1)003A(3)
T340B476(1)003A(3)
T340C686(1)003A(3)
T340C107(1)003A(3)
T340A685(1)006A(3)
T340B106(1)006A(3)
T340B126(1)006A(3)
T340B156(1)006A(3)
T340B186(1)006A(3)
T340B226(1)006A(3)
T340C276(1)006A(3)
T340C336(1)006A(3)
T340C396(1)006A(3)
T340C476(1)006A(3)
T340C566(1)006A(3)
T340C686(1)006A(3)
T340(2)826(1)006A(3)
T340(2)107(1)006A(3)
T340(2)127(1)006A(3)
T340(2)157(1)006A(3)
T340(2)187(1)006A(3)
T340(2)227(1)006A(3)
T340E337(1)006A(3)
T340A475(1)010A(3)
T340B565(1)010A(3)
T340B685(1)010A(3)
T340B825(1)010A(3)
T340B106(1)010A(3)
T340B126(1)010A(3)
T340B156(1)010A(3)
T340C186(1)010A(3)
T340C226(1)010A(3)
T340C276(1)010A(3)
T340C336(1)010A(3)
T340C396(1)010A(3)
T340(2)476(1)010A(3)
T340(2)566(1)010A(3)
T340(2)686(1)010A(3)
T340(2)826(1)010A(3)
T340(2)107(1)010A(3)
T340(2)127(1)010A(3)
T340(2)157(1)010A(3)
T340E227(1)010A(3)
T340A335(1)015A(3)
T340B395(1)015A(3)
T340B475(1)015A(3)
T340B565(1)015A(3)
T340B685(1)015A(3)
T340B825(1)015A(3)
T340B106(1)015A(3)
T340C126(1)015A(3)
(see below for
part options)
DC
Leakage
µA at 25°C
Maximum/5 Minutes
1.0
1.0
1.5
3.0
4.0
5.0
1.0
1.0
1.0
1.0
1.0
2.5
2.5
2.5
2.5
3.0
5.0
5.0
5.0
5.0
5.0
8.0
10.0
10.0
10.0
1.0
1.0
1.0
1.0
1.0
1.0
3.0
3.0
3.0
3.0
5.0
5.0
5.0
5.0
5.0
8.0
10.0
10.0
10.0
10.0
1.0
1.0
1.0
1.0
1.0
1.0
3.0
3.0
µA @ 25°C
Maximum/5 Minutes
DF
% at 25°C
120 Hz Maximum
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
8
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
% at 25°C
120 Hz Maximum
IMP Ω
at 10 kHz Maximum
6.0
3.2
2.1
1.8
1.5
1.2
6.0
2.1
1.5
0.8
0.5
7.5
2.5
1.7
1.0
0.5
9.0
3.2
at 10 kHz Maximum
Rated Voltage
Rated Capacitance
Case Code
KEMET Part Number
DC
Leakage
DF
IMP Ω
(1) To complete KEMET part number, insert M for ± 20%, K for ± 10% or J for 5%. Designates Capacitance tolerance.
(2) To complete KEMET part number, insert letter "D" for 10.0 mm (0.394) lead spacing or letter "F" for 5.0 mm (0.197) lead spacing. Designates Lead spacing.
(3) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, S = Standard Solder coated (SnPb 5% Pb minimum). Designates termination finish.
Higher voltage and better capacitance tolerance products may be substitued for an order within the same case size at KEMET's option.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2041_T340 • 3/27/2018
3
