OD-525-99-110 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> OD-525-99-110

Preview

OD-525-99-110: DescriptionOptoelectronic Device; CategoryLED optoelectronic/LED photoelectric; File Size225KB，2 Pages; ManufacturerOpto Diode Corporation; Websitehttps://optodiode.com/index.html

Download Datasheet Parametric View All

OD-525-99-110 Overview

Optoelectronic Device

OD-525-99-110 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

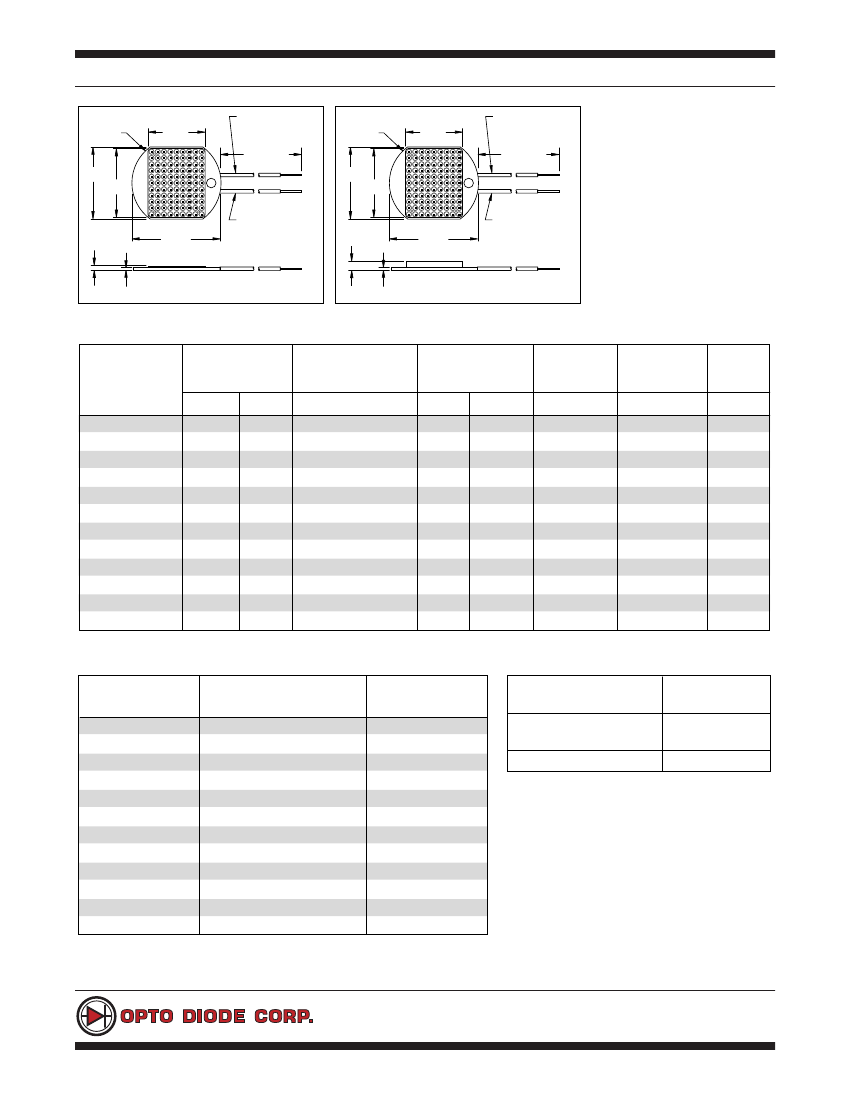

99 DIE LED ARRAY

R.510

.669

ANODE

(BLUE 26 AWG)

11.0 MIN

.834

.815

CATHODE

(BLACK 26 AWG)

.834

.815

CATHODE

(BLACK 26 AWG)

R.510

.669

ANODE

(BLUE 26 AWG)

11.0 MIN

FEATURES

• 110° and 70° beam angles

•

Excellent thermal

conductivity

1.030

•

Available wavelengths from

405 to 870nm

•

Higher temperature

versions available

.040

.020

110° BEAM ANGLE

.099

.020

70° BEAM ANGLE

ELECTRO-OPTICAL CHARACTERISTICS AT 25°C

Power Output

(mW)

Part

Number

OD-405-99-110

OD-405-99-070

OD-470-99-110

OD-470-99-070

OD-525-99-110

OD-525-99-070

OD-610-99-110

OD-610-99-070

OD-830-99-110

OD-830-99-070

OD-870-99-110

OD-870-99-070

Min

1300

1

1300

1

1900

1

1900

1

900

1

900

1

560

1

560

1

2800

2

2800

2

2800

2

2800

2

Typ

1700

1

1700

1

2100

1

2100

1

1200

1

1200

1

675

1

675

1

3300

2

3300

2

3300

2

3300

2

250

180

Luminous Output

(Lumens)

Typ

Forward Voltage

(Vf)@0.5A

Typ

11.0

6.0

4.5

Max

13.0

7.5

6.0

Wavelength

(nm)@0.5A

Typ

405

470

525

610

830

870

Radiation

Beam Angle

(Deg.)

Typ

110

70

110

70

110

70

110

70

110

70

110

70

Rise

Time

(nsec)

Typ

40

50

80

60

ABSOLUTE MAXIMUM RATINGS AT 25°C

3

Part

Number

OD-405-99-110

OD-405-99-070

OD-470-99-110

OD-470-99-070

OD-525-99-110

OD-525-99-070

OD-610-99-110

OD-610-99-070

OD-830-99-110

OD-830-99-070

OD-870-99-110

OD-870-99-070

Power Dissipation

(Watts)

19.5

11.3

18.0

Max Current

(A)

1.5

3.0

THERMAL PARAMETERS

Storage and Operating

Temperature Range

Maximum Junction

Temperature

Thermal Resistance J-C

-55°C TO 100°C

100°C

3°C/W Typical

1

2

3

@1.5 ADC

@3.0 ADC

Unit must be bonded to an appropriate heat sink

using adhesive, < 0.002" thick, with Thermal

Conductivity of 29W/mK or better.

750 Mitchell Road, Newbury Park, California 91320

Phone: (805) 499-0335, Fax: (805) 499-8108

Email: sales@optodiode.com, Website: www.optodiode.com

Recommended Resources

Practical overheating alarm circuit

Emitter coupled differential amplifier circuit

electric heater circuit

Photosensitive control circuit used in textile machine three-stop digital controller

Micro waiting power square wave generating circuit

FM transmitter production circuit (crystal oscillator 80mW)
