800F-2-501

Description
Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal
CategoryThe connector    The connector
File Size200KB,1 Pages
ManufacturerMethode Electronics Inc.

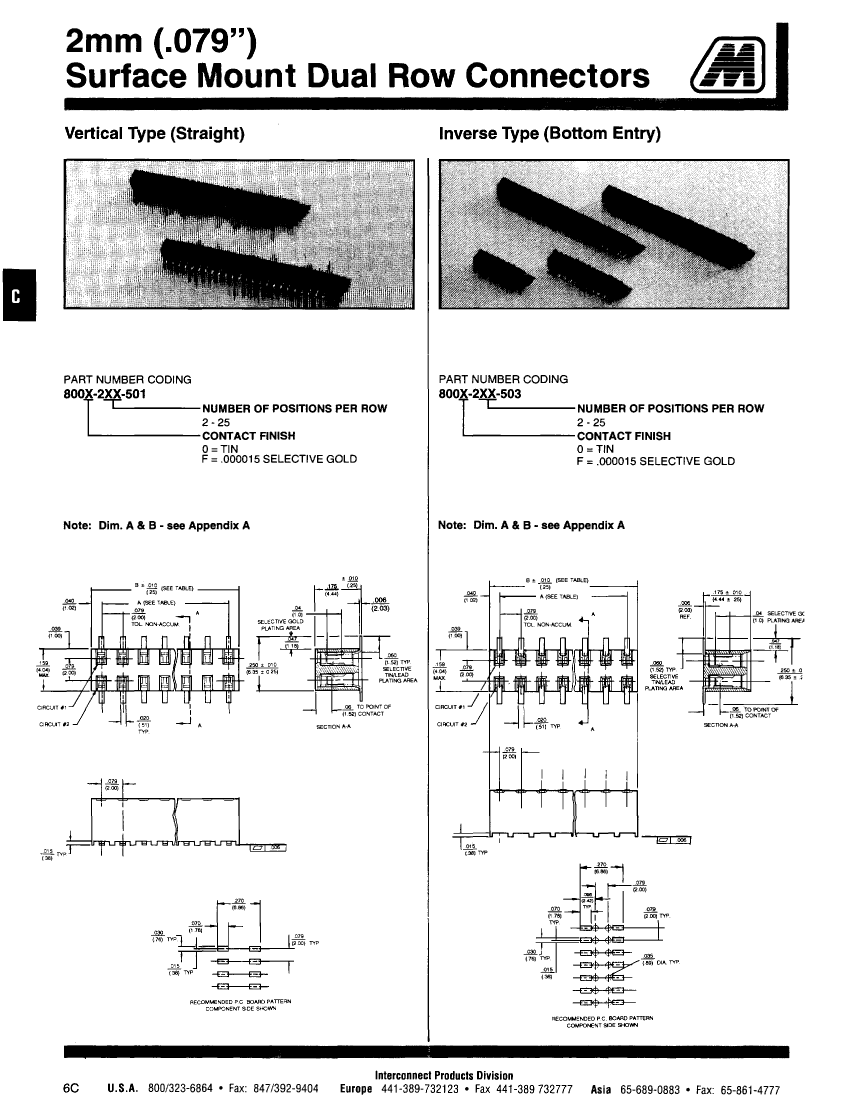

Download Datasheet Parametric Compare View All

800F-2-501 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

800F-2-501 Parametric

Parameter NameAttribute value
MakerMethode Electronics Inc.
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number8000
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts50
UL Flammability Code94V-0
Base Number Matches1

800F-2-501 Related Products

800F-2-501 8000-2-501 8000-2-503 800F-2-503
Description Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal
Maker Methode Electronics Inc. Methode Electronics Inc. Methode Electronics Inc. Methode Electronics Inc.
Reach Compliance Code unknown unknown unknown unknown
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact completed and terminated TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE FEMALE
DIN compliance NO NO NO NO
Filter function NO NO NO NO
IEC compliance NO NO NO NO
JESD-609 code e0 e0 e0 e0
MIL compliance NO NO NO NO
Manufacturer's serial number 8000 8000 8000 8000
Mixed contacts NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2 mm 2 mm 2 mm 2 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 50 50 50 50
UL Flammability Code 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 -
