5962-8991001XC

Description

5962-8991001XC amplifier basic information:

5962-8991001XC is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are QIP, QUAD12,.4SQ

5962-8991001XC amplifier core information:

The minimum operating temperature of the 5962-8991001XC is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 30 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8991001XC is 4000 V/us. The manufacturer's maximum slew rate for the 5962-8991001XC is 36 mA, while the minimum slew rate is 3000 V/us. The power of 5962-8991001XC is YES.

The nominal supply voltage of 5962-8991001XC is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 5962-8991001XC is 25000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8991001XC:

5962-8991001XC has 12 terminals. Its terminal position type is: BOTTOM. Terminal pitch is 2.54 mm. Total pins: 12

5962-8991001XC amplifier additional information:

5962-8991001XC adopts the CURRENT-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-8991001XC is: YES. Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W12.

The corresponding JESD-609 code is: e4. The packaging code of 5962-8991001XC is: QIP. The materials used in the 5962-8991001XC package are mostly METAL. And its package shape is ROUND. 5962-8991001XC package pin formats are: CYLINDRICAL.

Its terminal form is: WIRE.

CategoryAnalog mixed-signal IC    Amplifier circuit
File Size361KB，5 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Alternative parts：5962-8991001XC
Download Datasheet Parametric Compare View All

5962-8991001XC Overview

5962-8991001XC amplifier basic information:

5962-8991001XC is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are QIP, QUAD12,.4SQ

5962-8991001XC amplifier core information:

The minimum operating temperature of the 5962-8991001XC is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 30 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8991001XC is 4000 V/us. The manufacturer's maximum slew rate for the 5962-8991001XC is 36 mA, while the minimum slew rate is 3000 V/us. The power of 5962-8991001XC is YES.

The nominal supply voltage of 5962-8991001XC is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 5962-8991001XC is 25000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8991001XC:

5962-8991001XC has 12 terminals. Its terminal position type is: BOTTOM. Terminal pitch is 2.54 mm. Total pins: 12

5962-8991001XC amplifier additional information:

5962-8991001XC adopts the CURRENT-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-8991001XC is: YES. Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W12.

The corresponding JESD-609 code is: e4. The packaging code of 5962-8991001XC is: QIP. The materials used in the 5962-8991001XC package are mostly METAL. And its package shape is ROUND. 5962-8991001XC package pin formats are: CYLINDRICAL.

Its terminal form is: WIRE.

5962-8991001XC Parametric

Parameter NameAttribute value
Parts packaging codeTO-8
package instructionQIP, QUAD12,.4SQ
Contacts12
Reach Compliance Codeunknown
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureCURRENT-FEEDBACK
Maximum bias current (IIB) at 25C30 µA
Nominal Common Mode Rejection Ratio46 dB
frequency compensationYES
Maximum input offset voltage25000 µV
JESD-30 codeO-MBCY-W12
JESD-609 codee4
low-dissonanceNO
Negative supply voltage upper limit-20 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions1
Number of terminals12
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialMETAL
encapsulated codeQIP
Encapsulate equivalent codeQUAD12,.4SQ
Package shapeROUND
Package formCYLINDRICAL
powerYES
power supply+-15 V
Certification statusNot Qualified
Filter levelMIL-STD-883
minimum slew rate3000 V/us
Nominal slew rate4000 V/us
Maximum slew rate36 mA
Supply voltage upper limit20 V
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceGOLD
Terminal formWIRE
Terminal pitch2.54 mm
Terminal locationBOTTOM
broadbandYES
Base Number Matches1

Preview

Download Datasheet
www.fairchildsemi.com

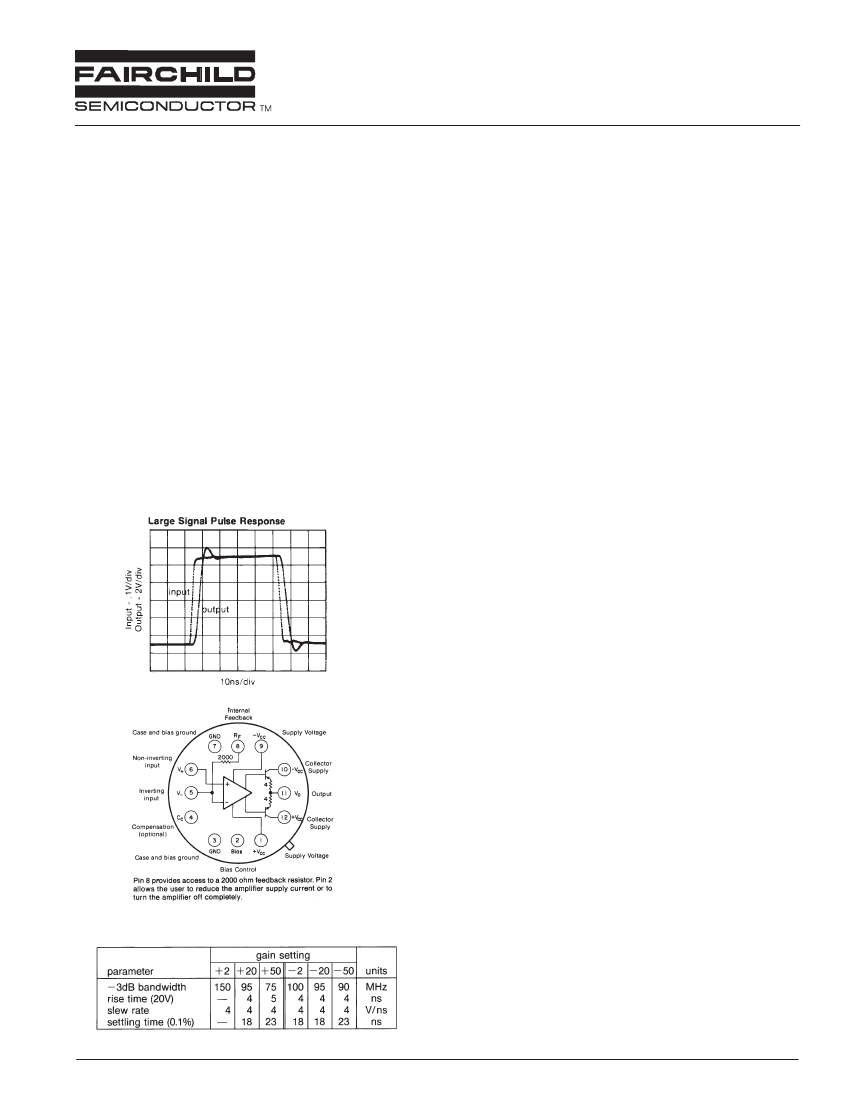

KH200
Fast Settling, Wideband Operational Amplifier
Features
I
I
I
I
I
I
General Description
The KH200 operational amplifier achieves performance
far superior to that of other high performance op
amps. A current feedback design provides a band-
width of DC-95MHz and an unprecedented settling
time of 18nsec to 0.1%. And since thermal tail has
been eliminated, the KH200 can be depended upon
to settle fast and solidly maintain its level. Drive
capability is also impressive at 24V
pp
and 100mA.
Using the KH200 is as easy as adding power supplies
and a gain-setting resistor. The result is reliable,
consistent performance because such characteristics as
bandwidth and settling time are virtually independent
of gain setting. Unlike conventional op amp designs
where the optimum gain bandwidth product occurs at
a high gain, minimum settling time at a gain of -1,
maximum slew rate at a gain of +1, et cetera,
the KH200 offers predictable response at gain
settings from ±1 to ±50. This, coupled with consistent
performance from unit to unit with no external com-
pensation, makes the KH200 a real time and cost-
saver in design and production situations alike.
Minimizing settling time was a design goal of the
KH200. Settling time is one of the most demanding of
all op amp requirements since it is affected by the
op amp’s bandwidth, gain flatness, and harmonic
distortion. The result of this effort is an amplifier fast
enough for the most demanding high speed D to A
converters and “flash” A to D converters.
The superior slew rate and rise and fall times of the
KH200 make it an ideal amplifier for a broad range of
pulse, analog, and digital applications. Flat gain and
phase response from DC to beyond 50MHz ensure
distortion levels well below those of other op amps. A
full power bandwidth of 20MHz eliminates the need
for power buffers in many applications.
The KH200 is constructed using thin film resistor/bipolar
transistor technology, and is available in the following
versions:
KH200AI
KH200AK
-25°C to +85°C
-55°C to +125°C
-55°C to +125°C
12-pin TO-8 can
12-pin TO-8 can,
features burn-in and
hermetic testing
12-pin TO-8 can,
environmentally screened
and electronically tested
to MIL-STD-883
SMD#: 5962-8991001XC
SMD#: 5962-8991001XA
-3dB bandwidth of 95MHz
0.1% settling in 18ns
4000V/µs slew rate
Low distortion, linear phase
3.6ns rise and fall times
Direct replacement for CLC200
Applications
I
I
I
I
I
I
Fast, precision A to D, D to A conversion
Baseband and video communications
Radar, sonar, IF processors
Laser drivers, photodiode preamps
High-density buffering
Graphic CRT composite video drive amp

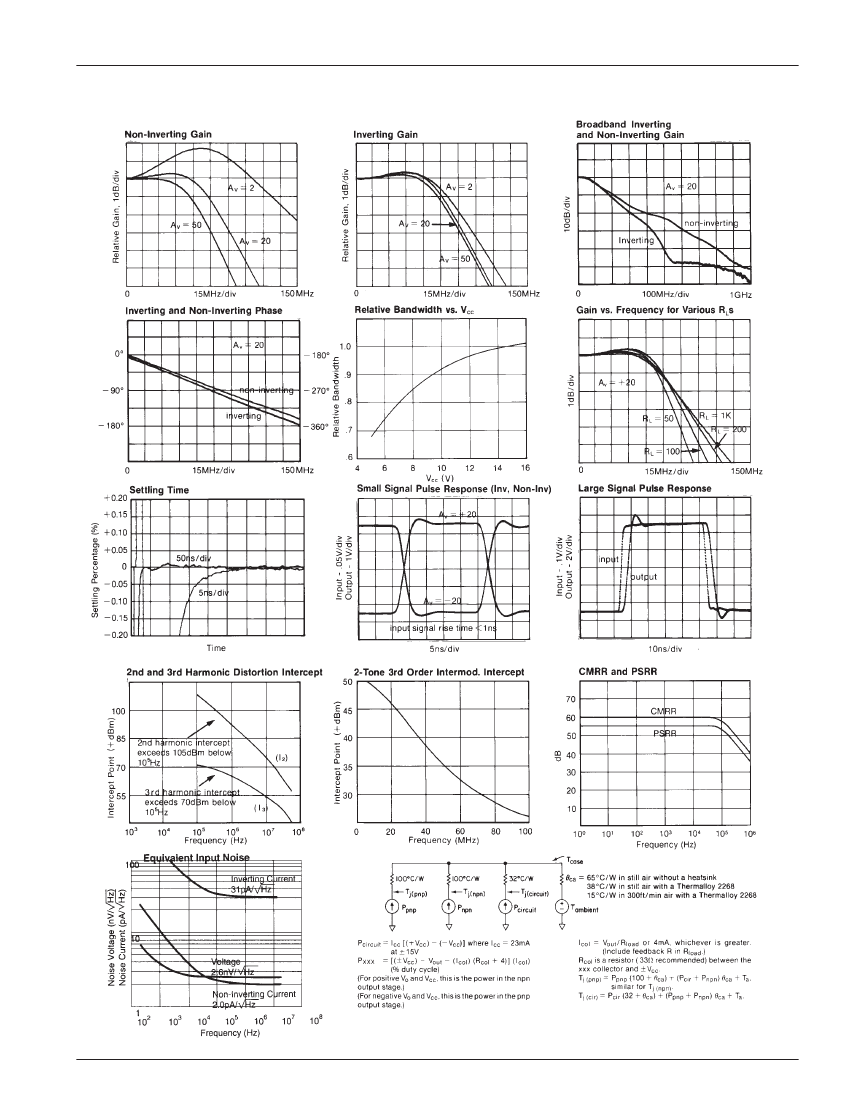

Typical Performance
KH200AM
KH200HXC
KH200HXA
-55°C to +125°C
-55°C to +125°C
REV. 1A May 2001

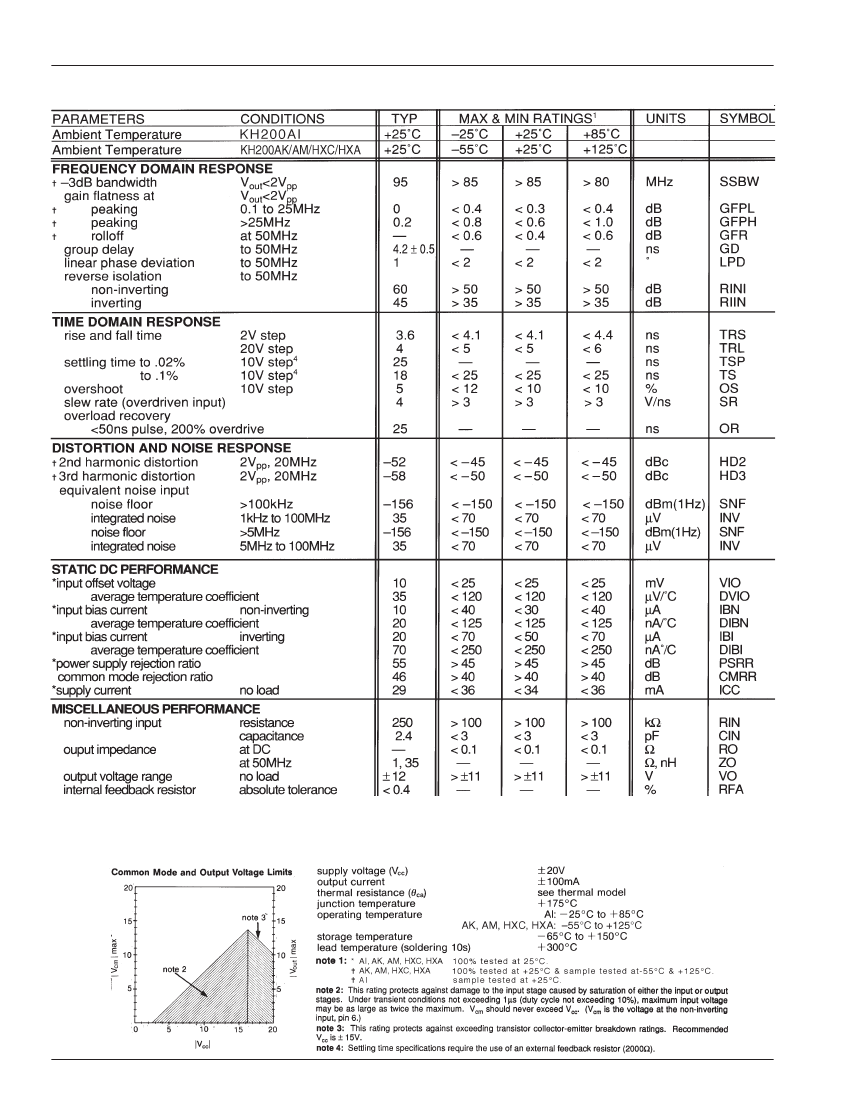

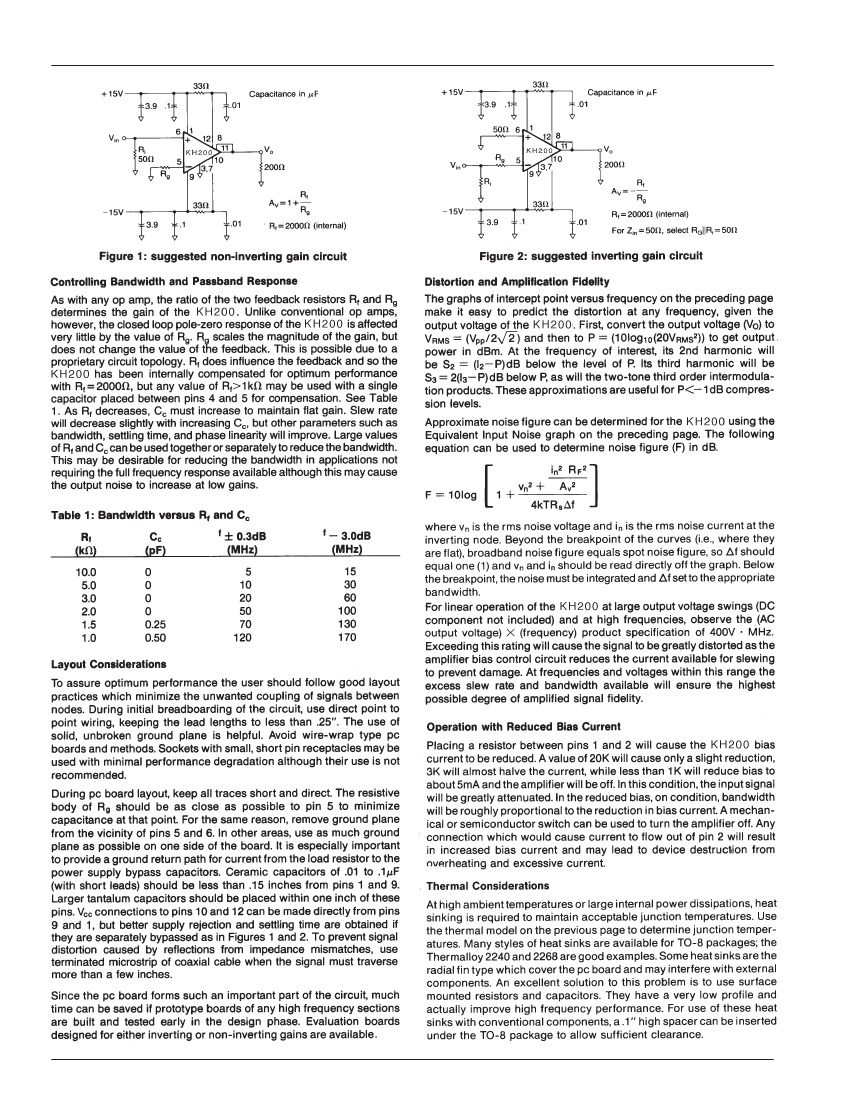

5962-8991001XC Related Products

5962-8991001XC 5962-8991001XX 5962-8991001XA
Description Operational Amplifier, 1 Func, 25000uV Offset-Max, BIPolar, MBCY12, METAL CAN, TO-8, 12 PIN Operational Amplifier, 1 Func, 25000uV Offset-Max, BIPolar, MBCY12, METAL CAN, TO-8, 12 PIN Operational Amplifier, 1 Func, 25000uV Offset-Max, BIPolar, MBCY12, METAL CAN, TO-8, 12 PIN
Parts packaging code TO-8 TO-8 TO-8
package instruction QIP, QUAD12,.4SQ , QIP, QUAD12,.4SQ
Contacts 12 12 12
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio 46 dB 46 dB 46 dB
Maximum input offset voltage 25000 µV 25000 µV 25000 µV
JESD-30 code O-MBCY-W12 O-MBCY-W12 O-MBCY-W12
Negative supply voltage upper limit -20 V -20 V -20 V
Nominal Negative Supply Voltage (Vsup) -15 V -15 V -15 V
Number of functions 1 1 1
Number of terminals 12 12 12
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material METAL METAL METAL
Package shape ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL
Certification status Not Qualified Not Qualified Not Qualified
Filter level MIL-STD-883 MIL-STD-883 MIL-STD-883
Nominal slew rate 4000 V/us 4000 V/us 4000 V/us
Supply voltage upper limit 20 V 20 V 20 V
Nominal supply voltage (Vsup) 15 V 15 V 15 V
surface mount NO NO NO
technology BIPOLAR BIPOLAR BIPOLAR
Temperature level MILITARY MILITARY MILITARY
Terminal form WIRE WIRE WIRE
Terminal location BOTTOM BOTTOM BOTTOM
Architecture CURRENT-FEEDBACK - CURRENT-FEEDBACK
Maximum bias current (IIB) at 25C 30 µA - 30 µA
frequency compensation YES - YES
JESD-609 code e4 - e0
low-dissonance NO - NO
encapsulated code QIP - QIP
Encapsulate equivalent code QUAD12,.4SQ - QUAD12,.4SQ
power YES - YES
power supply +-15 V - +-15 V
minimum slew rate 3000 V/us - 3000 V/us
Maximum slew rate 36 mA - 36 mA
Terminal surface GOLD - Tin/Lead (Sn/Pb) - hot dipped
Terminal pitch 2.54 mm - 2.54 mm
broadband YES - YES
Base Number Matches 1 1 -
Maker - Fairchild Fairchild
