DF7 Series
Complete
Locking
Function
Completely
enclosed
locking system
Full barrier
between adjacent
contacts.
Prevention of
Incorrect Connections
s
Features

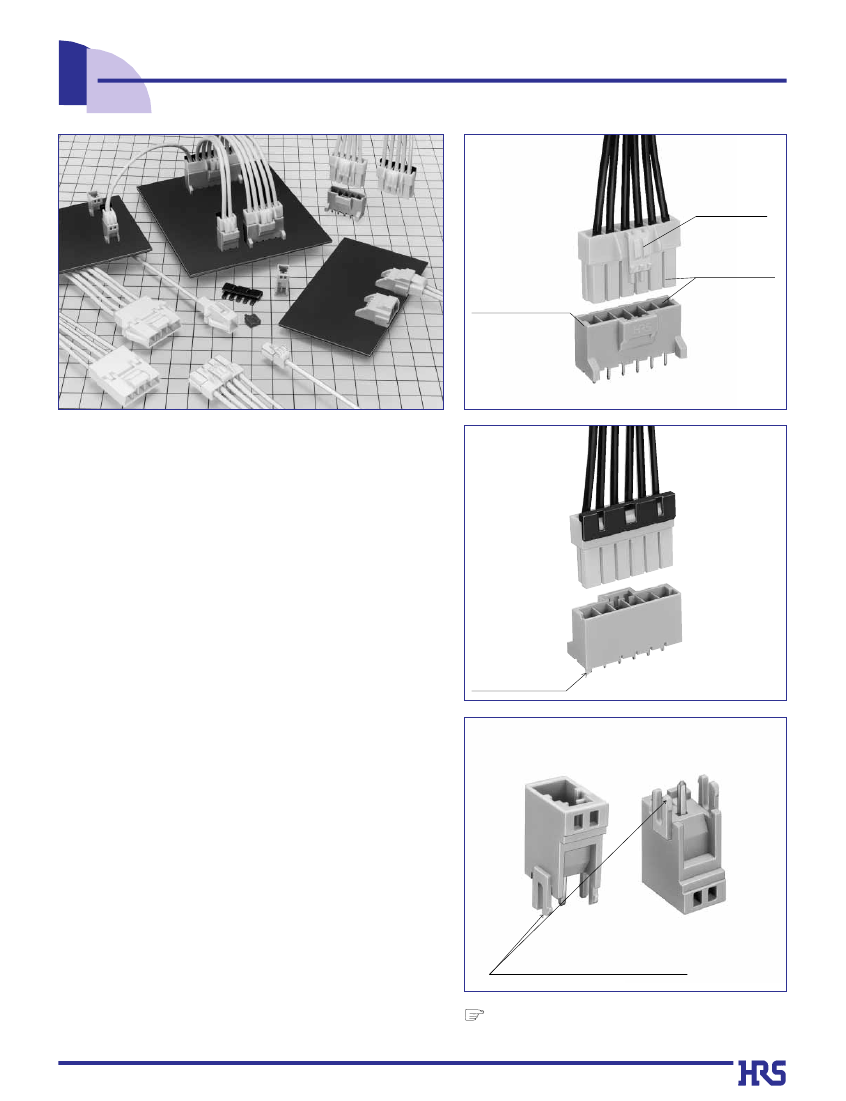

1. Complete Locking Function
Reliable interior lock protects mated connectors from
accidental disconnection.
2. Increased Contact Retention of Crimped
Contacts and Prevention of Incomplete
Insertion
Separate contact retainer increases the contact
retention, assures and visually confirms the complete
contact insertion.
3. Molded-in Contact Retention Tabs
Handling of terminated contacts during the assembly and
termination is easier and avoids entangling of wires,
since there are no protruding metal tabs.
4. Incorrect Insertion Prevention
Connectors are polarized to assure correct mating with
corresponding parts.
Guide post
5.Solder Crack Prevention
Glass reinforced resin is used in the pin header bodies to
prevent solder cracks caused by the heat shrinkage.
Board Eyelet mounting
6. Prevention of Incorrect Board Placement
Built-in locating posts assure correct connector
placement and orientation on the board.(2-12 pos.)
7. Supports Sealing after Installation.
Sealing compound can be applied to the board installed
connector for distance of 6 mm max. from the mounting
surface (9 mm max. for single position).
8.Cost Effective Tooling
The same crimping tools are used to terminate socket
and pin contacts.
9. Prevention of Short Circuits between
Adjacent Contacts
Each contact is completely surrounded by the insulator
housing, electrically isolating it from adjacent contacts.
One pos. type can also be mounted
to boards that have eyelets.
Continued.
B95
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
10. 10 A maximum Current
Connector can carry current of 10 A per contact with
#16 AWG conductor.Refer to page 3 for current
ratings for multi-position connectors using other
conductor sizes.
12. Supports Eyelets
1 pos. can be mounted to boards which have eyelets
attached.
11. Color Variations
1 pos. is available in a standard 3 colors: natural,
blue, and red.
s
Applications
Office equipment, power supplies for industrial, medical
and instrumentation applications, variety of consumer
electronic and electrical applications.

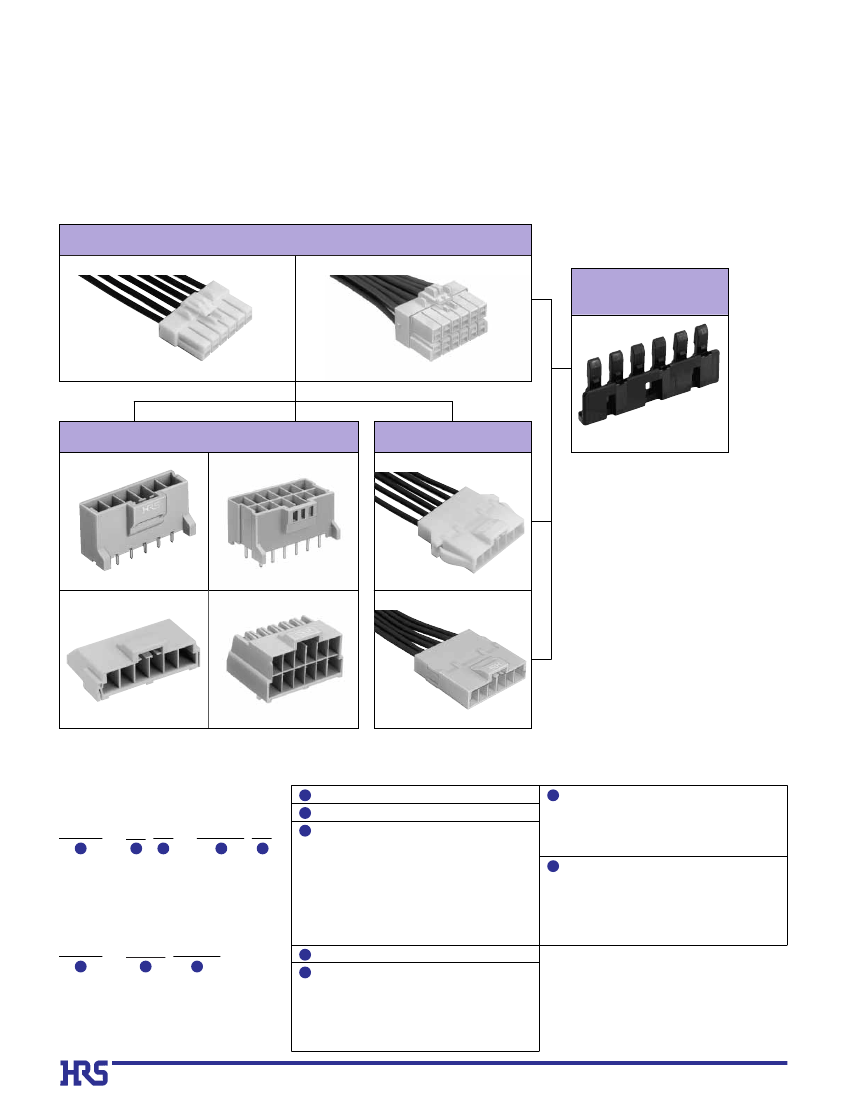

Crimp Sockets
qSingle
row
qDouble
rows
Retainer
(optional, order separately)
Shown with terminated
and installed contacts.
Refer to page 8 for details.
Shown with terminated
and installed contacts.
Refer to page 11 for details.
Header
qSingle
row, straight type
qDouble
rows, straight type
In-line plug
qPanel
lock type
Refer to page 10 for details.
Refer to page 4 for details. Refer to page 10 for details.
qSingle
row, right angle type
qDouble
row, right angle type
Shown with
terminated and installed contacts.
Refer to page 6 for details.
Refer to page 5 for details. Refer to page 10 for details.
Shown with
terminated and installed contacts.
Refer to page 7 for details.
sOrdering
information
qSocket,
Header
DF7 -
*
S - 3.96 C
1
2
3
4
5
1
Series name: DF7, DF7A
2
Number of contacts: 1 to 12
3
Connector type
S: Socket
DS: Double-row socket
P: Header
DP: Double-row Header
EP: In-line plug
RS/P: Retainer
6
Applicable Conductor
1618: AWG 16 to AWG 18
2022: AWG 20 to AWG 22
2426: AWG 24 to AWG 26
7
Packaging
SCF: Socket contacts / Reel
SC: Socket contacts / Bag
PCF: Plug contacts / Reel
PC: Plug contacts / Bag
qContacts
DF7 -
**
SCF
1
6
7
4
Contact pitch: 3.96mm(7.92 mm)
5
Type of housing: header
C: Crimp housing
DSA: Straight header
DS: Right-angle header
Blank: Retainer
B96
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Row
1
Current
rating
2
Ratings
No. of contacts
1~10
4
6
8
10
12
AWG16
10A
10A
9A
9A
8A
8A
AWG18
7A
9A
8A
8A
7A
7A
AWG20
5A
7A
6A
6A
5A
5A
AWG22
4A
6A
5A
5A
4A
4A
Operating temperature range -35ç to 85ç (Note 1)
Operating humidity range
20% to 80%
Storage temperature range
Storage humidity range
UL/C-UL/TÜV
UL
C-UL
TÜV
-10çto 60ç (Note 2)
40% to 70% (Note 2)
Specificatoin
Voltage
rating
AC 630V
AC 600V
AC 600V(7.92mm pitch)
AC 300V (3.96mm pitch)
File No.and Recognition No
:E52653
:E52653
:R9750437
UL/C-UL
TÜV
Item
11.
Contact resistance
12.
Insulator resistance
13.
Withstanding voltage
14.
Insertion-Extraction force
(per contact)
15.
Durability
(mating/unmating)
16.
Vibration
17.
Shock
18.
Humidity
Specification
Contact resistance(Initial value)
1000 M ohms min.
No flashover or Insulator breakdown
0.3N min., 4.5N max.
30 cycles
No momentary disconnections of 1 µs min.
No electrical discontinuity of 1 µs. min.
Contact resistance 20 m ohms max.
Condition
10 m ohms max. 20mV max., 1mA
500 V DC
1500 V AC for 1 minute
Measured with a steel pin of 0.64 x 1.2 ± 0.002 mm
Contact resistance of 20 m ohms max.
Frequency 10 to 55 Hz, single amplitude of 0.75 mm, 3 axis, 2
hours
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave
waveform, 3 cycles in each of the 3 axis.
Temperature 40ç ± 2ç, 90% to 95% RH, 96 hours
(-55ç: 30 minutes
¡
5 to 35ç: 5 minutes
¡
85ç: 30 minutes
¡
5
to 35ç: 5 minutes) for 5 cycles
Flow solder temperature 250ç, 10 seconds
Manual soldering: Soldering iron temperature 300ç, 3 seconds
19.
Temperature cycle Contact resistance of 20 m ohms max.
10. Resistance to
soldering heat
No deformation of the insulator parts affecting
performance
Note 1: Includes temperature rise caused by the current flow.
Note 2: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s

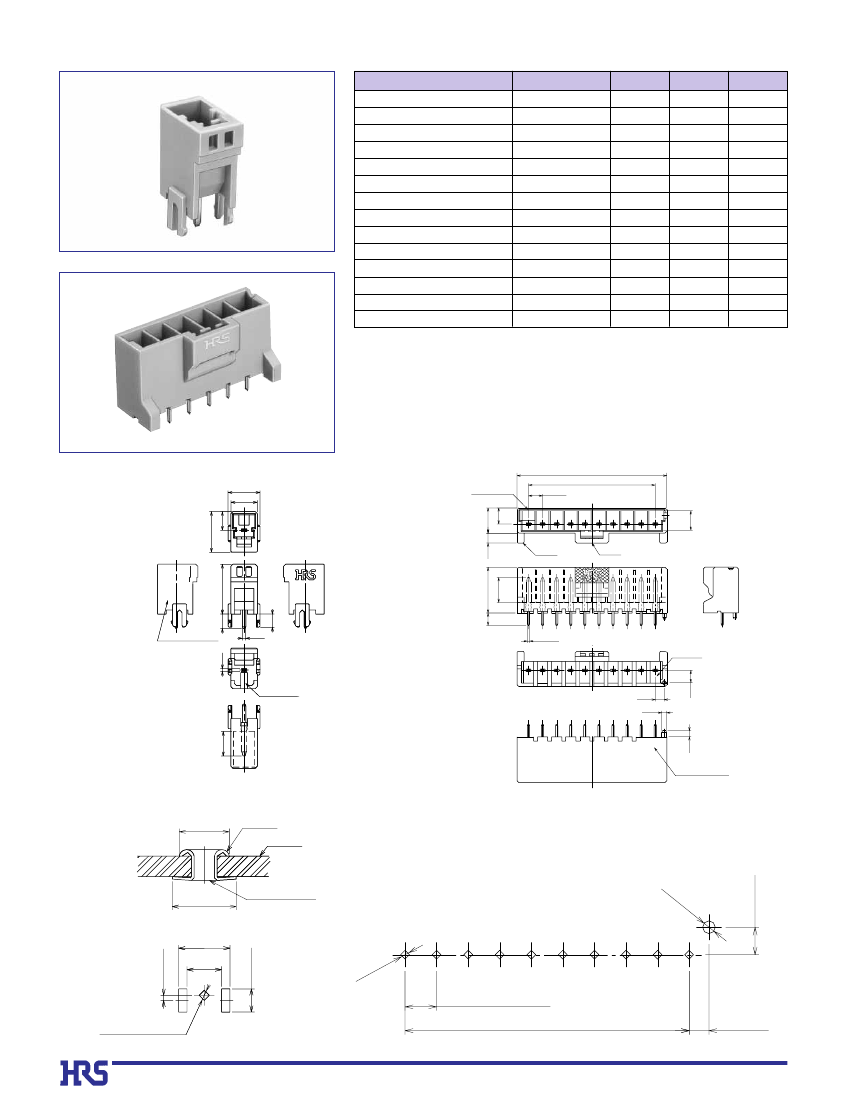

Straight header
Part Number
DF7- 1P-3.96DSA
DF7- 2P-3.96DSA
DF7- 3P-3.96DSA
DF7- 4P-3.96DSA
DF7- 5P-3.96DSA
DF7- 6P-3.96DSA
DF7- 7P-3.96DSA
DF7- 8P-3.96DSA
1 Pos.
DF7- 9P-3.96DSA
DF7-10P-3.96DSA
DF7- 2P-7.92DSA
DF7- 3P-7.92DSA
DF7- 4P-7.92DSA
DF7- 5P-7.92DSA
CL No.
CL680-0133-1
CL680-0036-5
CL680-0037-8
CL680-0038-0
CL680-0039-3
CL680-0040-2
CL680-0041-5
CL680-0042-8
CL680-0043-0
CL680-0044-3
CL680-0108-4
CL680-0109-7
CL680-0110-6
CL680-0111-9
Number of contacts
1
2
3
4
5
6
7
8
9
10
2
3
4
5
A
-------------
10.40
14.36
18.32
22.28
26.24
30.20
34.16
38.12
42.08
14.36
22.28
30.20
38.12
B
-------------
3.96
7.92
11.88
15.84
19.80
23.76
27.72
31.68
35.64
7.92
15.84
23.76
31.68
2 to 10 Pos.
Note 1) Bag packaging (100 pieces/bag). Order by number of bags.
Note 2) The 2 pos. type does not have walls on both sides.
Note 3) DF7-2P-7.92DSA plug has #2 contact positions of DF7-3P-3.96DSA without contacts inserted and the number of pos. indication is 2.
(Mating receptacle: DF7#-3S-3-96C)
DF7-3P-7.92DSA plug has #2 and #4 contact positions of DF7-5P-3.96DSA without contacts inserted and the number of pos. indication is 3.
(Mating receptacle: DF7#-5S-3-96C)
DF7-4P-7.92DSA plug has #2, #4 and #6 contact of DF7-7P-3.96DSA without contacts inserted and the number of pos. indication is 4.
(Mating receptacle: DF7#-7S-3-96C)
DF7-5P-7.92DSA plug has #2, #4, #6 and #8 contact positions of DF7-9P-3.96DSA without contacts inserted and the number of pos. indication is 5.
(Mating receptacle: DF7#-9S-3-96C)
1 Pos.
7.8
6.44
4.55
1
2 to 10 Pos.
No. of contacts
indicator (Note3)
P=3.96
4.55
A
B
7.1
9.9
2.8
(Note2)
(Note1)
12.2
12.9
9E26
3.5
3.2
Production Lot No.
0.64
0.84
3.5
7
M0.64
Cavity No.
A
Cavity No.
DF7
2.49
Ø1.4
6
Production Lot No.
B
PCB mounting pattern (Board thickness: 1.6
±
0.1)
1 Pos.
Ø3.9
MAX
Eyelet
Board
2 to 10 Pos.
Ø5
MAX
Soldering side
Ø1
.
6
+0
0 .1
1.7
3.45
5.5
Note 5: One pos. type can also be mounted to boards
that have installed eyelets.
8±0.1
0.8±0.1
3.6±0.1
5.4
_0.3
+0.1
Ø
1.1
.1
+0
0
P=3.96±0.05(7.92±0.05)
Ø1.6
_0.25
for eyelet
1.4
+0.1
mm Without eyelet
_0
+0.15
B±0.1
2.49±0.05
B98
3.45±0.05
6L09
10
B
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s

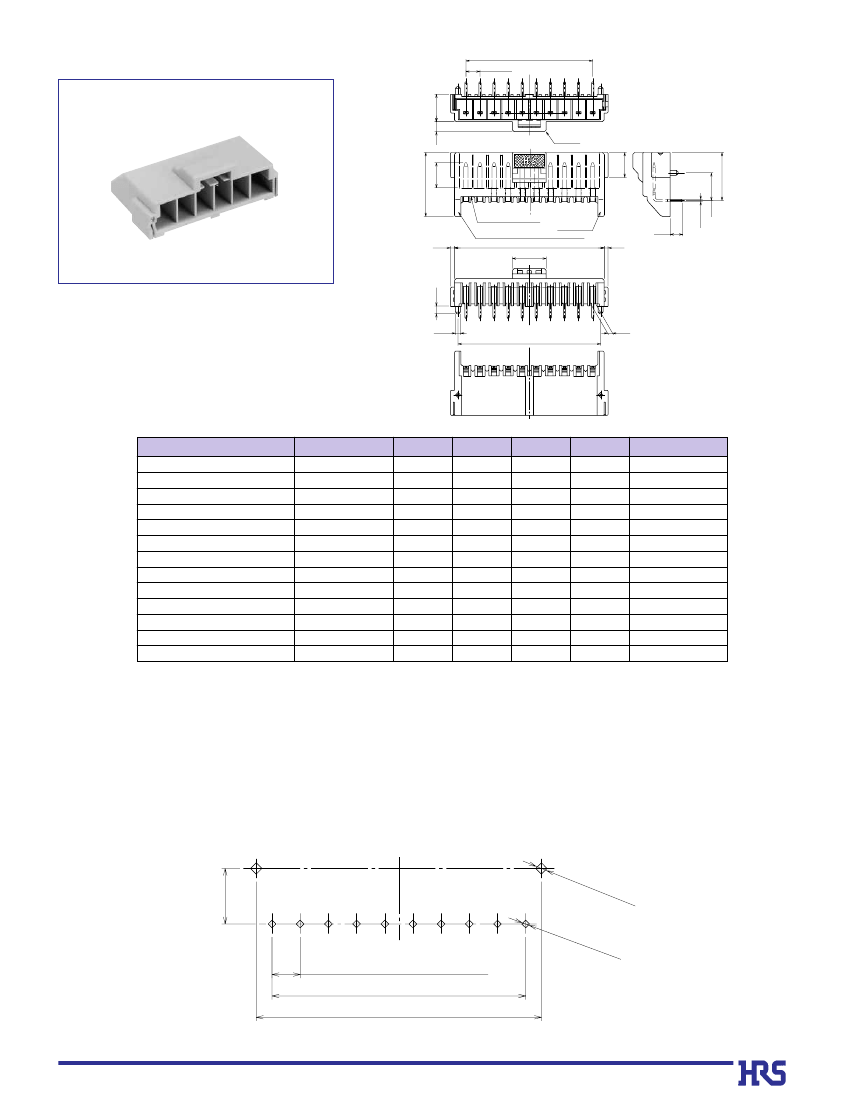

Right angle header
P=3.96
7.7
A
2.8
(Note1)
7
18
6L09
M0.64
3.5
1.1
1.4
C
7.8
10
Production Lot No.
A
1.1
Cavity No.
No. of contacts indicator (Note2)
B
9.5
2.2
10
A
Ø1.4
Part Number
DF7- 2P-3.96DS(24)
DF7- 3P-3.96DS(24)
DF7- 4P-3.96DS(24)
DF7- 5P-3.96DS(24)
DF7- 6P-3.96DS(24)
DF7- 7P-3.96DS(24)
DF7- 8P-3.96DS(24)
DF7- 9P-3.96DS(24)
DF7-10P-3.96DS(24)
DF7- 2P-7.92DS(24)
DF7- 3P-7.92DS(24)
DF7- 4P-7.92DS(24)
DF7- 5P-7.92DS(24)
CL No.
CL680-0081-0-24
CL680-0082-2-24
CL680-0083-5-24
CL680-0084-8-24
CL680-0085-0-24
CL680-0086-3-24
CL680-0087-6-24
CL680-0088-9-24
CL680-0089-1-24
CL680-0124-0-24
CL680-0125-3-24
CL680-0126-6-24
CL680-0127-9-24
Number of contacts
2
3
4
5
6
7
8
9
10
2
3
4
5
A
3.96
7.92
11.88
15.84
19.80
23.76
27.72
31.68
35.64
7.92
15.84
23.76
31.68
B
10.40
14.36
18.32
22.28
26.24
30.20
34.16
38.12
42.08
14.36
22.28
30.20
38.12
C
8.40
12.36
16.32
20.28
24.24
28.20
32.16
36.12
40.08
12.36
20.28
28.20
36.12
Quantity per tray
114
84
66
60
48
42
36
36
30
84
60
42
36
Note 1) Tray packaging. Order by number of quantity in the tray.
Note 2) DF7-2P-7.92DS plug has #2 contact positions of DF7-3P-3.96DS without contacts inserted and the number of pos. indication is 2.
(Mating receptacle: DF7#-3S-3-96C)
DF7-3P-7.92DS plug has #2 and #4 contact positions of DF7-5P-3.96DS without contacts inserted and the number of pos. indication is 3.
(Mating receptacle: DF7#-5S-3-96C)
DF7-4P-7.92DS plug has #2, #4 and #6 contact of DF7-7P-3.96DS without contacts inserted and the number of pos. indication is 4.
(Mating receptacle: DF7#-7S-3-96C)
DF7-5P-7.92DS plug has #2, #4, #6 and #8 contact positions of DF7-9P-3.96DS without contacts inserted and the number of pos. indication is 5.
There are both analog and digital grounds on the board. When laying copper, part of it is digital ground and part of it is analog ground. When performing DRC check, the following dialog box appears. I...
uC/OS-II Introduction uC/OS-II is a priority-based preemptive hard real-time kernel. Since its release in 1992, it has been widely used all over the world. It is a kernel designed specifically for emb...
Reduce noise and interference 1) If you can use a low-speed chip, don't use a high-speed one. Use high-speed chips in key places. (2) You can use a resistor in series to reduce the jump rate of the co...
I installed the driver according to the LM3S811EVALUATION KIT README FIRST in the LM3S811 TI Evaluation kit CD. After installation, the driver name is different from that in the documentation. The doc...
I use CCS3.3 to connect the emulator XDS510-USB2.0 to flash the program to 2812. The software and emulator are normal, and there is no problem in flashing the program normally. Recently, the error ala...
[i=s]This post was last edited by yin_wu_qing on 2022-1-22 18:10[/i]After communicating with the organizer, the development board was received in advance. SF Express was indeed very fast. Let's unbox ...
The TIA Portal software's shift instructions shift the contents of an accumulator bit by bit to the left or right. The number of bits shifted is determined by N. A left shift of N bits multiplies t...[Details]
To enable real-time monitoring of home security and automatically dial a number for voice prompts or send text messages when an alarm occurs, a GPRS-based embedded telephone alarm system was design...[Details]
As more and more consumers purchase new energy vehicles, the safety of electric vehicles has become a major concern. This has been particularly prominent following a series of electric vehicle fire...[Details]
In mobile technology, sensors are the primary input for measured signals and form a component of a sensor system. They include sensitive and transducer elements connected to carriers and circuits. ...[Details]
On August 25th, Apple's expansion in India encountered new troubles. According to Bloomberg, Foxconn Technology Group has recalled approximately 300 Chinese engineers from India, further hindering ...[Details]
White light LEDs are voltage-sensitive devices. In actual operation, their upper limit is 20mA. However, the current often increases due to various reasons during use. If no protective measures are...[Details]
The Automotive Testing and Quality Assurance Expo (ATE 2025) will open on August 27th. At the expo, Rohde & Schwarz (R&S) will showcase six automotive testing solutions, themed "Intelligently Drivi...[Details]
Recently, AstroBo Robot, a subsidiary of Chenxing Automation, launched a new mobile collaborative palletizing product. Leveraging an omnidirectional mobile chassis, an intelligent scheduling system...[Details]
One of the most core components of electric vehicles is the motor. The power supply provides electrical energy to the motor, which converts this electrical energy into mechanical energy, which in t...[Details]
Linear motor modules have become the "sweet spot" in various fields due to their advantages such as long stroke, fast speed, high precision, smooth operation and long life. Different models of line...[Details]
China, August 21, 2025 – STMicroelectronics (NYSE: STM), a world-leading semiconductor company serving a wide range of electronics applications, has published its IFRS 2025 semi-annual financial re...[Details]
Common methods for troubleshooting roller press bearing wear include repair welding, thermal spraying, brush plating, and scrapping and replacement. However, these methods are often subject to asse...[Details]
Batteries, at the core of new energy vehicles, are crucial to vehicle performance and range. Existing automotive batteries are categorized into lead-acid and lithium batteries. Currently, new energ...[Details]
introduction
The rapid adoption of computers has led to a growing number of tasks being performed on them. People from all walks of life, especially programmers and writers, are spending incre...[Details]
introduction
Inverter air conditioners are a trend in the current era and have gradually become commonplace in countless households. Beyond their basic cooling and heating functions, air condi...[Details]
PCB Design
京公网安备 11010802033920号
EEWORLD
