REP212030000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> REP212030000

REP212030000: DescriptionRectangular Connector, Plug,; CategoryThe connector The connector; File Size535KB，6 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

REP212030000 Overview

Rectangular Connector, Plug,

REP212030000 Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	RECTANGULAR CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

REP Series

High Reliability Rectangular

Plastic Connector

The REP connector is a multi pole IP66/IP67 sealed rectangular plastic connector which provides a quick, reliable

and easy connection in all electronic applications. The REP connectors range offers two main versions:

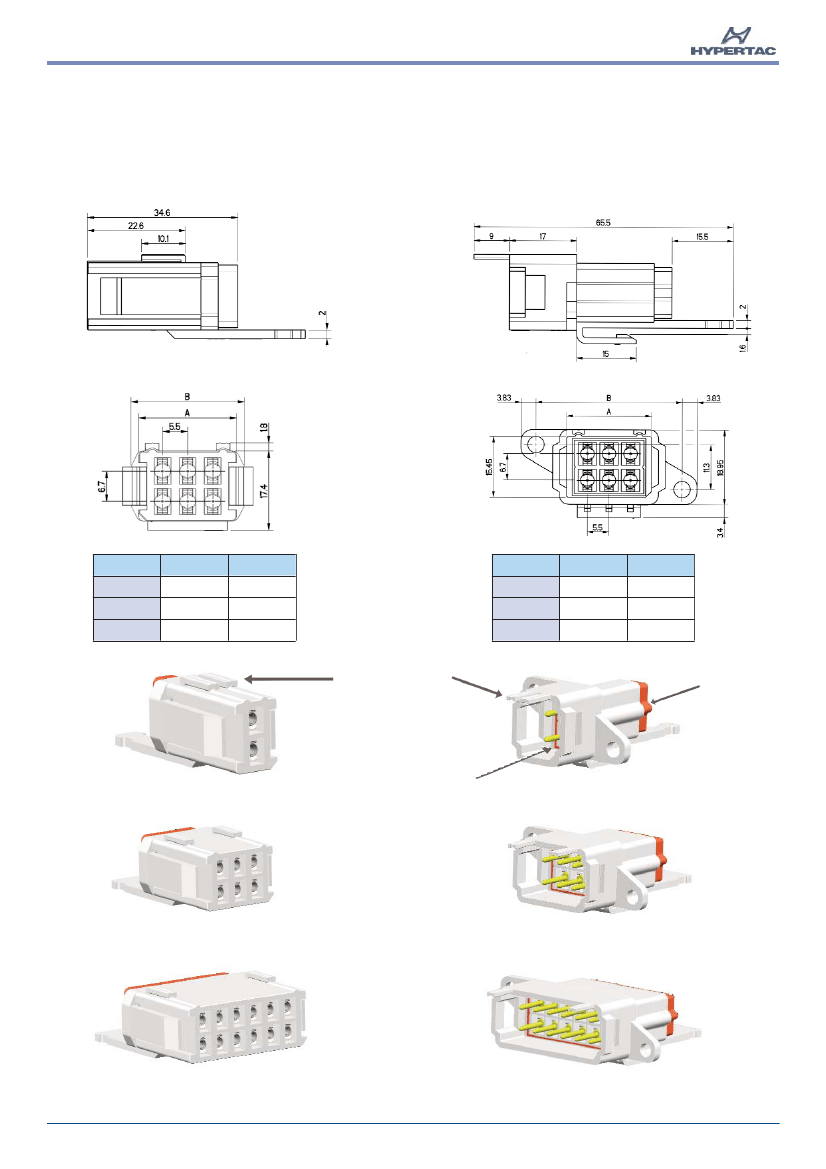

- Crimp termination contacts for cable harness applications,

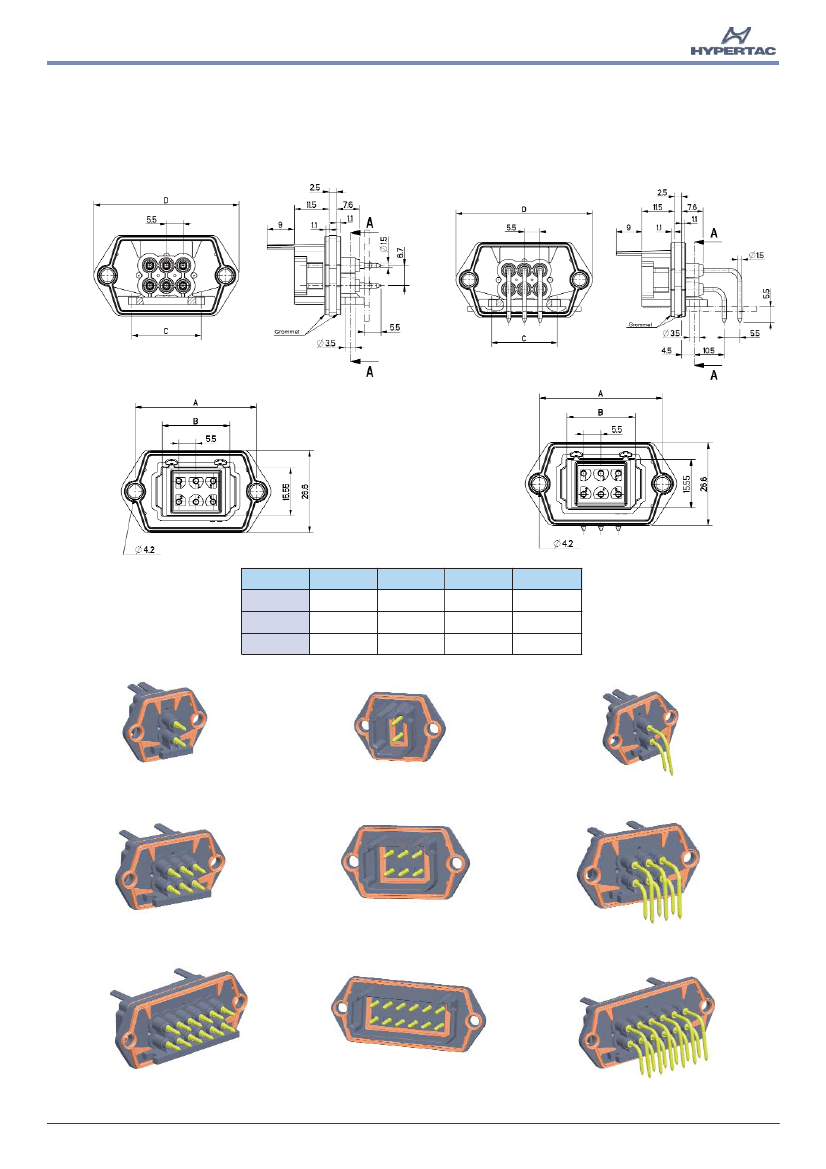

- Straight or bent termination contacts for PCB mount applications.

Both versions are available in 3 layouts: 2, 6 and 12 ways and Hypertac can also delivered the connectors as a pre-

cabled solution according to customers’ specifications.

The REP connector series uses the proven Hypertac

Hyperboloid contact technology which guarantees excellent

reliability, even under high levels of shocks and vibrations.

Other benefits:

Compliance with standards

UL 94, EN 61-373, EN 50-124, NF F 61-030, NF F 16-101, NF F 16-102 (fire

& smoke), EN ISO 11925-2:2010, UNI CEI 11170-3, materials in polycarbonate

and back shell in silicone

Only one contact for cables from size 0.50mm² to 2.5mm² (14-12AWG)

according to EN 50306-2

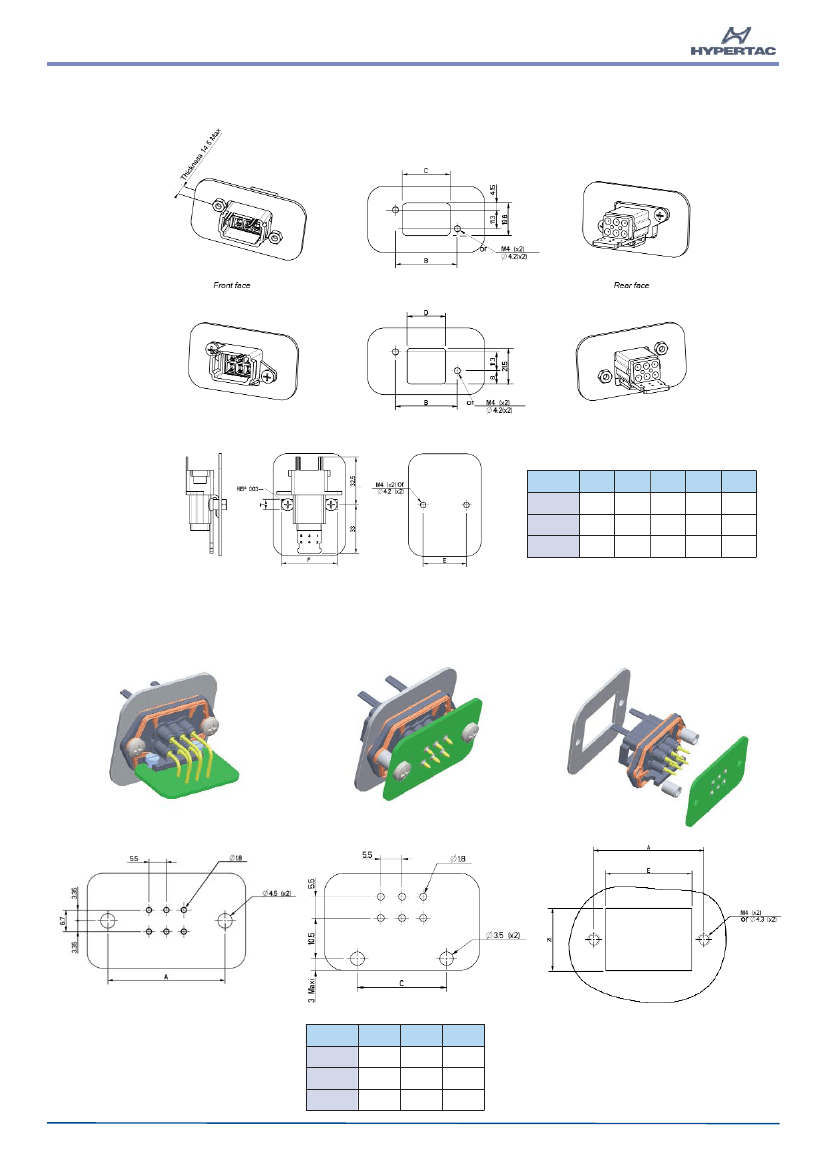

Polarised guides & 4 different configurations (cable to

cable, clips, front and

back panel mount)

500 mating/unmating cycles: just push to mate, press & release to unmate

IP66/IP67 protection according to IEC/DIN EN 60529

High current rating supporting up to 16A, high level of vibrations resistance

(40G, 5 hours), high withstanding voltage up to 2725V

Cost saving

Ease of use

Long life cycle

Sealing

Reliability

March

2012
