M80-8830705

Description
Headers u0026 Wire Housings 07 MALE CRIMP S/BORE F/LATCHED
CategoryThe connector
File Size309KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric View All

M80-8830705 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-8830705 - - View Buy Now

M80-8830705 Overview

Headers u0026 Wire Housings 07 MALE CRIMP S/BORE F/LATCHED

M80-8830705 Parametric

Parameter NameAttribute value
Product CategoryHeaders & Wire Housings
ManufacturerHarwin
RoHSDetails
ProductWire Housings
TypePlug Housing
Factory Pack Quantity1

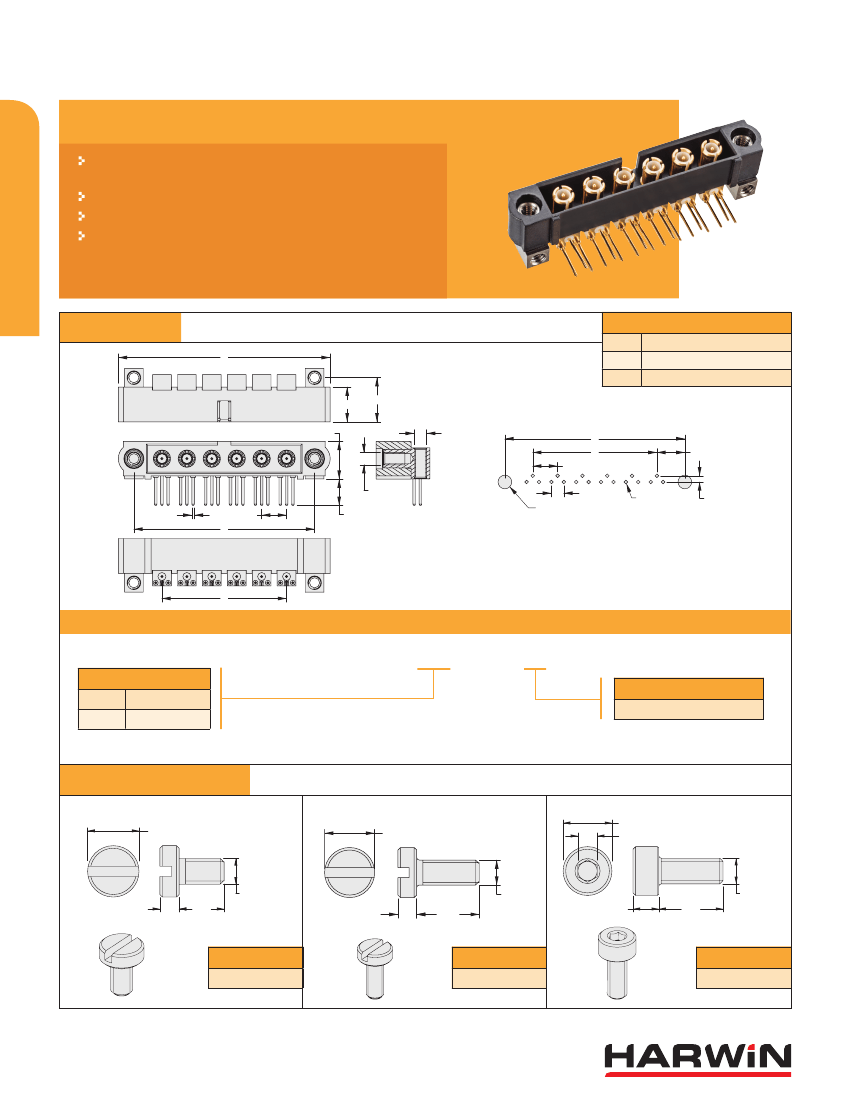

Datamate Coax Connectors
Plug (Male) Horizontal PC Tail
Stocked coax connectors in horizontal orientation,
with board-mount jackscrews for added security.
6GHz, 50Ω Coax contacts.
Choice to suit two PCB thicknesses.
Order board mount bolts separately.
DATAMATE COAX
HORIZONTAL
A
CALCULATION
A
B
C
5.60
6.05
7.10
M2
4.00
M2
2.00
Ø2.20 min
Ø0.60 min
1.00
B + 14
(No. of Coax contacts - 1) x 4
B+9
C
B
4.50
Ø0.40
C
4.00
Tail
Recommended PCB Board Pattern
B
HOW TO ORDER
TYPE
313
314
3mm PC Tail
4.5mm PC Tail
M80
-
MH 3XX M5
-
XX
NO. OF COAX CONTACTS
02, 04, 06, 08
REQUIRED HARDWARE
Ø4.00
Order separately from connector
5mm Slotted
Board Mount Bolt
Ø3.70
1.55 A/F
3.5mm Slotted
Board Mount Bolt
Ø4.00
5mm Hex Socket
Board Mount Bolt
M2
1.50 max
3.50
1.50 max
5.00
M2
2.00 max
5.00
M2
ORDER CODE
M80-2260000B
All dimensions in mm.
ORDER CODE
M80-2270000B
ORDER CODE
M80-2320000B
www.harwin.com
