Power entry modules without line filter
https://www.schurter.com /PG05
1062

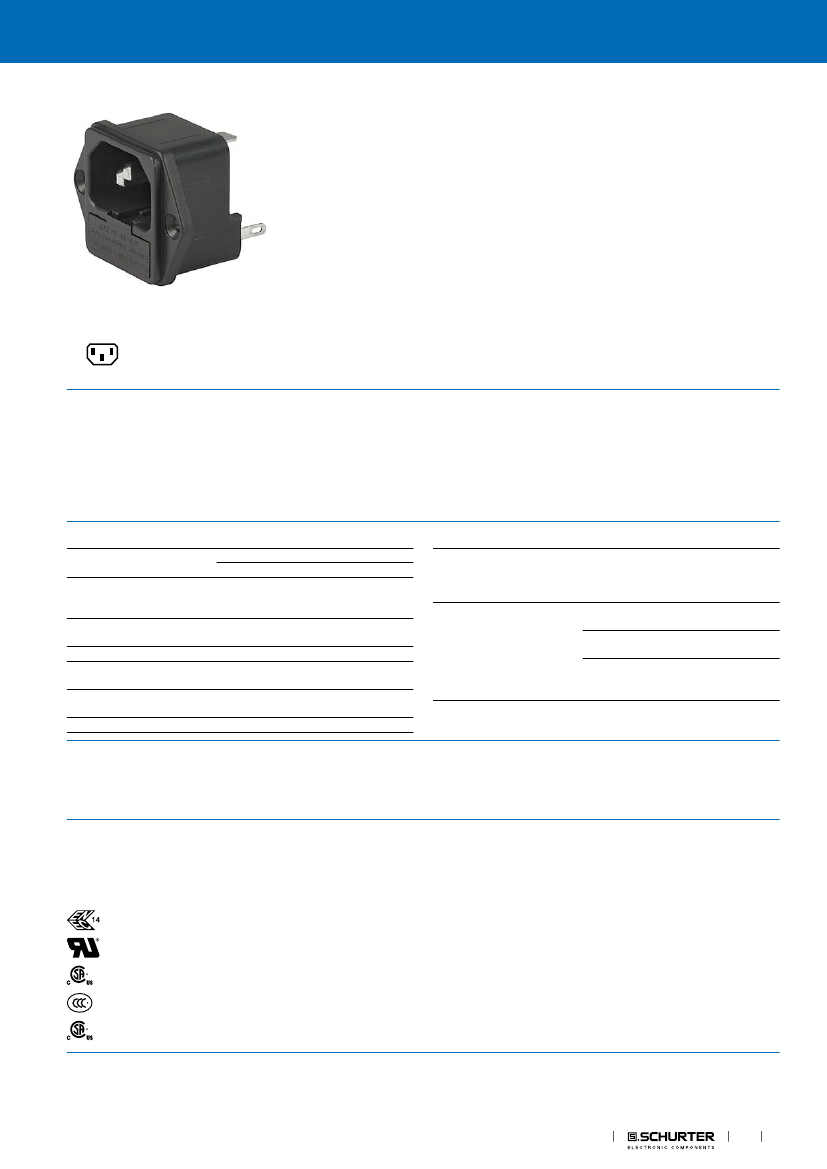

IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole
C14
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on from front side
- Appliance Inlet , Protection class I
- Fuseholder for fuse-links 5 x 20 mm
- Meets the requirements of IEC 60335-1 for appliances in unattended
use. This includes the enhanced requirements of glow wire tests acc.
to IEC 60695-2-12 and -13.
- Solder terminals or quick connect terminals
Characteristics
Weblinks
- The fuse drawer "Fingergrip" can be removed by hand
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
10 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Solder terminals or quick connect ter-
minals
PA6, black / grey / white, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
1 or 2 pole, acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 2.5 W (1 pole)/ 1.6 W (2-pole)
per pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Fuseholder
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 1062
Approval Logo
Certificates
SEMKO Approvals
UL Approvals
CSA Approvals
CQC Approvals
CSA Approvals
Certification Body
SEMKO
UL
CSA
CQC
CSA
Description
Certificate Number: SE/09137-1A
UL File Number: E93617
CSA Certification Record: 27324
CCC File Number:
CCC File Number: 27324
Connectors
1
1062
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60127-6
IEC 61058-1
UL 498
CSA C22.2 no. 42
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Appliance couplers for household and similar general purposes
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
2
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
1062

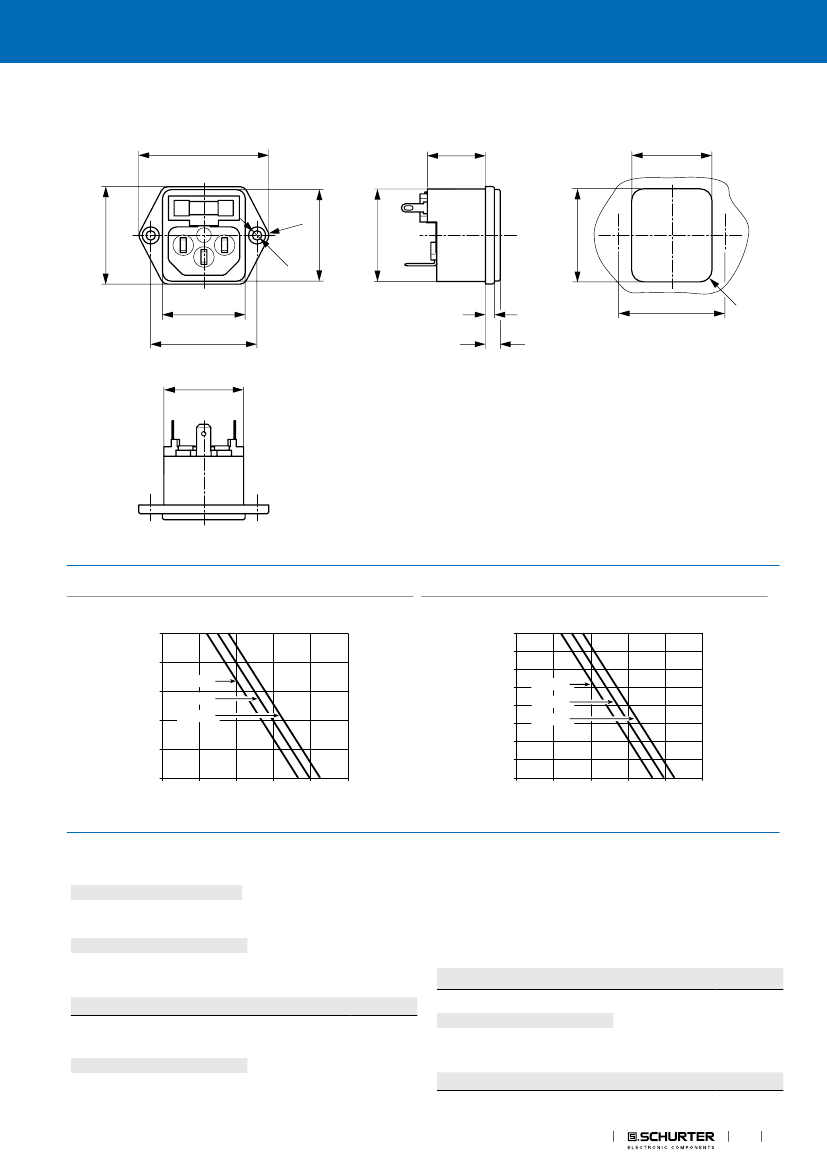

Dimensions [mm]
44
19.7
27.2
- 0
+0.2
31.5
- 0
31.3
33
31
R 2.5
+0.2
ø
2
3.
R
28
36
27
3
5
36
<4
Length of the terminal please find at the order code configuration table
Derating Curves
Fuses
5 x 20 mm (1-pole)
Admissible power acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
2-pole
Admissible power acceptance in Watt
per pole
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Ambient air temperature T
a
°C
Ambient air temperature T
a
°C
Config. Code
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Type
Type
protection class I
Configuration
key
X
Terminal L
connection to fuse holder
Configuration
key
B
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Terminals
Terminal N
short solder terminal (L = 4.8 mm)
Symbols similar as in table A
Configuration
key
2
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Terminals
Connectors
3
1062
Terminal N
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
connection to fuse holder
Symbols similar as in table A
Configuration
key
3
8
9
B
Color
Black
Grey
White
Power entry modules without line filter
https://www.schurter.com /PG05
Configuration
key
A
B
D
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Terminals
Terminal Ground
without terminal
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
Symbols similar as in table A
Configuration
key
0
2
3
8
9
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Style
Style
flange with countersunk holes
flange with through holes
Configuration
key
1
2
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Dimension S
Dimension "S"
00
Configuration
key
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Terminal Fuseholder
Terminal Fuseholder
solder terminal
Configuration
key
1
The dimension "S" is displayed in (
1
/
10
mm). This information is also valid for the
order code
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Features
Features
dead cover
holder for 1 or 2 fuses (text legible, when inlet on top)
holder for 1 or 2 fuses (text legible, when inlet on bottom)
Configuration
key
1
4
5
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Color
All Variants
Type
protection class I
Terminal L
connection to
fuse holder
Terminal N
Blade terminal
(4.8 x 0.8 mm)
Terminal Ground
Blade terminal
(4.8 x 0.8 mm)
Color
Black
Style
flange with coun-
tersunk holes
Features
holder for 1 or 2
fuses (text legi-
ble, when inlet
on top)
holder for 1 or 2
fuses (text legi-
ble, when inlet
on top)
holder for 1 or 2
fuses (text legi-
ble, when inlet
on top)
holder for 1 or 2
fuses (text legi-
ble, when inlet
on top)
holder for 1 or 2
fuses (text legi-
ble, when inlet
on top)
Config. Code
1062-X-B881-A-1004
Order Number
4304.6013
protection class I
connection to
fuse holder
Blade terminal
(6.3 x 0.8 mm)
Blade terminal
(6.3 x 0.8 mm)
Black
flange with coun-
tersunk holes
1062-X-B991-A-1004
4304.6014
protection class I
connection to
fuse holder
connection to
fuse holder
short solder
terminal (L = 4.8
mm)
Blade terminal
(4.8 x 0.8 mm)
Black
flange with coun-
tersunk holes
1062-X-BB21-A-1004
4304.6015
█
protection class I
connection to
fuse holder
connection to
fuse holder
Black
flange with coun-
tersunk holes
1062-X-BB81-A-1004
4304.6019
protection class I
connection to
fuse holder
connection to
fuse holder
Blade terminal
(6.3 x 0.8 mm)
Black
flange with coun-
tersunk holes
1062-X-BB91-A-1004
4304.6020
█
The listet variants should be available from stock Other versions on request
www.schurter.com/contact
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
50 Pcs
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
1062

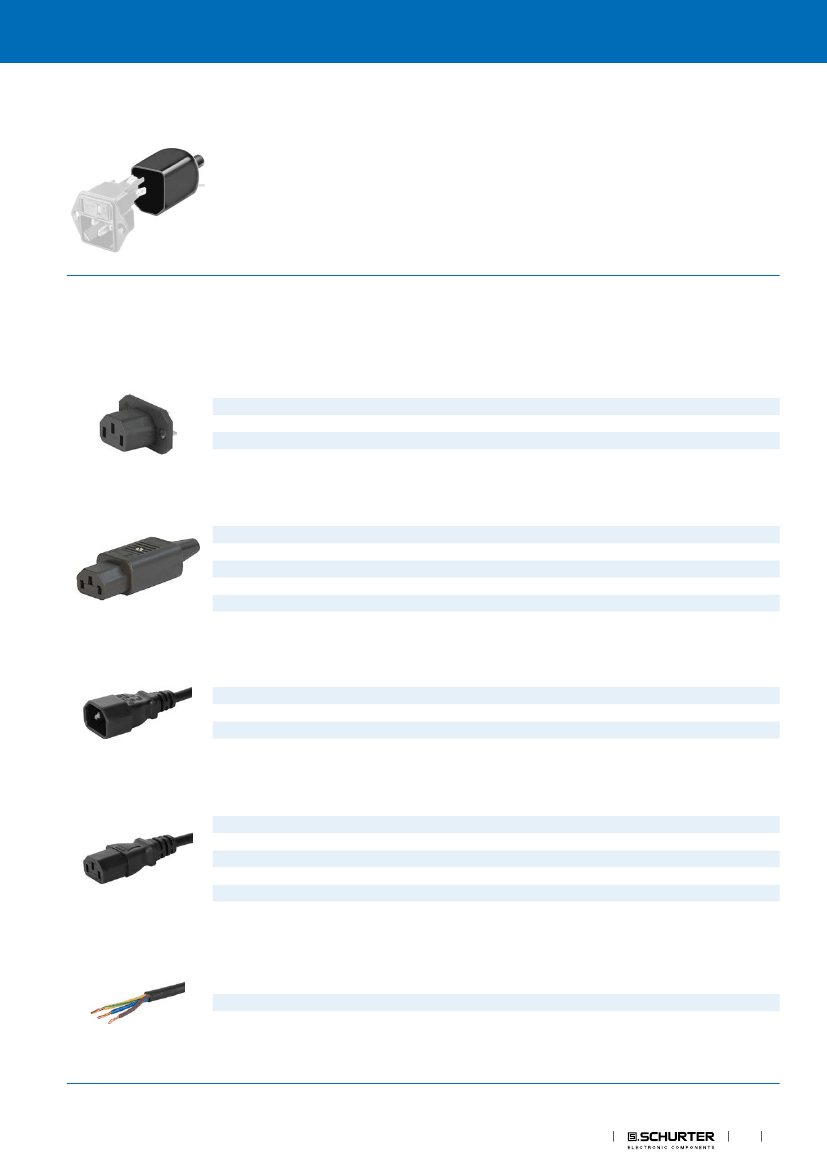

Accessories
Description
Assorted Covers
Rear Cover
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to 1062
4787
4788
5091
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4022 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4012 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
Connector further types to 1062
4782
4022
4785
4300-06
4012
...
Interconnection Cord Overview complete
Cord Sets 10 A, Interconnection, 2.0 m, IEC H05VV-F3G1.0, black
Cord Sets 10 A, Interconnection, 1.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, Interconnection, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Interconnection Cord further types to 1062
6007.0204
6007.0212
6007.0214
Power Supply Cord Overview complete
Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, uninsulated wires, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, uninsulated wires, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, United Kingdom, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Power Supply Cord further types to 1062
6004.0215
6003.0215
6000.0224
6000.0214
6044.0215
...
Power Supply or Interconnection Cord Overview complete
Cord Sets 10 A, United Kingdom, 2.0 m, Connector IEC H05VV-F3G1.0, black
Power Supply or Interconnection Cord further types to 1062
6044.0204
Connectors
5
