RJE71
Product Specification S6062C Rev 1.0
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
RJSSE

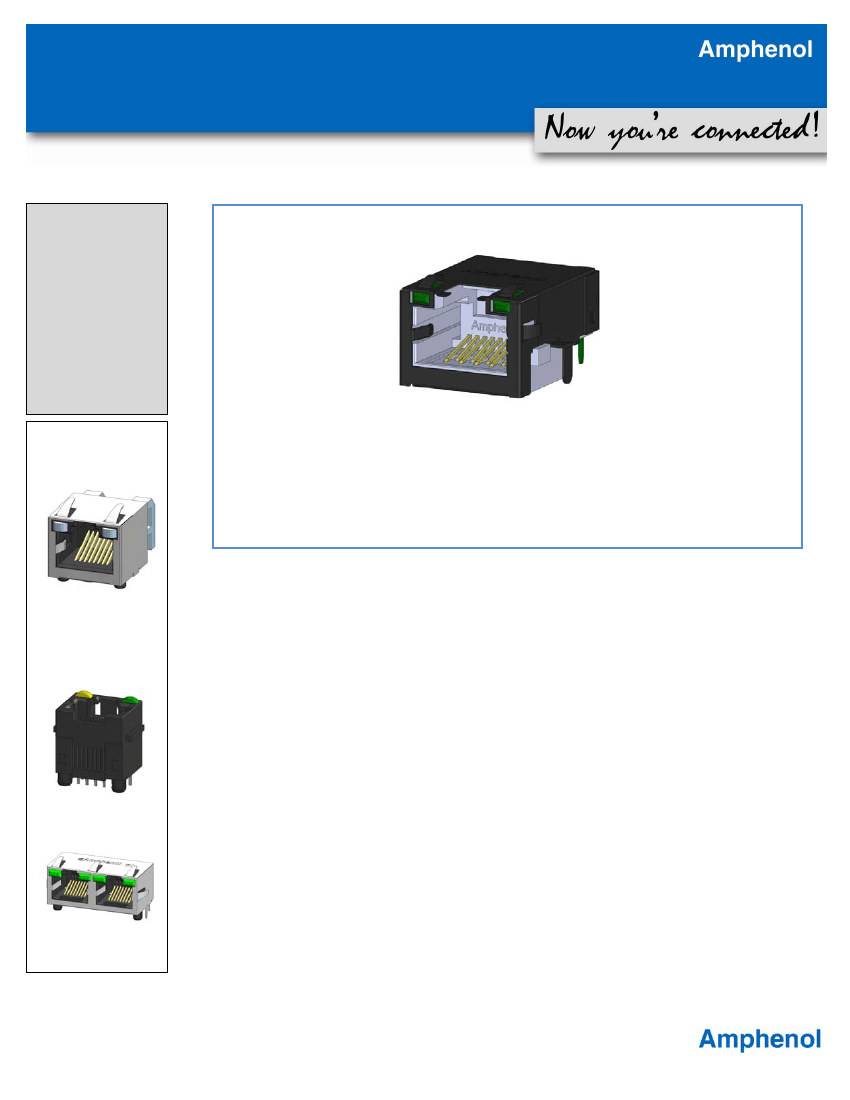

P/N RJE71‐188‐1452 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LEDs
Overview
P/N RJSSE‐5381 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
This product specification defines the general use and performance parameters for Amphenol’s
RJE71 series of modular jacks.
Availability: Single port connectors available with a wide variety of LED and shielding options.
RJHSE
Usage
The RJE71 series of modular jacks meet CAT6 performance per EIA-568-C.2. It supports Gigabit
Ethernet Protocols and 10G Ethernet over lengths up to 50M. Shielding available for increased EMI
performance and LEDs for Link Activity and Network Speed verification.
Applications
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
Revision date: Oct 24,2012
Page 1 of 2
S6062C Rev 1.0
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
LED forward DC current:
LED forward Voltage:
LED reverse voltage:
LED light intensity:
LED wave length:
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.25 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
20mA typical
1.9 Volts max. @ 2mA (for single colors)
2.6 Volts max. @ 20mA (for Bi-colors)
5 Volts minimum
0.4 to 1.5 mcd @ 2mA (for single colors)
0.5 mcd min. @ 2mA (for Bi-colors)
Yellow: 587± 7 nm measured @ 20mA
Green: 565± 6 nm measured @ 20mA
Red:
625± 5 nm measured @ 20mA

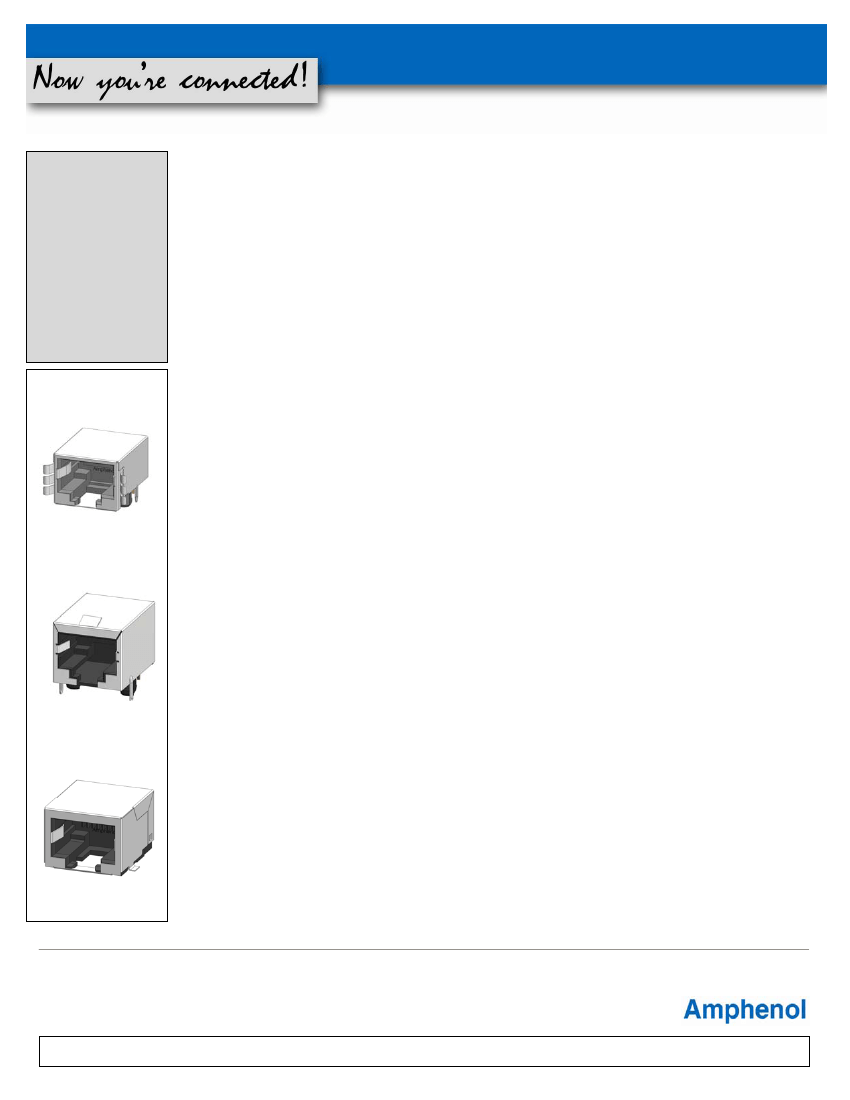

Related Products
RJULE
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Operating temperature: -55° C to +85° C
Recommended soldering temperature:
Wave soldering peaked at 260° C for 5 seconds maximum.
Note: IR reflow compatible version also available. Consult factory for details.
P/N RJULE‐4X182‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
FRJAE
Material Requirements
RJE71 connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin plating on solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
P/N FRJAE‐418 SHOWN
SINGLE PORT, 8 POSITION,
WITH FERRITE FILTER AND
SHIELD (FRONT TABS)
RJLSE
Available Documents
Drawing Numbers:
P-RJE71-188-1XXX
Single port Cat 6 Modular Jack, 8 Position, with LEDs and Shield. Ultra low profile
Contact factory or Authorized Amphenol representative for additional configurations.
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2011 • All rights reserved
