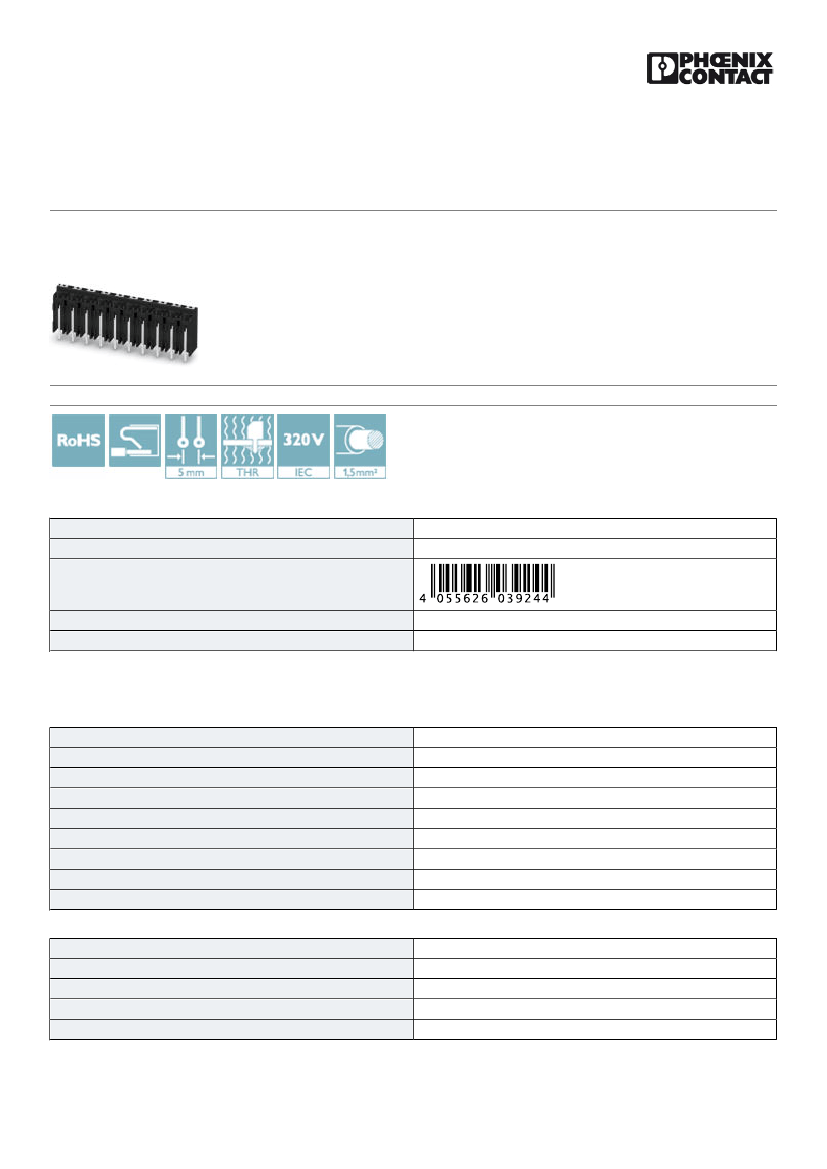

Sample set - SAMPLE SPT-THR 1,5/ 6-V-5,0 - 1838050
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 320 V, Pitch: 5 mm, Number of positions: 6,
Connection method: Push-in spring connection, Mounting: THR soldering, Conductor/PCB connection
direction: 90 °, Color: black
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
4055626039244
85369010
5 STK
5 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Width
Height
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
7.7 mm
5.00 mm
25 mm
29 mm
13.6 mm
2 mm
0,7 x 0,3 mm
5.5 mm
1.1 mm
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
IIIa
4 kV
4 kV
4 kV
250 V
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1838050
Sample set - SAMPLE SPT-THR 1,5/ 6-V-5,0 - 1838050
Technical data
General
Rated voltage (III/2)
Rated voltage (II/2)
Nominal current I
N
Nominal cross section
Insulating material
Solder pin surface
Flammability rating according to UL 94
Stripping length
Number of positions
320 V
500 V
13.5 A
1.5 mm²
LCP
Sn
V0
8 mm
6
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
0.2 mm²
0.75 mm²
24
16
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

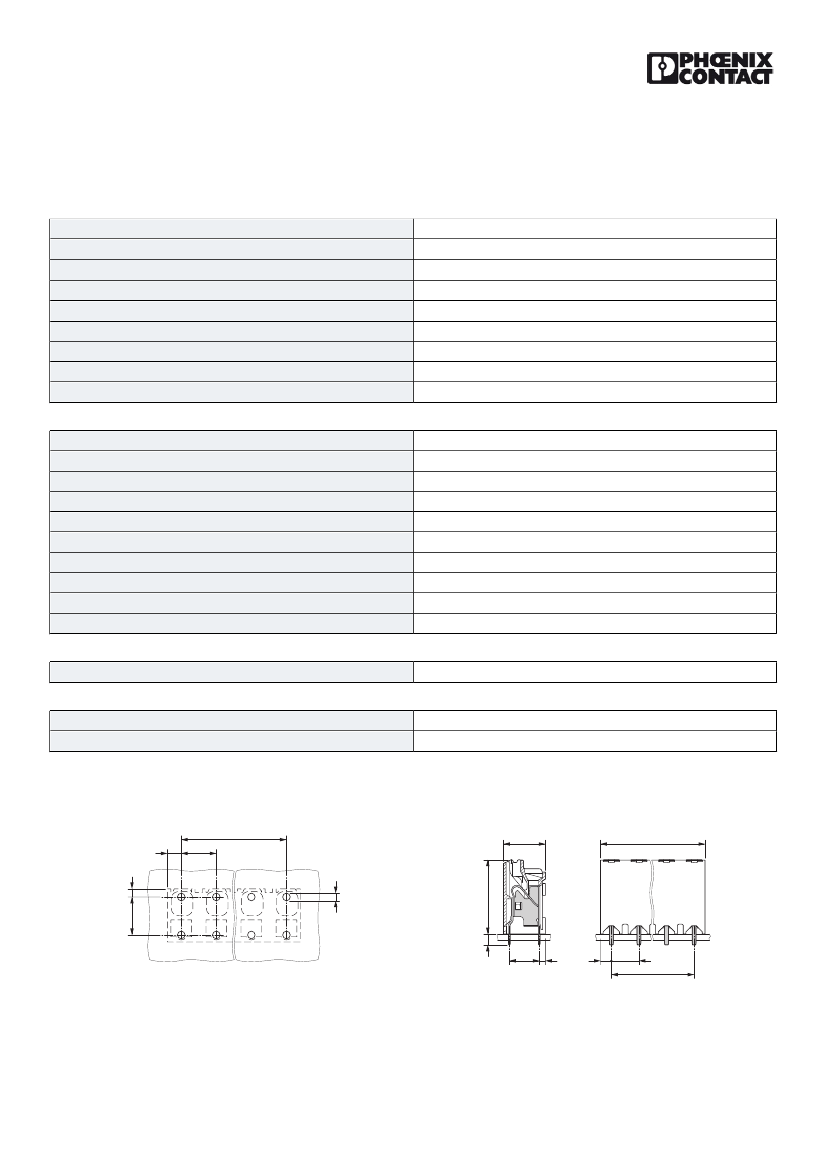

Drawings
Drilling diagram
a
2
5
(5,08)
Dimensional drawing
7,7
a+4
Ø1,1
1,2
5,5
2
13,6
5,5
1,2
2
5
(5,08)
a
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1838050
Sample set - SAMPLE SPT-THR 1,5/ 6-V-5,0 - 1838050
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC B.01742
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
