Flat Cable Connectors
XG4
Industry Standard Circuit Board
Connectors Conform to MIL Standards

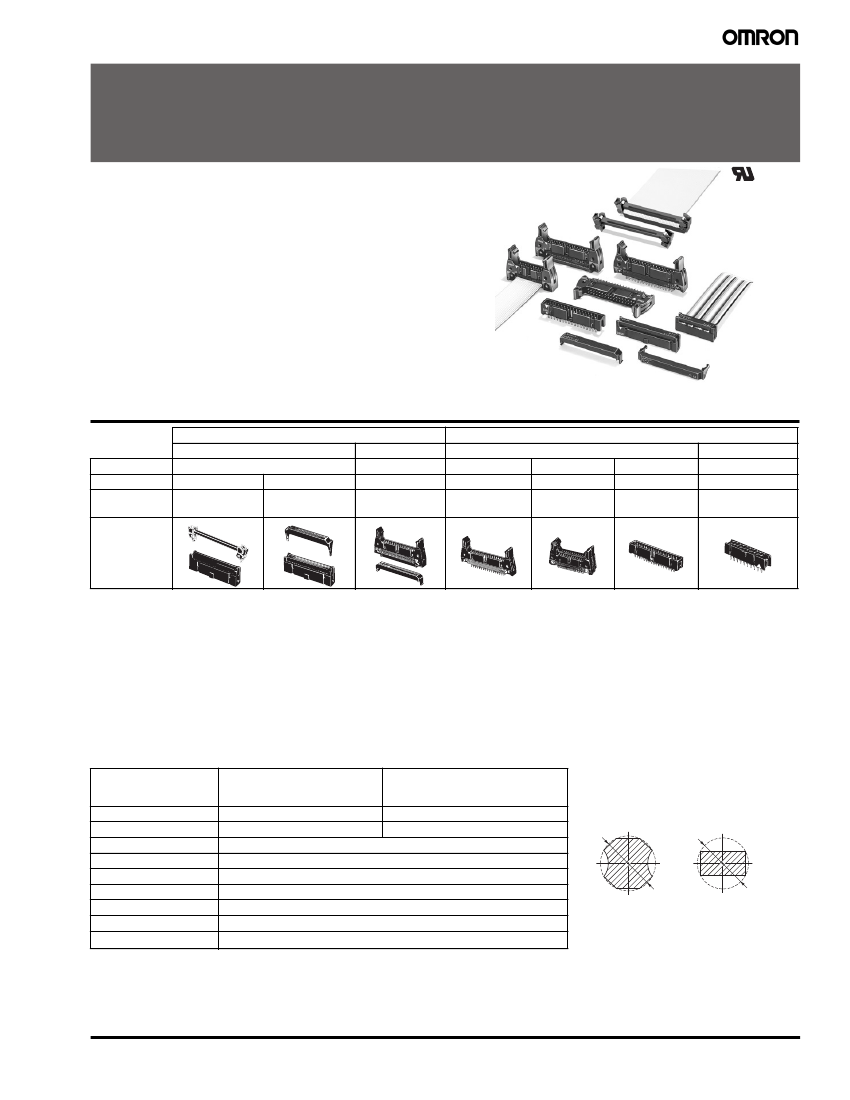

• XG4M-U: Unique locking system, with lock levers on strain
relief / socket instead of on plug, saves 24% of space
• Space-saving Box-type Plugs (XG4C) available.
• Can be used with XG5 IDC Connectors for discrete wires, XG8
Original PCB Plugs, and the XG2 IDC Bus Connectors for PCBs.
• The Original Plugs (XG8) and the Box-type Plugs (XG4C)
can be locked using External XG5Z and XG4Z Lock Levers.
• Conforms to MIL standards (MIL-C-83503). RoHS Compliant.
• UL recognition (file No. E103202)(Except XG4U and XG4H)
Ordering Information
Cable
Connector
Strain relief
Feature
Socket
XG4M
XG4U
XG4T
Strain relief
Strain relief
with lock levers without lock levers
Plug
XG4E
XG4S
Lock levers on
connector
XG4A
---
Integral
lock levers
PCB
Plug
XG4A
---
2-tier
with lock levers
XG4C
---
Box type plug
Socket
XG4H
---
Board to Board
Socket
Appearance
Note: 1.
XG4M can be provided with or without the strain reliefs;
⇒
XG4M-U consists of XG4M-@@3@ socket +XG4U-@@04 strain relief
⇒
XG4M-T consists of XG4M-@@3@ socket + XG4T-@@04 strain relief
2.
3.
4.
5.
6.
XG4H PCB mount socket mates with XG4C and XG8W (see XG8 Datasheet) for board to board connectivity without cables.
XG5 connectors (see XG5 Datasheet) use discrete wire instead of flat ribbon cable.
XG4A PCB mount sockets are available with Long, Short or no Lock Levers.
Optional XG4Z-001@ side-lock levers, purchased separately, are available for use with right-angle XG4A versions that don’t include them.
Optional XG4Z-0002 and XG5Z-0002 top-lock levers are available for mating XG4M(-T) sockets to XG4C and XG8 plugs.
■
Ratings and Characteristics
Item
Rated current
Rated voltage
Contact resistance
Insulation resistance
Dielectric strength
Connector insertion
Contact removal
Insertion durability
Ambient temperature
MIL Plugs: XG4A
Box-type PCB Plugs: XG4C
Board to Board Sockets: XG4H
1A
3 A (See note 1.)
250 VAC
300 VAC
20 mΩ max. (at 20 mV, 100 mA max.)
1,000 MΩ min. (at 500 VDC)
500 VAC for 1 min (leakage current: 1 mA max.)
1.96 N max. per contact
0.39 N min. (with test gauge, t= 0.64 mm)
50 times (See note 2.)
Operating: –55 to 105°C (with no icing)
MIL Sockets: XG4M
Cable Plug: XG4E
■
Cross-Sectional View of Terminal
XG4A
XG4C
XG4H
0.7 dia.
0.65 dia.
Note:
The rated current will depend on the socket
you are using. It is 1A using the XG4M for
example.
Note: 1.
The rated current will depend on the Socket you are using. It is 1 A using the XG4M for example.
2.
For standard 0.15-μm gold plating.
Flat Cable Connectors
XG4
1
■
Materials and Finish
MIL Plugs: XG4A
Cable Plugs: XG4E
MIL Sockets: XG4M
Board-to-board
Box-type Plugs: XG4C
(Strain Relief: XG4S)
(Strain Relief: XG4T)
Connector: XG4H
Housings
Fiber-glass reinforced PBT resin (UL94V-0)/black
Covers
—
Polyamide resin (UL94V-0)/ Fiber-glass reinforced PBT —
black
resin (UL94V-0)/black
Contacts Mating end
Brass/nickel base, 0.15-μm gold plat- Phosphor bronze/nickel base, 0.15-μm gold plating (See note.)
ing (See note.)
Terminal Press fit Brass/nickel base, 2.0-μm tin plating Phosphor bronze/nickel base, 2.0-μm tin plating
Strain Reliefs
—
Polyamide resin (UL94V-0)/ Fiber-glass reinforced PBT —
black
resin (UL94V-0)/black
Note:
For non-standard plating, contact your OMRON representative.
Item
■
Applicable Wires
1.27-mm pitch, flat cable incorporating AWG28 wires
•
UL2651(standard cable)
•
UL20012 (folding cable)
•
UL20028 (color-coded cable)

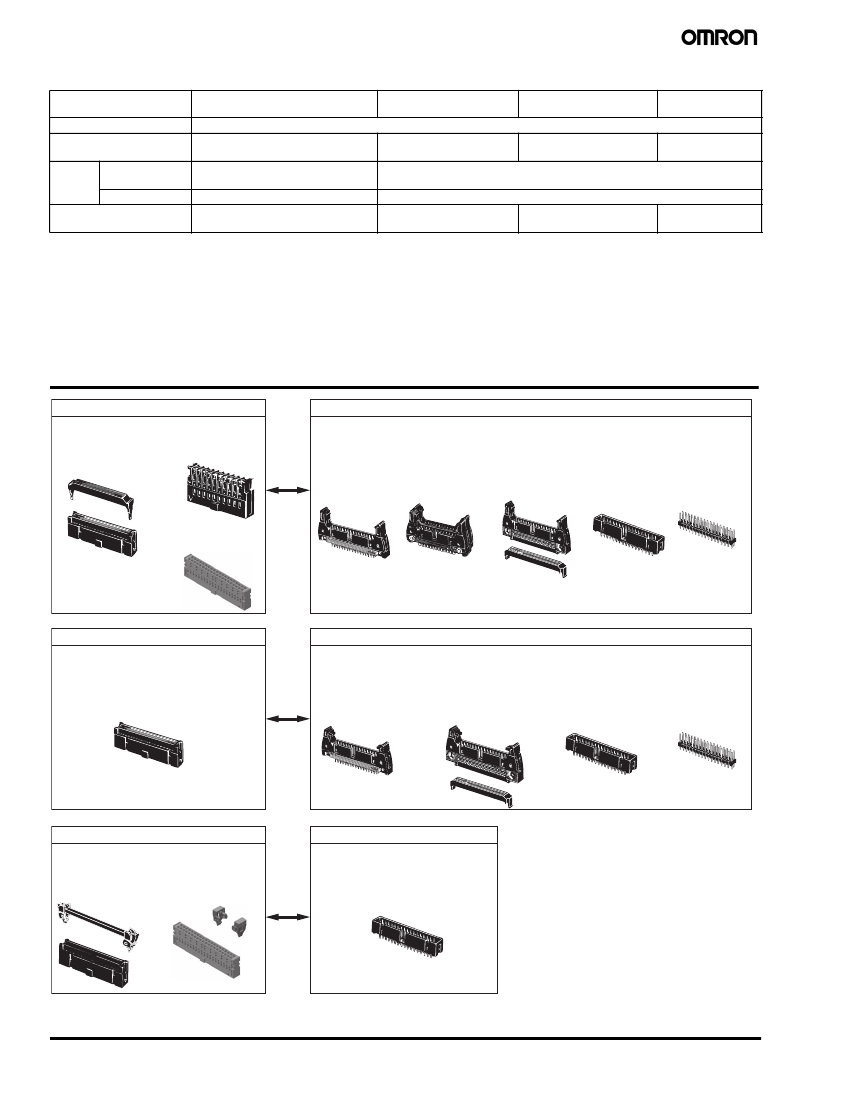

Mating Combinations for XG4, XG5 and XG8
Sockets
XG4M-T
(XG4M Socket +
XG4T Strain Reliefs)
Plugs
XG5M
Sockets for
Discrete Wires
XG4A
Mates
with
MIL Plugs
with Long
Locks
XG4A
2-tier Plugs
XG4E
Cable Plugs with
Long Locks +
XG4C
Box-type
Shrouded
Plugs
XG8W
Original Plugs
(Unshrouded)
XG4S
Strain Reliefs
XG5N
Discrete Wire
Crimping
Sockets
XG4M
(Sockets without
Strain Relief)
Plugs
XG4A
Mates
with
MIL Plugs with
Short Locks
XG4E
Cable Plugs with
Short Locks +
XG4C
Box-type
Shrouded
Plugs
XG8W
Original Plugs
(Unshrouded)
XG4S
Strain Reliefs
Sockets
XG4M-U
(XG4M Sockets +
XG4U Strain Relief
with Locks)
Plugs
XG4C
Mates
with
Box-type
Plugs
Note:
See XG5 and XG8 Datasheets for
details regarding those connectors.
XG5N-U
(XG5N Sockets +
with Lock Levers)
2
Flat Cable Connectors
XG4
Cable Mount Connectors
■
XG4M-U Sockets
(Uses XG4U Strain Relief with Lock Levers)
Dimensions
XG4U-@@04
Strain Reliefs with Locks

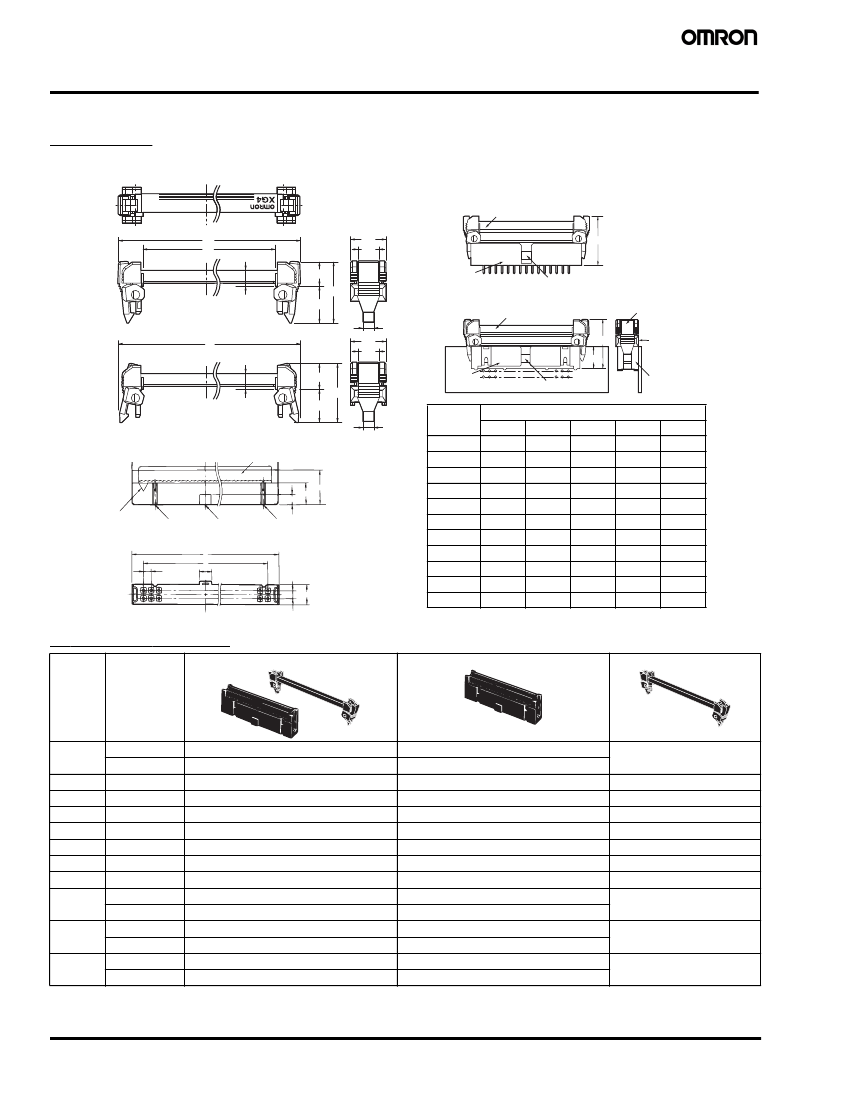

Mating Diagrams for XG4M-U

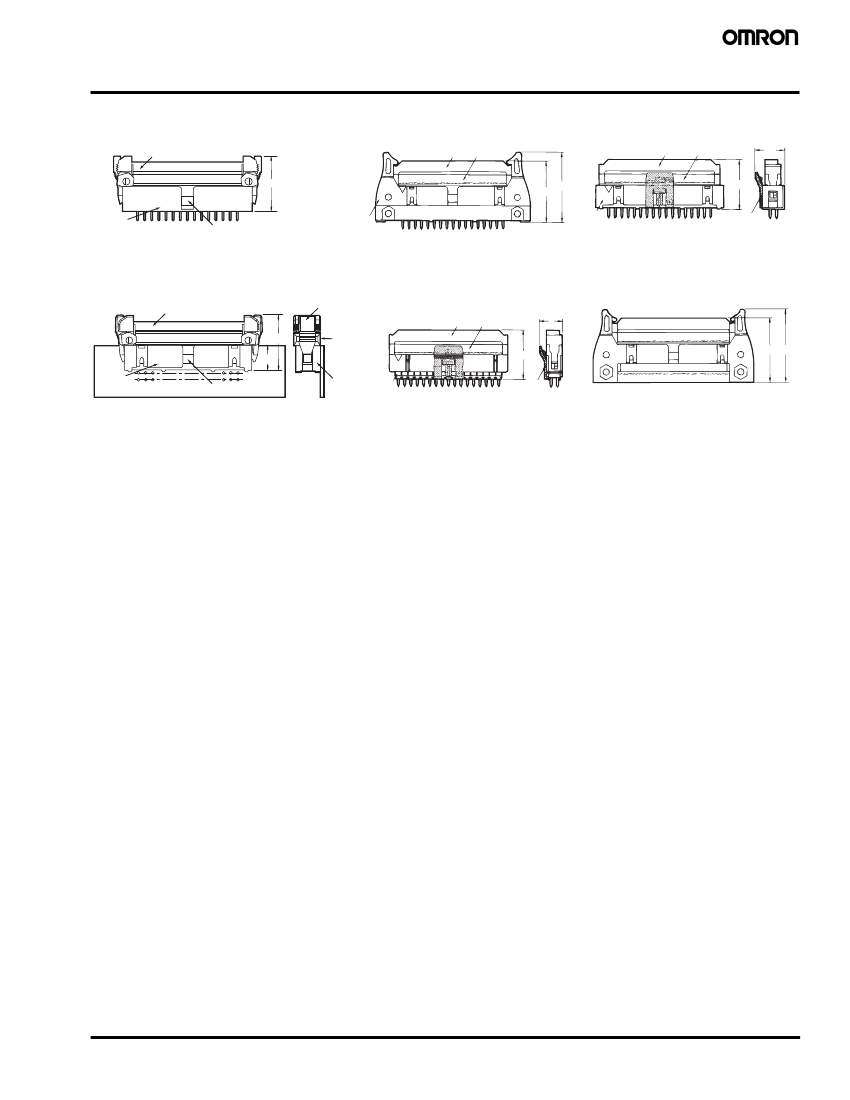

XG4U + XG4M + XG4C
(with straight terminals)
XG4U
A
B
3.3
9.5
5.6
6.7
(16.8)
1
10.1
3
XG4C
XG4M
20.2
(Locked)
XG4U + XG4M + XG4C
(with right-angle terminals)
XG4U
XG4U
C
3.3
9.5
5.6
XG4C
(16.5)
1
9.1
3
XG4M
20.2
9.3
XG4M
(Unlocked)
7.4
XG4C
No. of
contacts
10
14
16
20
26
30
34
40
50
60
64
XG4M-@@30
(one polarity guide)
XG4M-@@31
(all others)
Open-end cover
3
Triangular mark
Polarizing Key slot (2)
(not on models with
less than 14 contacts)
D
E
2.54
3.8
2.54
Polarity guide
6.6
10.6
Polarizing Key slot (1)
6.1
A
26.8
31.8
34.4
39.5
47.1
52.2
57.2
64.9
77.6
90.3
95.3
Dimensions (mm)
B
C
D
13.2
26.2
17.3
18.2
31.2
22.3
20.8
33.8
24.9
25.9
38.9
30.0
33.5
46.5
37.6
38.6
51.6
42.7
43.6
56.6
47.7
51.3
64.3
55.4
64.0
77.0
68.1
76.7
89.7
80.8
81.7
94.7
85.8
E
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
73.66
78.74
Ordering Information
No. of
contacts
No. of
polarity
guides
Socket+Strain Relief Sets (See notes 1 and 2.) Socket with Open-end Cover (See note 3.) Strain Relief with Locks
10
14
16
20
26
30
34
40
50
60
64
0
1
1
1
1
1
1
1
1
1
2 (See note 4.)
1
2 (See note 4.)
1
2 (See note 4.)
XG4M-1031-U
XG4M-1030-U
XG4M-1430-U
XG4M-1630-U
XG4M-2030-U
XG4M-2630-U
XG4M-3030-U
XG4M-3430-U
XG4M-4030-U
XG4M-5030-U
XG4M-5031-U
XG4M-6030-U
XG4M-6031-U
XG4M-6430-U
XG4M-6431-U
XG4M-1031
XG4M-1030
XG4M-1430
XG4M-1630
XG4M-2030
XG4M-2630
XG4M-3030
XG4M-3430
XG4M-4030
XG4M-5030
XG4M-5031
XG4M-6030
XG4M-6031
XG4M-6430
XG4M-6431
XG4U-1004
XG4U-1404
XG4U-1604
XG4U-2004
XG4U-2604
XG4U-3004
XG4U-3404
XG4U-4004
XG4U-5004
XG4U-6004
XG4U-6404
Note: 1.
Sets include the connector and strain relief.
2.
With open-end cover.
3.
Strain Relief sold separately.
4.
Polarity guide pitch is 22.86 mm.
4
Flat Cable Connectors
XG4
■
XG4M-T Sockets
(Uses XG4T Strain Relief without Lock Levers)
Dimensions

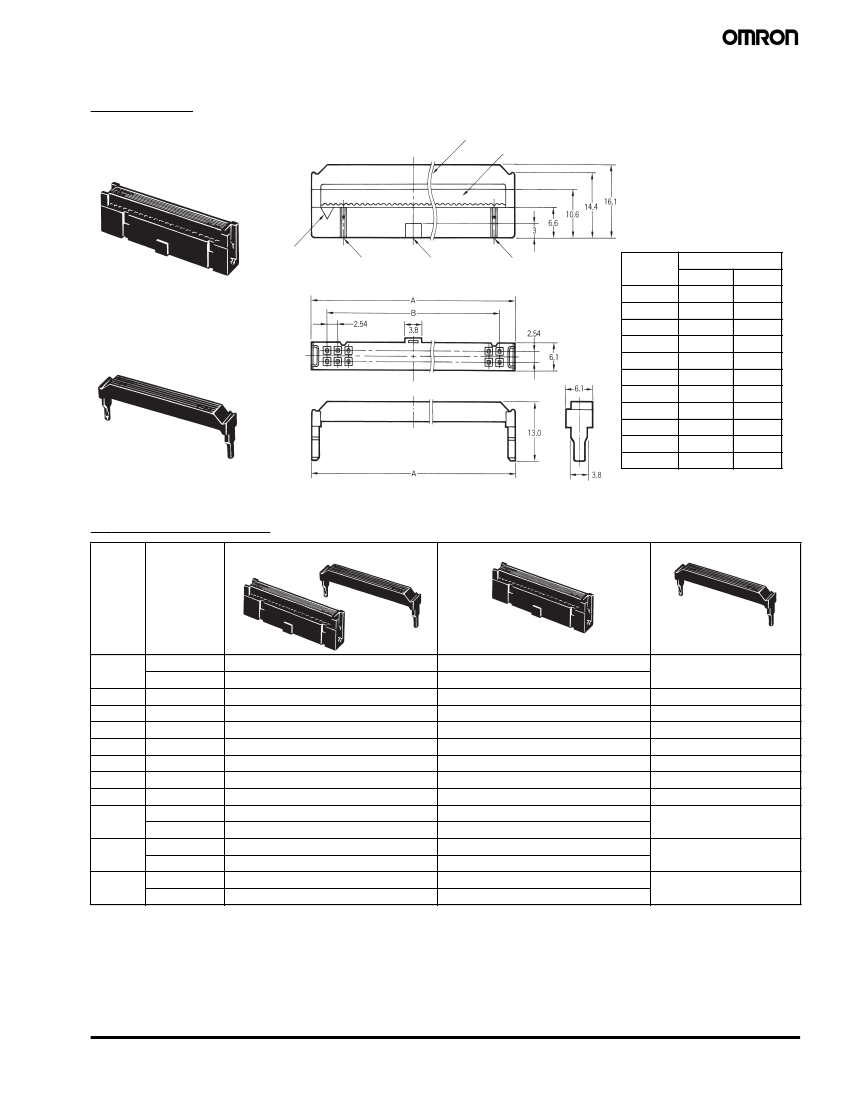

XG4M-@@30
(one polarizing guide)
XG4M-@@31
(all others)
Strain relief
Open-end cover
Triangular mark
Polarizing Key slot (2) Polarity guide
(Not on models with
less than 14 contacts.)
Polarizing Key slot (1)
No of
Dimensions (mm)
contacts
A
B
10
17.3
10.16
14
22.3
15.24
16
20
26
30
34
40
50
60
64
24.9
30.0
37.6
42.7
47.7
55.4
68.1
80.8
85.8
17.78
22.86
30.48
35.56
40.64
48.26
60.96
73.66
78.74
XG4T-@@04
Strain Relief
Ordering Information
No. of
contacts
No. of
polarity
guides
Socket+Strain Relief Set (See notes 1 and 2.) Socket with Open-end Cover (See note 3.) Strain Relief for the XG4M
10
14
16
20
26
30
34
40
50
60
64
0
1
1
1
1
1
1
1
1
1
XG4M-1031-T
XG4M-1030-T
XG4M-1430-T
XG4M-1630-T
XG4M-2030-T
XG4M-2630-T
XG4M-3030-T
XG4M-3430-T
XG4M-4030-T
XG4M-5030-T
XG4M-1031
XG4M-1030
XG4M-1430
XG4M-1630
XG4M-2030
XG4M-2630
XG4M-3030
XG4M-3430
XG4M-4030
XG4M-5030
XG4M-5031
XG4M-6030
XG4M-6031
XG4M-6430
XG4M-6431
XG4T-1004
XG4T-1404
XG4T-1604
XG4T-2004
XG4T-2604
XG4T-3004
XG4T-3404
XG4T-4004
XG4T-5004
XG4T-6004
XG4T-6404
2 (See note 4.)
XG4M-5031-T
1
XG4M-6030-T
2 (See note 4.)
XG4M-6031-T
1
XG4M-6430-T
2 (See note 4.)
XG4M-6431-T
Sets include the connector and strain relief.
With open-end cover.
Strain Relief sold separately.
Polarity guide pitch is 22.86 mm
Note: 1.
2.
3.
4.
Flat Cable Connectors
XG4
5
FPGA/CPLD
