L3050-15.900-20

Description
Parallel - Fundamental Quartz Crystal, 15.9MHz Nom, SMD, 4 PIN
CategoryPassive components    Crystal/resonator
File Size168KB,1 Pages
ManufacturerITTI Company Limited
Websitehttp://www.itti-co.com
Download Datasheet Parametric View All

L3050-15.900-20 Overview

Parallel - Fundamental Quartz Crystal, 15.9MHz Nom, SMD, 4 PIN

L3050-15.900-20 Parametric

Parameter NameAttribute value
MakerITTI Company Limited
package instructionSMD, 4 PIN
Reach Compliance Codeunknown
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
load capacitance20 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency15.9 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical sizeL3.2XB2.5XH0.75 (mm)/L0.126XB0.098XH0.03 (inch)
Series resistance100 Ω
surface mountYES
Base Number Matches1
Halogen
Free
PRODUCTS
Typical Applications:
Mobile Phone
GPS
Bluetooth
W-LAN

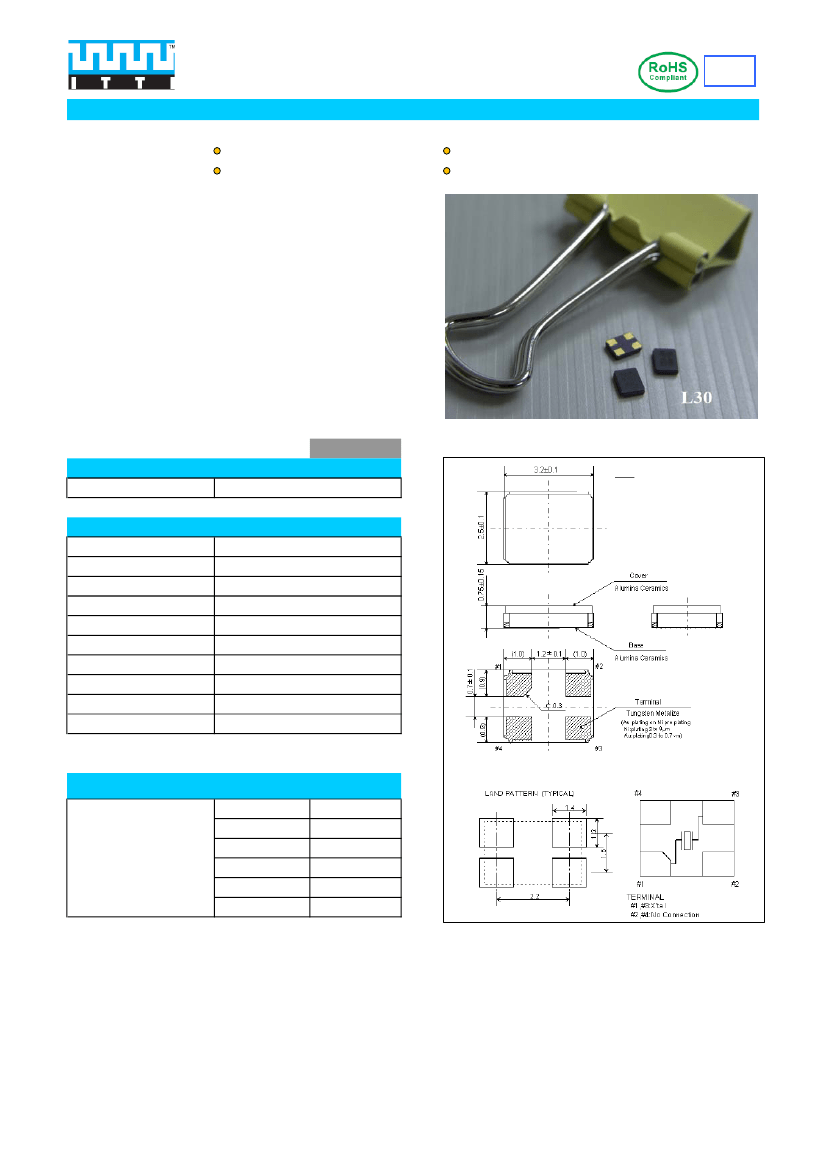

Crystal Unit (SMD)
L30
(Glass Sealing Series)
Part Number: L30 (ppm) - Freq - CL
Example: L3050-20.000-8
Specification
Part No.
L30 (ppm) - Freq - CL
Example
L3050-20.000-8
L30
Dimension
L30
(Unit: mm)
Specification
Frequency Range
Mode of Oscillation
Tolerance at 25°C
Temperature Stability
Operating Temperature Range
Load Capacitance
Storage Temperature Range
ESR
Drive Level
Aging
L30
9.84375 to 50.0MHz
Fundamental
±10 to ±50ppm
±10 to ±50ppm
-10°C to +70°C / -40°C to +85°C
8 to 20pF / Series
-40°C to +85°C
* See Table Below
100μW Max.
±5ppm/year Max.
* L30 ESR Table
Oscillation Mode
Frequency Range
(MHz)
9.84375 to11.9
12.0 to 12.9
Fundamental
13.0 to 15.9
16.0 to 19.9
20.0 to 29.9
30.0 to 50.0
ESR
(Ohm)
300 Max.
120 Max.
100 Max.
80 Max.
70 Max.
50 Max.
