Not for New Designs
DDR-3 DIMM Vertical Mount Socket
FCN-07 Series
RoHS compliant
■
•
•
FEATURES
DDR-3: 240pin DIMM socket connector (press-fit
or through hole type)
Fujitsu original unique structure for twin contact
points structure.
Specification
-55°C to +85°C
DC 0.5A
AC 25V
40mΩ maximum
(DC 20mv, 10mA)
AC 500V for 1 minute
1,000MΩ minimum
(DC500V)
155.7N (about 15.9kgf)
less than
4,800N (about
489.5kgf) less than

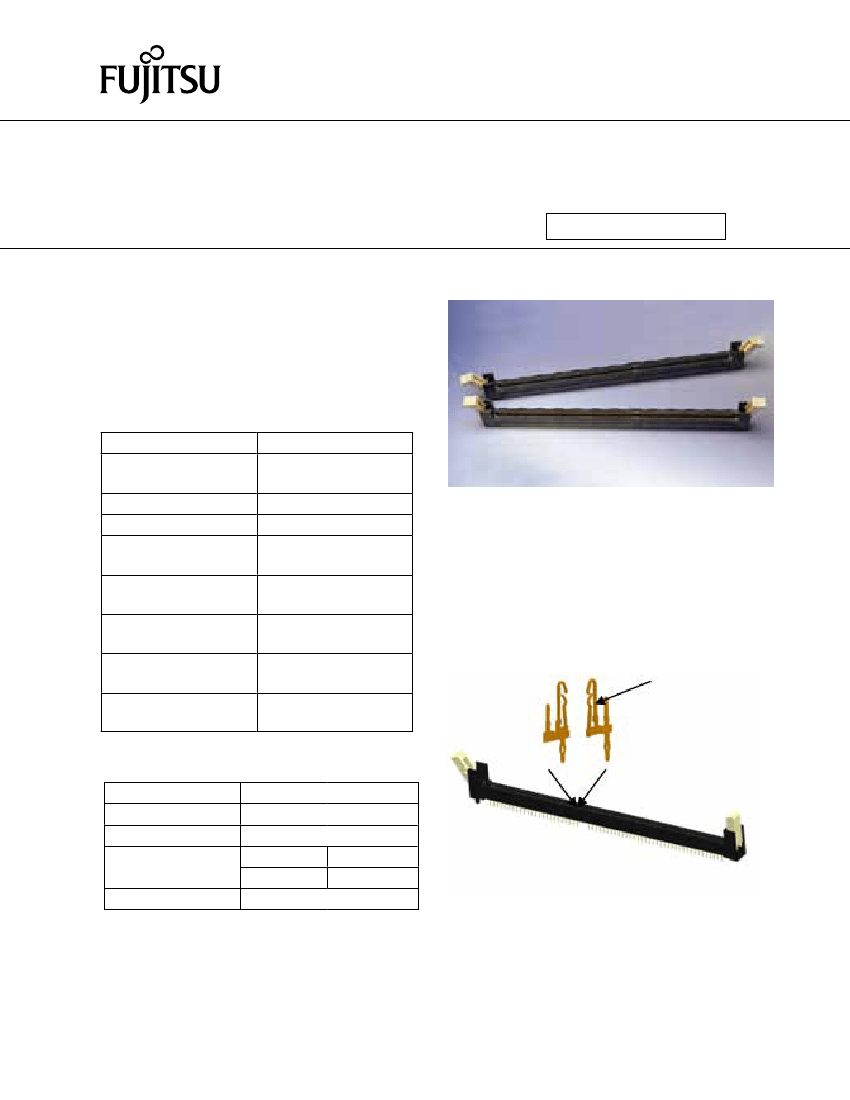

Fujitsu’s FCN-07 DDR-3 DIMM socket is a vertical
mount press-fit socket.
The unique contact structure provides for twin points
of contact that insure that dust is wiped clean when
module is installed.
In addition, the twin points guarantee constant
contact between the module and contact even in a
high vibration environment.
Double
contact
Item
Operating temperature
range
Current rating
Voltage rating
Contact resistance
Dielectric withstanding
voltage
Insulation resistance
Insertion force
Compliant pin insertion
force
■
Item
MATERIALS
Specification
LCP, UL94 V-0
Copper Alloy
Contact
Compliant
LCP, UL94V-0
Gold plating
Tin plating
Insulating material
Conductor
Plating
Hook
Plastic tray quantity: 40 pieces/tray
Container quantity: 200 pieces
1

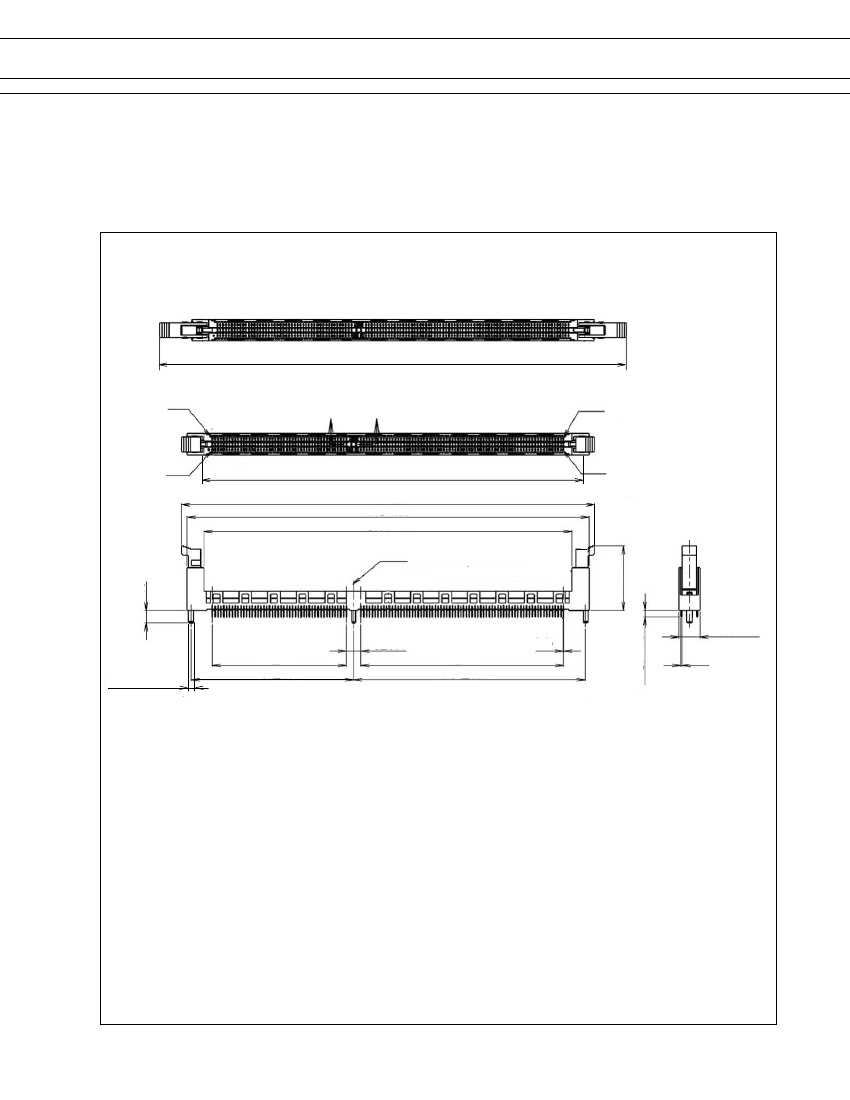

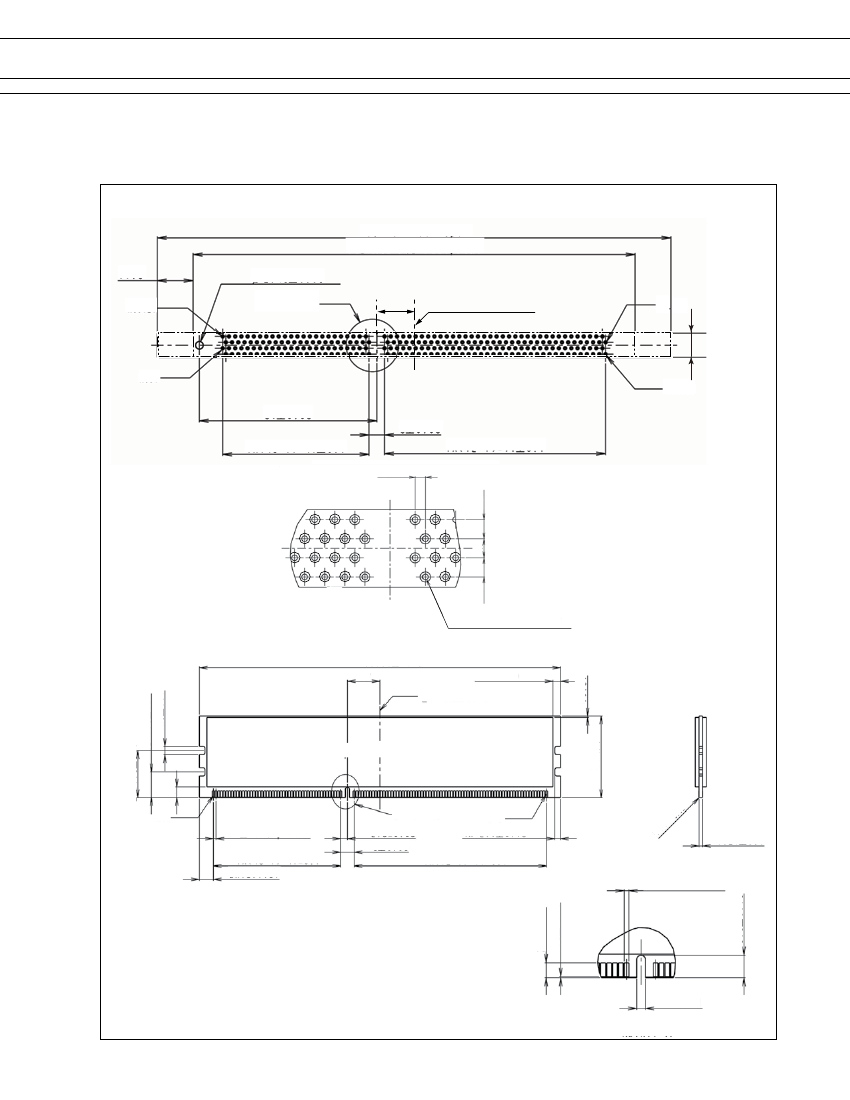

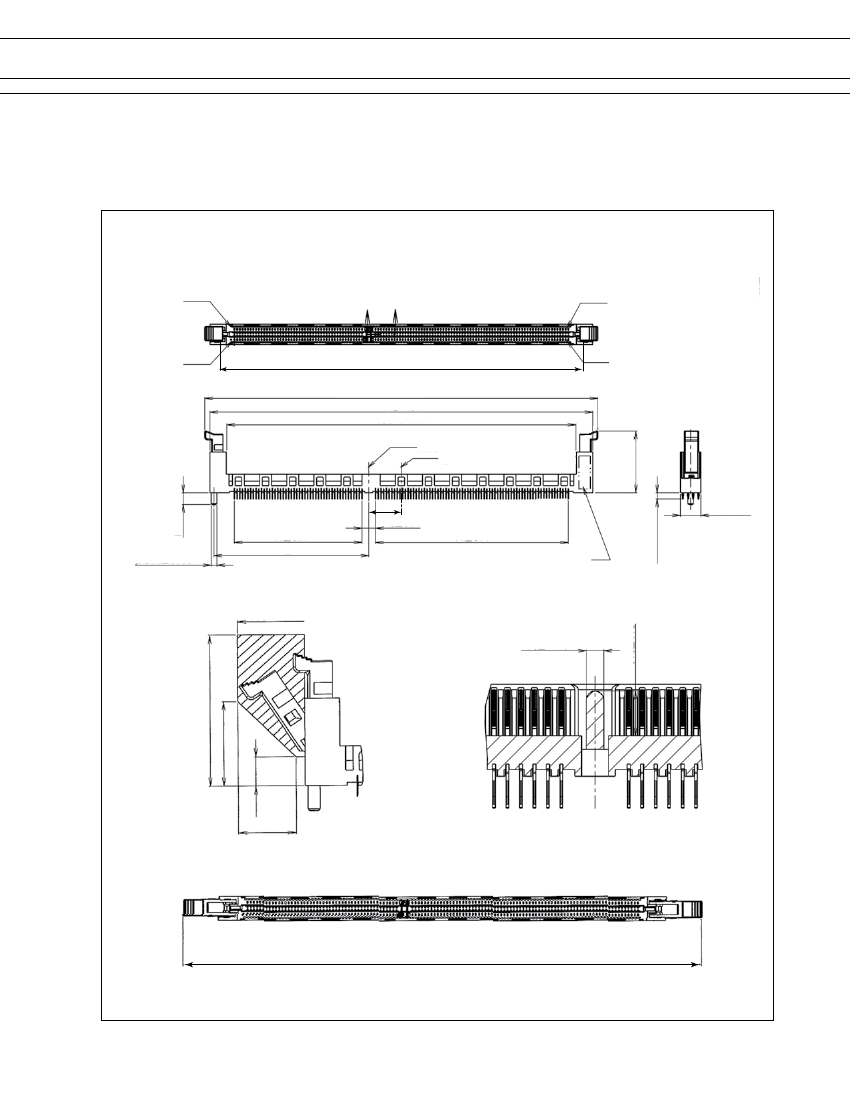

DDR-3DIMM Vertical Mount Socket
■
SPECIFICATIONS
Press-fit version
FCN-074J240-G/2P
No.121
A
A
No.240
No.1
133.75(*b) (card slot length)
144.8±0.5
Max.142
Min.128.6(*a)
No.120
(12)
47±0.1
57±0.1
71±0.1
Date Code
2.25±0.15
(4.3)
5±0.1
22.7±0.25
Center line of polarizing key
Center line of (*a)(*b)
7.5±0.2
φ2.1±0.08
Max.165
(カード挿入部）
（第一接点口径寸法）
1.3±0.05
0.69±0.1
Max.26
Min.14.5
Min.5
Min.10
Ejector moving area
（第二接点口径寸法）
0.73±0.1
断面 A-A
X-section A-A
Ejector open Max.165
No.121
A
A
3.3±0.2
1.42±0.05
No.240
Unit: mm
No.1
133.75(*b)
（カー
ドスロ ト長）
ッ
2
No.120
DDR-3DIMM Vertical Mount Socket
■
SPECIFICATIONS
Press-fit version
FCN-074J240-G/2P
Keep out area 165.0
-0
PCB foot print Max.142
11.5
No.121
φ2.45±0.05
Detail A
(12)
Center line of foot print
No.240
7.7
-0
No.1
57±0.05
1×(48−1)= 47±0.1
1±0.05
1.9
±0.05
Keep out area
No.120
5±0.05
1×(72-1)= 71±0.1
1.9
±0.05
1.9
±0.05
φ0.56±0.05
PTH 240
（φ0.66Drill
hole)
Applicable substrate
thickness (mm): 1.6 min.
φ1±0.05 Pad 240
133.35±0.15
(12)
2×9.5±0.1
4×3±0.1
2×(2.8)
Center line of module board
(0.5)
30
−0.15
＋0.50
2×17.3±0.1
Component area
(4)
Pad１
Detail A
1±0.05(pitch)
1×(48-1)= 47±0.1
2×(5.175)
2.5±0.05
5±0.05
Pad 120
4× 2.1±0.15
1×(72-1)= 71±0.1
C 0.1
-0.05
+0.10
1.27±0.1
240X 0.8±0.05
2.5±0.2
0.2±0.15
3.8±0.15
1.5±0.1
Detail A
Unit: mm
3
DDR-3DIMM Vertical Mount Socket
■
SPECIFICATIONS
Through-hole solder version
FCN-074J240-G/1D
165 MAX. Hook open
No.121
B
B
No.240
No.1
133.75
144.8
142 Max.
128.6 Min.
No.120
4.3
26 Max.
Mechanical key center line
5±0.1
2 -Ø2.1±0.08
47±0.1
57±0.1
71±0.1
81±0.1
0.2
2.35±0.25
7.55 Max.
0.4
Unit: mm
4

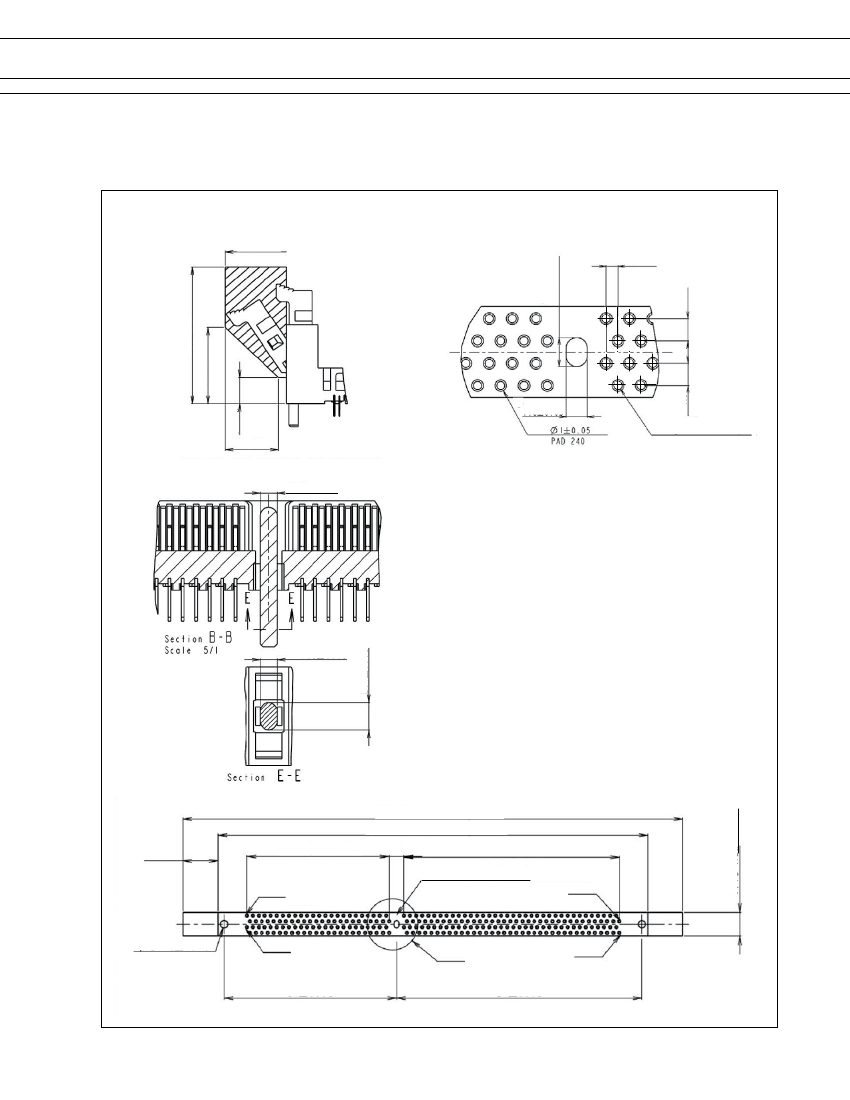

DDR-3DIMM Vertical Mount Socket
Through-hole solder version
FCN-074J240-G/1D
165 Max.
2.45±0.08
1±0.05
1.9
±0.05
Ø0.7
1.9
±0.05
+0.08
-0.05
■
SPECIFICATIONS
14.5
Min.
26
Max.
5 Min.
1.8±0.05
1.9
±0.05
PTH 240
10 Min.
1.3±0.05
Detail "C"
Scale 5/1
2.1±0.08
1.3±0.05
Applicable substrate
thickness (mm): 1.6
165 MAX. Hook open
142 MAX. PCB footprint
11.5
1X(48-1)=47
5
1X(72-1)=71
Mechanical key center line
No.121
No.240
7.75-0 Max.
2Ø2.25±0.05
No.1
57±0.05
Detail C
No.120
81±0.05
Unit: mm
5
