SD5421-002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SD5421-002

SD5421-002: CategoryLED optoelectronic/LED photoelectric; File Size364KB，4 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

SD5421-002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SD5421-002	-	-	View	Buy Now

SD5421-002 Parametric

Parameter Name	Attribute value
Maker	Honeywell
package instruction	METAL CAN, TO-46, 3 PIN
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Configuration	SINGLE
Maximum dark power	20 nA
Infrared range	YES
Nominal photocurrent	0.04 mA
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	PIN PHOTODIODE
Minimum reverse breakdown voltage	75 V
shape	ROUND
size	3.77 mm

Preview

Download Datasheet

View All

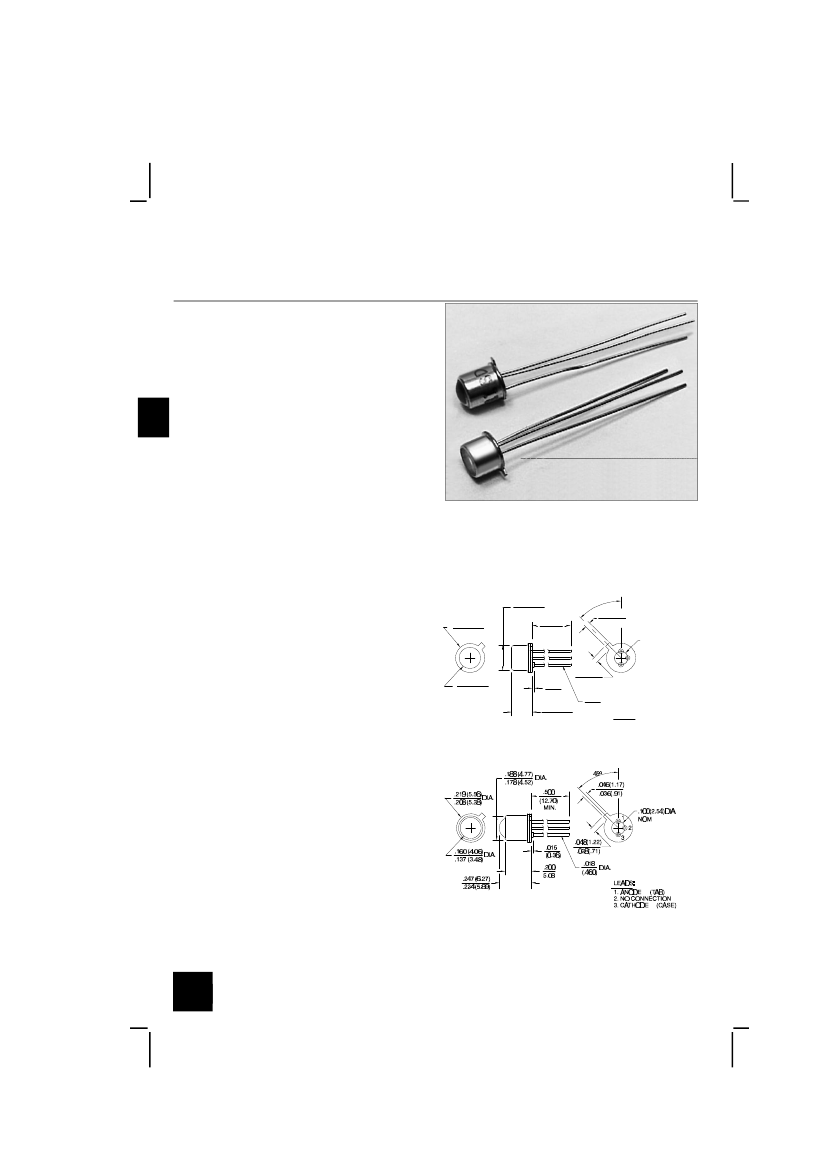

SD3421/5421

Silicon PIN Photodiode

FEATURES

•

TO-46 metal can package

•

Choice of flat window or lensed package

•

90¡ or 18¡ (nominal) acceptance angle option

•

Fast response time

•

Wide operating temperature range

(- 55¡C to +125¡C)

•

Mechanically and spectrally matched to

SE3450/5450, SE3455/5455 and SE3470/5470

infrared emitting diodes

INFRA-57.TIF

DESCRIPTION

The SD3421/5421 series consists of PIN photodiodes

mounted in a TO-46 metal can package. The SD3421

utilizes flat window cans providing a wide acceptance

angle, while the SD5421 employs glass lensed cans

providing a narrow acceptance angle. The TO-46

packages are ideally suited for operation in hostile

environments.

OUTLINE DIMENSIONS

in inches (mm)

Tolerance

3 plc decimals

±0.005(0.12)

2 plc decimals

±0.020(0.51)

SD3421

.188 (4.77)

DIA.

.178 (4.52)

.219 (5.56)

DIA.

.208 (5.28)

.500

(12.70)

MIN.

.048(1.22)

.160 (4.06)

DIA.

.137 (3.48)

.015

(0.36)

.153 (3.89)

.140 (3.56)

.028(.71)

.018

(.460)

45°

.046(1.17)

.036(.91)

.100(2.54)DIA

NOM

DIA.

LEADS:

1. ANODE(TAB)

2. NO CONNECTION

3. CATHODE(CASE)

DIM_011.ds4

SD5421

DIM_11b.cdr

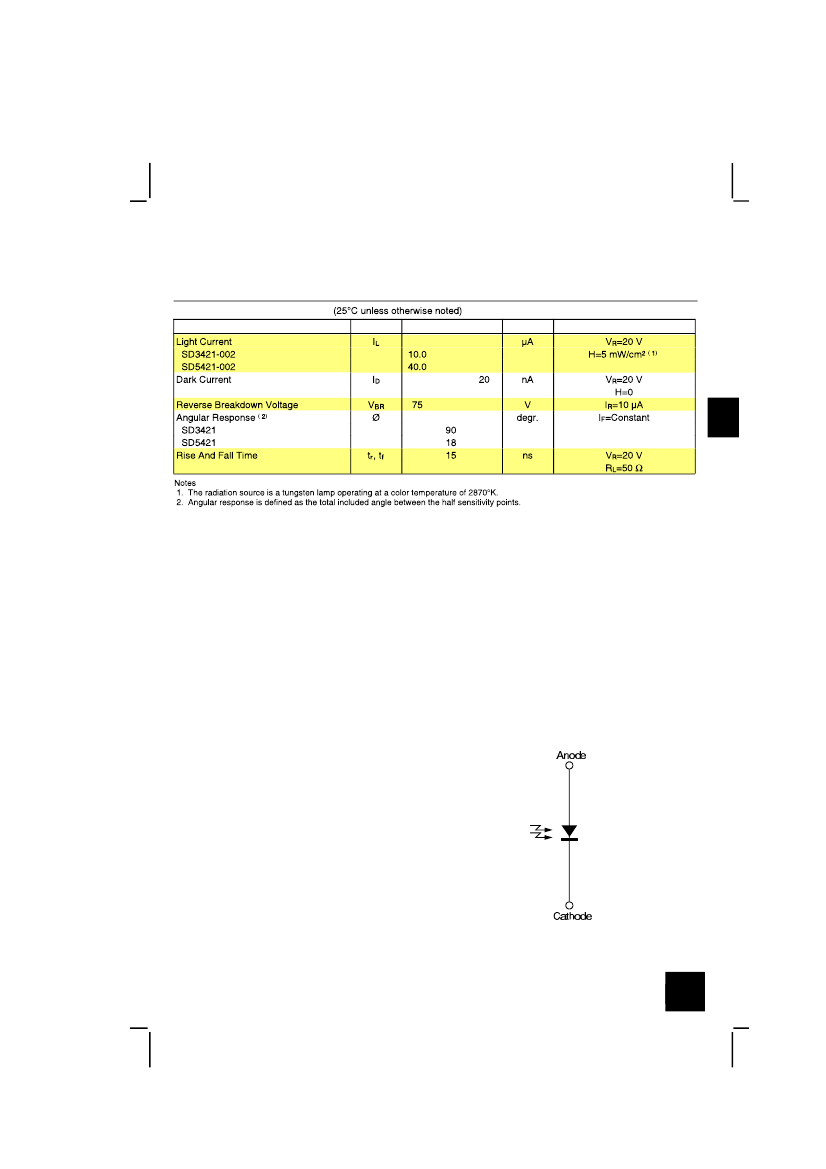

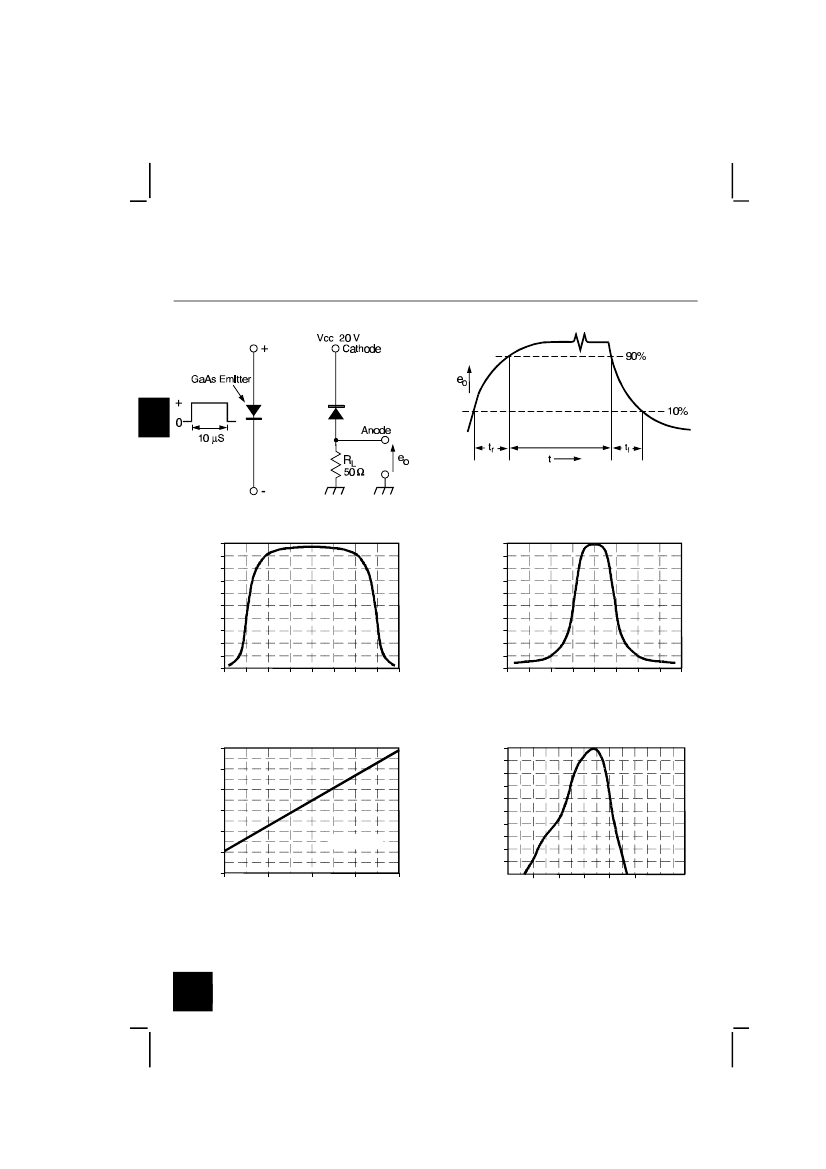

Honeywell reserves the right to make

changes in order to improve design and

supply the best products possible.

SD5421-002 Related Products

	SD5421-002	SD3421-002
Description		Photodiodes Silicon PhtoDrlngton TO-46 Mtl/Flt WndwPk
Maker	Honeywell	Honeywell
package instruction	METAL CAN, TO-46, 3 PIN	METAL CAN, TO-46, 3 PIN
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Configuration	SINGLE	SINGLE
Maximum dark power	20 nA	20 nA
Infrared range	YES	YES
Nominal photocurrent	0.04 mA	0.01 mA
Number of functions	1	1
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Optoelectronic device types	PIN PHOTODIODE	PIN PHOTODIODE
Minimum reverse breakdown voltage	75 V	75 V
shape	ROUND	ROUND
size	3.77 mm	3.77 mm
