Data Sheet
PS9513, PS9513L, PS9513L2, PS9513L3
1 Mbps, OPEN COLLECTOR OUTPUT, FOR GATE DRIVE INTERFACE
INTELLIGENT POWER MODULE
8 mm CREEPAGE 8-PIN DIP HIGH-SPEED PHOTOCOUPLER
R08DS0126EJ0100
Rev.1.00
Mar 12, 2015
Description
The PS9513, PS9513L1, PS9513L2 and PS9513L3 are optically coupled isolators containing a GaAlAs LED on the
input side and a photo diode and a signal processing circuit on the output side on one chip.
The PS9513 is designed specifically for high common mode transient immunity (CMR) and low pulse width distortion
with operating temperature. It is suitable for IPM drive.
The PS9513L1 is lead bending type for long creepage distance.
The PS9513L2 is lead bending type for long creepage distance (Gull-wing) for surface mount.
The PS9513L3 is lead bending type (Gull-wing) for surface mounting.
Features
Long creepage distance (8 mm MIN. : PS9513L1, PS9513L2)
High common mode transient immunity (CM
H
, CM
L
= ±15 kV/µs MIN)
High-speed response (t
PHL
= 500 ns MAX., t
PLH
= 750 ns MAX.)
Maximum propagation delays (t
PLH
–
t
PHL
= 270 ns TYP.)
Pulse width distortion (|t
PHL
–
t
PLH
| = 270 ns TYP.)
Open collector output
Ordering number of tape product : PS9513L2-E3 : 1 000 pcs/reel
: PS9513L3-E3 : 1 000 pcs/reel
Pb-Free product
Safety standards
UL approved: No. E72422
CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
BSI approved: No. 8937, 8938
SEMKO approved: No. 1308848
NEMKO approved: No. P13217067
DEMKO approved: No. D-02380
FIMKO approved: No. FI 27913
DIN EN60747-5-5 (VDE0884-5):2011-11 approved: No. 40024069 (Option)
PIN CONNECTIONS
(Top View)
8
7
6
5
1. NC
2. Anode
3. Cathode
4. NC
5. GND
6. V
O
7. NC
8. V
CC
1
2
3
4
APPLICATIONS
IPM Driver
General purpose inverter
R08DS0126EJ0100 Rev.1.00
Mar 12, 2015
Page 1 of 16
PS9513, PS9513L, PS9513L2, PS9513L3

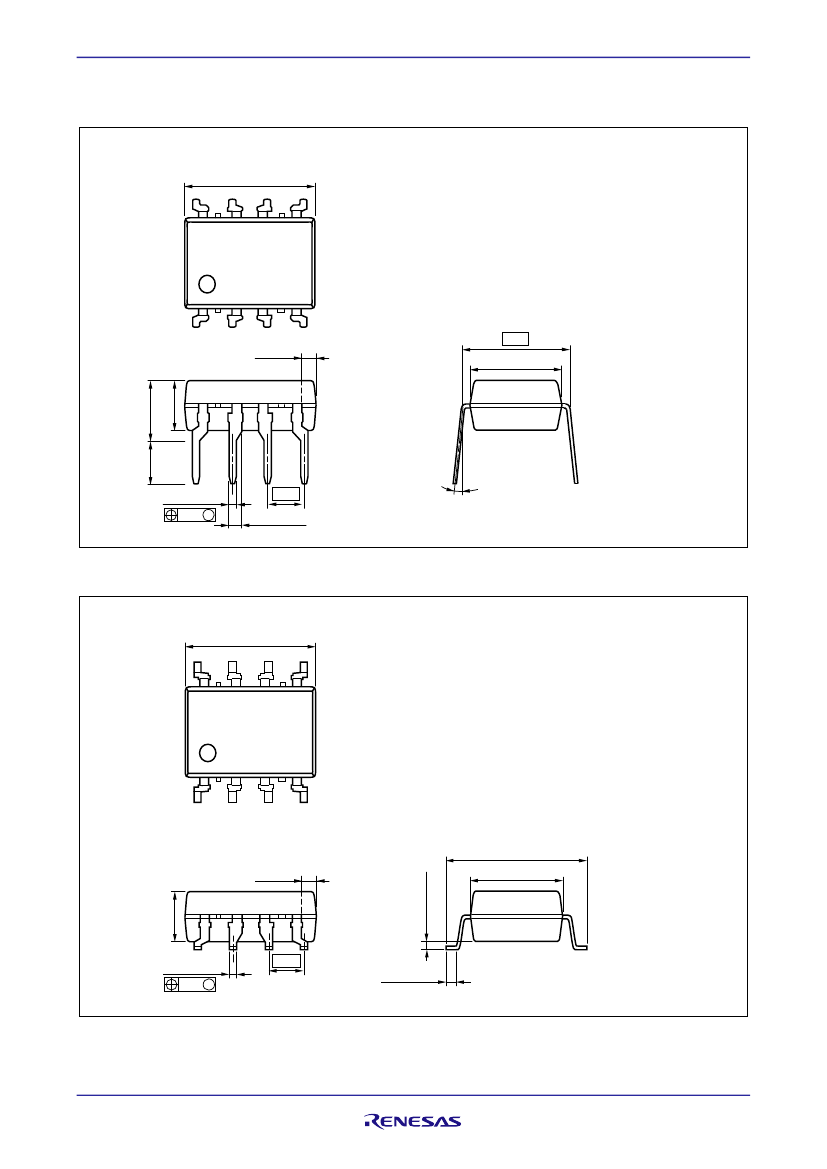

PACKAGE DIMENSIONS (UNIT: mm)
DIP Type
PS9513
9.25
–0.25
+0.5
1.01
–0.2
+0.4
7.62
6.5
–0.1
+0.5
2.8 MIN. 4.15±0.3
3.5±0.2
0.5±0.15
0.25
M
2.54
0.84±0.15
0 to 15

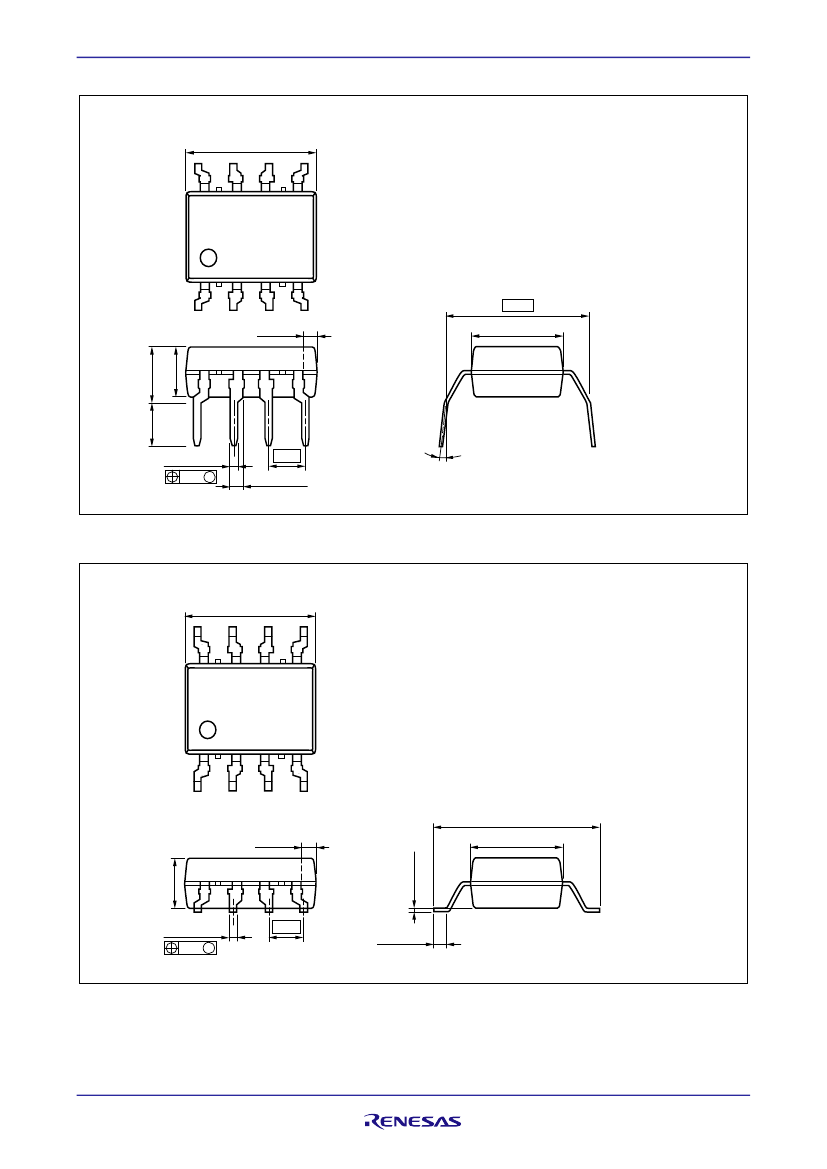

Lead Bending Type (Gull-wing) For Surface Mount
9.25
+0.5
–0.25
PS9513L3
9.65±0.4
3.5±0.2
0.5±0.15
0.25
M
2.54
0.74±0.25
R08DS0126EJ0100 Rev.1.00
Mar 12, 2015
0.635±0.15
1.01
–0.2
+0.4
6.5
–0.1
+0.5
Page 2 of 16
PS9513, PS9513L, PS9513L2, PS9513L3
Lead Bending Type For Long Creepage Distance
PS9513L1
9.25
–0.25
+0.5
10.16
1.01
–0.2
+0.4
6.5
–0.1
+0.5
2.8 MIN. 3.87±0.4
3.5±0.2
0.5±0.15
0.25
M
2.54
0.84±0.15
0 to 15
Lead Bending Type For Long Creepage Distance (Gull-wing) For Surface Mount
PS9513L2
9.25
+0.5
–0.25
11.8±0.4
1.01
–0.2
+0.4
6.5
–0.1
+0.5
3.5±0.2
0.5±0.15
0.25
M
2.54
0.9±0.25
R08DS0126EJ0100 Rev.1.00
Mar 12, 2015
0.25±0.2
Page 3 of 16
PS9513, PS9513L, PS9513L2, PS9513L3
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance (MIN.)
Outer Creepage Distance (MIN.)
Isolation Distance (MIN.)
PS9513, PS9513L3
7 mm
7 mm
0.4 mm
PS9513L1, PS9513L2
8 mm
8 mm
0.4 mm
FUNCTIONAL DIAGRAM
8
2
6
3
5
Shield
LED
ON
OFF
Output
L
H
MARKING EXAMPLE
No. 1 pin
Mark
R
9513
N 931
Type Number
Assembly Lot
N
9 31
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
(L or T)
Rank Code
R08DS0126EJ0100 Rev.1.00
Mar 12, 2015
Page 4 of 16
PS9513, PS9513L, PS9513L2, PS9513L3
ORDERING INFORMATION
Part Number
Order Number
Solder
Plating
Specification
PS9513
PS9513L1
PS9513L2
PS9513L3
PS9513L2-E3
PS9513L3-E3
PS9513-V
PS9513L1-V
PS9513L2-V
PS9513L3-V
PS9513L2-V-E3
PS9513L3-V-E3
PS9513-AX
PS9513L1-AX
PS9513L2-AX
PS9513L3-AX
PS9513L2-E3-AX
PS9513L3-E3-AX
PS9513-V-AX
PS9513L1-V-AX
PS9513L2-V-AX
PS9513L3-V-AX
PS9513L2-V-E3-AX
PS9513L3-V-E3-AX
Embossed Tape 1 000 pcs/reel
Magazine case 50 pcs
DIN EN60747-5-5
(VDE0884-5):2011-
11
Approved (Option)
Embossed Tape 1 000 pcs/reel
Pb-Free
(Ni/Pd/Au)
Magazine case 50 pcs
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, BSI,
SEMKO, NEMKO,
DEMKO, FIMKO
approved)
Application Part
Number*1
PS9513
PS9513L1
PS9513L2
PS9513L3
PS9513L2
PS9513L3
PS9513
PS9513L1
PS9513L2
PS9513L3
PS9513L2
PS9513L3
Notes*: 1. For the application of the Safety Standard, following part number should be used.
