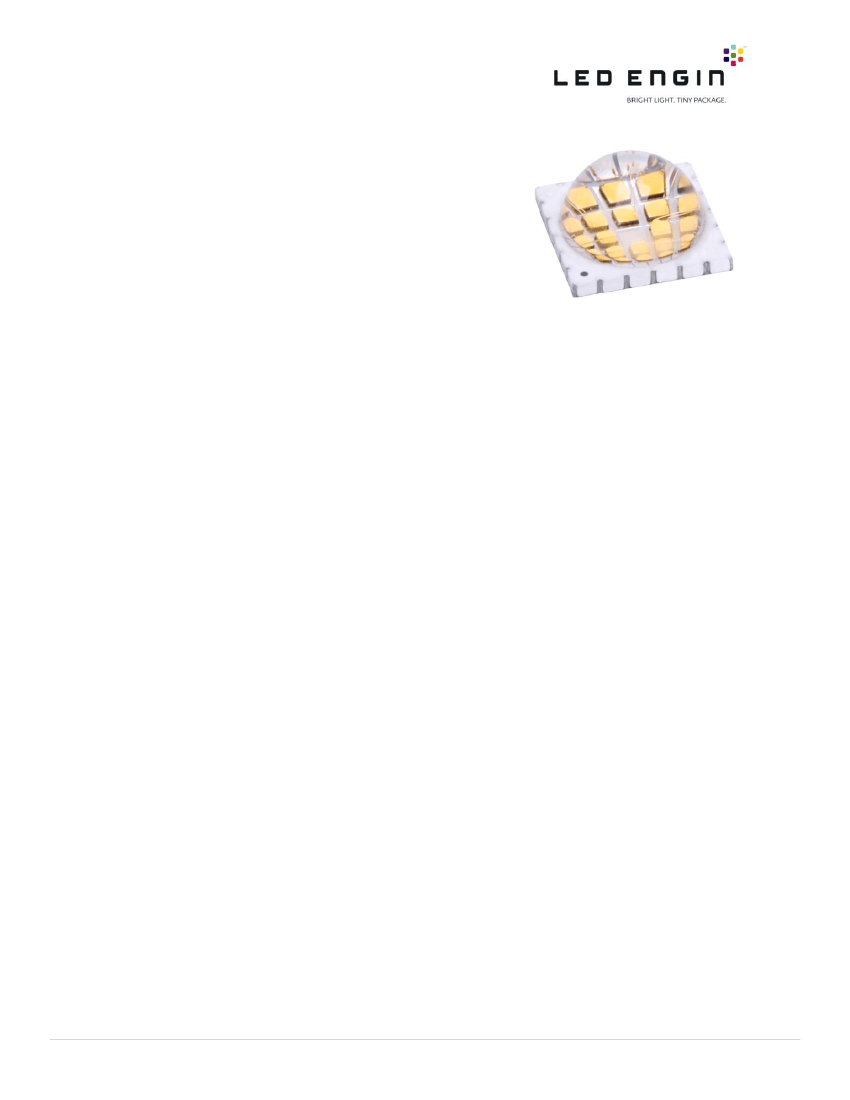

LZP-Series
Highest Lumen Density
Warm White Emitter
LZP-00WW0R
Key Features
Highest luminous flux / area single LED emitter
o
o
4650lm Warm White
40mm² light emitting area
Up to 90 Watt power dissipation on compact 12.0mm x 12.0mm footprint
Industry lowest thermal resistance per package size (0.6°C/W)
Industry leading lumen maintenance
Color Point Stability 7x improvement over Energy Star requirements
High CRI performance for true color rendering
Surface mount ceramic package with integrated glass lens
JEDEC Level 1 for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Copper core MCPCB option with emitter thermal slug directly soldered to the copper core
Full suite of TIR secondary optics family available
Typical Applications
General lighting
Shop lighting
Stage and Studio lighting
Architectural lighting
Description
The LZP-00WW0R Warm White LED emitter can dissipate up to 90W of power in an extremely small package. With
a small 12.0mm x 12.0mm footprint, this package provides unmatched luminous flux density. The high quality
materials used in the package are chosen to optimize light output and minimize stresses which results in superior
reliability and lumen maintenance. The robust product design thrives in outdoor applications with high ambient
temperatures and high humidity.
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
LZP-00WW0R (1.0-11/22/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Part number options
Base part number
Part number
LZP-00WW0R-xxxx
LZP-D0WW0R-xxxx
Description
LZP Warm White emitter
LZP Warm White emitter on 5 channel 4x6+1 Star MCPCB
Bin kit option codes
WW, Warm-White (2700K – 3500K)
Kit number
suffix
0027
0227
0427
0030
0230
0430
0035
0235
0435
Min
flux
Bin
F2
F2
F2
F2
F2
F2
F2
F2
F2

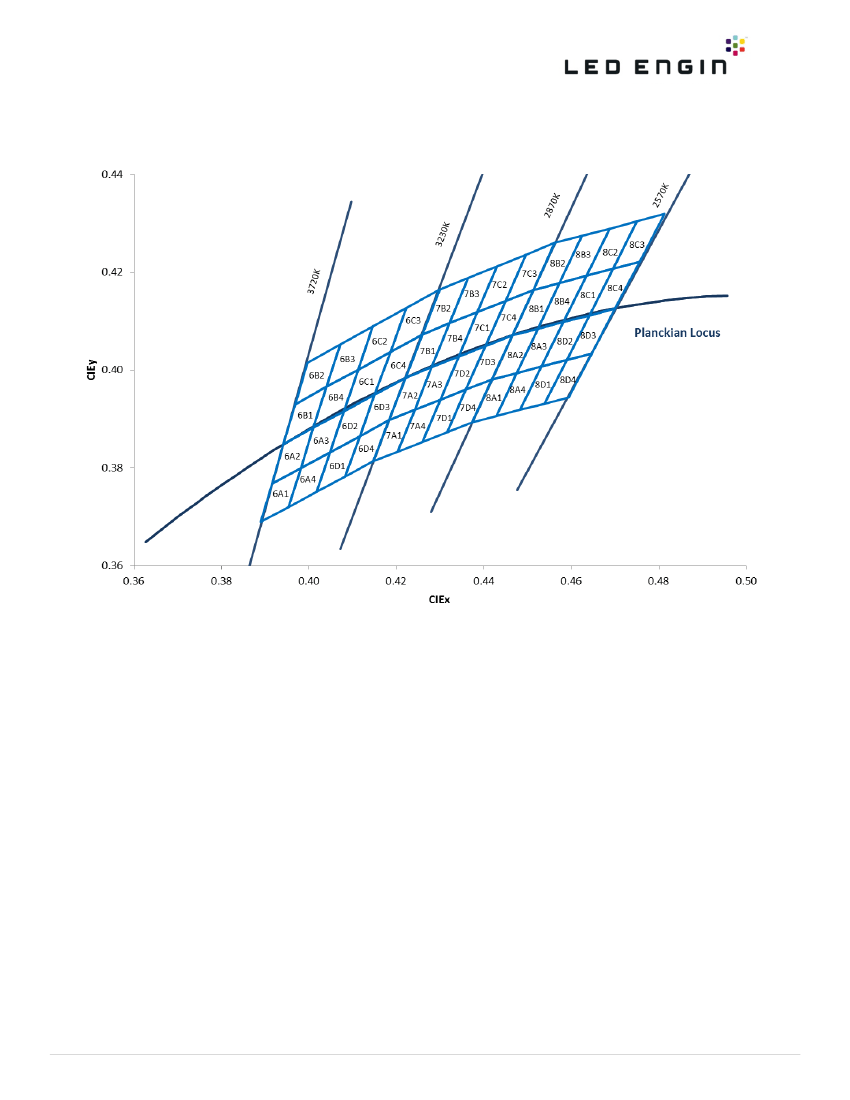

Color Bin Ranges
8A1, 8A2, 8B1, 8B2, 8A4, 8A3, 8B4, 8B3, 8D1, 8D2,
8C1, 8C2, 8D4, 8D3, 8C4, 8C3
8A2, 8B1, 8A3, 8B4, 8D2, 8C1, 8D3, 8C4
8A3, 8B4, 8D2, 8C1
7A1, 7A2, 7B1, 7B2, 7A4, 7A3, 7B4, 7B3, 7D1, 7D2,
7C1, 7C2, 7D4, 7D3, 7C4, 7C3
7A2, 7B1, 7A3, 7B4, 7D2, 7C1, 7D3, 7C4
7A3, 7B4, 7D2, 7C1
6A1, 6A2, 6B1, 6B2, 6A4, 6A3, 6B4, 6B3, 6D1, 6D2,
6C1, 6C2, 6D4, 6D3, 6C4, 6C3
6A2, 6B1, 6A3, 6B4, 6D2, 6C1, 6D3, 6C4
6A3, 6B4, 6D2, 6C1
Description
full distribution flux; 2700K ANSI CCT bin
full distribution flux; 2700K ANSI CCT half
bin
full distribution flux; 2700K ANSI CCT
quarter bin
full distribution flux; 3000K ANSI CCT bin
full distribution flux; 3000K ANSI CCT half
bin
full distribution flux; 3000K ANSI CCT
quarter bin
full distribution flux; 3500K ANSI CCT bin
full distribution flux; 3500K ANSI CCT half
bin
full distribution flux; 3500K ANSI CCT
quarter bin
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
2
LZP-00WW0R (1.0-11/22/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Luminous Flux Bins
Table 1:
Bin Code
F2
G2
H2
Minimum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
/Channel
[1,2]
(lm)
2,900
3,200
3,500
Maximum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
/Channel
[1,2]
(lm)
3,200
3,500
3,800
Notes:
1.
Luminous flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10% on flux measurements.
2.
Luminous Flux typical value is for all 24 LED dies operating at rated current. The LED is configured with 4 Channels of 6 dies in series.
Forward Voltage Bin
Table 2:
Bin Code
0
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA
/Channel
[1]
(V)
18.0
[2,3]
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA
/Channel
[1]
(V)
21.6
[2,3]
Notes:
1.
LED Engin maintains a tolerance of ± 0.24V for forward voltage measurements.
2.
All 4 white Channels have matched Vf for parallel operation
3.
Forward Voltage is binned with 6 LED dies connected in series. The LED is configured with 4 Channels of 6 dies in series each.
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
5
LZP-00WW0R (1.0-11/22/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
