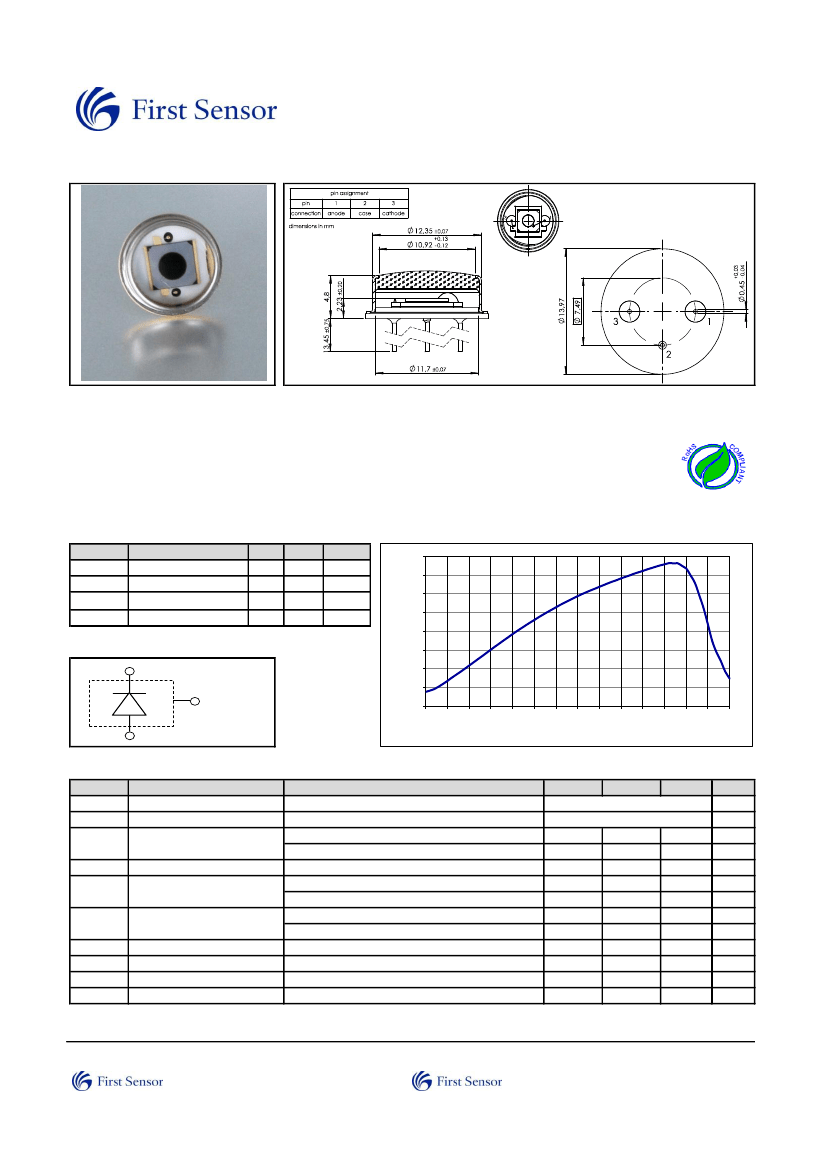

First Sensor PIN PD Data Sheet
Part Description PC5-7 TO
Order # 501285
Preliminary version 11-07-12
Features
• 5 mm² PIN detector
• Low dark current
• High shunt resistance
• High sensitivity
• Fully depleteble
Description
Circular active area PIN photodiode
with 5 mm² active area. Metal can
type isolated and hermetic TO8
package with clear glass window.
Application
• Precision photometry
• Medical equipment
• Pulsed light sensor
RoHS
2002/95/EC
Absolute maximum ratings
Symbol
T
STG
T
OP
V
max
I
PEAK
Parameter
Storage temp
Operating temp
Max reverse voltage
Peak DC current
Min
-55
-40
Max
125
100
300
10
Unit
°C
°C
V
mA
Spectral response (23 °C)
0.80
0.70
0.60
Responsivity (A/W)
0.50
0.40
0.30
0.20
0.10
0.00
400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100
Schematic
PIN 3
PIN 2
PIN 1
Wavelength (nm)
Electro-optical characteristics @ 23 °C
Symbol
Characteristic
Active area
Active area
Dark current
Temperature coefficient
Capacitance
Responsivity
t
R
Rise time
Shunt Resistance
N.E.P.
Breakdown voltage
Test Condition
Typ
Max
diameter 2532
5
0.05
0.2
0.4
1.0
13
6.0
2.5
0.61
0.69
6
1000
2000
1.7 E-14
300
500
Min
Unit
µm
mm²
nA
nA
%/K
pF
pF
A/W
A/W
ns
MΩ
W/√Hz
V
I
D
T
K
(I
D
)
C
V
BR
V
R
= 10 V
V
R
= 150 V
V
R
= 10 V; change of dark current
V
R
= 10 V; f = 10 kHz
V
R
= 150 V; f = 10 kHz
λ = 800 nm
λ = 900 nm
V
R
= 150 V; λ = 905 nm; R
L
= 50 Ω
V
R
= 10 mV
V
R
= 150 V; λ = 905 nm
I
R
= 2 µA
European, International Sales:
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
T +49 30 6399 2399
F +49 30 639923-752
sales.opto@first-sensor.com
USA:
First Sensor Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
T +1 818 706 3400
F +1 818 889 7053
sales.us@first-sensor.com
ta Sheet
First Sensor PIN PD Data Sheet
Part Description PC5-7 TO
Order # 501285
Preliminary version 11-07-12
PC5-7 TO
# 501285
sion 11-07-12

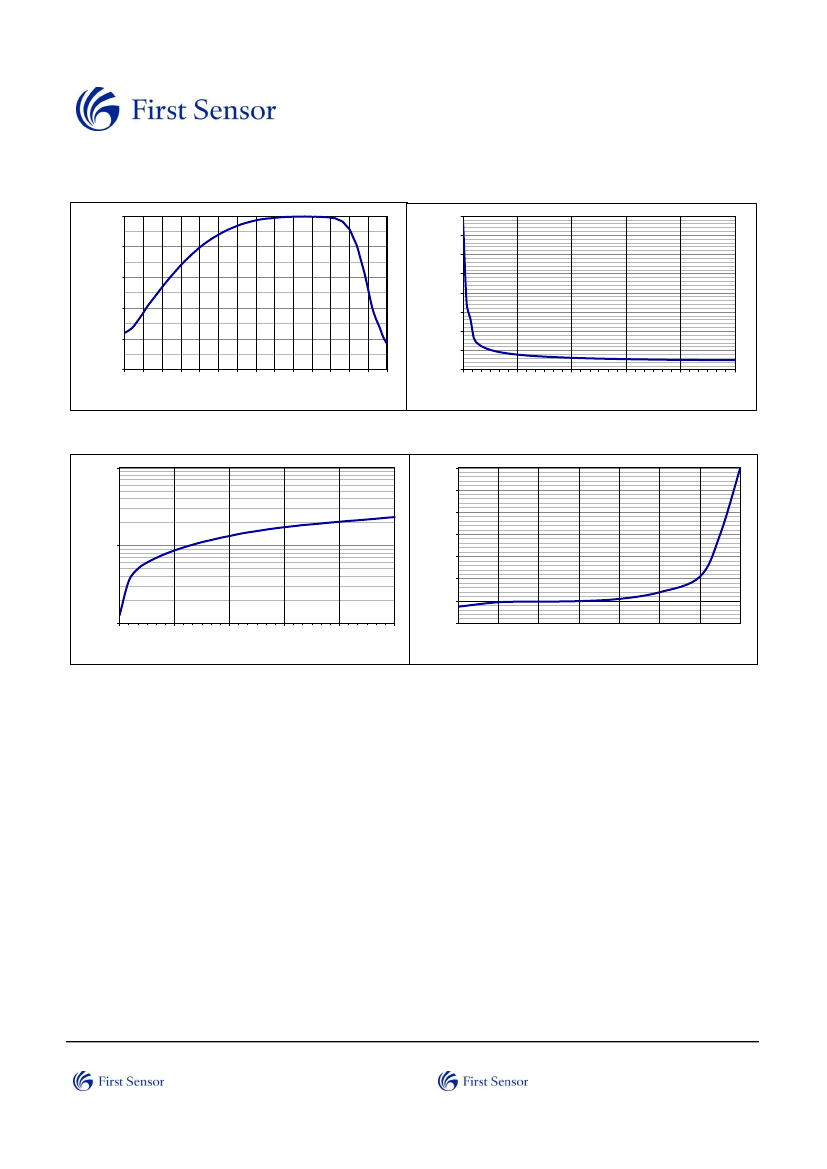

Quantum efficiency (23 °C)
100
Capacitance as fct of reverse bias (23 °C)
40.00
35.00
Quantum efficiency (%)
80
30.00
Capacitance (pF)
400 450 500 550 600 650 700 750 800 850 900 950 100010501100
60
25.00
20.00
15.00
10.00
5.00
40
20
0
0.00
0
30
60
90
120
150
Wavelength (nm)
Reverse bias (V)
Dark current as fct of bias (23 °C)
1.0E-09
Temperature coefficient of responsivity (10 V)
1.2
Change of responsivity (%/K)
0
30
60
90
120
150
1.0
0.8
0.6
0.4
0.2
0.0
-0.2
400
500
600
700
800
900
1000
1100
Dark current (A)
1.0E-10
1.0E-11
Reverse bias (V)
Wavelength (nm)
Package dimension:
Small quantities: Foam pad, boxed (12 cm x 16.5 cm)
Handling:
Please refer to document "Instructions for handling and processing"
Disclaimer:
Due to our strive for continuous improvement, specifications are subject to change within our PCN policy according to JESD46C.
