QTLP601C2TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> QTLP601C2TR

QTLP601C2TR: DescriptionStandard LEDs - SMD 0603 HI-EFF RED STD; CategoryLED optoelectronic/LED photoelectric; File Size360KB，6 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric Compare View All

QTLP601C2TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	QTLP601C2TR	-	-	View	Buy Now

QTLP601C2TR Overview

Standard LEDs - SMD 0603 HI-EFF RED STD

QTLP601C2TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
package instruction	1.60 X 0.80 MM, 0.60 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	unknown
color	HIGH EFFICIENCY RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	6.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.6 mm
method of packing	TAPE AND REEL 7"
peak wavelength	635 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.65 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

SURFACE MOUNT LED LAMP

STANDARD BRIGHT 0603 (0.6 mm Height)

QTLP601C-2

HER

QTLP601C-7

AlGaAs Red

QTLP601C-3

Yellow

QTLP601C-B

Blue

QTLP601C-4

Green

PACKAGE DIMENSIONS

0.071 (1.8)

0.055 (1.4)

0.035 (0.9)

0.028 (0.7)

TOP

0.047 (1.2)

0.004 (0.1)

0.024 (0.6)

SIDE

0.039 (1.0)

POLARITY MARK

(See Note 2)

BOTTOM

POLARITY

for -2, -3, -4 and -B

for -7

APPLICATIONS

• Keypad backlighting

• Push-button backlighting

• LCD backlighting

NOTE:

1. Dimensions for all drawings are in inches (mm).

2. Cathode for -2, -3, -4 and B. Anode for -7.

DESCRIPTION

These surface mount chip LEDs are designed to ﬁt industry standard footprint. Small size, low proﬁle and wide viewing angle make

these LEDs ideal choices for backlighting applications and panel illumination.

FEATURES

• Miniature footprint - 1.6(L) X 0.8(W) X 0.6(H) mm

• Wide viewing angle of 120°

• Water clear optics

• Moisture-proof packaging

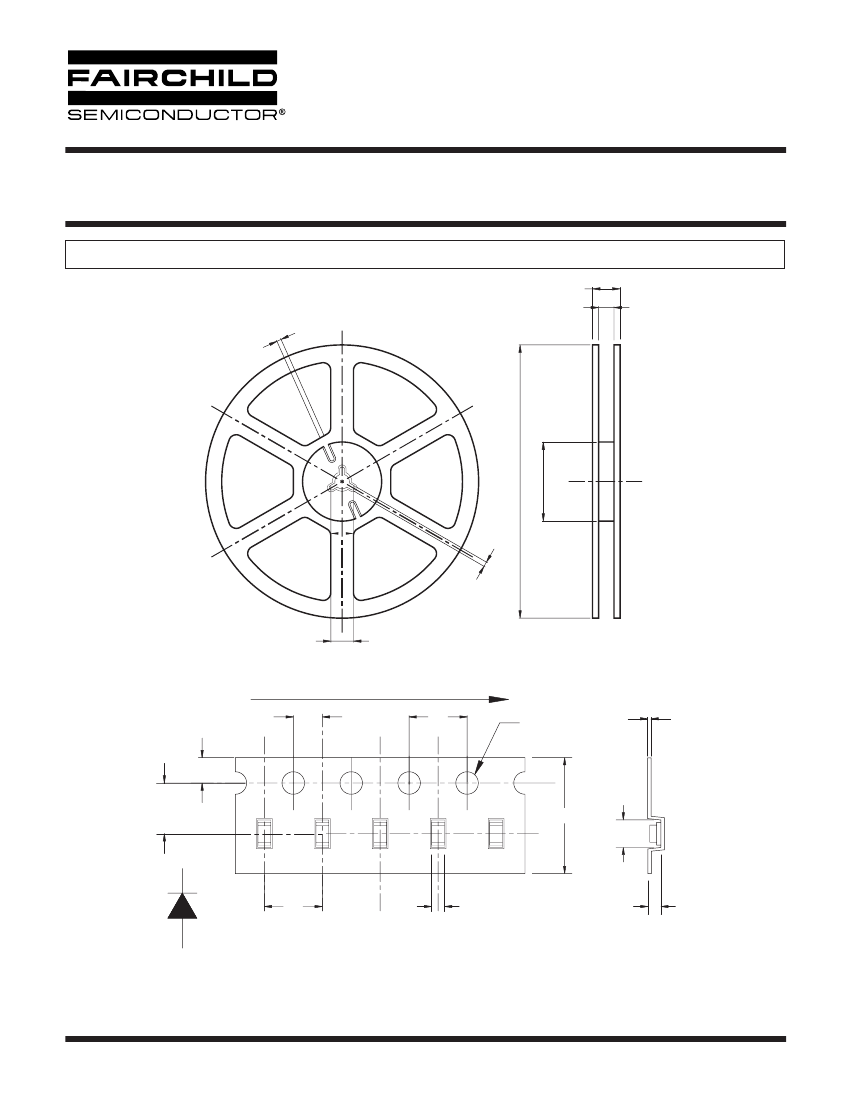

• Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel

Page 1 of 6

2/12/03

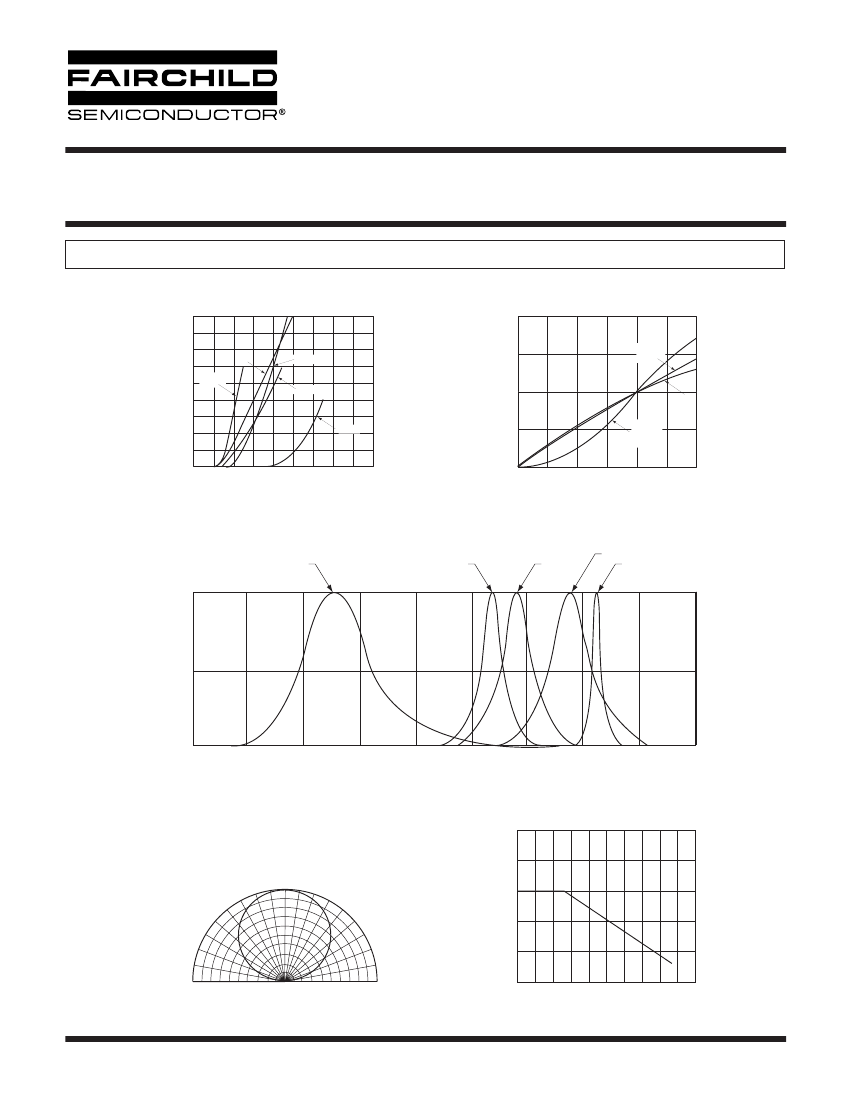

QTLP601C2TR Related Products

	QTLP601C2TR	QTLP601CBTR
Description	Standard LEDs - SMD 0603 HI-EFF RED STD	Standard LEDs - SMD 0603 BLUE STANDARD
Is it lead-free?	Lead free	Lead free
package instruction	1.60 X 0.80 MM, 0.60 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 0.60 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	unknown	unknown
color	HIGH EFFICIENCY RED	BLUE
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	6.0 mcd	20.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.6 mm	0.6 mm
method of packing	TAPE AND REEL 7"	TAPE AND REEL 7\"
peak wavelength	635 nm	430 nm
shape	RECTANGULAR	RECTANGULAR
size	1.2 mm	1.2 mm
surface mount	YES	YES
Terminal pitch	1.65 mm	1.65 mm
perspective	120 deg	120 deg
