DIALIGHT
PART NUMBER
DIM
"A"
.865
[21,74]
.865
[21,74]
.942
[23,92]
.942
[23,92]
.834
[21,18]
.834
[21,18]
.920
[23,37]
.920
[23,37]
.848
[21,54]
.848
[21,54]
.934
[23,72]
.934
[23,72]
TERMINAL
TYPE
COLLAR &
FLANGE NUT
FINISH
BLACK ANODIZE
CLEAR ANODIZE
BLACK ANODIZE
CLEAR ANODIZE
BLACK ANODIZE
CLEAR ANODIZE
BLACK ANODIZE
CLEAR ANODIZE
BLACK ANODIZE
CLEAR ANODIZE
BLACK ANODIZE
CLEAR ANODIZE
FLANGE NUT, KNURLED
SEE TABLE FOR FINISH
INTERNAL TOOTH LOCKWASHER
WHITE NICKEL FINISH
DIM "A" #
.040
[ #
1,0]
ALUMINUM MOUNTING BUSHING
BLACK ANODIZE FINISH
.160
[4,06]
REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
DATE
AJF KLJ
NO 12-20-10
508-7438-504
508-7438-604
508-7445-504
508-7445-604
508-7538-504
508-7538-604
508-7545-504
508-7545-604
508-8738-504
508-8738-604
508-8745-504
508-8745-604
FIG. 1
FIG. 1
FIG. 1
FIG. 1
FIG. 2
FIG. 2
FIG. 2
FIG. 2
FIG. 3
FIG. 3
FIG. 3
FIG. 3
3/8-32 NEF
THREAD
HEX NUT
BRASS, WHITE NICKEL FINISH
FIG.2 - SOLDER CUP TERMINALS
COLLAR
SEE TABLE FOR FINISH
.500
[12,7]
.312
[7,92]
FIG.3 - TURRET TERMINALS
NOTES:
1. DIALIGHT PART NUMBERS: 508-74XX-504, 508-74XX-604,
508-75XX-504, 508-75XX-604, 508-87XX-504 & 508-87XX-604.
2. MAXIMUM PANEL THICKNESS: .156"
3. RECOMMENDED MOUNTING HOLE SIZE: .380 #
.002".
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
SCALE: 4.000
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
DRAWING NUMBER
REV
C-17895
TITLE
MATERIAL
A

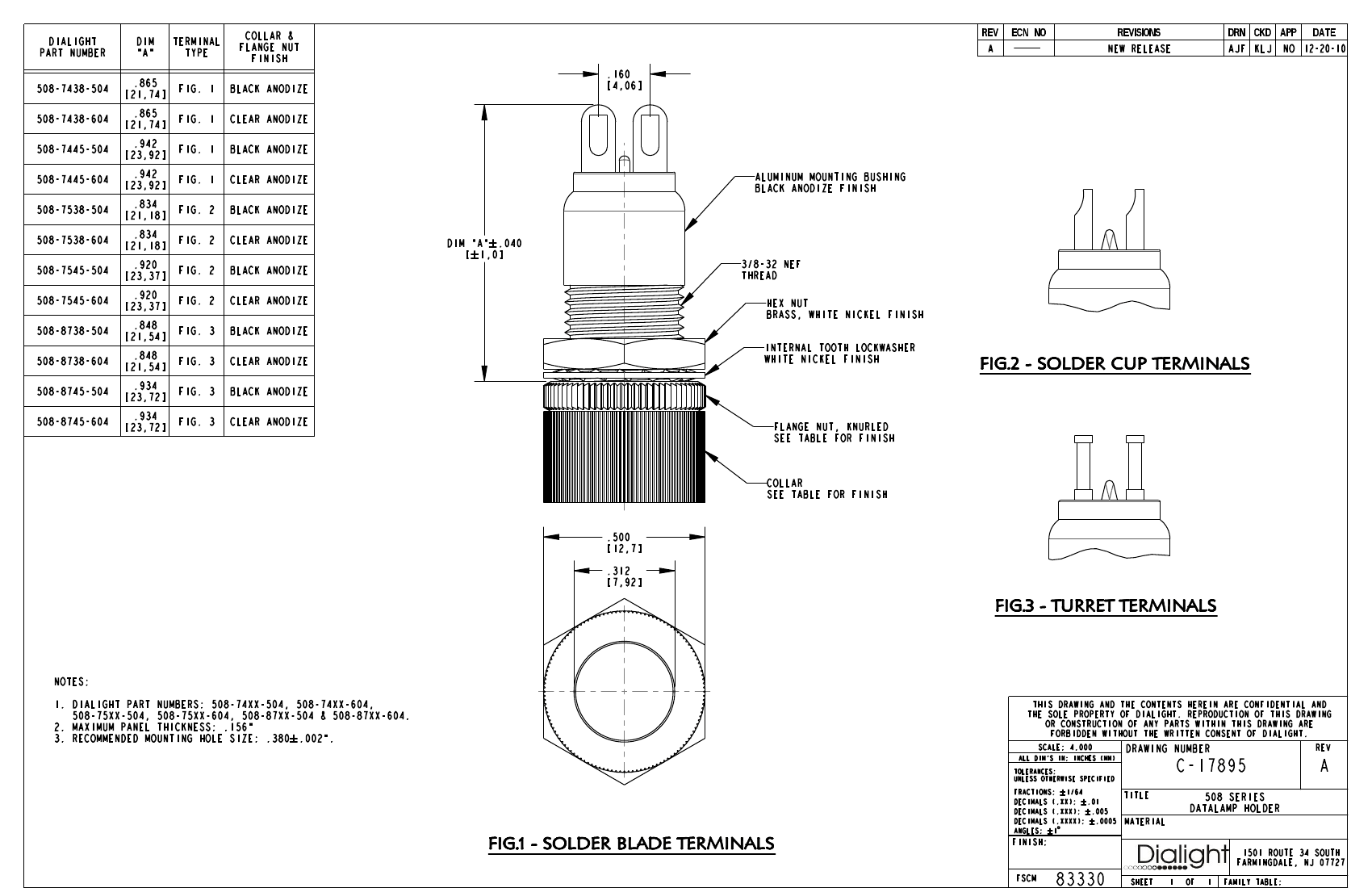

FIG.1 - SOLDER BLADE TERMINALS
FRACTIONS: #
1/64
DECIMALS (.XX): #
.01
DECIMALS (.XXX): #
.005
DECIMALS (.XXXX): #
.0005
ANGLES: # $
1
508 SERIES
DATALAMP HOLDER
FINISH:
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
FSCM
83330
SHEET
1
OF
1
FAMILY TABLE:
