SUPERBRIGHT LED LAMP
VAOL-5LSBY2
Feature
§
§
§
Low Power Consumption
High Intensity
I.C. compatible

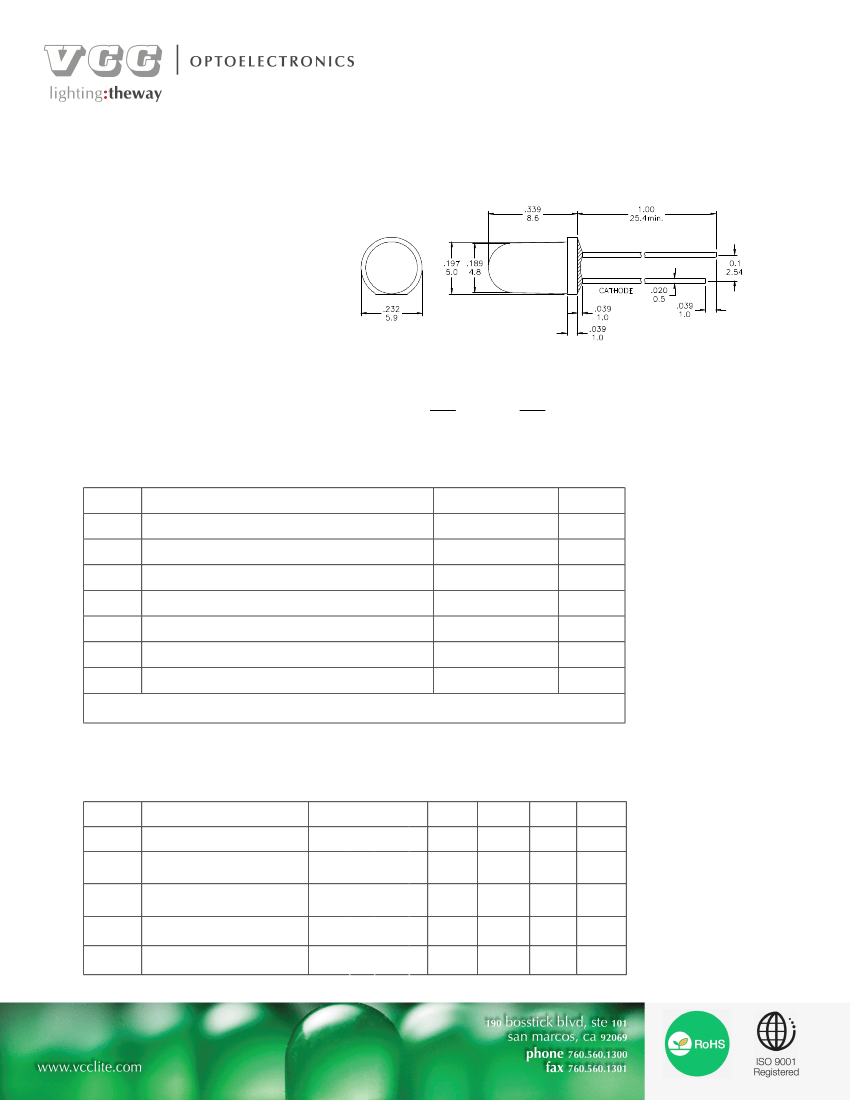

Package Dimension
Applications
§
§
§
§
§
§
§
§
Commercial Outdoor Sign Board
Front Panel Indicator
Dot-Matrix Module
Automotive
LED Bulb
These High Intensity LEDs are Based on
InGaN/Sapphire Material Technology
Emitted color:Blue
Blue Diffusion Lens
Description
＊Tolerance：±
0.01
0.25
inch
mm
Unit：±
Absolute Maximum Ratings at Ta＝25℃
Symbol
PD
VR
IAF
IPF
―
Topr
Tstg
Power Dissipation
Reverse Voltage
Average Forward Current
Peak Forward Current（Duty＝0.1，1kHz）
Derating Linear Form 25℃
Operating Temperature Range
Storage Temperature Range
Parameter
Max.
100
5
20
85
0.4
–40
to
＋
80
–40
to
＋
100
Unit
mW
V
mA
mA
mA∕℃
℃
℃
Lead Soldering Temperature [1.6mm（0.063inch）From Body] 260℃ For 5 Seconds.
Electrical / Optical Characteristics and Curves at Ta＝25℃
Symbol
VF
IR
△θ
IV
λd
Parameter
Forward Voltage
Reverse Current
Half Intensity Angle
Luminous Intensity
Dominant Wavelength
Test Condition
IF＝ 20 mA
VR＝ 5
V
Min.
Typ.
3.5
Max. Unit
4.0
100
V
μA
Deg.
mcd.
nm
IF＝ 20 mA
IF＝ 20 mA
IF＝ 20 mA
60
1500
470
Electrical Characteristics at Ta＝25℃
Symbol
Parameter
Condition
Unit
Grade
BIN 16
BIN 17
Iv
Luminous Intensity
IF＝20mA
V
F
Forward Voltage
IF＝20mA
λD
Dominant Wavelength
IF＝20mA
mcd
Range
950~1300
1300~1800
Grade
P1
P2
P3
P4
P5
V
Range
3.0~3.2
3.2~3.4
3.4~3.6
3.6~3.8
3.8~4.0
Grade
B5
B6
B7
nm
Range
460~465
465~470
470~475
Intensity: Tolerance of minimum and maximum =
±
15%
Vf: Tolerance of minimum and maximum =
±
0.05v
NOTE:
1. Static electricity and surge damages the LED. It is recommend to use a anti-static wrist
band or anti-electrostatic glove when handing the LEDs. All devices, equipment and machinery
must be properly grounded.
2. Specific binning requirements
–please
contact our home office

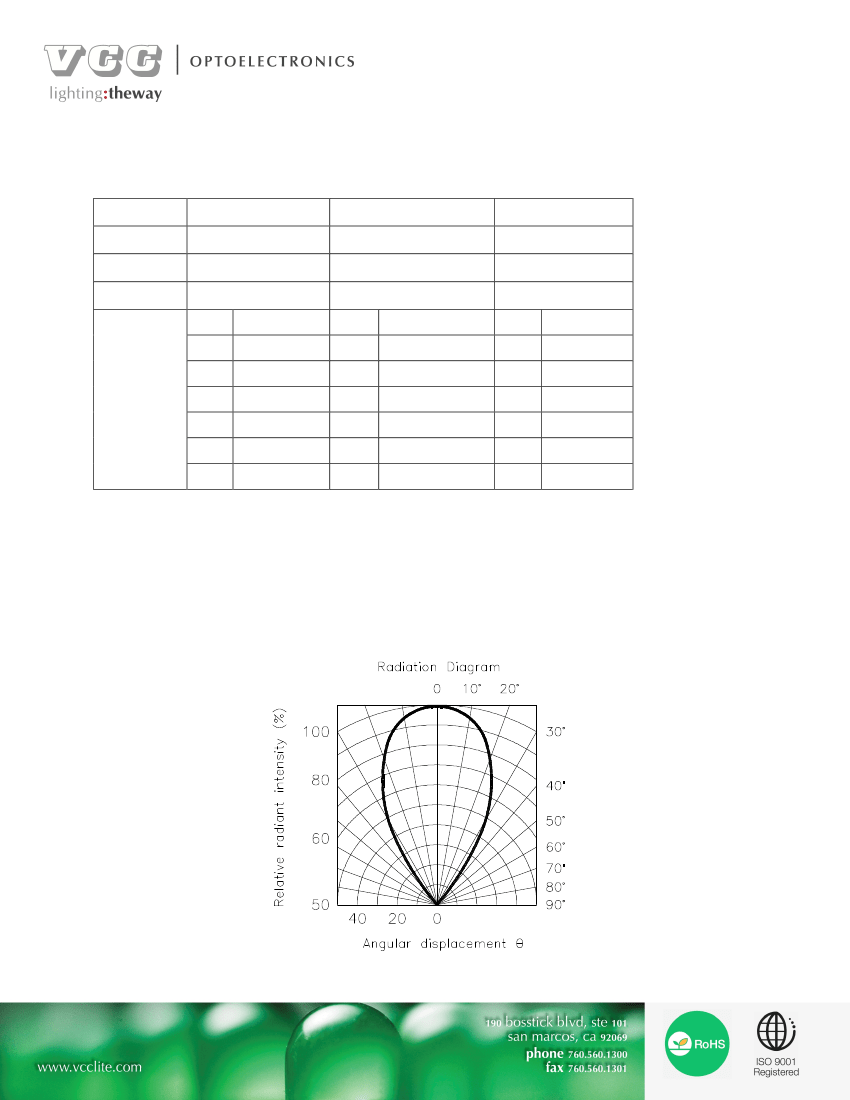

Radiation Diagram
IF=20 mA 50% Power Angle
Angle =60∘
BLUE

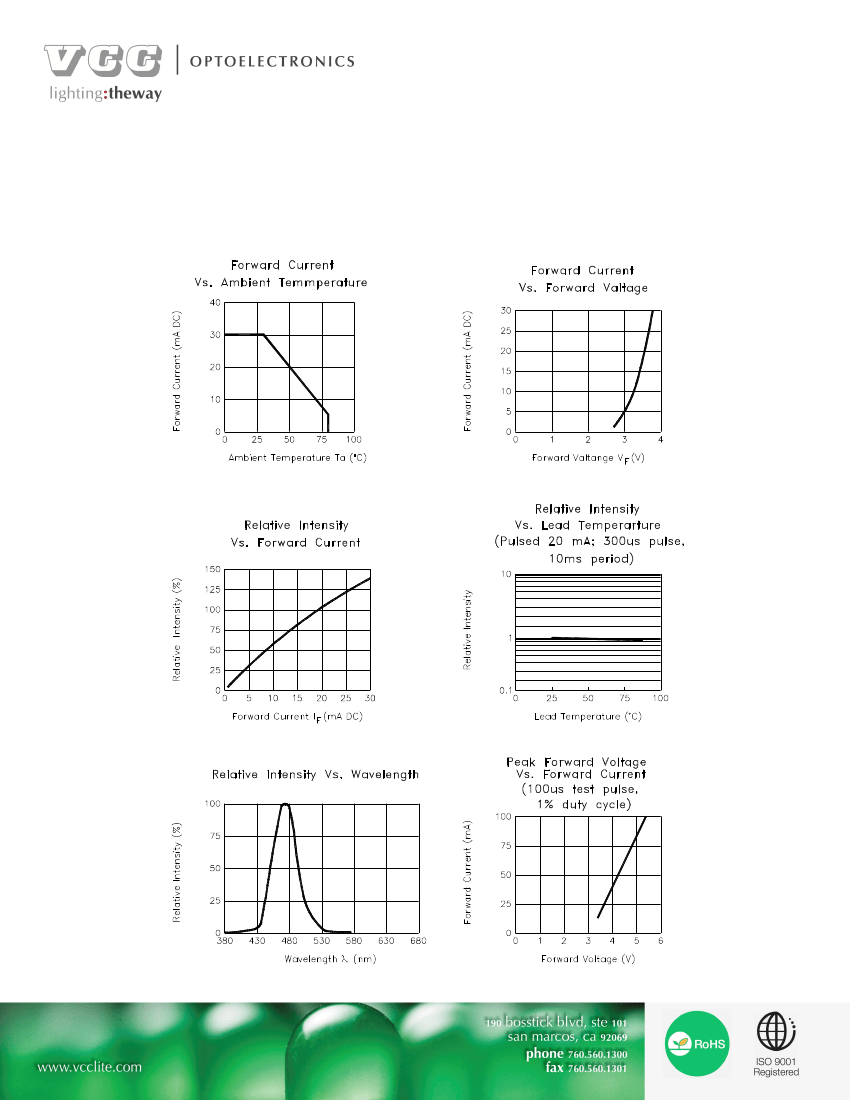

Typical Electro-optical Characteristic Curves
(25°C Free Air Temperature Unless Otherwise Specified)
