Technical Data Sheet
Opto Interrupter
ITR8402-F-A
█
Features
․Fast
response time
․High
analytic
․Cut-off
visible wavelength
λp=940nm
․High
sensitivity
․Pb
free
․This
product itself will remain within RoHS compliant version.
█Descriptions

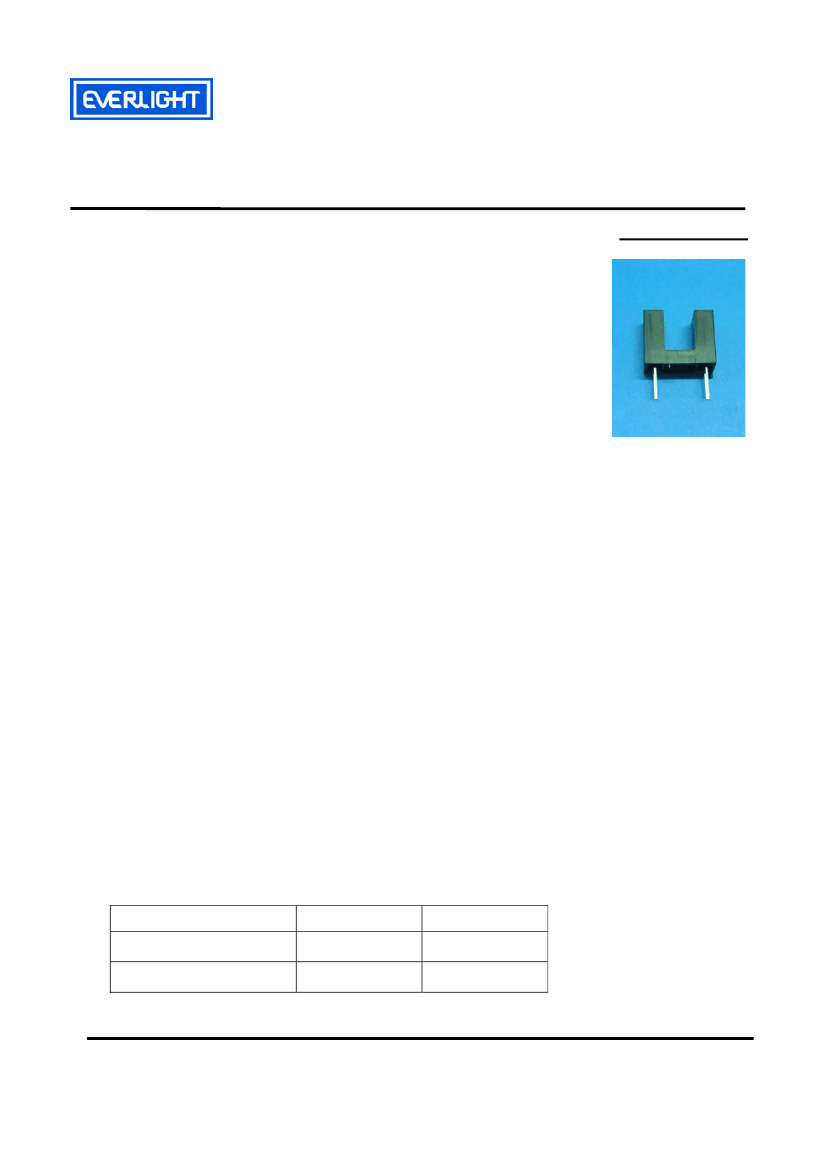

The
ITR8402-F-A
consist of an infrared emitting diode and an NPN silicon
phototransistor, encased side-by-side on converging optical axis in a black thermoplastic
housing .
The phototransistor receives radiation from the IRED only .This is the normal situation.
But when an object is in between , phototransistor could not receives the radiation.
For additional component information , please refer to IR908-7C-F and PT908-7C-F
█
Applications
․Mouse
Copier
․Switch
Scanner
․Floppy
disk driver
․Non-contact
Switching
․For
Direct Board
█
Device Selection Guide
Device No.
IR908-7C-F
PT908-7C-F
Chip Material
GaAlAs
Silicon
LENS COLOR
Water clear
Water clear
Everlight Electronics Co., Ltd.
Device No： DRX-0000001
http://www.everlight.com
Prepared date：2008/10/22
Rev: 2
Page: 1 of 7
Prepared by：else zhuang
ITR8402-F-A
█

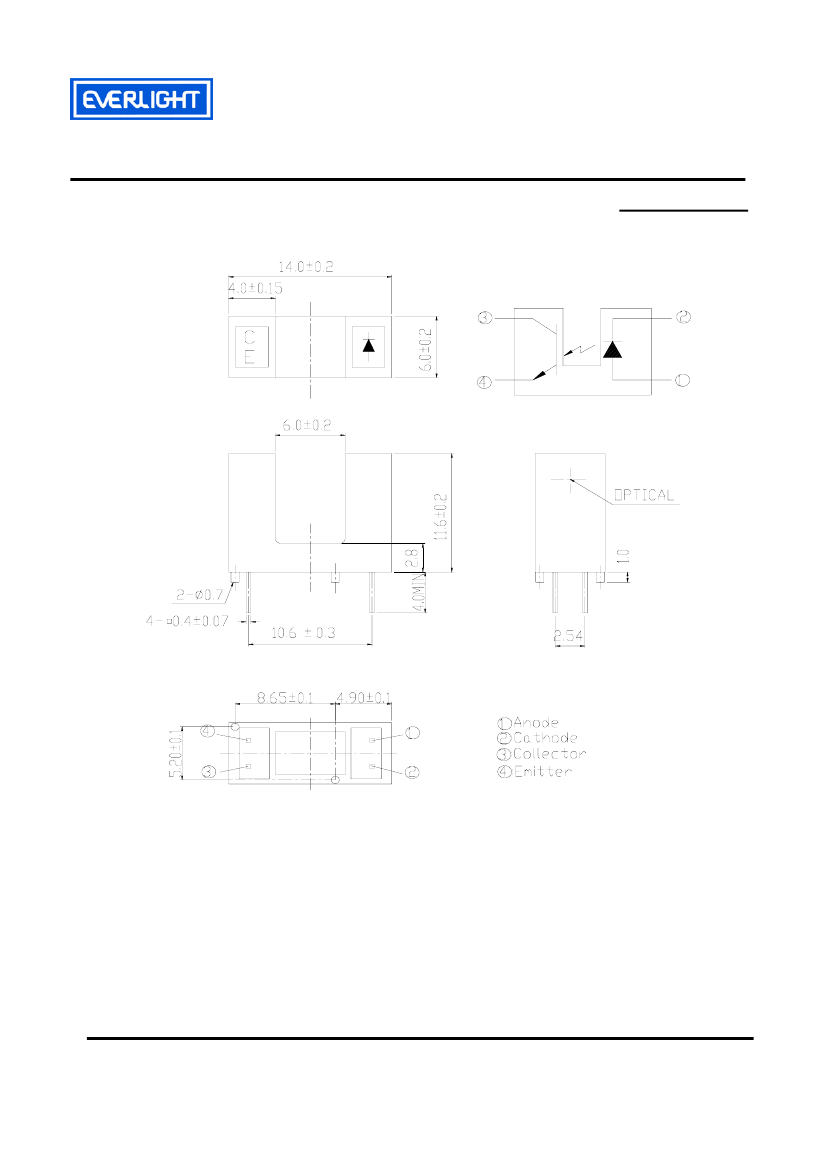

Package Dimensions
Notes:
1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.2mm
Everlight Electronics Co., Ltd.
Device No： DRX-0000001
http://www.everlight.com
Prepared date：2008/10/22
Rev: 2
Page: 2 of 7
Prepared by：else zhuang
ITR8402-F-A
█
Absolute Maximum Ratings (Ta=25℃)
Parameter
Power Dissipation at(or below) 25℃ Free
Air Temperature
Input
Reverse Voltage
Forward Current
Peak Forward Current (*1)
Pulse width
≦100μs,
Duty cycle=1%
Collector Power Dissipation
Output
Collector Current
Collector-Emitter Voltage
Emitter-Collector Voltage
Operating Temperature
Storage Temperature
Lead Soldering Temperature (*2)
(1/16 inch form body for 5 seconds)
(*1)
tw=100
μsec.
,
T=10 msec.
Parameter
Forward Voltage
Reverse Current
Peak Wavelength
View Angle
Dark Current
Output
C-E Saturation
Voltage
Collect Current
Transfer
Characteristics Rise time
Fall time
Symbol
V
F1
I
R
λ
P
2θ1/2
I
CEO
V
CE
(sat)
I
C
(ON)
I
C
(OFF)
t
r
t
f
Symbol
P
D
V
R
I
F
I
FP
P
C
I
C
B V
CEO
B V
ECO
Topr
Tstg
Tsol
(*2)
t=5 Sec
Max.
1.5
10
---
---
100
0.4
---
20
Ratings
75
5
50
Unit
mW
V
mA
A
mW
mA
V
V
℃
℃
℃
1
75
20
30
5
-25~+85
-40~+100
260
█
Electro-Optical Characteristics (Ta=25℃)
Min.
Typ.
---
---
---
---
---
---
0.5
---
---
---
1.2
---
940
40
---
---
---
---
Unit
V
μA
nm
Deg
nA
V
mA
μA
μsec
μsec
Conditions
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
V
CE
=20V,Ee=0mW/cm
2
I
C
=2mA,
Ee=1mW/cm
2
V
CE
=5V
I
F
=20mA
V
CE
=5V
I
C
=1mA , R
L
=1KΩ
Input
15
15
---
---
Everlight Electronics Co., Ltd.
Device No： DRX-0000001
http://www.everlight.com
Prepared date：2008/10/22
Rev: 2
Page: 3 of 7
Prepared by：else zhuang
ITR8402-F-A
█

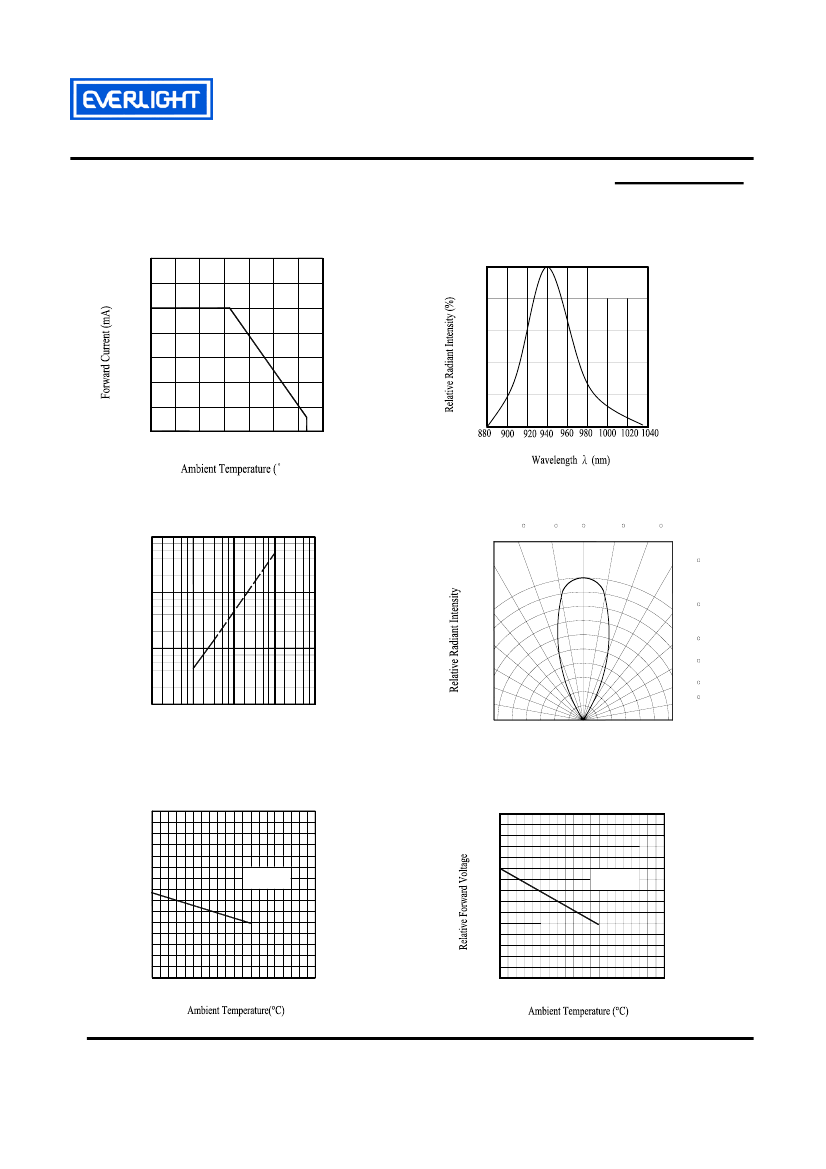

Typical Electrical/Optical/Characteristics Curves for IR
Fig.1 Forward Current vs.
Ambient Temperature
70
60
50
40
30
20
10
0
20
0
80
60
40
Fig.2 Spectral Distribution
100
I
F
=20mA
Ta=25°C
-40 -20 0
20 40
60
80
100
Fig.5 Relative Intensity vs.
Forward Current
1000
Ie-Radiant Intensity(mW/sr)
Fig.6 Relative Radiant Intensity vs.
Angular Displacement
-20
-10
0
10
20
30
100
1.0
10
40
50
60
70
80
0.6 0.4 0.2
0
0.2 0.4 0.6
0.9
0.8
0.7
0
10
0
10
1
10
2
10
3
10
4
I
F
-Forward Current (mA
)
Fig.7 Relative Intensity vs.
Ambient Temperature(°C)
15
Ie-Radiant Intensity (mW/sr)
Fig.8 Forward Current vs.
Ambient Temperature(°C)
1.3
10
I
F
=20mA
1.2
I
F
=20mA
5
1.1
0
25
50
75
100
120
1
25
50
75
100
120
Everlight Electronics Co., Ltd.
Device No： DRX-0000001
http://www.everlight.com
Prepared date：2008/10/22
Rev: 2
Page: 4 of 7
Prepared by：else zhuang
ITR8402-F-A
█

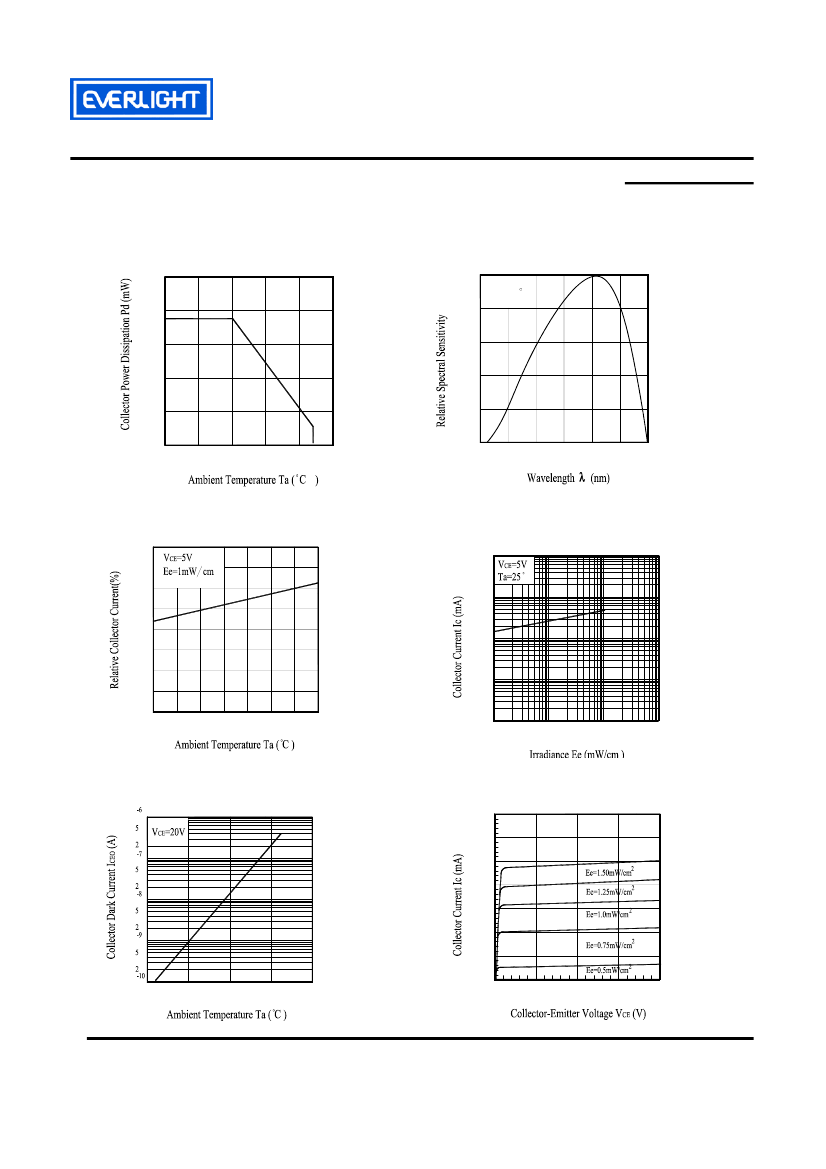

Typical Electrical/Optical/Characteristics Curves for PT
Fig.1Collector Power Dissipation vs.
Ambient Temperature
100
80
60
40
20
0
Fig.2 Spectral Sensitivity
1.0
Ta=25 C
0.8
0.6
0.4
0.2
0
-25
0
25
50
75 85 100
100 300 500 700 900 1100 1300
Fig.3 Relative Collector Current vs.
Ambient Temperature
160
140
120
100
80
60
40
20
0
0
10
20
30
40 50
60
70
2
Fig.4 Collector Current vs.
Irradiance
100
C
10
1
0.1
0.01
0.5
1
1.5
2
3
Fig.5 Collector Dark Current vs.
Ambient Temperature
10
Fig.6 Collector Current vs.
Collector-Emitter Voltage
14
12
10
10
10
8
6
4
2
10
10
0
25
50
75
100
0
0
1
2
3
4
Everlight Electronics Co., Ltd.
Device No： DRX-0000001
http://www.everlight.com
Prepared date：2008/10/22
Rev: 2
Page: 5 of 7
Prepared by：else zhuang
