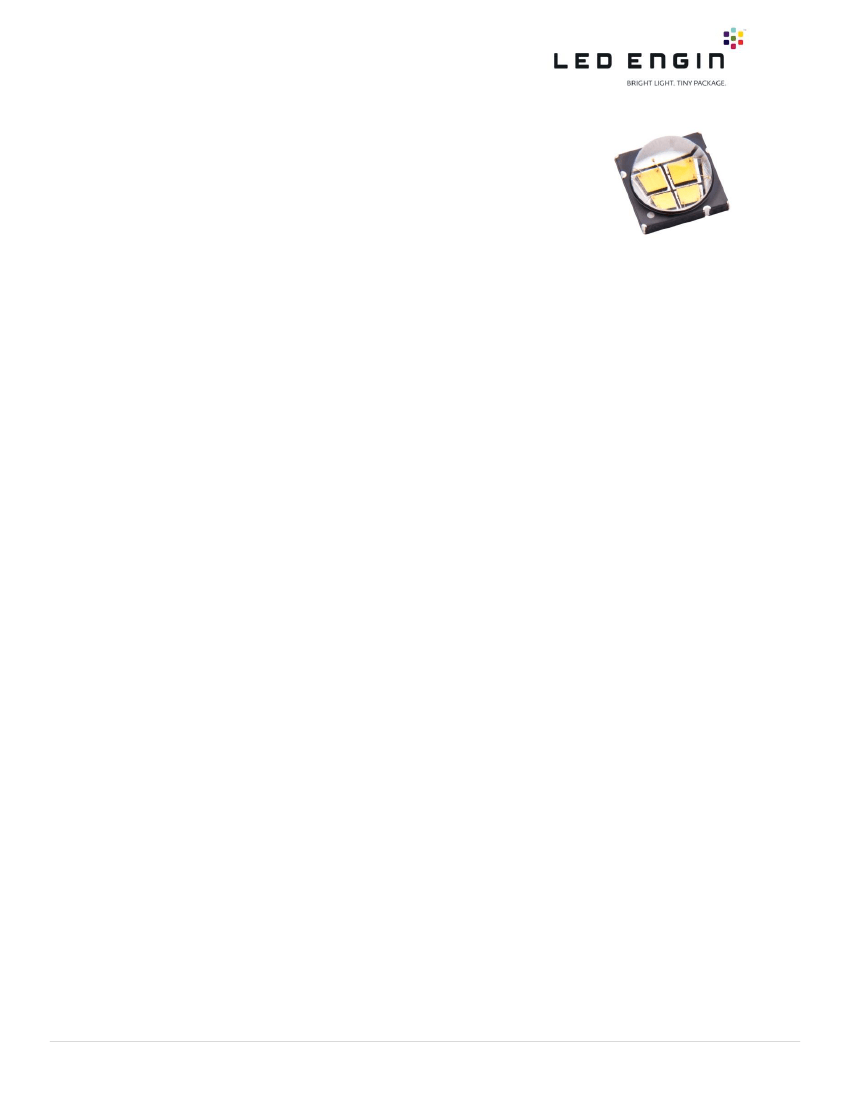

High Luminous Efficacy
Neutral White LED Emitter
LZ4-00NW00
Key Features
High Luminous Efficacy 10W Neutral White LED
Ultra-small foot print – 7.0mm x 7.0mm
Single 4000K ANSI bin distribution
Surface mount ceramic package with integrated glass lens
Very low Thermal Resistance (1.1°C/W)
Individually addressable die
Very high Luminous Flux density
Spatial color uniformity across radiation pattern
JEDEC Level 1 for Moisture Sensitivity Level
Autoclave complaint (JEDEC JESD22-A102-C)
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on Standard or Serially Connected MCPCB (optional)
Typical Applications
General Lighting
Museum Lighting
Retail & Display Lighting
Hospitality Lighting
Accent & Task Lighting
Architectural Detail Lighting
Description
The LZ4-00NW00 Neutral White LED emitter provides 10W power in an extremely small package. With a 7.0mm x
7.0mm ultra-small footprint, this package provides exceptional luminous flux density. LED Engin’s patent-pending
thermally insulated phosphor layers provide spatial color uniformity across the radiation pattern and a consistent
CCT over time and temperature. LED Engin’s LZ4-00NW00 LED offers ultimate design flexibility with individually
addressable die. The high quality materials used in the package are chosen to optimize light output and minimize
stresses which results in monumental reliability and lumen maintenance. The robust product design thrives in
outdoor applications with high ambient temperatures and high humidity.
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00NW00 (5.5-07/01/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Product Nomenclature
Base part number
Part number
LZ4-00NW00-xxxx
LZ4-40NW00-xxxx
Description
LZ4 emitter
LZ4 emitter on Standard Star 1 channel MCPCB
Bin kit option codes:
NW, Neutral White (4000K – 4500K)
Kit number
suffix
0040
U040
Min
flux
Bin
T
U
Chromaticity bins
5B2, 5C2, 5B1, 5C1, 5A2, 5D2, 5A1, 5D1
5B2, 5C2, 5B1, 5C1, 5A2, 5D2, 5A1, 5D1
Description
full distribution flux; 4000K ANSI CCT bin
U=minimum flux bin; 4000K ANSI CCT
bin
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
2
LZ4-00NW00 (5.5-07/01/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Neutral White Chromaticity Groups
0.44
0.42
0.40
5B2
5C2
5C1
5D2
5D1
CIEy
0.38
5A1
5B1
5A2
Planckian Locus
0.36
0.34
4000K ANSI
C78.377A bin
0.32
0.34
0.36
0.38
CIEx

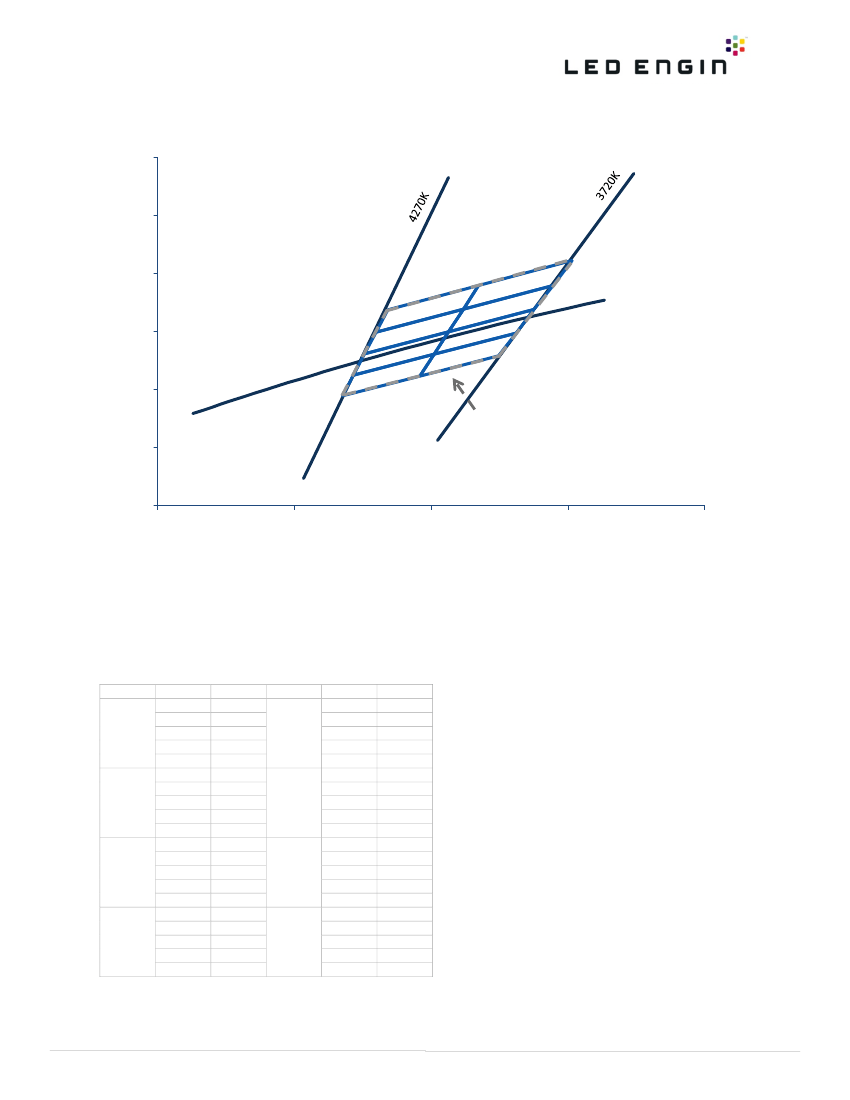

Standard Chromaticity Groups plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in the table.
0.40
0.42
Neutral White Bin Coordinates
Bin code
CIEx
0.3719
0.3736
0.3869
0.3847
0.3719
0.3702
0.3719
0.3847
0.3825
0.3702
0.3686
0.3702
0.3825
0.3804
0.3686
0.367
0.3686
0.3804
0.3783
0.367
CIEy
0.3797
0.3874
0.3958
0.3877
0.3797
0.3722
0.3797
0.3877
0.3798
0.3722
0.3649
0.3722
0.3798
0.3721
0.3649
0.3578
0.3649
0.3721
0.3646
0.3578
Bin code
CIEx
0.3847
0.3869
0.4006
0.3978
0.3847
0.3825
0.3847
0.3978
0.395
0.3825
0.3804
0.3825
0.395
0.3924
0.3804
0.3783
0.3804
0.3924
0.3898
0.3783
CIEy
0.3877
0.3958
0.4044
0.3958
0.3877
0.3798
0.3877
0.3958
0.3875
0.3798
0.3721
0.3798
0.3875
0.3794
0.3721
0.3646
0.3721
0.3794
0.3716
0.3646
5B2
5C2
5B1
5C1
5A2
5D2
5A1
5D1
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
3
LZ4-00NW00 (5.5-07/01/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Luminous Flux Bins
Table 1:
Bin
Code
T
U
V
Minimum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
[1,2]
(lm)
445
556
695
Maximum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
[1,2]
(lm)
556
695
868
Typical
Luminous Flux
(Φ
V
)
@ I
F
= 1000mA
[2]
(lm)
580
810
1010
Notes for Table 1:
1.
Luminous flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10% on flux measurements.
2.
Future products will have even higher levels of luminous flux performance. Contact LED Engin Sales for updated information.
Forward Voltage Bins
Table 2:
Bin
Code
0
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
12.80
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
16.64
Notes for Table 2:
1.
Forward Voltage is binned with all four LED dice connected in series.
2.
LED Engin maintains a tolerance of ± 0.16V for forward voltage measurements for the four LEDs.
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
4
LZ4-00NW00 (5.5-07/01/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Absolute Maximum Ratings
Table 3:
Parameter
DC Forward Current at T
jmax
=135°C
[1]
DC Forward Current at T
jmax
=150°C
[1]
Peak Pulsed Forward Current
[2]
Reverse Voltage
Storage Temperature
Junction Temperature
Soldering Temperature
[4]
Allowable Reflow Cycles
Autoclave Conditions
[5]
ESD Sensitivity
[6]
Symbol
I
F
I
F
I
FP
V
R
T
stg
T
J
T
sol
Value
1200
1000
1500
See Note 3
-40 ~ +150
150
260
6
121°C at 2 ATM,
100% RH for 168 hours
> 8,000 V HBM
Class 3B JESD22-A114-D
Unit
mA
mA
mA
V
°C
°C
°C
Notes for Table 3:
1.
Maximum DC forward current (per die) is determined by the overall thermal resistance and ambient temperature.
Follow the curves in Figure 10 for current derating.
2:
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty Cycle ≤ 10%.
3.
LEDs are not designed to be reverse biased.
4.
Solder conditions per JEDEC 020D. See Reflow Soldering Profile Figure 5.
5.
Autoclave Conditions per JEDEC JESD22-A102-C.
6.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZ4-00NW00 in an electrostatic protected area (EPA).
An EPA may be adequately protected by ESD controls as outlined in ANSI/ESD S6.1.
Optical Characteristics @ T
C
= 25°C
Table 4:
Parameter
Luminous Flux (@ I
F
= 700mA)
[1]
Luminous Flux (@ I
F
= 1000mA)
[1]
Correlated Color Temperature
Color Rendering Index (CRI)
[2]
Viewing Angle
[3]
Total Included Angle
[4]
Symbol
Φ
V
Φ
V
CCT
R
a
2Θ
1/2
Θ
0.9V
Typical
610
760
4000
82
95
125
Unit
lm
lm
K
Degrees
Degrees
Notes for Table 4:
1.
Luminous flux typical value is for all four LED dice operating concurrently at rated current.
2.
Minimum Color Rendering Index (CRI) is 80.
3.
Viewing Angle is the off axis angle from emitter centerline where the luminous intensity is ½ of the peak value.
4.
Total Included Angle is the total angle that includes 90% of the total luminous flux.
Electrical Characteristics @ T
C
= 25°C
Table 5:
Parameter
Forward Voltage (@ I
F
= 700mA)
Forward Voltage (@ I
F
= 1000mA)
[1]
Temperature Coefficient
of Forward Voltage
[1]
Thermal Resistance
(Junction to Case)
Notes for Table 5:
1.
Forward Voltage typical value is for all four LED dice connected in series.
[1]
Symbol
V
F
V
F
ΔV
F
/ΔT
J
RΘ
J-C
Typical
14.0
14.6
-11.9
1.1
Unit
V
V
mV/°C
°C/W
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
5
LZ4-00NW00 (5.5-07/01/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
