ILD5

Description
Pin u0026 Socket Connectors PIN CONTACT 18-16AWG BRIGHT TIN
CategoryLED optoelectronic/LED    photoelectric
File Size201KB,11 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

ILD5 Online Shopping

Suppliers Part Number Price MOQ In stock
ILD5 - - View Buy Now

ILD5 Overview

Pin u0026 Socket Connectors PIN CONTACT 18-16AWG BRIGHT TIN

ILD5 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instructionDIP-8
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time18 weeks
Coll-Emtr Bkdn Voltage-Min70 V
ConfigurationSEPARATE, 2 CHANNELS
Current transmission ratio - minimum value50%
Nominal current transfer ratio130%
Maximum dark power50 nA
Maximum forward current0.06 A
Maximum forward voltage1.65 V
Maximum insulation voltage5300 V
JESD-609 codee3
Installation featuresTHROUGH HOLE MOUNT
Number of components2
Maximum on-state current0.05 A
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Optoelectronic device typesTRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation0.2 W
surface mountNO
Terminal surfaceMatte Tin (Sn)

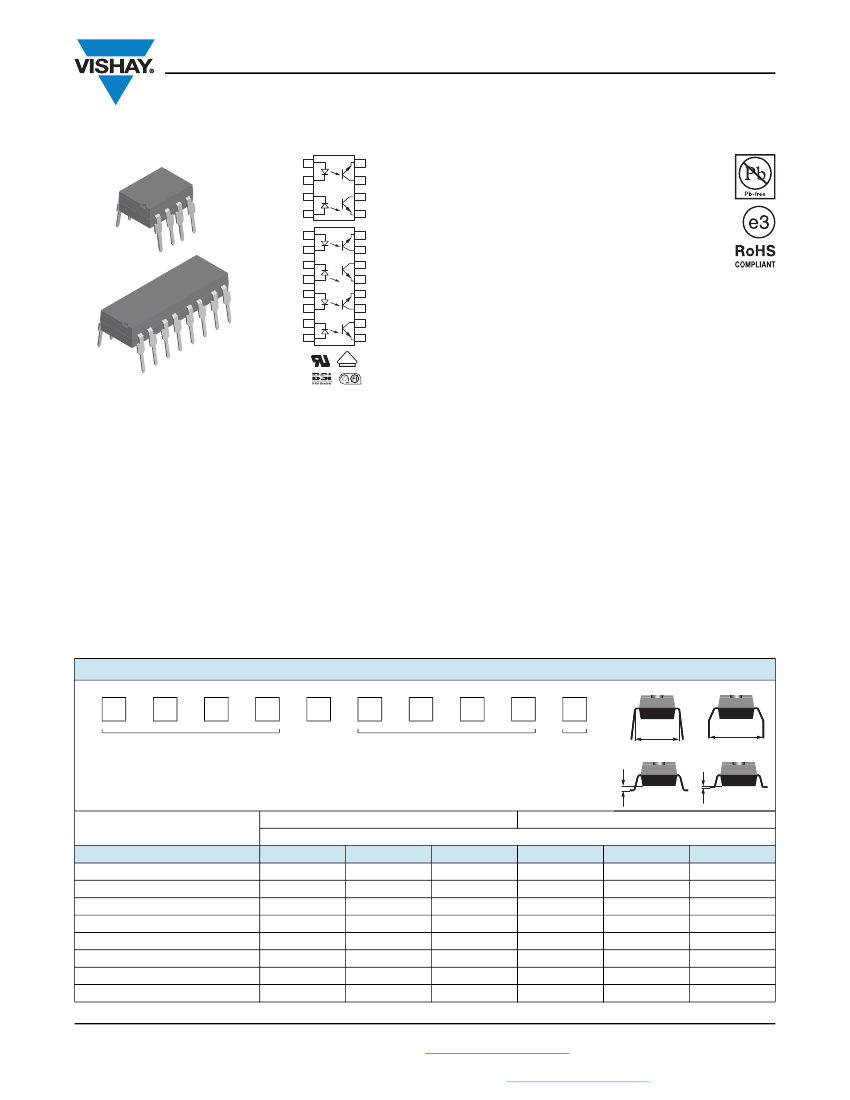

ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5
www.vishay.com
Vishay Semiconductors
Optocoupler, Phototransistor Output (Dual, Quad Channel)
Dual Channel
A
C
C
A
A
C
C
1
2
3
4
1
2
3
4
5
6
7
8
D E
V
8 E
7 C
6 C
5 E
16 E
15 C
14 C
13 E
12 E
11 C
10 C
9 E
FEATURES
• Current transfer ratio at I
F
= 10 mA
• Isolation test voltage, 5300 V
RMS
• Compliant to RoHS Directive 2002/95/EC and
in accordance to WEEE 2002/96/EC
AGENCY APPROVALS
• UL1577, file no. E52744 system code H, double protection
• CSA 93751
• BSI IEC 60950; IEC 60065
• DIN EN 60747-5-2 (VDE 0884) available with option 1
• FIMKO
Quad Channel
A
A
C
C
A
i179015-3
i179012-1
DESCRIPTION
The ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5 are optically coupled
isolated pairs employing GaAs infrared LEDs and silicon
NPN phototransistor. Signal information, including a DC
level, can be transmitted by the drive while maintaining a
high degree of electrical isolation between input and output.
The ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5 are especially
designed for driving medium-speed logic and can be used
to eliminate troublesome ground loop and noise problems.
Also these couplers can be used to replace relays and
transformers in many digital interface applications such as
CTR modulation.
The ILD1, ILD2, ILD5 has two isolated channels in a single
DIP package and the ILQ1, ILQ2, ILQ5 has four isolated
channels per package.
ORDERING INFORMATION
DIP-#
Option 6
I
L
x
#
-
X
0
#
#
T
TAPE AND
REEL
7.62 mm
Option 7
10.16 mm
PART NUMBER
x = D (Dual) or Q (Quad)
PACKAGE OPTION
Option 9
> 0.7 mm
> 0.1 mm
AGENCY CERTIFIED/PACKAGE
UL, CSA, BSI, FIMKO
DIP-8
DIP-8, 400 mil, option 6
SMD-8, option 7
SMD-8, option 9
DIP-16
DIP-16, 400 mil, option 6
SMD-16, option 7
SMD-16, option 9
20 to 300
ILD1
-
ILD1-X007T
-
-
-
-
(1)
DUAL CHANNEL
CTR (%)
100 to 500
ILD2
ILD2-X006
ILD2-X007T
-
-
-
-
(1)
QUAD CHANNEL
50 to 400
ILD5
-
-
ILD5-X009T
(1)
-
-
-
-
20 to 300
-
-
-
-
ILQ1
ILQ1-X006
ILQ1-X007
ILQ1-X009T
(1)
100 to 500
-
-
-
-
ILQ2
ILQ2-X006
ILQ2-X007T
(1)
ILQ2-X009T
(1)
50 to 400
-
-
-
-
ILQ5
-
-
ILQ5-X009T
(1)
ILD1-X009T
(1)
ILD2-X009T
(1)
Rev. 1.8, 28-Jun-11
1
For technical questions, contact:
optocoupleranswers@vishay.com
Document Number: 83646
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
