T-1 (3mm) BLINKING LED LAMP
Part Number: L-36BID
High Efficiency Red
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
T-1 package with rectangular base.
With built-in blinking IC.
Operation voltage from 3.5V to 14V.
Blinking frequency from 3.0Hz to 1.5Hz.
RoHS compliant.
Descriptions
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
Electrostatic discharge and power surge could damage
the LEDs.
It is recommended to use a wrist band or anti-
electrostatic glove when handling the LEDs.
All devices, equipments and machineries must be
electrically grounded.

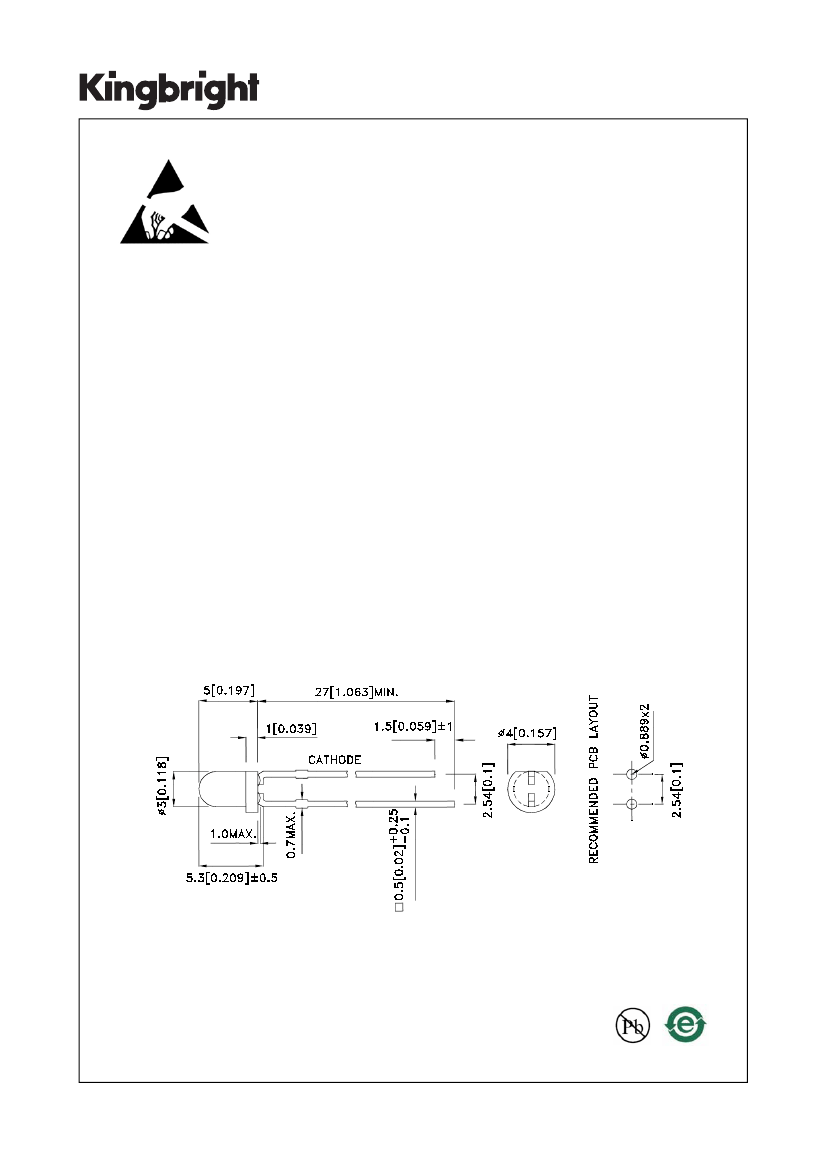

Package Dimensions
K
g
in
ig
r
b
t
h
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAB7626
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Allen Liu
DATE: NOV/13/2014
DRAWN: Q.M.Chen
PAGE: 1 OF 6
ERP: 1101003774
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
V= 9V
Min.
L-36BID
High Efficiency Red (GaAsP/GaP)
Red Diffused
12
*6
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
*Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Viewing
Angle [1]
2θ1/2
60
°
Typ.
25
*15
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
Δλ1/2
I
F
I
SON
I
SON
f
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Forward Current
Supply Current
Supply Current
Device
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
Min.
Typ.
627
Max.
Blink Frequency
Note:
1.Wavelength value is traceable to the CIE127-2007 compliant national standards.
2.Excess driving current and/or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
in
K
High Efficiency Red
High Efficiency Red
High Efficiency Red
b
g
8
ig
r
617
45
22
8
44
t
h
nm
nm
nm
mA
mA
mA
3
Hz
Units
Test Conditions
Min:V
F
=3.5V
Typ:V
F
=5V
V
F
=3.5V
V
F
=14V
V
F
=3.5V~14V
1.5
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
Forward Voltage
Reverse Voltage
Operating Temperature
Storage Temperature
Lead Solder Temperature [1]
Lead Solder Temperature [2]
Notes:
1. 2mm below package base.
2. 5mm below package base.
High Efficiency Red
310
14
0.5
-40°C To +70°C
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
V
V
SPEC NO: DSAB7626
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Allen Liu
DATE: NOV/13/2014
DRAWN: Q.M.Chen
PAGE: 2 OF 6
ERP: 1101003774

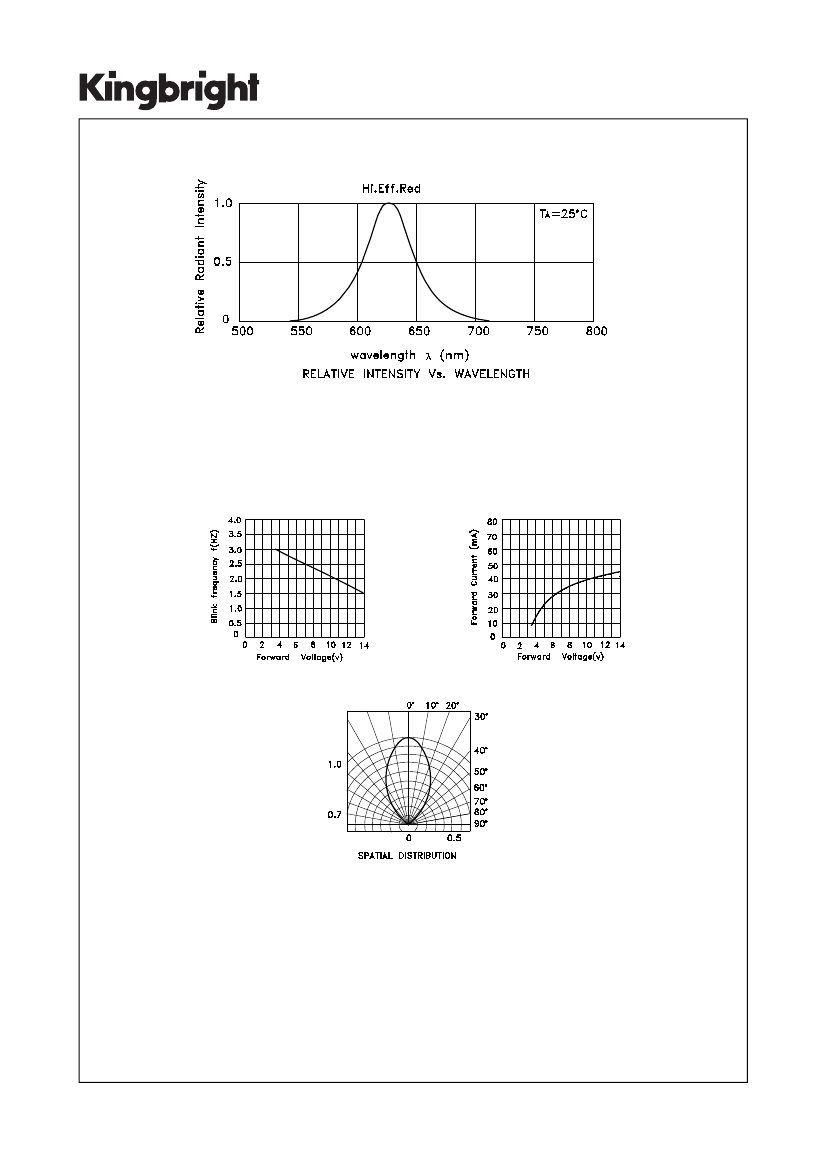

High Efficiency Red
t
h
ig
r
b
g
in
K
L-36BID
SPEC NO: DSAB7626
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Allen Liu
DATE: NOV/13/2014
DRAWN: Q.M.Chen
PAGE: 3 OF 6
ERP: 1101003774

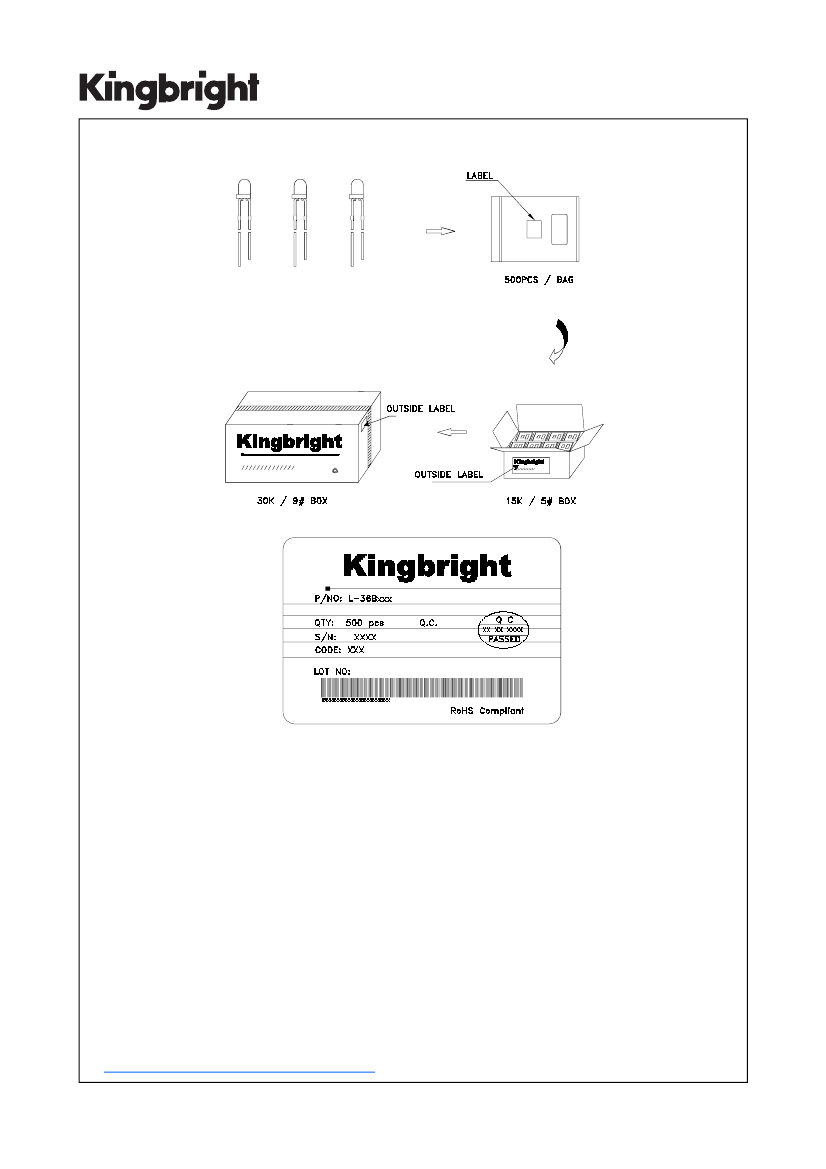

PACKING & LABEL SPECIFICATIONS
L-36BID
t
h
ig
r
b
g
in
K
Terms and conditions for the usage of this document
1.The information included in this document reflects representative usage scenarios and is intended
for technical reference only.
2.The part number, type, and specifications mentioned in this document are subject to future change
and improvement without notice. Before production usage customer should refer to the latest
datasheet for the updated specifications.
3.When using the products referenced in this document, please make sure the product is being
operated within the environmental and electrical limits specified in the datasheet. If customer usage
exceeds the specified limits, Kingbright will not be responsible for any subsequent issues.
4.The information in this document applies to typical usage in consumer electronics applications.
If customer's application has special reliability requirements or have life-threatening liabilities,
such as automotive or medical usage, please consult with Kingbright representative for further
assistance.
5.The contents and information of this document may not be reproduced or re-transmitted without
permission by Kingbright.
6.All design applications should refer to Kingbright application notes available at
http://www.kingbright.com/application_notes
SPEC NO: DSAB7626
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Allen Liu
DATE: NOV/13/2014
DRAWN: Q.M.Chen
PAGE: 4 OF 6
ERP: 1101003774

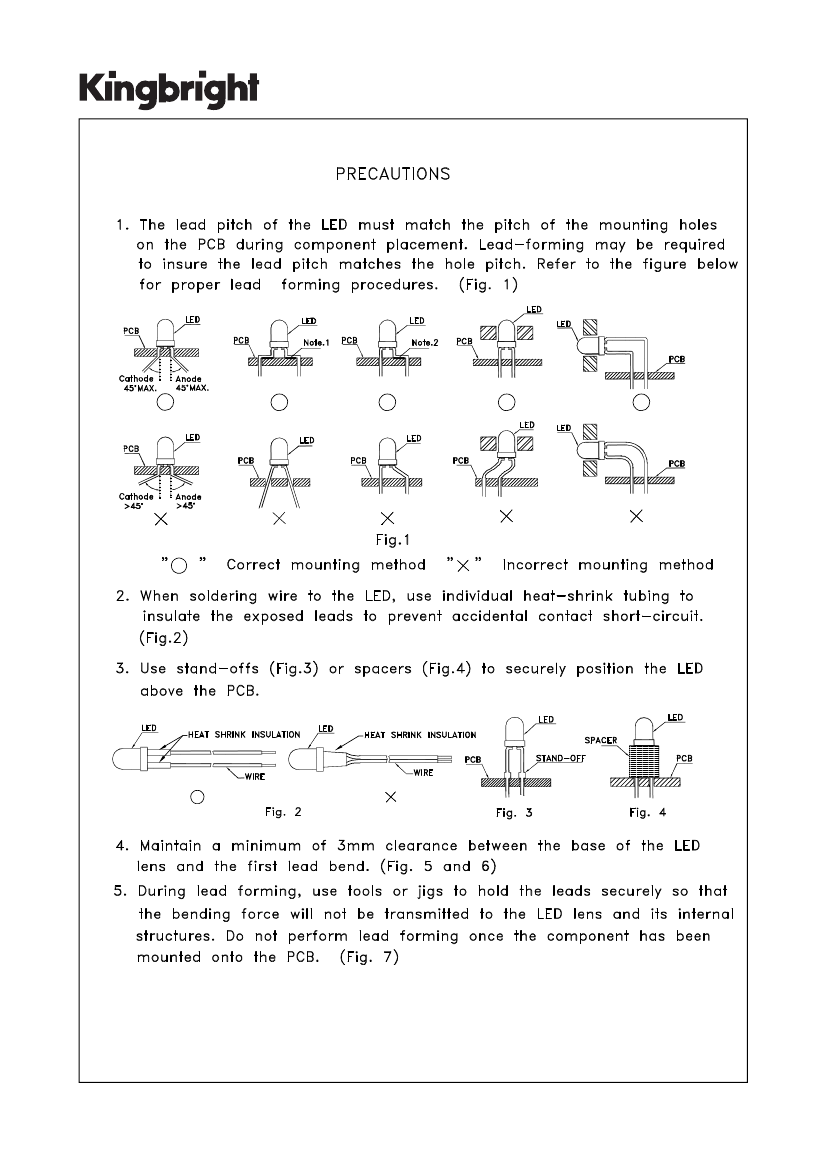

t
h
ig
r
b
g
in
K
SPEC NO: DSAB7626
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Allen Liu
DATE: NOV/13/2014
DRAWN: Q.M.Chen
PAGE: 5 OF 6
