LZ9-M0WW00-0430

CategoryLED optoelectronic/LED
File Size1MB,21 Pages
ManufacturerLED Engin
Websitehttp://www.ledengin.com
Download Datasheet Parametric Compare View All

LZ9-M0WW00-0430 Online Shopping

Suppliers Part Number Price MOQ In stock
LZ9-M0WW00-0430 - - View Buy Now

LZ9-M0WW00-0430 Parametric

Parameter NameAttribute value
Product CategoryHigh Power LEDs - White
ManufacturerLED Engin
RoHSDetails
Package / CaseMCPCB - Star

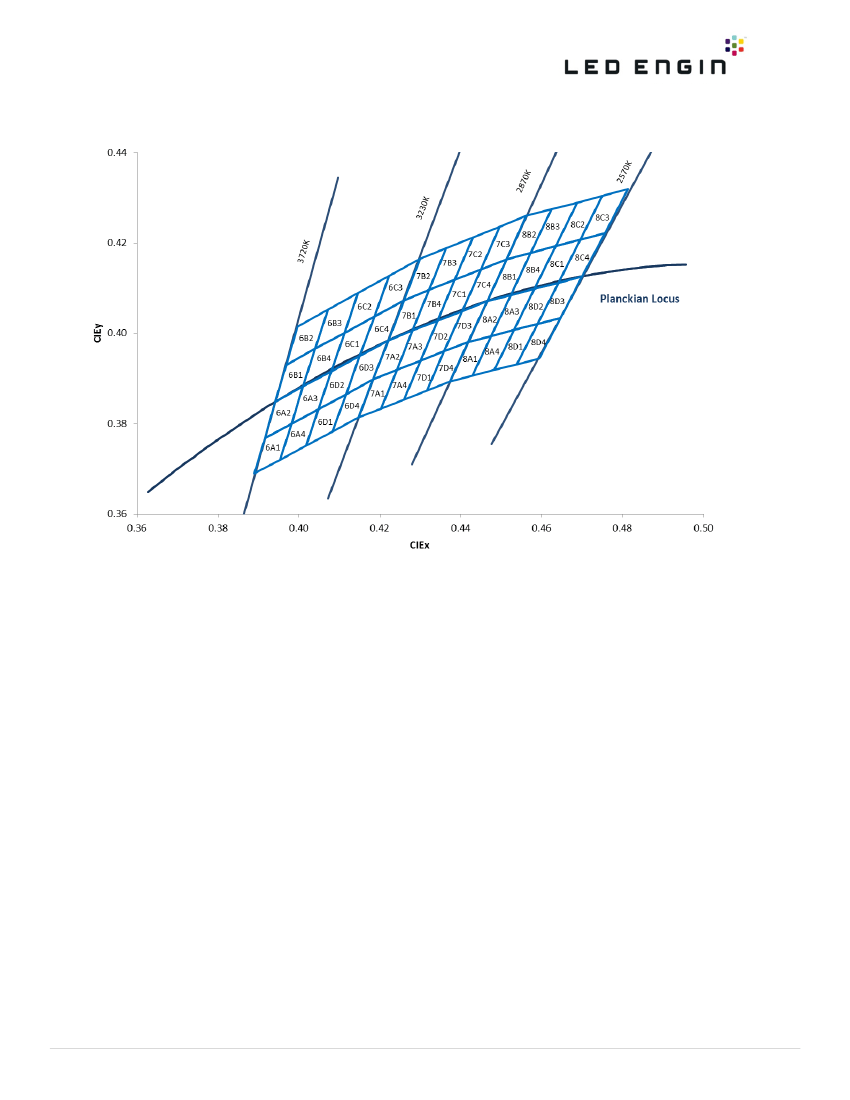

Wavelength/Color Temperature3000 K
Lens Color/StyleWater Clear
If - Forward Current700 mA
Vf - Forward Voltage9.7 V
Mounting StyleSMD/SMT
Length19.9 mm
Width19.9 mm
Height7 mm
LED Size19.9 mm x 7 mm
Lens Dimensions6.2 mm
Lens ShapeDome
Factory Pack Quantity100

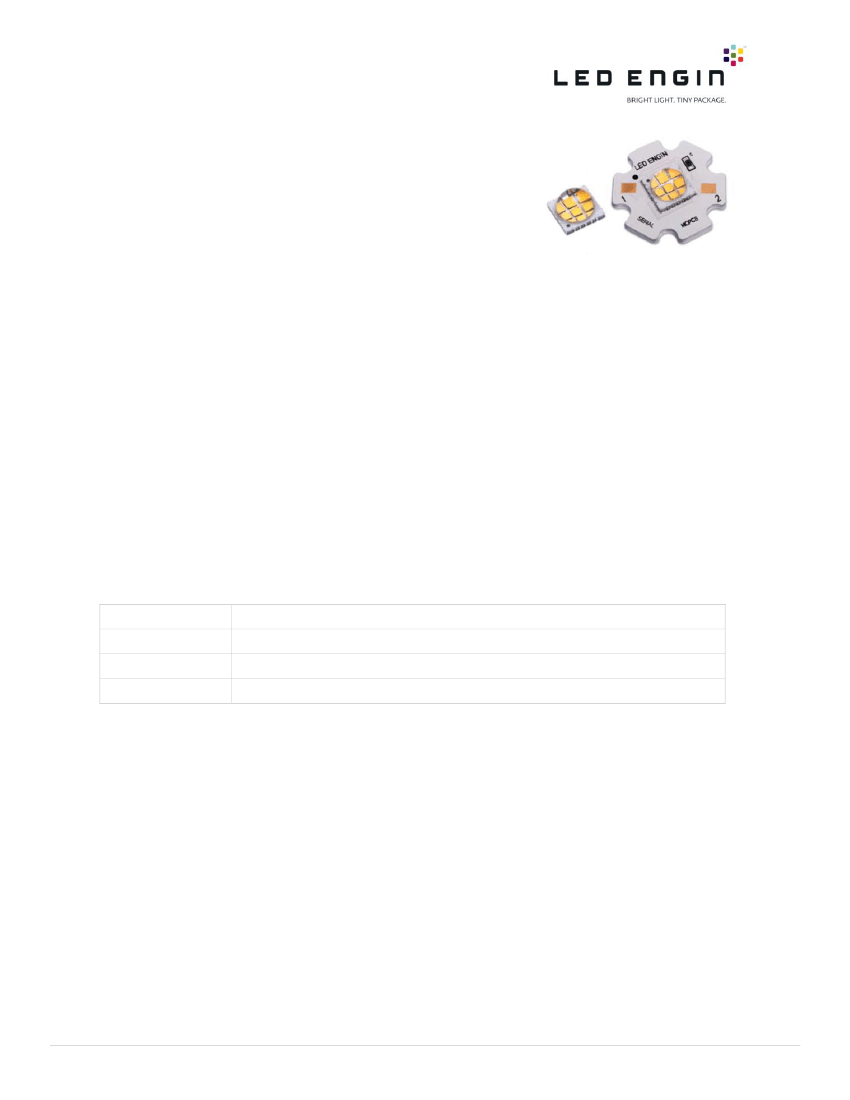

High Luminous Efficacy
Warm White LED Emitter
LZ9-00WW00
Key Features
High Luminous Efficacy, Warm White LED
Can dissipate up to 20W
Ultra-small foot print – 7.0mm x 7.0mm
Surface mount ceramic package with integrated glass lens
Low Thermal Resistance (1.3°C/W)
Very high Luminous Flux density
JEDEC Level 1 for Moisture Sensitivity Level
Autoclave complaint (JEDEC JESD22-A102-C)
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on MCPCB (optional)
Full suite of TIR secondary optics family available
Part Number Options
Base part number
Part number
LZ9-00WW00-xxxx
LZ9-J0WW00-xxxx
LZ9-M0WW00-xxxx
Description
9-die emitter CRI 80 minimum
9-die emitter CRI 80 minimum on Star MCPCB in 1x9 electrical configuration
9-die emitter CRI 80 minimum on Star MCPCB in 3x3 electrical configuration
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZ9-00WW00 (1.7-02/23/14)
4
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
