LXML-PH01-0050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LXML-PH01-0050

LXML-PH01-0050: DescriptionHigh Power LEDs - Single Color Red-Orange 601nm, 350mA; CategoryLED optoelectronic/LED; File Size3MB，31 Pages; ManufacturerLumileds; Websitehttps://www.lumileds.com/

Download Datasheet Parametric Compare View All

LXML-PH01-0050 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LXML-PH01-0050	-	-	View	Buy Now

LXML-PH01-0050 Overview

High Power LEDs - Single Color Red-Orange 601nm, 350mA

LXML-PH01-0050 Parametric

Parameter Name	Attribute value
Product Category	High Power LEDs - Single Color
Manufacturer	Lumileds
RoHS	Details
Package / Case	SMD-2
Illumination Color	Red-Orange
Wavelength/Color Temperature	617 nm
Luminous Intensity	-
Luminous Flux/Radiant Flux	50 lm
Lens Color/Style	Water Clear
If - Forward Current	350 mA
Vf - Forward Voltage	2.9 V
Power Rating	-
Mounting Style	SMD/SMT
Length	4.91 mm
Width	3.17 mm
Height	2.1 mm
Maximum Operating Temperature	+ 120 C
Minimum Operating Temperature	- 40 C
Packaging	MouseReel
Packaging	Cut Tape
Packaging	Reel
LED Size	4.91 mm x 3.17 mm x 2.1 mm
Lens Shape	Dome
Factory Pack Quantity	1000
Type	LUXEON Rebel Color
Viewing Angle	125 deg
Vr - Reverse Voltage	-

Preview

Download Datasheet

View All

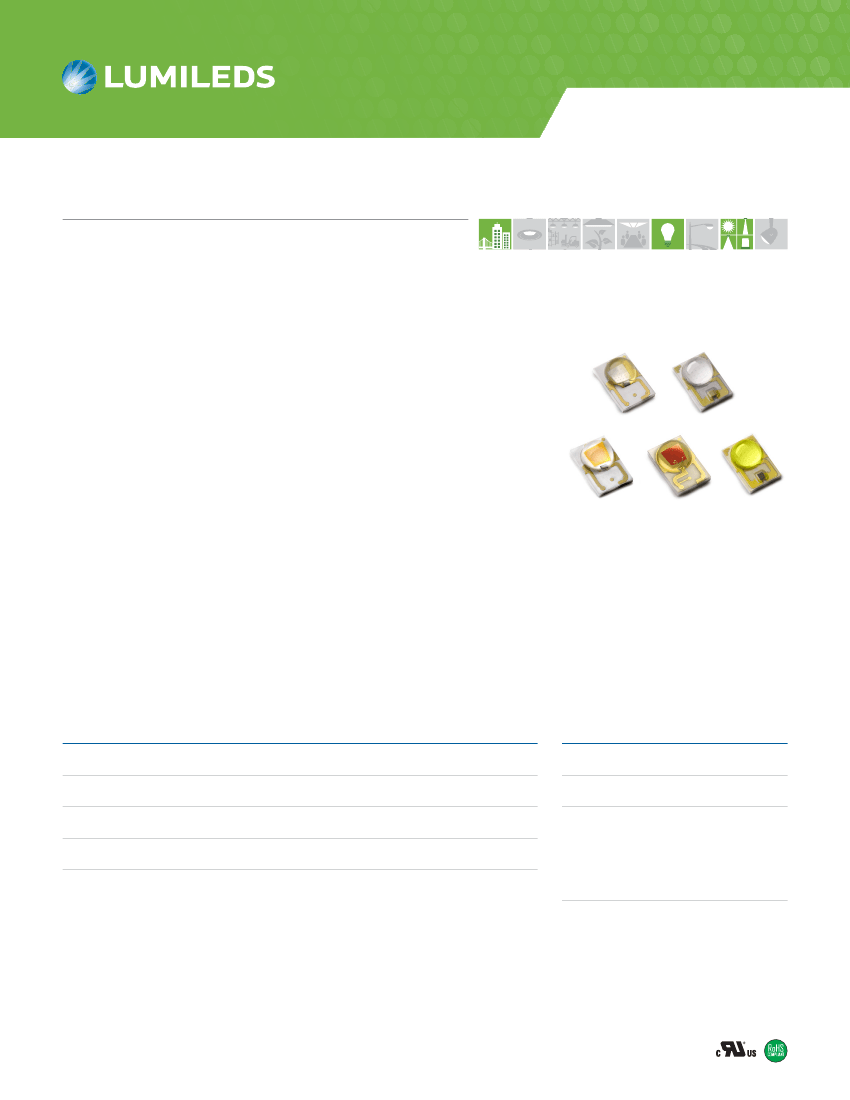

IllumInatIon

luXEon Rebel

Color line

High flux and efficacy on industry’s most

widely used color LED platform

The LUXEON Rebel Color Line has leading light output, color stability,

flux density and clear saturated colors. These color LEDs are ideal for a

wide variety of lighting, signaling, signage and entertainment applications.

Every LUXEON Rebel Color emitter has built-in quality, reliability, lumen

maintenance and the ease of manufacturing needed to create a superior,

high quality light. LUXEON Rebel Color emitters give designers an endless

palette of colors to work with, adding interest, dimension and liveliness to

all lighting projects.

FEatuREs and BEnEFIts

Full color palette for a wider spectrum range

Highest efficacy available for colors, allowing for lower power consumption

High flux and leading hot and cold performance for saturated colors

Fully developed ecosystem for LUXEON Rebel platforms

PRImaRy aPPlICatIons

Architectural

Lamps

Specialty Lighting

–

Emergency Lighting

–

Entertainment

No. E352519

Table of Contents

General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical and Thermal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Forward Current Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Product Bin and Labeling Definitions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Decoding Product Bin Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Luminous Flux Bins

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Radiometric Power Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Dominant and Peak Wavelength Bins

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Color Bin Definitions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Reflow Soldering Guidelines

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Pocket Tape Dimensions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

LXML-PH01-0050 Related Products

	LXML-PH01-0050	ATS125-9310-CT452Q	LXM2-PH01-0070	LXML-PR01-0500	LXM5-PL01	LXM2-PH01-0060	LXM5-PH01	LXML-PM01-0100
Description	High Power LEDs - Single Color Red-Orange 601nm, 350mA	PTC Thermistor, 931ohm, Through Hole Mount, AXIAL LEADED		High Power LEDs - Single Color Green, 530nm 90lm, 350mA		DC Power Connectors 4 PN PANEL MT POWER MINI DIN		High Power LEDs - Single Color Amber
Is it lead-free?	-	Contains lead	Lead free	Lead free	-	Lead free	-	Lead free
Is it Rohs certified?	-	incompatible	conform to	conform to	-	conform to	-	conform to
package instruction	-	AXIAL LEADED	ROHS COMPLIANT PACKAGE-3	ROHS COMPLIANT PACKAGE-3	-	ROHS COMPLIANT PACKAGE-3	-	ROHS COMPLIANT PACKAGE-3
Reach Compliance Code	-	compliant	compliant	compliant	-	compliant	-	compliant
Installation features	-	THROUGH HOLE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	-	SURFACE MOUNT
Number of terminals	-	2	3	3	-	3	-	3
Maximum operating temperature	-	350 °C	120 °C	135 °C	-	120 °C	-	135 °C
method of packing	-	TR	TAPE AND REEL 13"	TAPE AND REEL 13"	-	TAPE AND REEL 13"	-	TAPE AND REEL 13\"
surface mount	-	NO	YES	YES	-	YES	-	YES
