1.9mm Round Subminiature “Gull Wing”Lead Phototransistor
PT91-21C/TR7
Features
․Fast
response time
․High
photo sensitivity
․Small
junction capacitance
․Compatible
with infrared and vapor phase reflow solder process.
․Pb
free
․The
product itself will remain within RoHS compliant version.
Descriptions
․PT91-21C/TR7
is a phototransistor in miniature SMD package
which is molded in water clear plastic with spherical top view
lens. The device is spectrally matched to infrared emitting
diode.
Applications
․Miniature
switch
․Counters
and sorter
․Position
sensor
․Infrared
applied system
Device Selection Guide
Part Category
PT
Chip
Material
Silicon
Lens Color
Water clear
1
Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3
www.everlight.com
Revision
:3
Release Date:2013-06-10 14:32:27.0
Expired Period: Forever
LifecyclePhase:
Data Sheet
1.9mm Round Subminiature Gull wing” Lead Photortransistor
PT91-21C/TR7

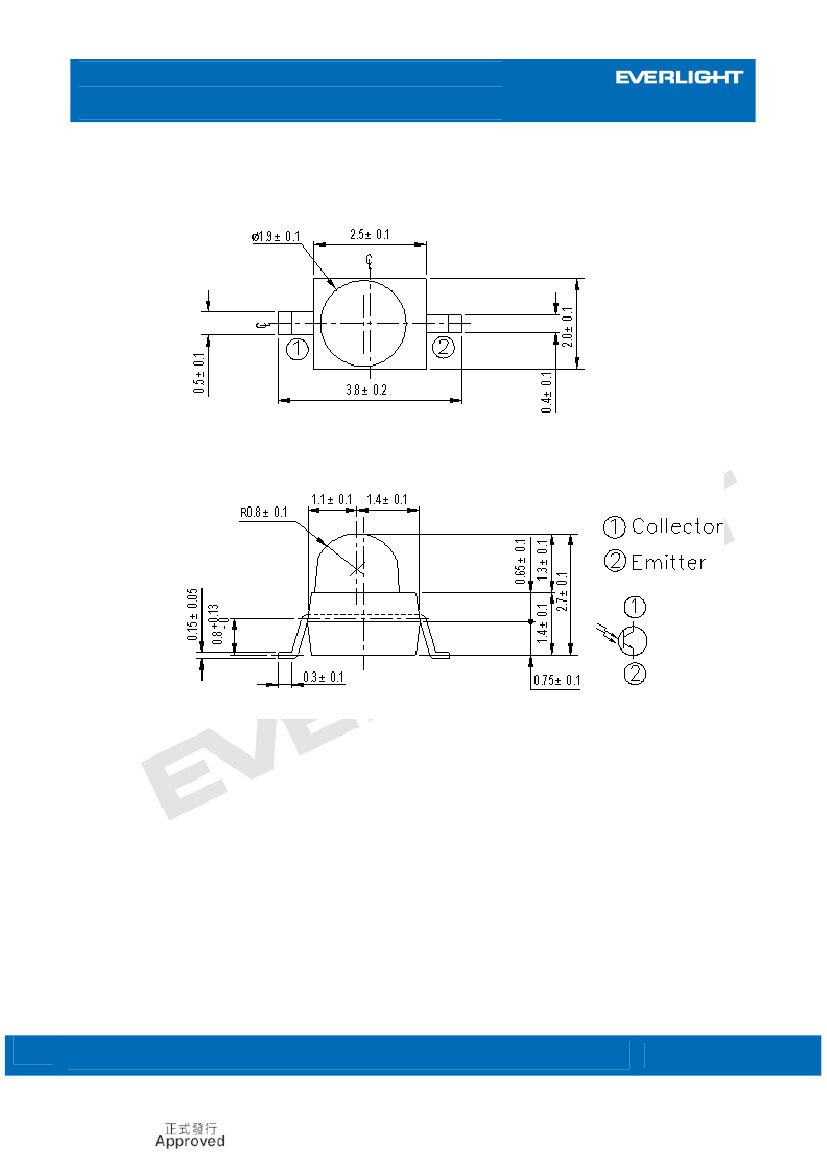

Package Dimensions
Notes:
1.All dimensions are in millimeters
2.Tolerances unless dimensions
±0.1mm
2
Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295
.
Rev:3
www.everlight.com
Revision
:3
Release Date:2013-06-10 14:32:27.0
Expired Period: Forever
LifecyclePhase:
Data Sheet
1.9mm Round Subminiature Gull wing” Lead Photortransistor
PT91-21C/TR7
Absolute Maximum Ratings (Ta=25℃)
Parameter
Collector-Emitter Voltage
Emitter-Collector-Voltage
Collector Current
Operating Temperature
Storage Temperature
Soldering Temperature
*1
Power Dissipation at(or below)
25℃Free Air Temperature
Symbol
V
CEO
V
ECO
I
C
T
opr
T
stg
T
sol
P
d
Rating
30
5
20
-25 ~ +85
-40 ~ +85
260
75
Units
V
V
mA
℃
℃
℃
mW
Notes:
*1:Soldering time≦5 seconds.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Rang Of Spectral Bandwidth
Wavelength Of Peak Sensitivity
Collector-Emitter Breakdown
Voltage
Emitter-Collector Breakdown
Voltage
Collector-Emitter Saturation
Voltage
Collector Dark Current
Symbol
λ
0.5
λ
P
BV
CEO
BV
ECO
V
CE(sat)
I
CEO
Condition
---
---
I
C
=100μA
Ee=0mW/cm
2
I
E
=10μA
Ee=0mW/cm
2
I
C
=2mA
Ee=1mW/cm
2
V
CE
=20V
Ee=0mW/cm
2
V
CE
=5V
Ee=1mW/cm
2
Min
400
---
30
5
---
---
Typ
---
940
---
---
---
---
Max
1100
---
---
---
0.4
100
Unit
nm
nm
V
V
V
nA
On State Collector Current
I
C(ON)
1.0
1.5
---
mA
3
Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295
.
Rev:3
www.everlight.com
Revision
:3
Release Date:2013-06-10 14:32:27.0
Expired Period: Forever
LifecyclePhase:
Data Sheet
1.9mm Round Subminiature Gull wing” Lead Photortransistor
PT91-21C/TR7

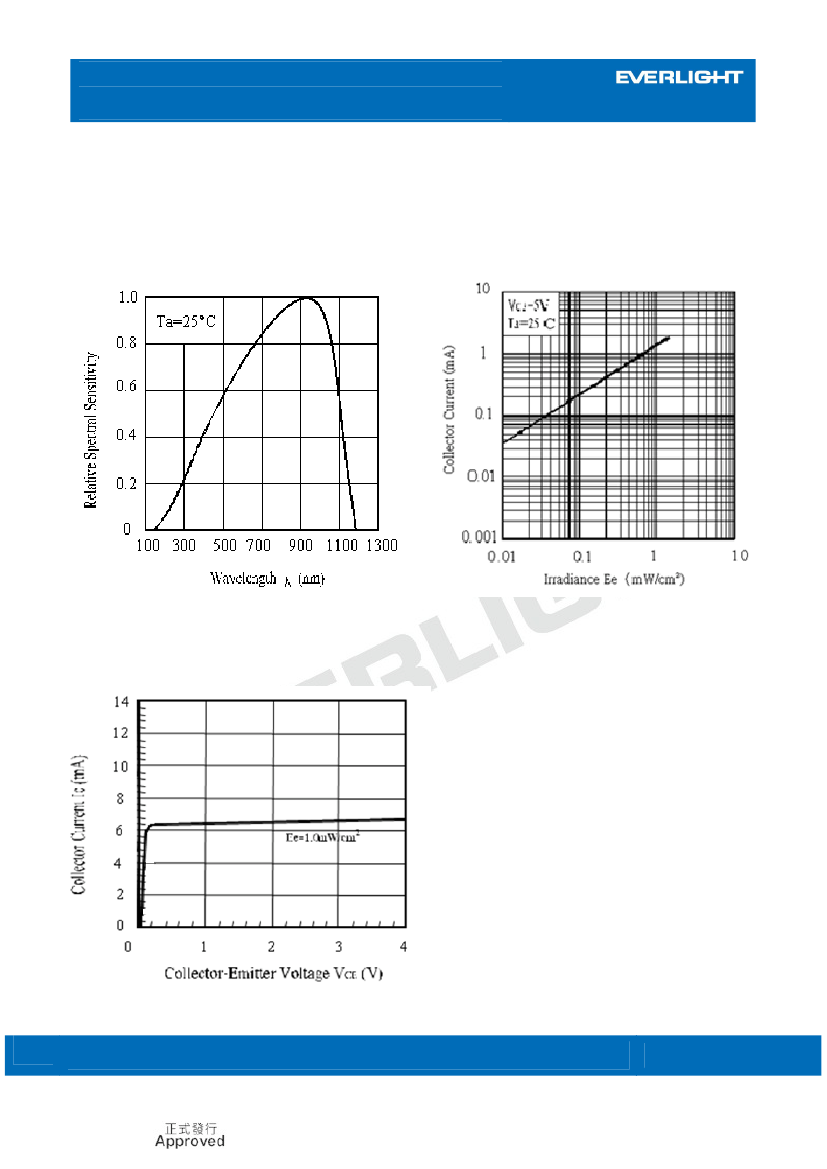

Typical Electro-Optical Characteristics Curves
Fig.1 Spectral Sensitivity
Fig.2 Collector Current vs
Irradiance
Fig.3 Collector Current vs
Collecror-Emitter Voltage
4
Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295
.
Rev:3
www.everlight.com
Revision
:3
Release Date:2013-06-10 14:32:27.0
Expired Period: Forever
LifecyclePhase:
Data Sheet
1.9mm Round Subminiature Gull wing” Lead Photortransistor
PT91-21C/TR7
Precautions For Use
1. Over-current-proof
Customer must apply resistors for protection , otherwise slight voltage shift will cause big
current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 The LEDs should be used within a year.
2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.
2.5 The LEDs should be used within 168 hours (7 days) after opening the package.
2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

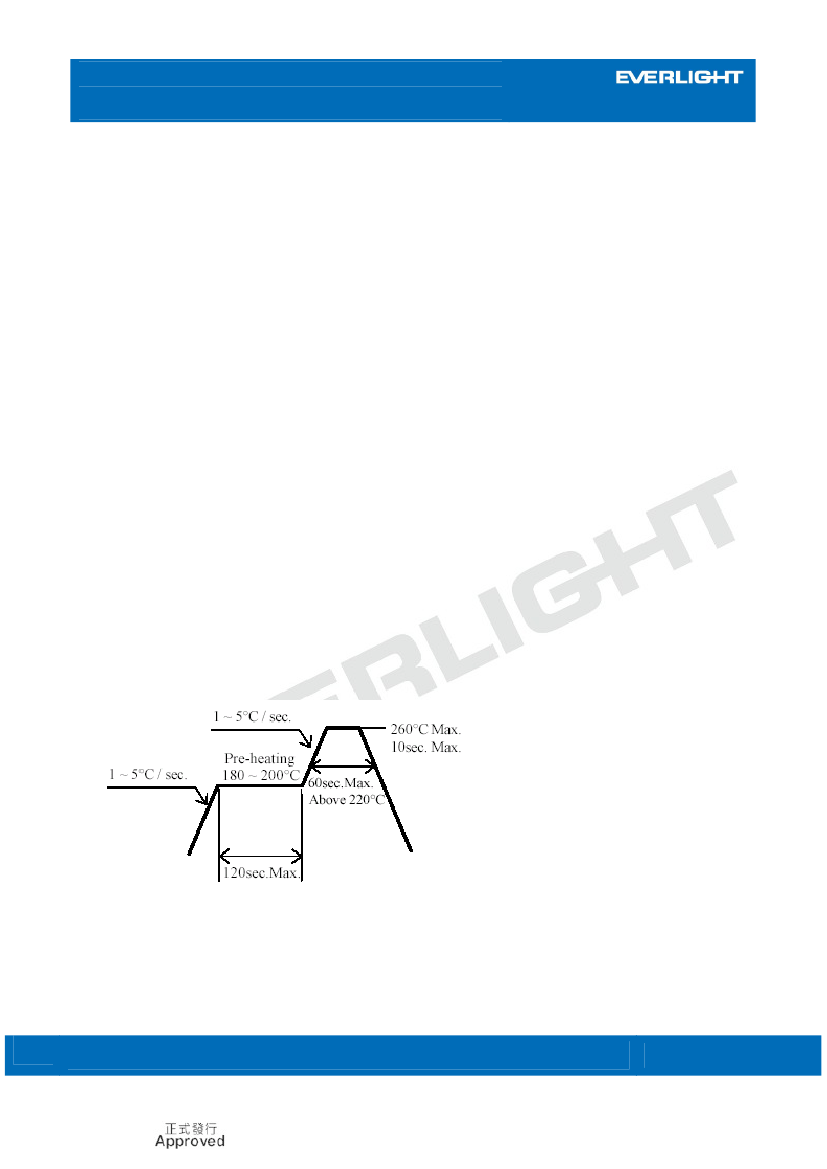

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
5
Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295
.
Rev:3
www.everlight.com
Revision
:3
Release Date:2013-06-10 14:32:27.0
Expired Period: Forever
LifecyclePhase:
