2.0x1.25mm SMD CHIP LED LAMP
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
AP2012PBC
BLUE
Features
2.0mmx1.25mm SMT LED,1.1mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
RoHS COMPLIANT.
Description
The Blue source color devices are made with InGaN
on SiC Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be electri-
cally grounded.

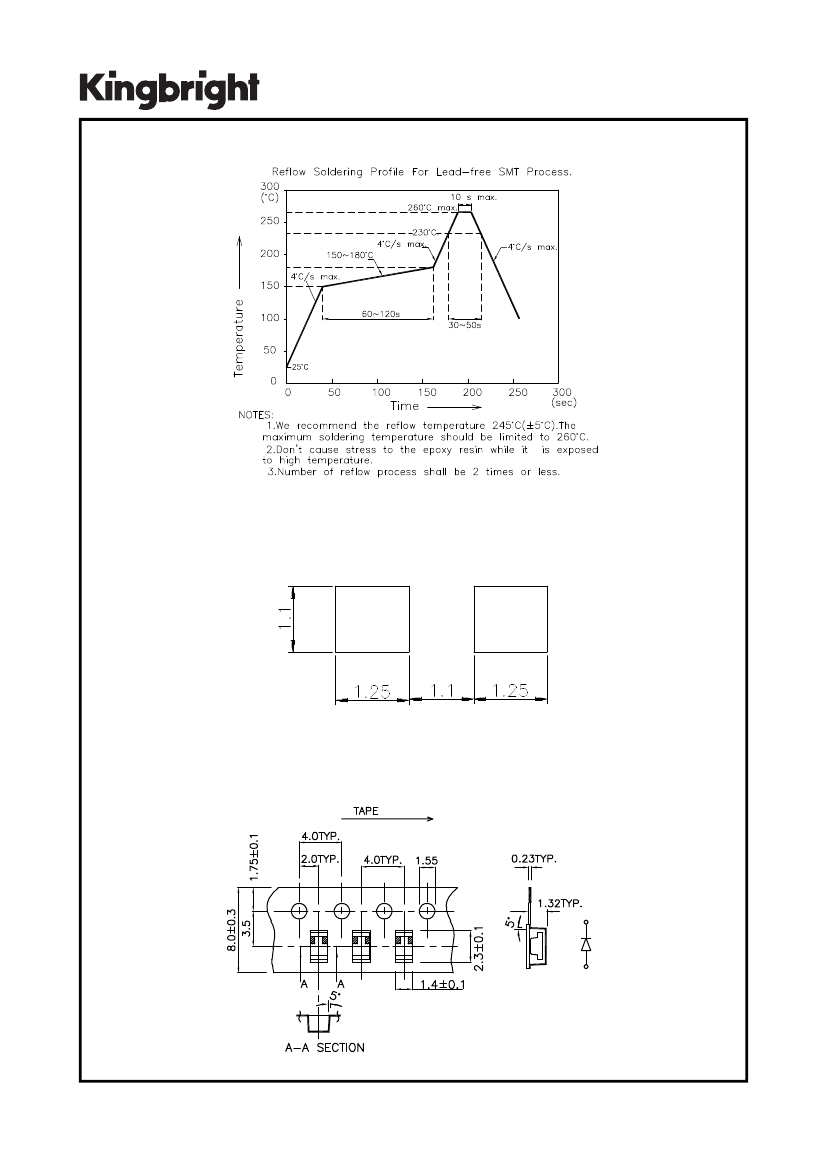

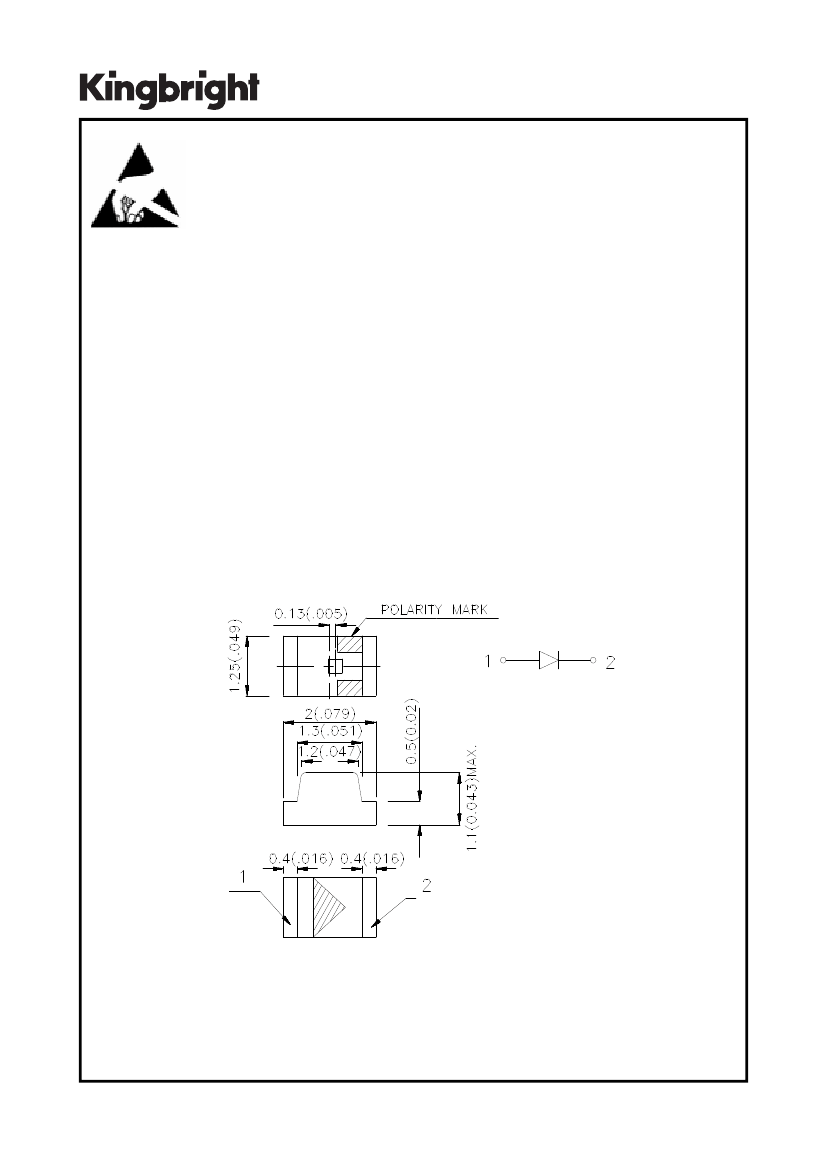

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.1(0.004")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAB8367
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: FEB/16/2005
DRAWN: Y.CHENG
PAGE: 1 OF 4
ERP: 1203000141
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Min.
AP2012PBC
BLUE (InGaN)
WATER CLEAR
18
Typ.
60
Viewing
Angle
2θ1/2
θ
120
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

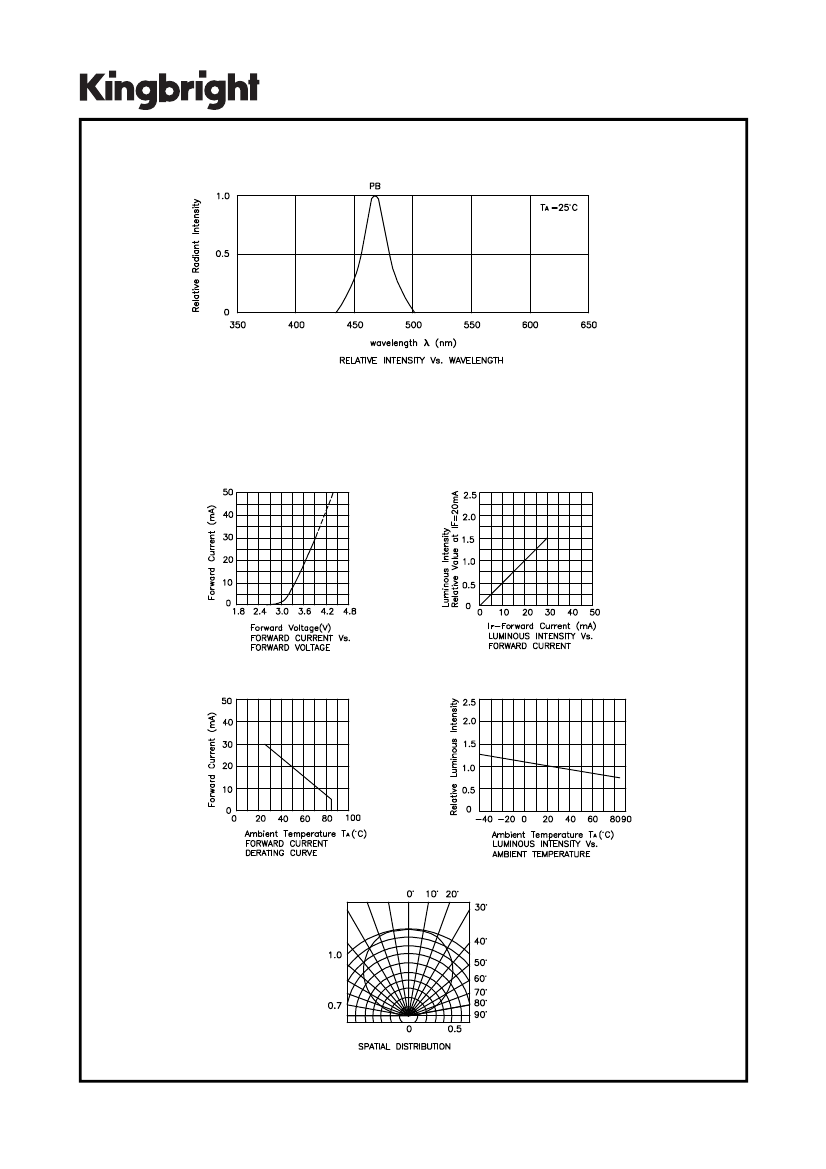

Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Blue
Blue
Blue
Blue
Blue
Blue
Device
Typ.
468
470
25
65
3.65
4.2
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Blue
102
30
160
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAB8367
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: FEB/16/2005
DRAWN: Y.CHENG
PAGE: 2 OF 4
ERP: 1203000141
