SMD
B
EAST1005RA0
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
․Compliance
with EU REACH.
․Compliance
Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Description
․The
SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density,
reduced storage space and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
1
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 06-Sep-2006. Issue No: 1 Rev.1
www.everlightamericas.com
DATASHEET
SMD B
EAST1005RA0
Device Selection Guide
Chip
Materials
AlGaInP
Emitted Color
Brilliant Red
Resin Color
Water Clear
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Symbol
V
R
I
F
I
FP
Pd
ESD
HBM
T
opr
Tstg
Tsol
Rating
5
25
60
60
2000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Electrostatic Discharge
Operating Temperature
Storage Temperature
Soldering Temperature
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
2
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 06-Sep-2006. Issue No: 1 Rev.1
www.everlightamericas.com
DATASHEET
SMD B
EAST1005RA0
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Condition
Luminous
Intensity
Iv
20.0
-----
40.5
mcd
Viewing Angle
2θ
1/2
-----
120
-----
deg
Peak
Wavelength
Dominant
Wavelength
Spectrum
Radiation
Bandwidth
Forward
Voltage
Reverse
Current
λp
-----
632
-----
nm
I
F
=10mA
λd
617.5
-----
633.5
nm
△λ
-----
20
-----
nm
V
F
1.7
-----
2.2
V
I
R
-----
-----
10
μA
V
R
=5V
Note:
1.Tolerance of Luminous Intensity: ±11%
2.Tolerance of Dominant Wavelength ±1nm
3. Tolerance of Forward Voltage: ±0.05V
3
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 06-Sep-2006. Issue No: 1 Rev.1
www.everlightamericas.com
DATASHEET
SMD B
EAST1005RA0
Bin Range of Luminous Intensity
Group
22
23
24
25
Bin
22
23
24
25
26
Min
20.0
23.0
26.5
30.5
35.0
Max
23.0
26.5
30.5
35.0
40.5
mcd
I
F
=10mA
Unit
Condition
Bin Range Of Dom. Wavelength
Bin
E4
E5
E6
E7
Min
617.5
621.5
625.5
629.5
Max
621.5
625.5
629.5
633.5
nm
I
F
=10mA
Unit
Condition
Bin Range Of Forward Voltage
Bin
19
20
21
22
23
Min
1.7
1.8
1.9
2.0
2.1
Max
1.8
1.9
2.0
2.1
2.2
V
I
F
=10mA
Unit
Condition
Note:
1.Tolerance of Luminous Intensity: ±11%
2.Tolerance of Dominant Wavelength ±1nm
3. Tolerance of Forward Voltage: ±0.05V
4
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 06-Sep-2006. Issue No: 1 Rev.1
www.everlightamericas.com
DATASHEET
SMD B
EAST1005RA0

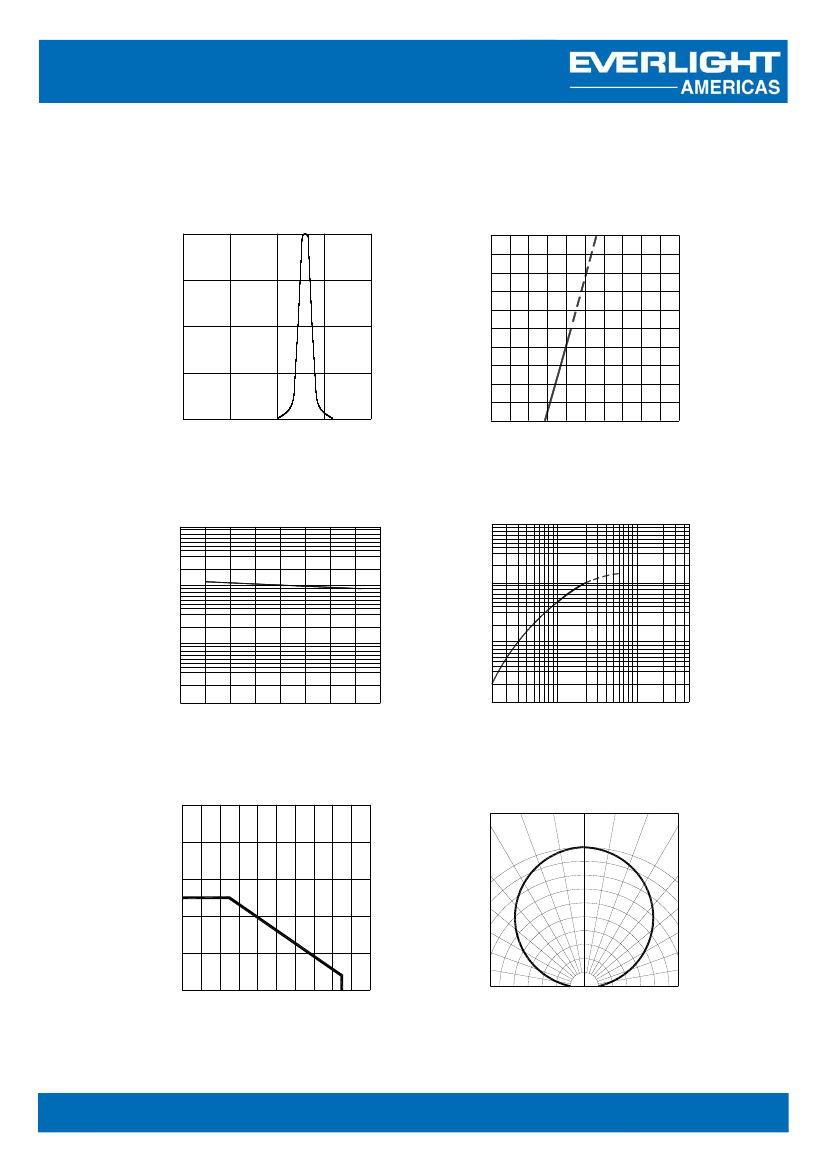

Typical Electro-Optical Characteristics Curves
Spectrum Distribution
Forward Current I
F
(mA)
100
75
Ta=25°C
50
40
30
25
20
10
0
1.2
1.6 2.0
2.4 2.8 3.0
Forward Voltage V
F
(V)
Luminous Intensity vs.
Forward Current
Relative luminous intensity (%)
1000
Ta=25°C
Forward Current vs.
Forward Voltage
Ta=25°C
Relative luminous intensity (%)
50
25
0
500
550
600
650
Wavelength
λ
(nm)
700
Luminous Intensity vs.
Relative luminous intensity (%)
1000
Ambient Temperature
100
100
10
10
1
-60 -40 -20
0
20 40 60 80 100
1
0
10
10
1
10
2
Ambient Temperature Ta (°C)
Forward Current Derating Curve
Forward Current I
F
(mA)
Forward Current I
F
(mA)
Radiation Diagram
0°
10°
20°
Ta=25°C
30°
50
40
30
25
20
10
0
0
20
1.0
0.9
0.8
0.7
40°
50°
60°
70°
80°
90°
40
60
85
100
0.5 0.3
0.1
0.2 0.4 0.6
Ambient Temperature Ta (°C)
5
Copyright © 2010, Everlight Americas Inc. All Rights Reserved. Release Date : 06-Sep-2006. Issue No: 1 Rev.1
www.everlightamericas.com
