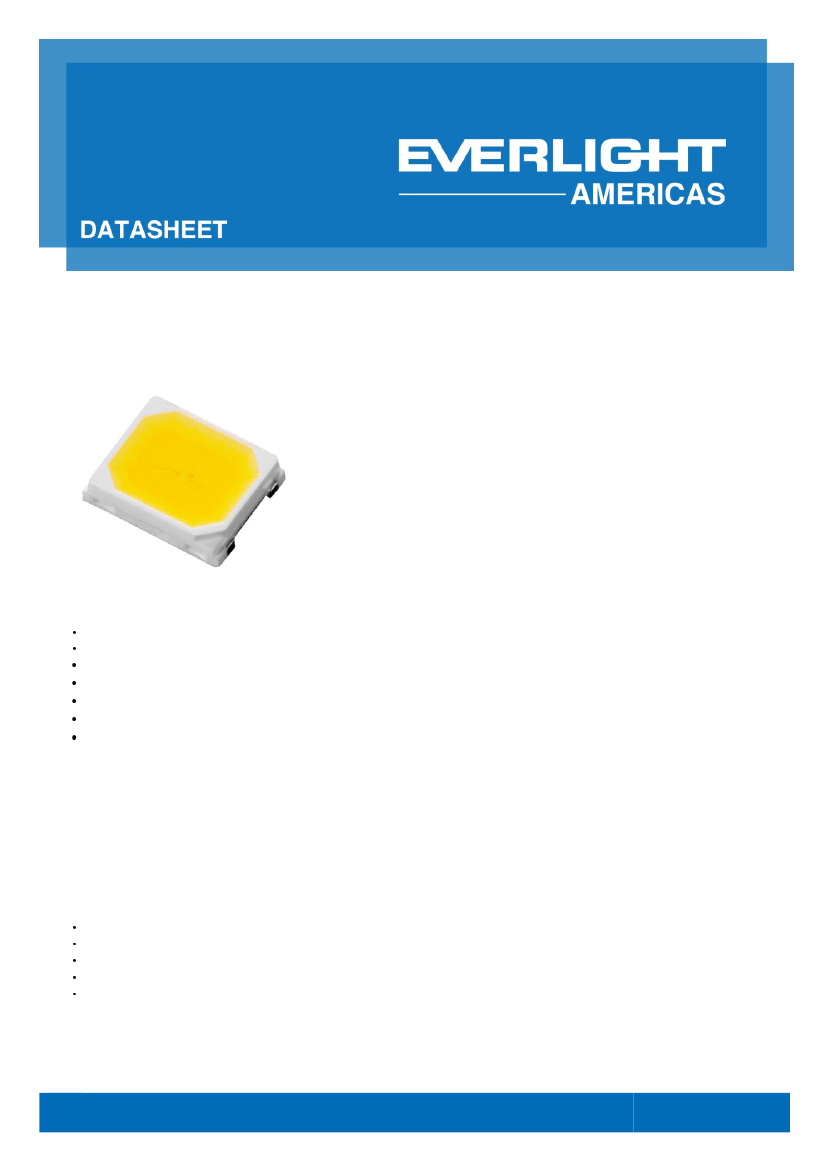

SMD PLCC
EAHP2835WD23
Features
PLCC-2 package
Top view white LED
High luminous intensity output
W ide viewing angle
Pb-free
RoHS compliant
ANSI Binning
1
˙
˙
˙
˙
˙
‧
‧
‧
‧
‧
‧
‧
Description
The Everlight EAHP2835WD23 package has high efficacy, high CRI, low power consumption, wide viewing angle
and a compact form factor. These features make this package an ideal LED for all lighting applications.
Applications
General lighting
Decorative and Entertainment Lighting
Indicators
Illumination
Switch lights
Copyright © 2015, Everlight Americas Inc.
. Release Date: 30.Oct. 2015. Issue No:
Issue No:
www.everlightamericas.com
DATASHEET
SMD PLCC
EAHP2835WD23
Mass Production List
Product
EAHP2835WD23
Notes:
1. Tolerance of Color Rendering Index: ±2
2. Tolerance of Luminous flux: ±11%.
CRI
Min.
(1)
80
CCT(K)
3500K
Φ(lm)
Min.
(2)
55
Φ(lm)
Max.
(2)
76
2
Copyright © 2015, Everlight Americas Inc.
. Release Date: 30.Oct. 2015. Issue No:
Issue No:
www.everlightamericas.com
DATASHEET
SMD PLCC
EAHP2835WD23
Device Selection Guide
Chip
Materials
InGaN
Emitted Color
Cool White
Neutral White
Warm White
Water Clear
Resin Color
Absolute Maximum Ratings (T
Soldering
=25℃)
℃
Parameter
Forward Current
Peak Forward Current (Duty 1/10 @10ms)
Power Dissipation
Operating Temperature
Storage Temperature
Thermal Resistance (Junction / Soldering point)
Junction Temperature
Soldering Temperature
Symbol
I
F
I
FP
P
d
T
opr
T
stg
R
th J-S
T
j
T
sol
Rating
180
300
630
-40 ~ +85
-40 ~ +100
21
115
Unit
mA
mA
mW
Hand Soldering : 350
Note:
The products are sensitive to static electricity and must be carefully taken when handling products
Electro-Optical Characteristics (T
Soldering
=25℃)
℃
Parameter
Luminous Flux
(1)
Forward Voltage
(2)
Color Rendering Index
(3)
Viewing Angle
Reverse Current
Symbol
Min.
50
2.8
80
-----
-----
Typ.
-----
-----
-----
120
-----
Max.
83
3.5
-----
-----
50
deg
µΑ
Unit
lm
V
Condition
I
F
=150mA
I
F
=150mA
I
F
=150mA
I
F
=150mA
V
R
=5V
Φ
V
F
Ra
2θ
1/2
I
R
Notes:
1. Tolerance of Luminous flux: ±11%.
2. Tolerance of Forward Voltage: ±0.1V.
3. Tolerance of Color Rendering Index: ±2
3
Copyright © 2015, Everlight Americas Inc.
. Release Date: 30.Oct. 2015. Issue No:
Issue No:
www.everlightamericas.com
℃
℃
Reflow Soldering : 260
for 10 sec.
for 3 sec.
℃
℃
℃
℃
/W
DATASHEET
SMD PLCC
EAHP2835WD23
Bin Range of Luminous Flux
Bin Code
R1
R2
R3
R4
R5
R6
Note:
Tolerance of Luminous flux: ±11%.
Min.
50
55
60
65
70
76
Max.
55
60
65
70
76
83
Unit
Condition
lm
I
F
=150mA
Bin Range of Forward Voltage
Group
Bin Code
35
36
37
2835
38
39
40
41
Note:
Tolerance of Forward Voltage: ±0.1V.
Min.
2.8
2.9
3.0
3.1
3.2
3.3
3.4
Max.
2.9
3.0
3.1
3.2
3.3
3.4
3.5
Unit
Condition
V
I
F
=150mA
4
Copyright © 2015, Everlight Americas Inc.
. Release Date: 30.Oct. 2015. Issue No:
Issue No:
www.everlightamericas.com
DATASHEET
SMD PLCC
EAHP2835WD23
The C.I.E. 1931 Chromaticity Diagram
0.420
0.415
CIE_y
0.410
27M3
0.405
0.400
0.395
0.446 0.448 0.450 0.452 0.454 0.456 0.458 0.460 0.462 0.464 0.466 0.468 0.470
CIE_x
Bin Range of Chromaticity Coordinates
CCT
Bin Code
CIE_x
0.4502
0.4576
2700K
27M3
0.4667
0.4588
CIE_y
0.4020
0.4158
0.4180
0.4041
Reference Range: 2665K~2770K
5
Copyright © 2015, Everlight Americas Inc.
. Release Date: 30.Oct. 2015. Issue No:
Issue No:
www.everlightamericas.com
