571-0130F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 571-0130F

Preview

571-0130F: DescriptionLED Circuit Board Indicators CBI 2MM BI-LEVEL YEL; CategoryLED optoelectronic/LED photoelectric; File Size192KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

571-0130F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	571-0130F	-	-	View	Buy Now

571-0130F Overview

LED Circuit Board Indicators CBI 2MM BI-LEVEL YEL

571-0130F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
JESD-609 code	e2
Lens type	DIFFUSED
Nominal luminous intensity	8.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	590 nm
shape	ROUND
size	2 mm
surface mount	NO
T code	T-3/4
Terminal surface	Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Terminal pitch	2.5 mm
perspective	70 deg
Base Number Matches	1

Preview

Download Datasheet

View All

ASSY. NO.

571-0101F

571-0102F

571-0103F

571-0110F

571-0111F

571-0112F

571-0113F

571-0120F

571-0121F

571-0122F

571-0123F

571-0130F

571-0131F

571-0132F

571-0133F

LED COLOR (DIFFUSED)

TOP POSITION

BLANK

RED

GREEN

YELLOW

BOTTOM POSITION

RED

GREEN

YELLOW

BLANK

RED

GREEN

YELLOW

BLANK

RED

GREEN

YELLOW

BLANK

RED

GREEN

YELLOW

RoHS Compliant 571-01XXF

Part Numbers with the "F" suffix ending are RoHS Compliant.

Example: 571-0112F

Packaging is marked with "RoHS Compliant" label or

equivalent markings.

Parts can be wave soldered, dip soldered or hand soldered using

typical lead-free soldering process with max 260°C temp. for 5 sec.

REV

A

ECN NO

REVISIONS

NEW RELEASE

DRN CKD APP

CE

DATE

AE

NO 1-24-08

NO 9-21-11

B

ADDED WAVE SOLDERING

PROFILE & NOTES 5,6,7,8,9

AJF KLJ

.068

.200

[5,08]

.200

[5,08]

.098

[2,48]

[

+.015

-.008

+0,38

1,72

-0,20

]

.539

[13,7]

.054

[1,37]

TOP LED

2 mm DOT

POINT LED

.150

[3,8]

571

.339 .150

[8,6] [3,81]

.015

[0,38]

.100

[2,54]

.020X.016

[.51X.41]

.015

[0,38]

.071 .008

[1,8 0,2 ]

RECOMMENDED WAVE SOLDERING PROFILE

.100

[2,54]

BOT. LED

CATHODE

.118 .010

[3 0,25 ]

.020

[0,51]

.19

[4,8]

.10

[2,5]

TYP.

1

2

3

4

OPERATING CHARACTERISTICS AT 25 C AMBIENT

CHARACTERISTICS

LUMINOUS INTENSITY

COLOR

RED

YELLOW

GREEN

RED

FORWARD VOLTAGE

YELLOW

GREEN

RED

DOMINANT WAVELENGTH

YELLOW

GREEN

RED

PEAK EMISSION WAVELENGTH

YELLOW

GREEN

RED

VIEWING ANGLE 2

q

1/2

YELLOW

GREEN

RED

CAPACITANCE

YELLOW

GREEN

MIN

8

5

TYP

15

8

10

2.0

2.1

2.2

625

588

568

627

590

565

70

15

20

15

pF

V

F

MAX

UNITS

mcd

TEST CONDITIONS

I

= 10 mA

.100 .002

[2,54 0,05 ]

TYP (3)

.040 .002

[1,02 0,05 ]

TYP (4)

F

2.5

nm

V

I

F

= 20 mA

PIN 1

CATHODE

2

ANODE

nm

Degree

RECOMMENDED PC

BOARD HOLE PATTERN

3

CATHODE

4

ANODE

= 0 V, f = 1 MHz

ABSOLUTE MAXIMUM RATING AT 25°C AMBIENT

POWER DISSIPATION

FORWARD CURRENT

DERATING LINEAR FROM 25

REVERSE VOLTAGE

LEAD SOLDERING TEMPERATURE, 5 SEC., 1/16" FROM BODY

OPERATING TEMPERATURE

STORAGE TEMPERATURE

C

RED

105

30

.40

YELLOW

105

30

5

260

-40 TO +85

GREEN

105

25

.33

UNITS

mW

mA

mA/ C

V

°C

NOTES:

1. LED LEAD DIMENSIONS ARE MEASURED AT HOUSING EXIT.

2. PIN NUMBERS FOR REFERENCE ONLY, DESIGNATION

NON-EXISTENT ON PARTS

3. DIALIGHT PART NUMBERS: 571-01XXF

4. THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE

DEVICES (ESDS). MAINTAIN ALL PRECAUTIONARY MEASURES DURING

ASSEMBLY, HANDLING AND STORAGE IN ACCORDANCE WITH 1PC-A-610.

5. RECOMMENDED WAVE SOLDERING TEMPERATURE: 245 C~260 C.

6. DO NOT APPLY STRESS TO THE EPOXY RESIN WHEN TEMPERATURE

IS ABOVE 85 C.

7. SOLDERING PROFILE APPLIES TO LEAD FREE SOLDERING PROCESS

(Sn/Cu/Ag ALLOY).

8. DURING WAVE SOLDERING, THE PCB TOP SURFACE SHOULD BE KEPT

BELOW 105 C.

9. DO NOT SOLDER MORE THAN ONCE.

THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND

THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING

OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE

FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.

SCALE: DRAWING SCALE

ALL DIM'S IN: INCHES (MM)

TOLERANCES:

UNLESS OTHERWISE SPECIFIED

DRAWING NUMBER

REV

C-17454

TITLE

MATERIAL

B

FRACTIONS:

1/64

DECIMALS (.XX):

.01

DECIMALS (.XXX):

.005

DECIMALS (.XXXX):

.0005

ANGLES:

1

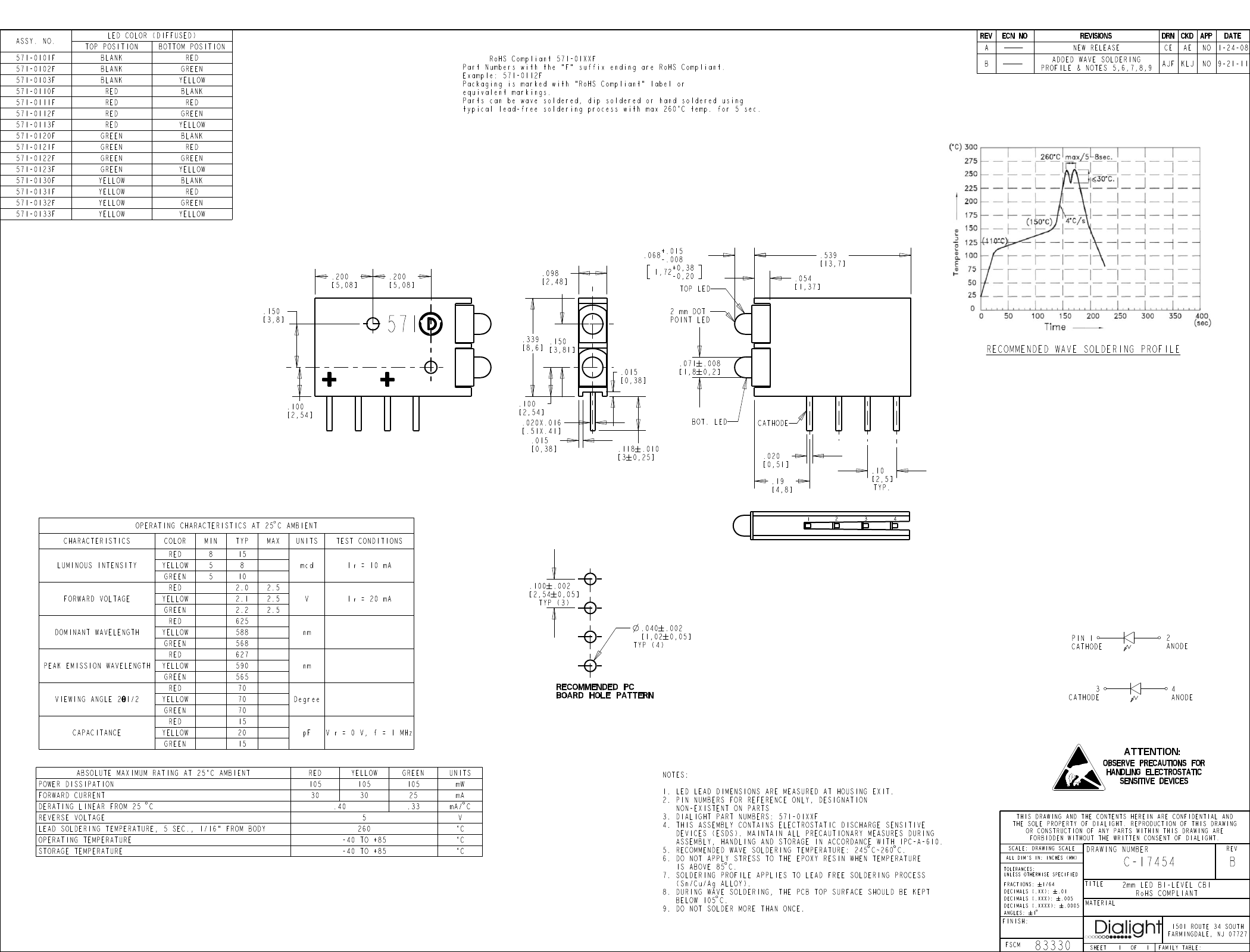

2mm LED BI-LEVEL CBI

RoHS COMPLIANT

FINISH:

1501 ROUTE 34 SOUTH

FARMINGDALE, NJ 07727

FSCM

83330

SHEET

1

OF

1

FAMILY TABLE:

571-0130F Related Products

	571-0130F	571-0103F	571-0131F	571-0102F
Description	LED Circuit Board Indicators CBI 2MM BI-LEVEL YEL	LED Circuit Board Indicators CBI 2MM BI-LEVELX-YE	LED Circuit Board Indicators CBI 2MM BI-LEVEL Y/R	Headers u0026 Wire Housings 8 CKT R/A HEADER
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	compliant
color	YELLOW	YELLOW	RED/YELLOW	GREEN
Configuration	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.025 A
JESD-609 code	e2	e2	e2	e2
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	8.0 mcd	8.0 mcd	15.0/8.0 mcd	10.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	2	1
Number of terminals	2	2	4	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	DUAL COLOR LED ARRAY	SINGLE COLOR LED
total height	8.6 mm	8.6 mm	8.6 mm	8.6 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	590 nm	590 nm	627/590 nm	565 nm
shape	ROUND	ROUND	ROUND	ROUND
size	2 mm	2 mm	2 mm	2 mm
surface mount	NO	NO	NO	NO
T code	T-3/4	T-3/4	T-3/4	T-3/4
Terminal surface	Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)	Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)	Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)	Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	70 deg	70 deg	70 deg	70 deg
Base Number Matches	1	1	1	1
Is Samacsys	-	N	N	N
