CN12657_LENINA-M: DescriptionLED Lighting Reflectors Round Reflector 1 position; CategoryLED optoelectronic/LED; File Size190KB，1 Pages; ManufacturerLedil; Websitehttp://www.ledil.com

Download Datasheet Parametric Compare View All

CN12657_LENINA-M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CN12657_LENINA-M	-	-	View	Buy Now

CN12657_LENINA-M Overview

LED Lighting Reflectors Round Reflector 1 position

CN12657_LENINA-M Parametric

Parameter Name	Attribute value
Product Category	LED Lighting Reflectors
Manufacturer	Ledil
RoHS	Details
Type	Medium Beam Reflectors
For Use With	Bridgelux BXRA RS
Shape	Round
Viewing Angle	44 deg
Color	Metal
Diameter	74 mm
Height	44.5 mm
Length	-
Operating Temperature Range	-
Factory Pack Quantity	60
Termination Style	Screw
Width	-

Preview

Download Datasheet

View All

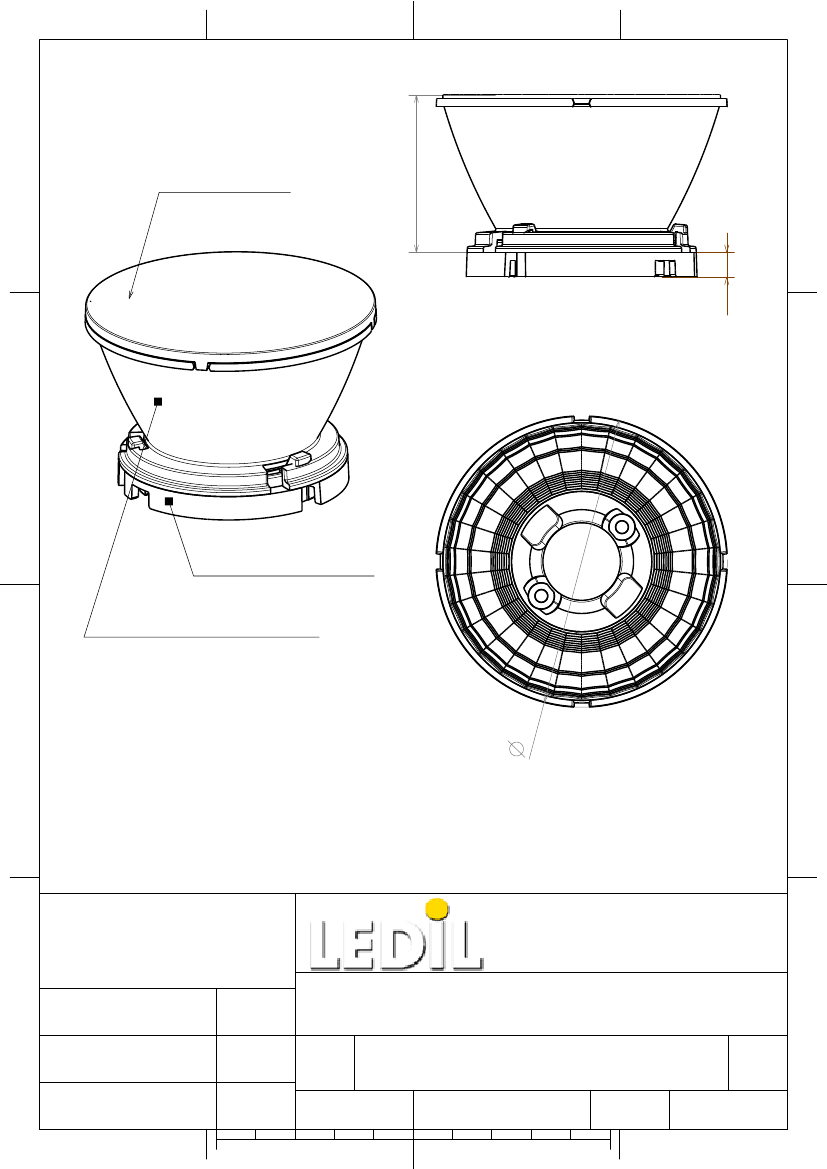

D

C

B

A

Lens material:

PC, clear

40

4

h2

3

Base material PC, white

Reflector material PC

Metal plated with clear lacquer

74

2

NOTE:

U

sing optional

sublens, add 2.1mm

to the system height

Dimension 'h2' varies from 4.5mm to

7mm depending on the LED specific base part

This drawing is our property.

It can't be reproduced

or communicated without

our written agreement.

Ledil Oy

Salorankatu 10

FIN-24240 SALO

Finland

DRAWN BY

DATE

08.03.2012

DRAWING TITLE

1

pl

Datasheet Lenina series

SIZE

DRAWING NUMBER

CHECKED BY

DESIGNED BY

DATE

08.03.2012

A4

SCALE

1:1 WEIGHT(g)

--

SHEET

REV

1

1/1

pl

D

A

CN12657_LENINA-M Related Products

	CN12657_LENINA-M	CN12920_LENINA-W	CN12701_LENINA-M	CN12652_LENINA-W
Description	LED Lighting Reflectors Round Reflector 1 position		LED Lighting Reflectors Round Reflector 1 position	LED Lighting Reflectors Round Reflector 1 position
Product Category	LED Lighting Reflectors	LED Lighting Reflectors	LED Lighting Reflectors	LED Lighting Reflectors
Manufacturer	Ledil	Ledil	Ledil	Ledil
RoHS	Details	Details	Details	Details
Type	Medium Beam Reflectors	Wide Beam Reflectors	Medium Beam Reflectors	Wide Beam Reflectors
For Use With	Bridgelux BXRA RS	Nichia COB204, NSBxL110, NSBxL121A	Citizen CLL03x, Tridonic STARK SLE PURE G3 LES17, Seoul ZC12/18	Citizen CL-L340
Shape	Round	Round	Round	Round
Viewing Angle	44 deg	50 deg, 56 deg, 58 deg	30 deg	48 deg
Color	Metal	Metal	Metal	Metal
Diameter	74 mm	74 mm	74 mm	74 mm
Height	44.5 mm	46.95 mm	45.4 mm	46 mm
Factory Pack Quantity	60	60	60	60
Termination Style	Screw	-	Screw	Screw
