Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Specification
UYGT801-S
SSC
Drawn
Approval
Customer
Approval
Rev. 00
September 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
UYGT801-S
1. Features
2.
Absolute Maximum Ratings
3. Electro-Optical Characteristics
4. Characteristic Graph
5. Reliability
6. Color & binning
7. Outline Dimension
8. Packing
9. Soldering
10. Precaution for use
11. Handling of Silicone Resign LEDs
Rev. 00
September 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Technical Data Sheet
UYGT801-S

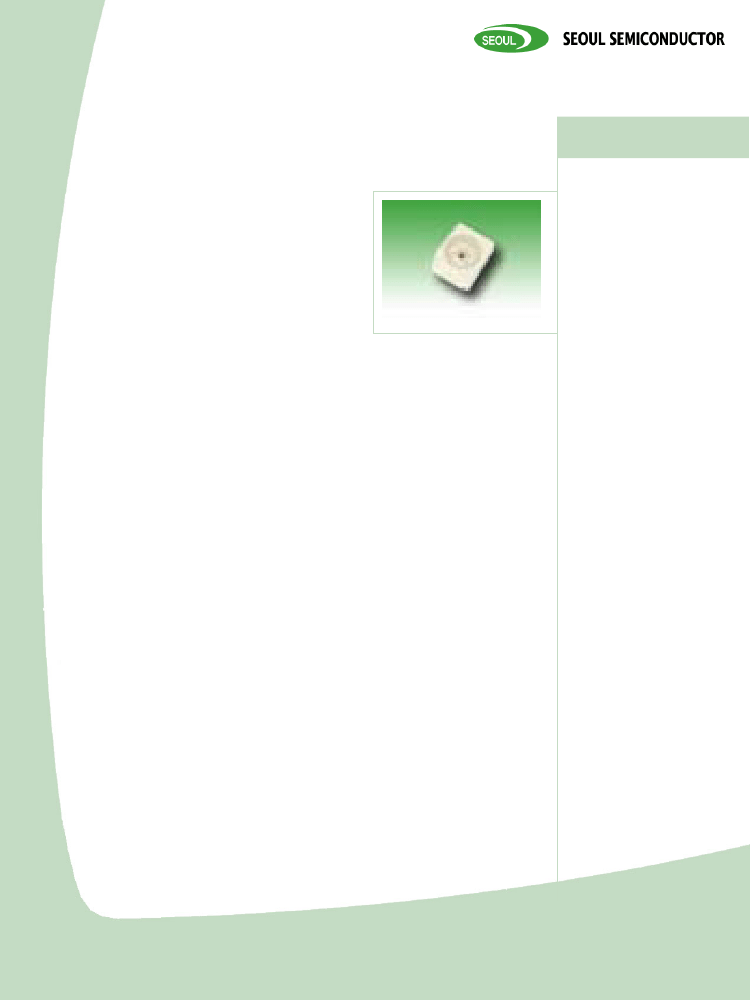

Description
This surface-mount LED
comes in PLCC standard
package dimension. It has a
substrate made up of a molded
plastic reflector sitting on top
of a bent lead frame. The die is
attached within the reflector
cavity and the cavity is
encapsulated by epoxy or
silicone
The package design coupled
with careful selection of
component materials allow
these products to perform with
high reliability in a larger
temperature range -40℃ to
100℃. The high reliability
feature is crucial to Automotive
interior and Indoor ESS.
사진
UYGT801-S
Features
•
Industry Standard
PLCC SMT package
•
High brightness
using AlInGaP dice
technologies
•
Available in multiple
colors
•
High volume, high
reliability
Applications
•
Interior automotive
•
Electronic Signs and
Signals
•
Office Automation,
Electrical Appliances,
Industrial Equipment
Rev. 00
September 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
1. Features
•
Yellow-Green colored SMT package
•
Material AlInGaP
•
Suitable for all SMT assembly methods
Suitable for all soldering methods
•
RoHS Compliant
Rev. 00
September 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
2. Absolute maximum ratings
Parameter
Power Dissipation
Forward Current
Peak Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Symbol
Value
75
30
90
5
-40 ~ +100
-40 ~ +100
Unit
mW
mA
mA
V
o
C
o
C
P
d
I
F
I
FM
*2
V
R
T
opr
T
stg
[1] Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
[2] I
FM
was measured at Tw≤1 msec of pulse width and D≤1/10 of duty ratio.
[3] LED’s properties might be different from suggested values like above and below tables if operation condition
will be exceeded our parameter range.
3. Electro-Optical characteristics
Parameter
Forward Voltage
Reverse Current
Luminance Intensity
*1
Peak Wavelength
Dominant Wavelength
Spectral Bandwidth 50%
Viewing Angle
*2
2
θ
Symbol
Condition
Min
1.7
-
30
-
568
-
-
Typ
2.1
-
90
576
572
18
120
Max
2.5
10
105
-
574
-
-
Unit
V
μA
mcd
nm
nm
nm
deg.
V
F
I
R
I
V
λ
P
λ
d
Δλ
½
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
*1. The luminous intensity IV was measured at the peak of the spatial pattern which may not be aligned with the mechanical axis of
the LED package. Luminous Intensity Measurement allowance is ±10%
*2. 2
θ
½
is the off-axis where the luminous intensity is 1/2 of the peak intensity.
*3. A tolerance of ±0.05V on forward voltage measurements
Rev. 00
September 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
